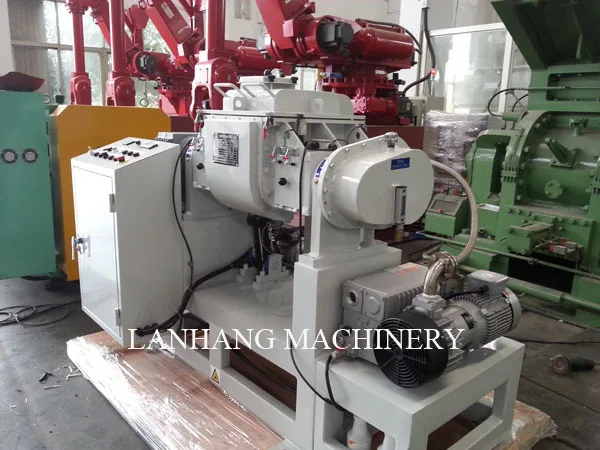

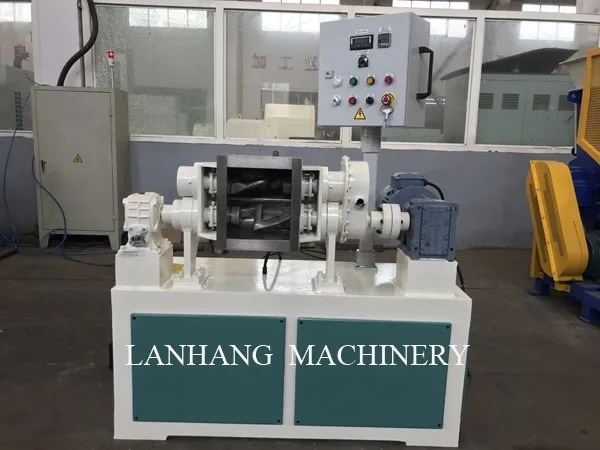

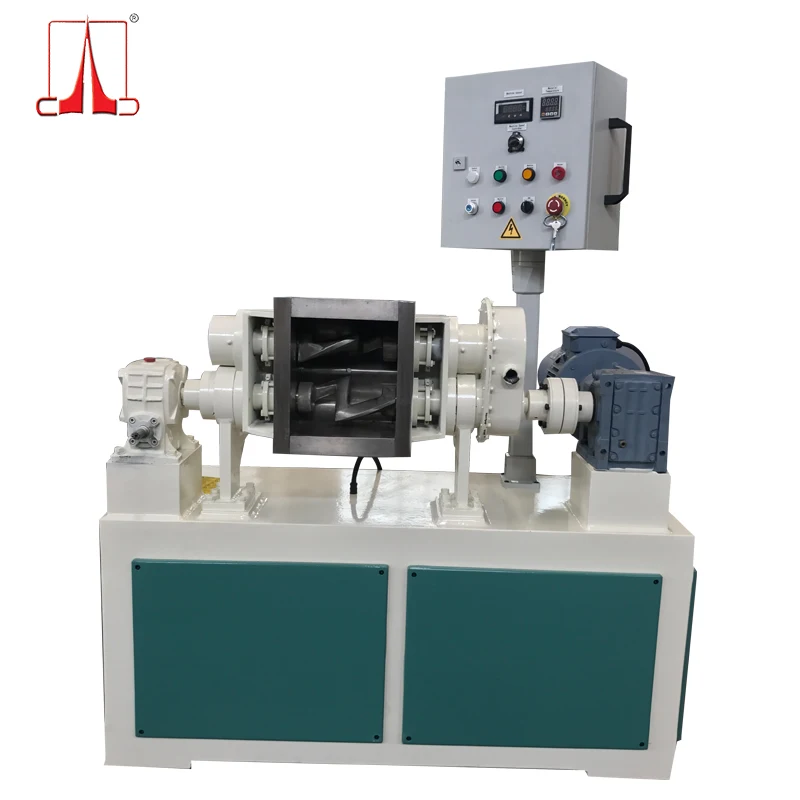

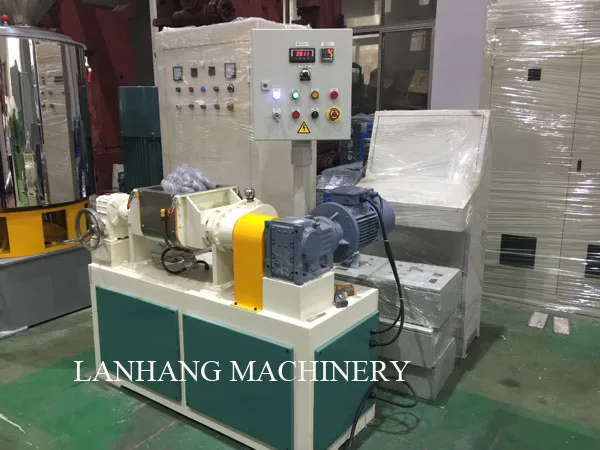

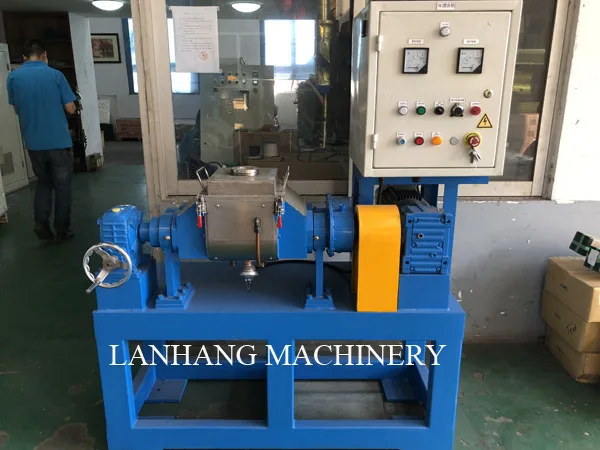

NH 75L Lab Silicone Rubber Sigma Blade Kneader Mixer with Vacuum Pump

Product Overview

Description

 Why Choose Chemical Mixer from Lanhang:
1. Since1992, with more than 20 years' professional experience
 2. Overseas service center available (in Europe, Japan, Dubai, etc.)
 3. International CE, SGS, IAF, CNAS certification
 4. National high-tech enterprise / products
 5. Various National Patent for Inventions Letters for rubber & plastic machinery
 6. ISO9001:2008 management

Specifications  of Screw discharge kneader
1. Use: for silicone rubber mixing
2. Volume:25,75,100,200,500 1000, 1500, 2000, 3000,4000L
3. Rotor type:sigma /Z blade ,two wings blade

Breif introduction
This rubber kneader is special used for mixing and kneading high-viscositymaterial. It has a excellent effect for mixing, kneading, crushing and dispersing because of the intense shearing force which  produced by two powerful rotary oars.
Type of discharging : bottom discharge or titling discharge.
 Heating way:steam heating & oil heating & electric heating.
 Main material:Carbon steel,stainless steel.
 Cooling methed: Water cooling.

Project	NH-5000	NH-3000		NH-2000		NH-1500
Capacity(L)	5000	3000		2000		1500
Clamp cover forcing strength(Mpa)	≤0.3
Vacuum degree of mixing chamber(Mpa)	≤-0.094
Rotating speed(rpm)	N1 35, N2 21
Motor Power(KW)	300		220	160	132

Solid reputation Various type Excellent quality industry rubber sigma kneader

Items	Specification
Total Volume	100L
Working Volume	75L
Chamber Material	Steel12mm or SUS304
Blades Material	Steel or SUS304
Blades speed(RPM)	0~32 (adjustable )
Blades Type	Double Sigma Z
Clearance Between Rotor and Chamber	3-5mm
Discharging Method	Screw extrusion
Screw Power	5.5kw
Lid Opening	Manual
Motor Power (AC INV MOTER)	7.5kwX2 individual driven
Inverter Brand	Siemens China
Reducer	Chinese brand
Bearing	Chinese brand
Power Supply	As per request
Quality Control	CE certificate

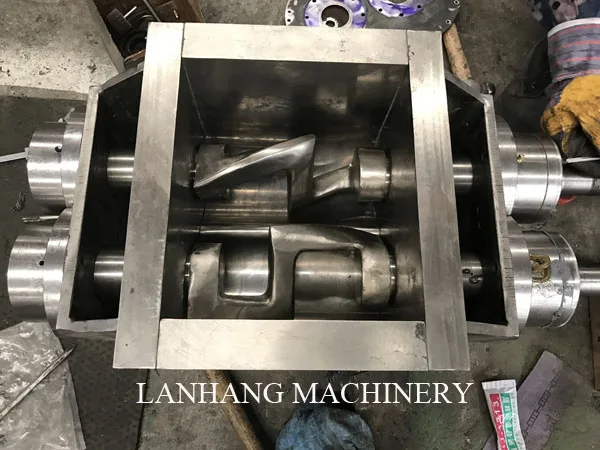

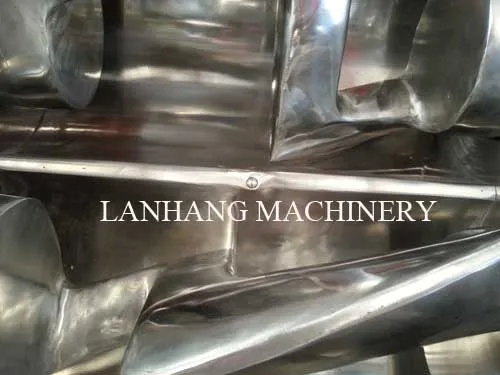

For processing of medium material  and highly viscous compounds in batch operation which is equipped with two horizontally arranged Z-shaped blades which is deeply geared into one another and strip themselves reciprocally.   The mixing action incorporated by Sigma Kneaders is a combination of shearing, stretching, folding, dividing and recombining.
