China made 80v 200A DC contactor ZJWT200A replace the Albright types of DC182

The product has two sets of contact switch, which can be used in auto electric winch, telecommunication equipment, engineering machinery, storage battery, electric forklift trucks, trains, ships, uniterruptible power supply and other electric control system.
Detailed Images

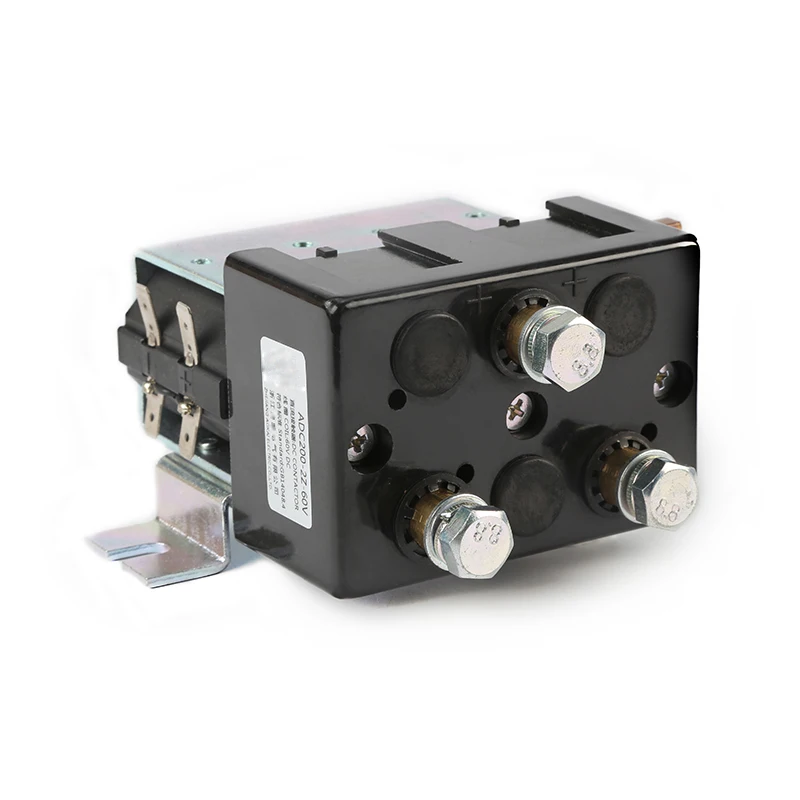

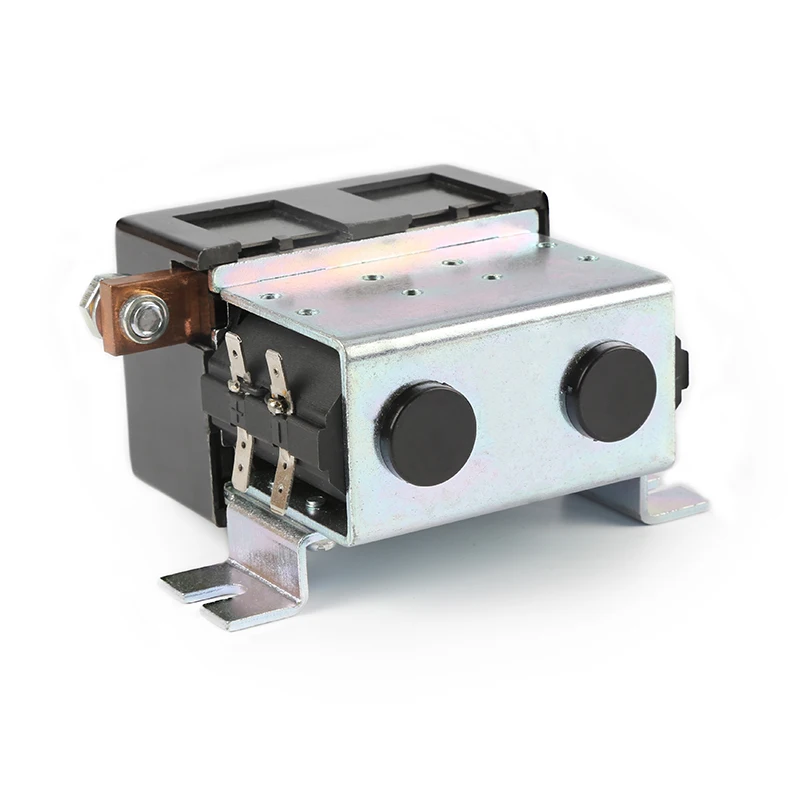

China made 80v 200A DC contactor ZJWT200A replace the Albright types of DC182

1) Rated Voltage: 80V

2) Current:  200A

3) Contact form: 2 NO and 2NC


Technical Parameters
\t
Rated Voltage
\t
12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, etc.
\t
Contact circuit rated load current
\t
200A
\t
Typical voltage drop across contacts per 100A
\t
≤80mV
\t
the cooling pull-in voltage at (20+5)°C
\t
≤70%
\t
The allowed range of coil voltage
\t
±20%
\t
insulation resistance
\t
≥50mΩ
\t
Overload Current
\t
≤7Ie, ≤1s
\t
Electrics strength to resist
\t
50Hz/60Hz 1000VAC/1min
\t
Contact form
\t
2NO and 2NC
\t
Contact material
\t
AgCdO/AgCuO
\t
Work specification
\t
continuous
\t
Mechanical life
\t
300 thousand times
\t
Starting Current
\t
≤4A
\t
Technical Specification
\t
GB14048.4-2010
Application
Environment
\t
altitude
\t
≤2km
\t
ambient temperature
\t
-25~+55℃
\t
International protection
\t
IP50
\t
way to install
\t
any
Packing & Delivery

China made 80v 200A DC contactor ZJWT200A replace the Albright types of DC182

Packaging Details:\tregular packing
Delivery Detail:\tShipped in 20 days after payment
