4 20ma Flow Control Motor Operated Valve Electric IP68 OEM Control Valve

Product Overview

Description

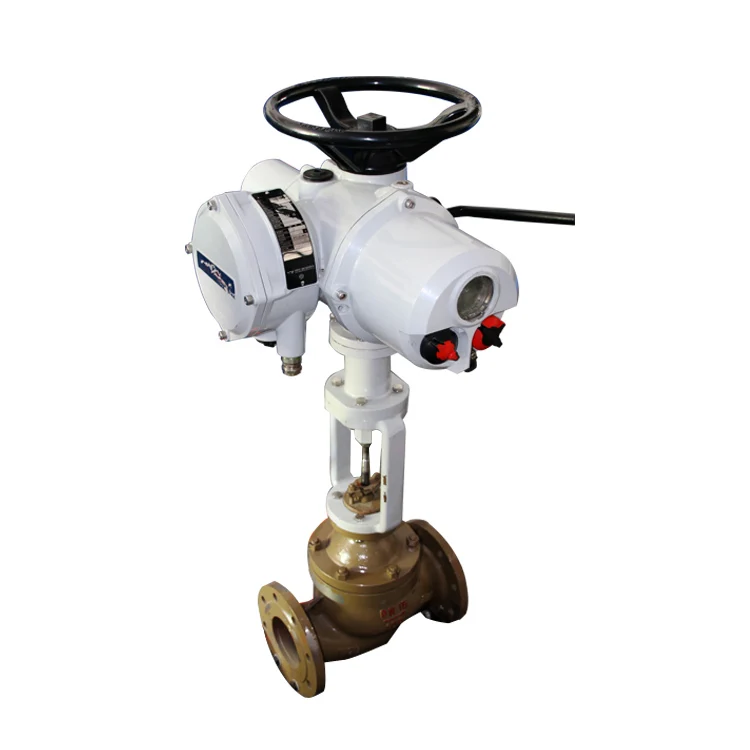

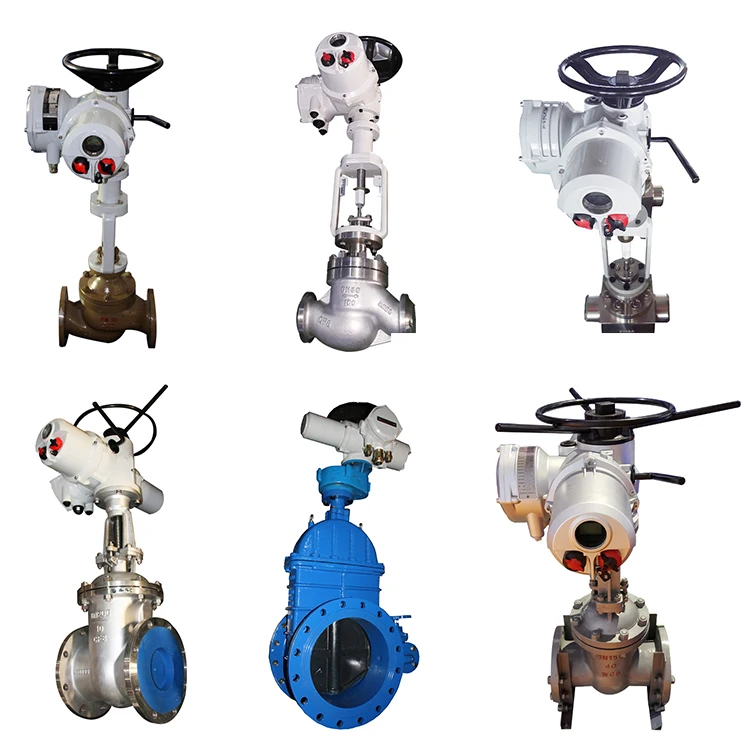

       4-20ma Flow Control Motor Operated Valve

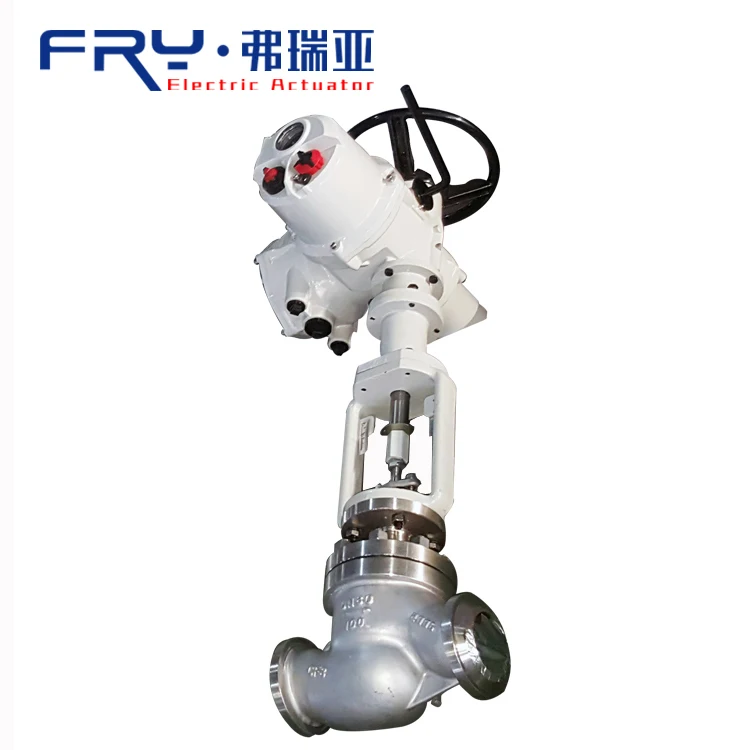

The DN20-DN300 stainless steel electric actuator electric regulating valve regulating valve is a balanced electric control valve. By adopting a smart integrated electric actuator, it accepts analog 4-20 mA or 1-5 V•DC standard signal, which converts the current signal into a corresponding linear displacement, and then automatically controls the opening of the electric control valve, thereby it realizes continuous adjustment of process parameters such as pressure, flow, temperature and liquid level of fluid in the pipeline. The intelligent electric control valve has a compact structure, light weight, good stability and high protection level. Intelligent electric control valves are widely used in automatic control systems such as large thermal power plants, chemical plants, water treatment and sewage treatment, natural gas fields, and steel plants. As the world's leading manufacturer of actuators, this electric control valve has a worldwide reputation for its durable products. With decades of experience in installation and use in a variety of environments,this control valvehas developed a highly reliable design.



Directional forge remote water electrical flow pressure air control valve is combined with linear-turn electric actuator and regulating valve. The electric actuator outputs the axial thrust, which makes the valve core move accordingly, so as to adjust the process parameters such as pressure, flow, temperature and liquid level. The valve body has compact structure, small pressure drop loss, large flow, wide adjustable range, high accuracy of flow characteristic curve, and meets the IEC534-1-1976 standard.The valve core guide area is large, the shock resistance is good, the seat leakage is in accordance with ANSIB16.106 standard.

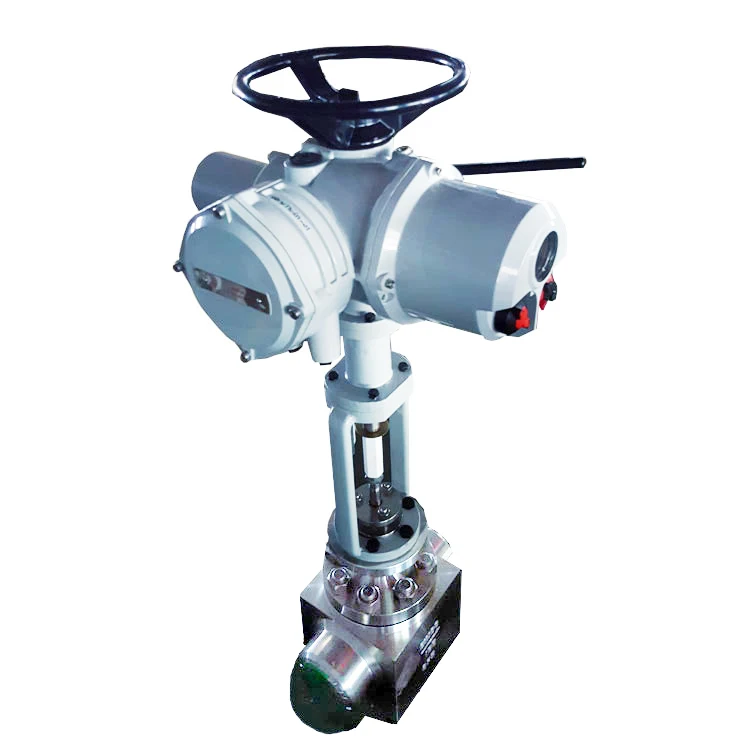

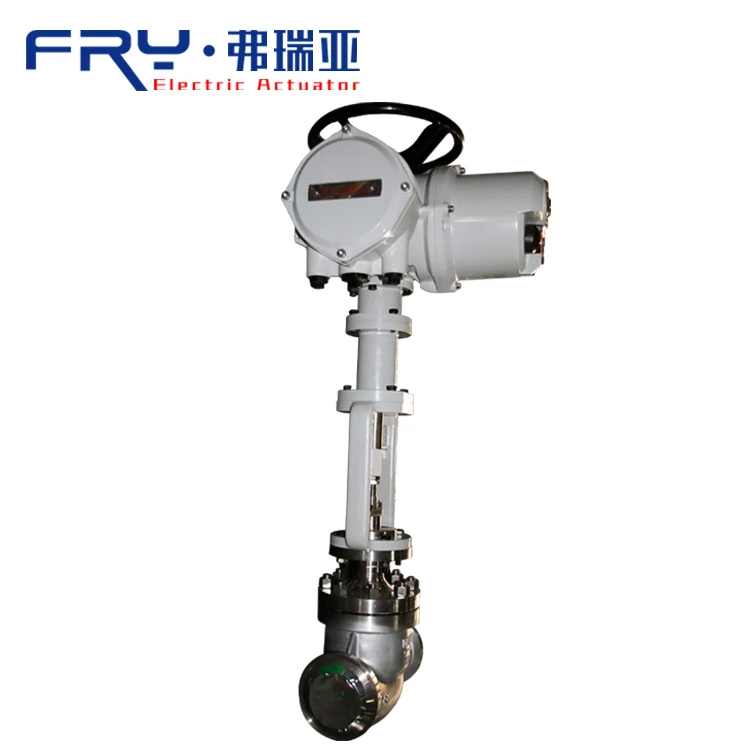

Electric high pressure regulating valve consists of the PSL series or the 3810L series of linear turn actuators and high pressure regulators. The control valve used for a serious problems which have short service life, easy to break the valve stem, and easy to fall off the bushing under severe conditions of high pressure or high pressure differential, severe cavitation and erosion. In order to avoid these problems, our company developes the electric high pressure cage regulating valve. Electric high pressure regulating valve  adopts the cage throttling form to share the pressure difference, which reduces the cavitation, erosion and sag damage, and greatly improves the service life of the regulating valve, especially in the urea system, which is 2-3 times longer than the normal high-pressure valve.

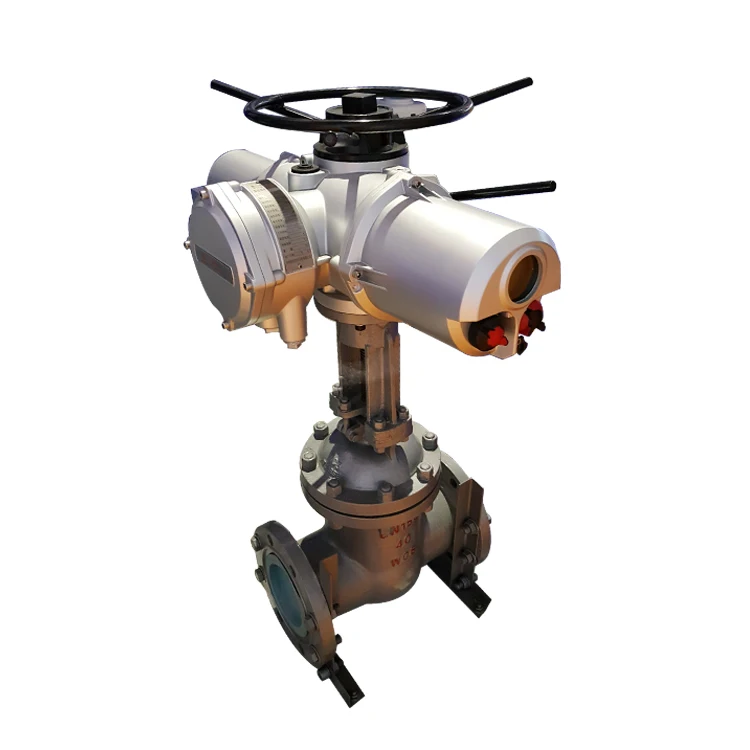

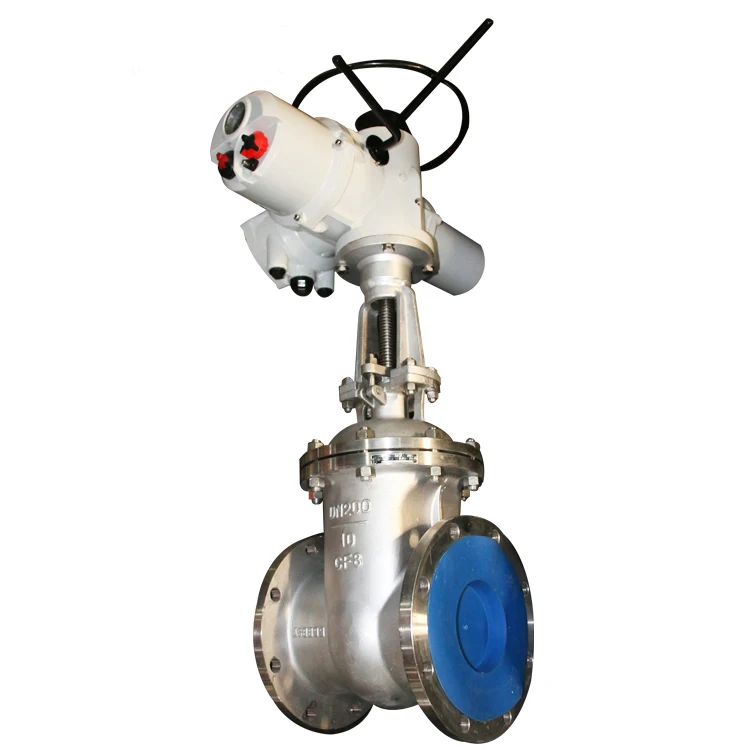

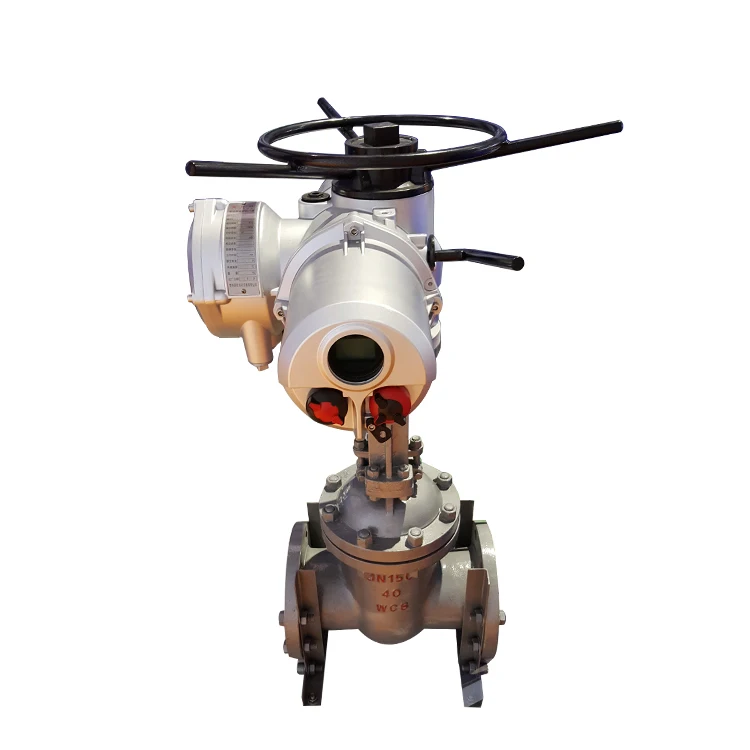

The high and medium pressure flange gate valve is suitable for cutting off or connecting the pipeline medium on the various system pipelines of petroleum, chemical, hydraulic and thermal power stations with nominal pressure PN16-16.0MPa and working temperature ≤-29°C~550°C. Applicable medium: water, oil, steam, and acid, alkali, ammonia, urea, sulfur-containing natural gas, etc. Modeling methods are: manual, gear transmission, electric, pneumatic and so on.

The high and medium pressure flange gate valve is suitable for cutting off or connecting the pipeline medium on the various system pipelines of petroleum, chemical, hydraulic and thermal power stations with nominal pressure PN16-16.0MPa and working temperature ≤-29°C~550°C. Applicable medium: water, oil, steam, and acid, alkali, ammonia, urea, sulfur-containing natural gas, etc. Modeling methods are: manual, gear transmission, electric, pneumatic and so on.

 1. Selection of materials, in line with relevant domestic and international standards, high overall quality of materials.

2. It meets the requirements of advanced standards at home and abroad, with reliable sealing, excellent performance and beautiful appearance.

 3. The sealing strip is advanced and reasonable. The sealing surfaces of the ram and the valve seat are made of Stelita with different hardness. The drill-based hard alloy is surfacing, reliable sealing, high hardness, wear resistance, high temperature resistance and resistance. Corrosion, anti-cracking performance, long life.

4. The valve stem is tempered and surface oxidized, and has good corrosion resistance, scratch resistance and wear resistance.

 5. The use of wedge-type elastic ram structure, medium and large caliber thrust bearing, small friction, and equipped with impact manual, easy to open and close.

6. Various pipe flange standards and flange sealing surface forms can be used to meet various engineering needs and user requirements.

7. It is equipped with multi-turn electric device, which has small casing, light weight function. The well can be used with remote computer, and electric device can be selected according to user requirements.

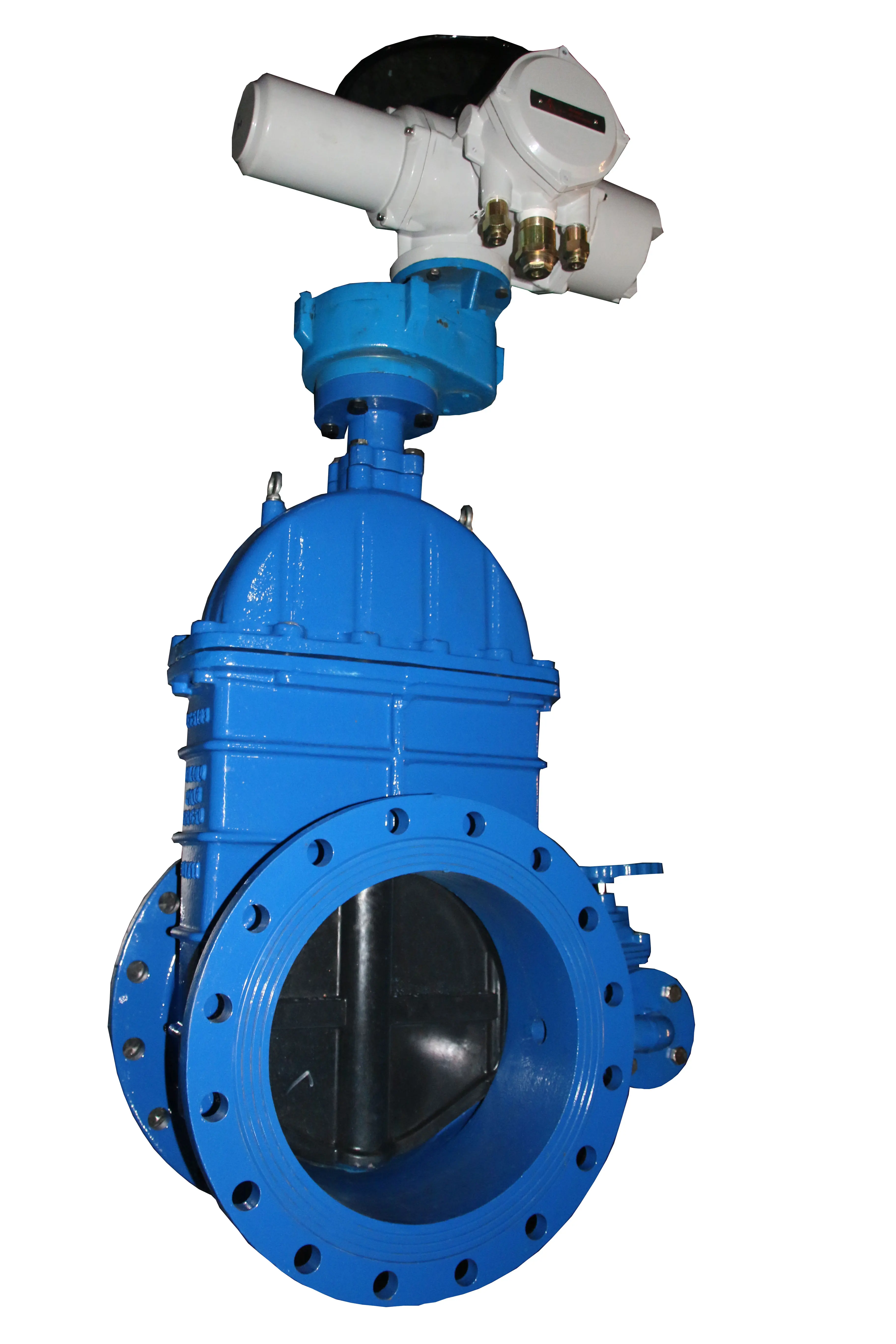

Electric water seal gate valve opens and closes the valve by rising and falling the gate. Its gate perpendicular to the way of fluid, and the size of the channel can be changed by altering the relative position between gate and valve seat. The product has many advantages, like: small hydraulic resistance, small area of sealing face will be eroded by medium, saving effort when it turn and turn off, unlimited of the flow direction of medium, and the flow will not be turbulent, the pressure will not reduced, simple outlook, short structure length, good manufacture usability, widely applicable range.
