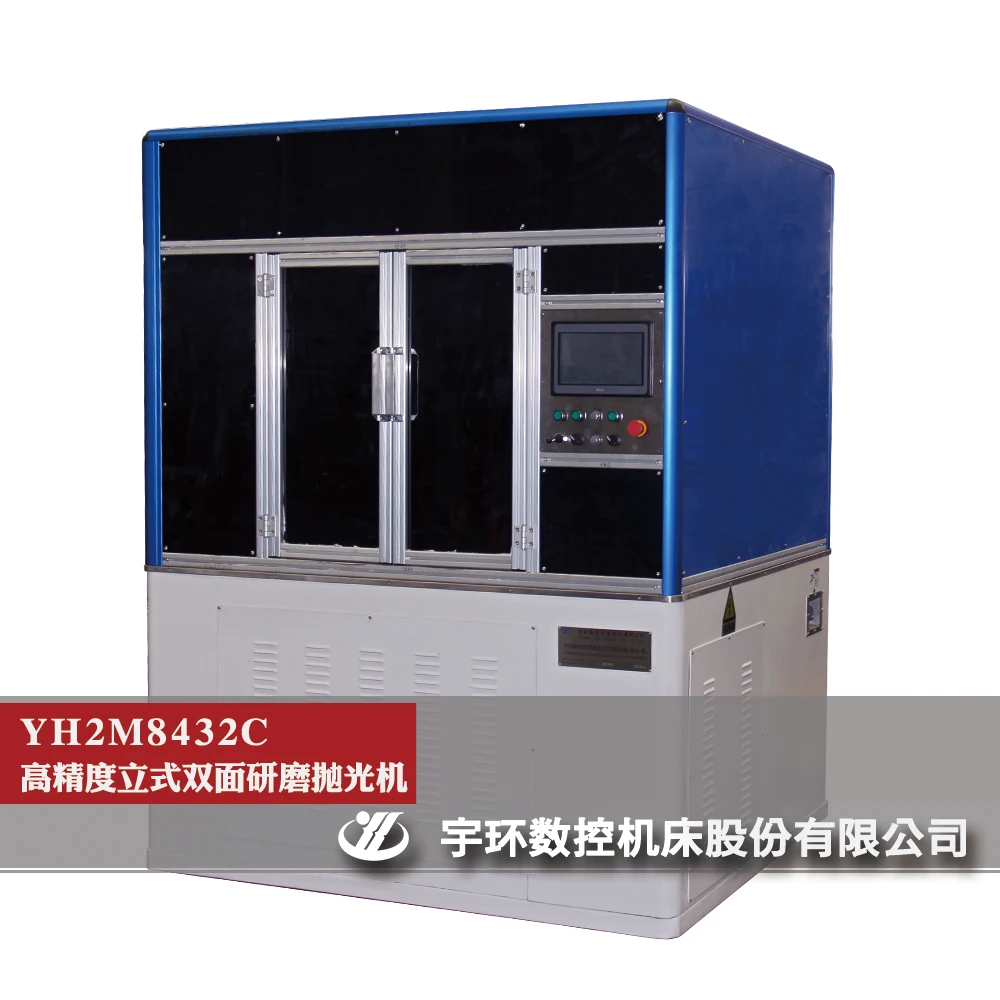

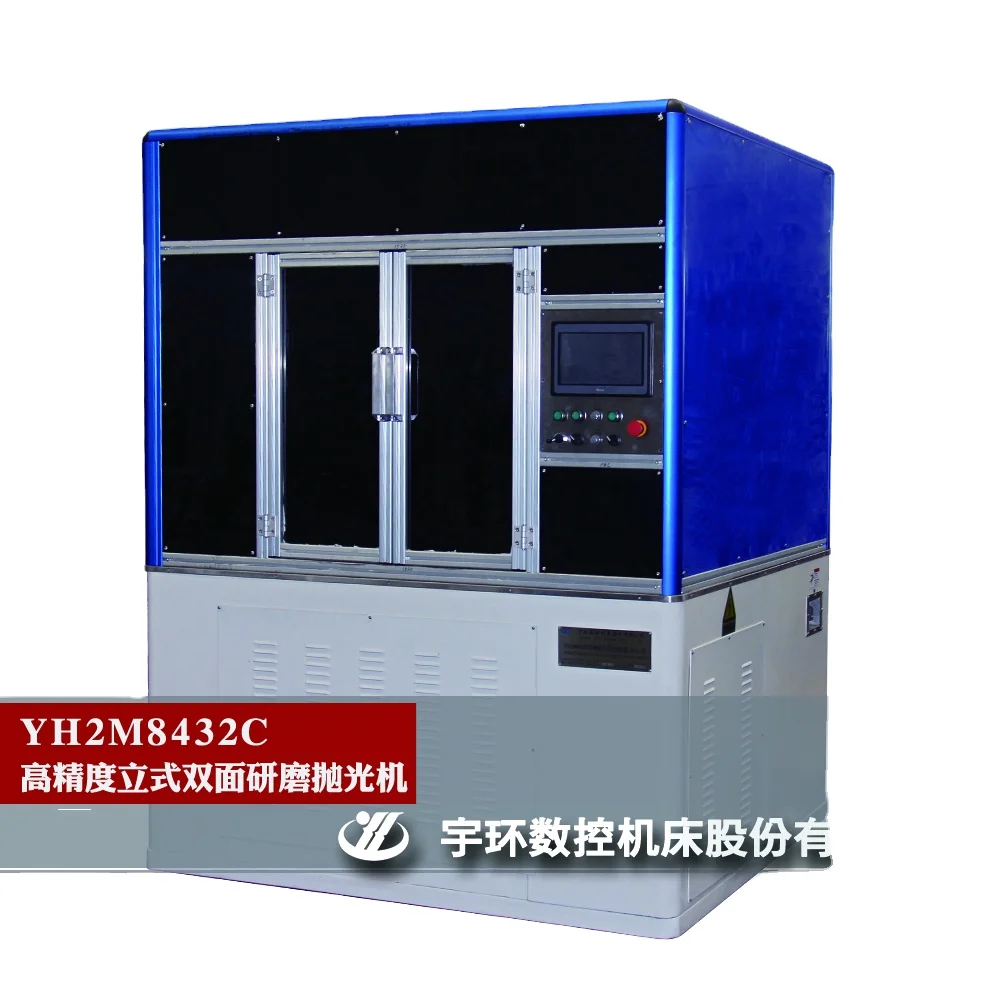

CNC Double Surface Lapping/Polishing polishing machine
- Category: >>>
- Supplier: Yuhuan Cnc Machine Tool Co. Ltd.
Share on (62109487201):
Product Overview
Description
Product Description
Technical characters:
1.The movement principle of planet gears.
2.Stable, the weight of tray is distributed to the base plate through hollow shaft, cone bearing and three supporting legs
3.Exclusive reducer and frequency converter regulating, there is one for each ring gear, upper plate, lower plate and sun gear, and the machine starts and stops smoothly.
4.Programmable, it is easy to program on interface and it can add 100 programs.
5.* Pressure detecting mechanism, automatically detect the pressure of work piece.
6.Self-lock cylinder, when upper plate goes up to upper limit, hook will catch it for ensuring operator’s safety.
7.PLC controlling, which it is flexible and reliable.
8.Touch screen, it is convenient to show alert information and state. Besides, the interface is friendly and the information is huge.
*Remark: Pressure detecting mechanism is optional.
Item/Model | Unit | Spec. |
Lapping plate size (OD×ID×T) | mm | Φ1070×Φ495×Φ45 |
Planetary wheel | mm | P=15.875 Z=64 |
Number of planetary wheel | mm | 3≤n≤7 |
Max size of workpiece | mm | Φ280(diagnol) |
Min thickness of workpiece | mm | 0.4 |
Flatness of lapped workpiece | mm | 0.06(Φ100) |
Flatness of polished workpiece | Mm | 0.08(Φ100) |
Surface roughness of lapped workpiece | rpm | Ra0.15 |
Surface roughness of polished workpiece | Ra0.05 | |
Overall dimensions (L*W*H) | piece | 1640×1440×2700 |
Total weight | kg | 2000 |
![%$K]HB0GFC_5)[_JH}5ZV3G](http://g02.s.alicdn.com/kf/HTB1NTPIKpXXXXX.XVXX760XFXXXf/205097617/HTB1NTPIKpXXXXX.XVXX760XFXXXf.png)
Our company has modern production workshop, Complex efficient grinding Laboratory , Computer Design Studio , has a variety of testing instruments and equipment over 30 sets of experimental facilities , a variety of processing equipment over 60 sets .
Packaging & Shipping
1.Fumigated wooden packages with IPPC stamp.
2.Special packing requirements available.
Company Information
The R&D team has about over 50 engineers, occupied 20% of total staffs. Includes 19 SenierMechanical engineers( 4with doctor’s degree,8 with master’s degree),7 Senierelectrical engineers,5 CNC soft engineers
- The workshop and office area covers 20K Sqmeters.
- With over 270 staffs, including over 50 R&D technical engineers.
- Main products output more than 1000 sets per year.
Certifications
Our R & D team establish a long - term partnership with National University of Defense Technology , Dalian University of Technology , Hunan University , Central South University , and other renowned institutions . Yuhuan is also research base for Hunan University’s doctoral student , get 5—9 patents per year .
- has got 36 related patents
- A certificate of international standard products in 2005
- has passed ISO9001 : 2000 international quality system certification, has estabished corporate product standards
Customers
Our products are widely used in automotive, IT electronic, military, and aerospace, shipbuilding, bearings,seals, household appliances, and other key areas of national economy.
Foreigners Visiting
Our products have been in great demand by more than twenty provinces including Taiwan all around China, and Vietnam, Portugal, Russia, Kenya, Brazil and other countries. We have obtained high prestige from our customers for the high quality products, satisfactory after-sales services and competitive price.
After-Sales Service
1.Guarantee period is one year. Within this period, the replaced parts will be offered free if has quality problem.
2.We could arrange engineers to user’s site for installation and final-acceptance according to customer’s requirements.
3. We will offer free the training for machine’s management ,operation , maintenance to user’s related people.
