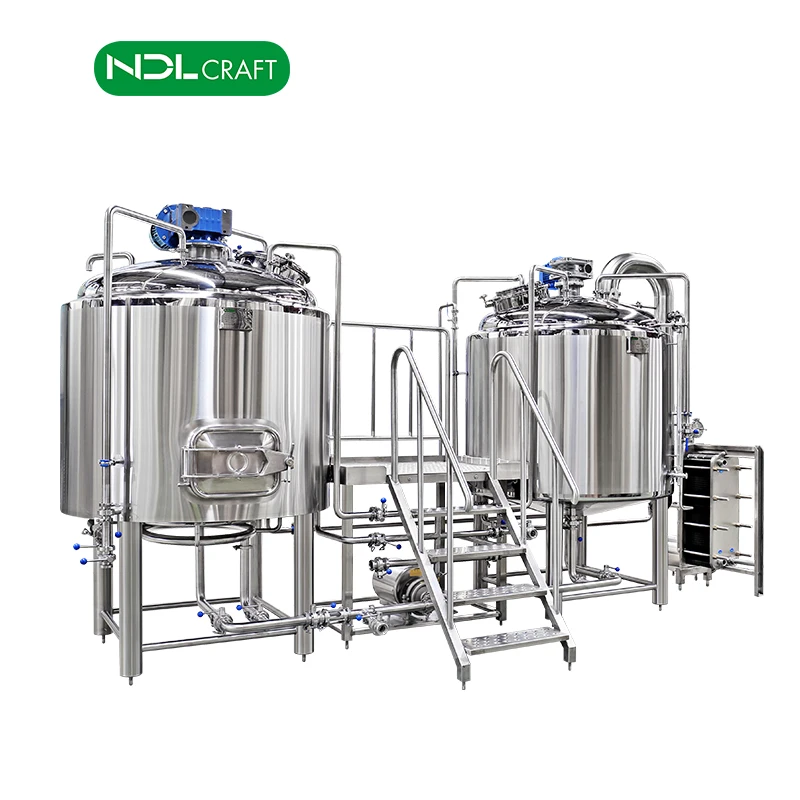

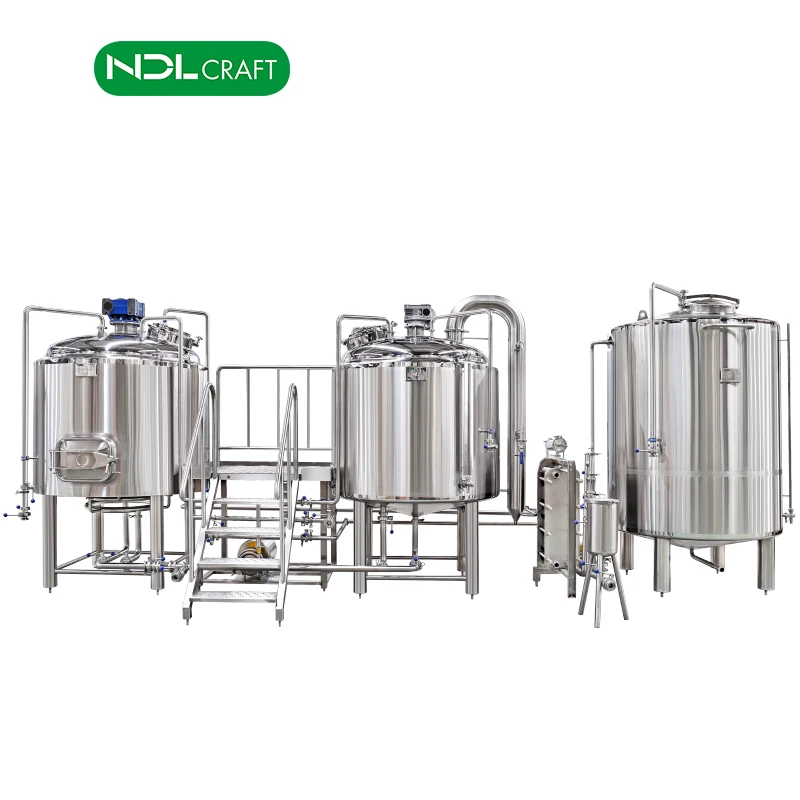

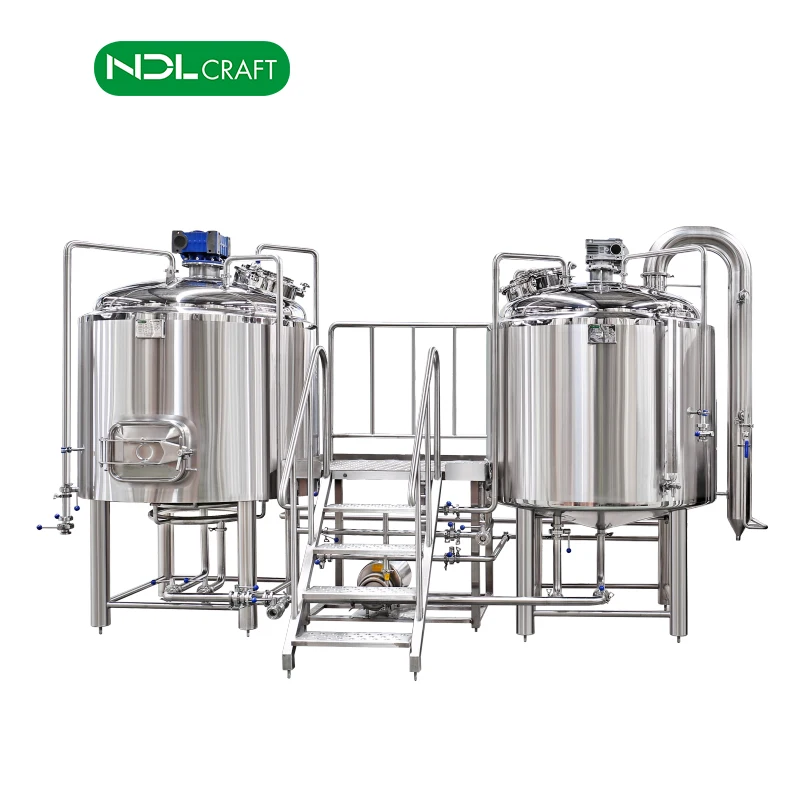

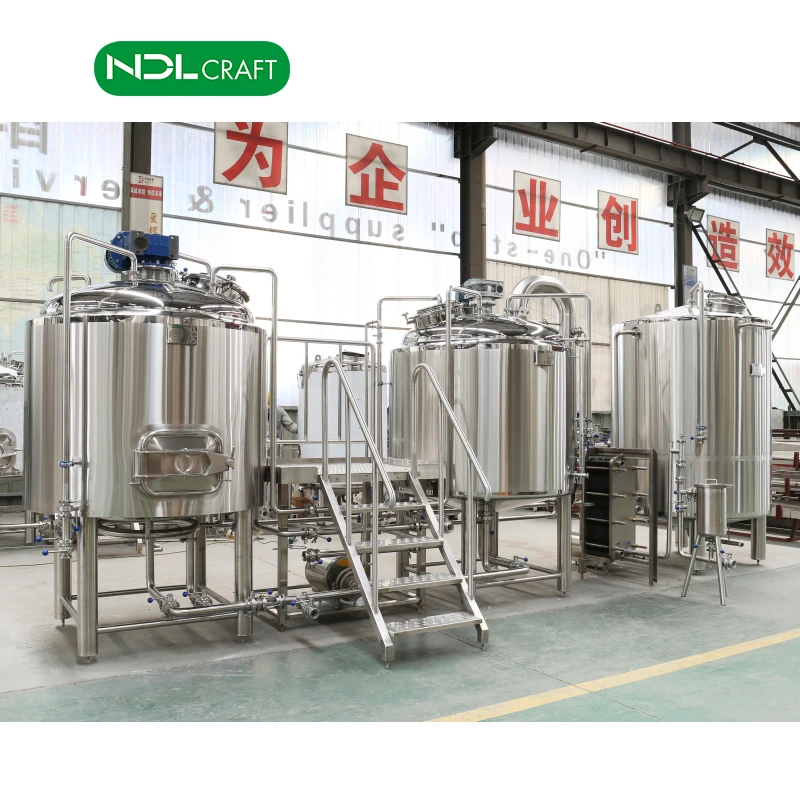

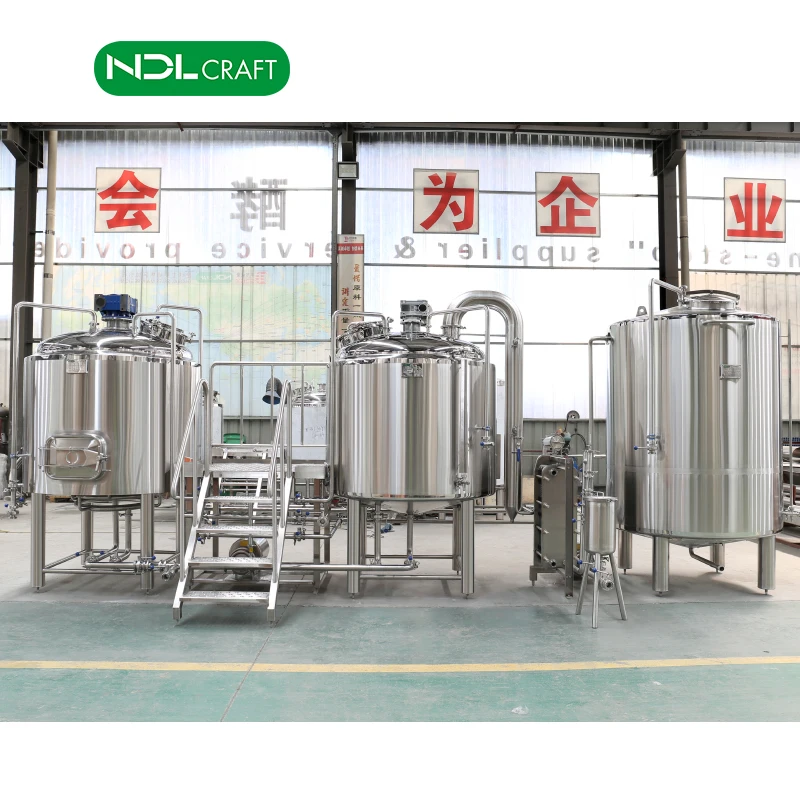

Turnkey Micro Brewing Equipment 1000l Electric Heating Brewing System for Pub
- Category: >>>
- Supplier: SHANDONG SHENDONG CO. LTD.
Share on (62109544824):
Product Overview
Description
Turnkey Micro Brewing Equipment 1000l Electric Heating Brewing System for Pub
Product Description

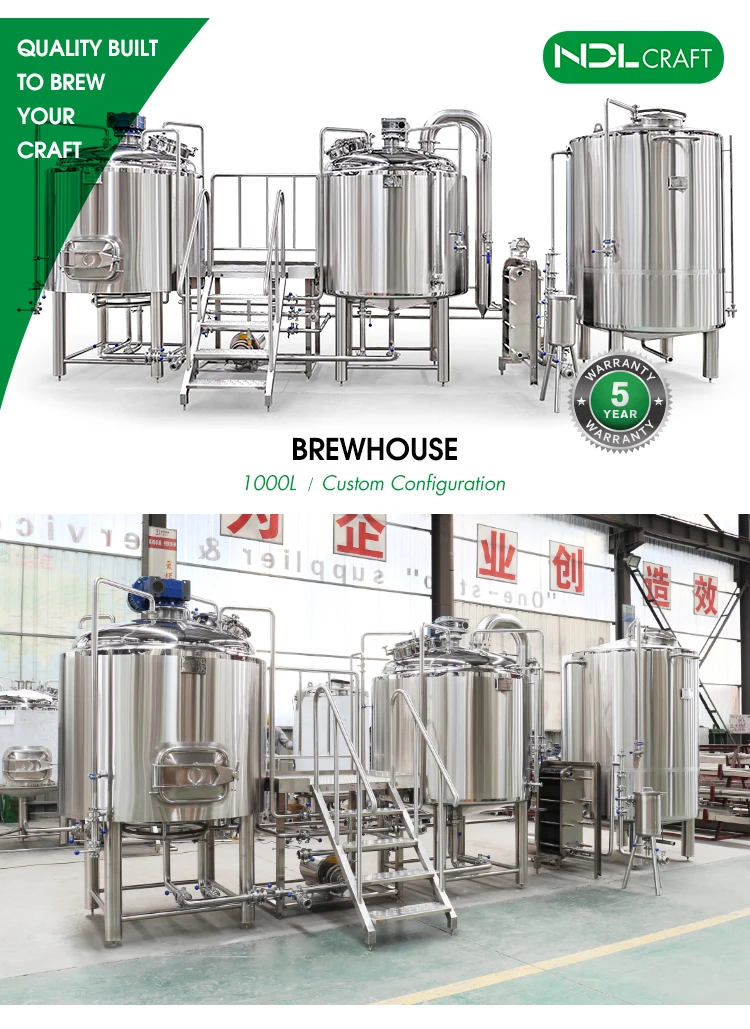

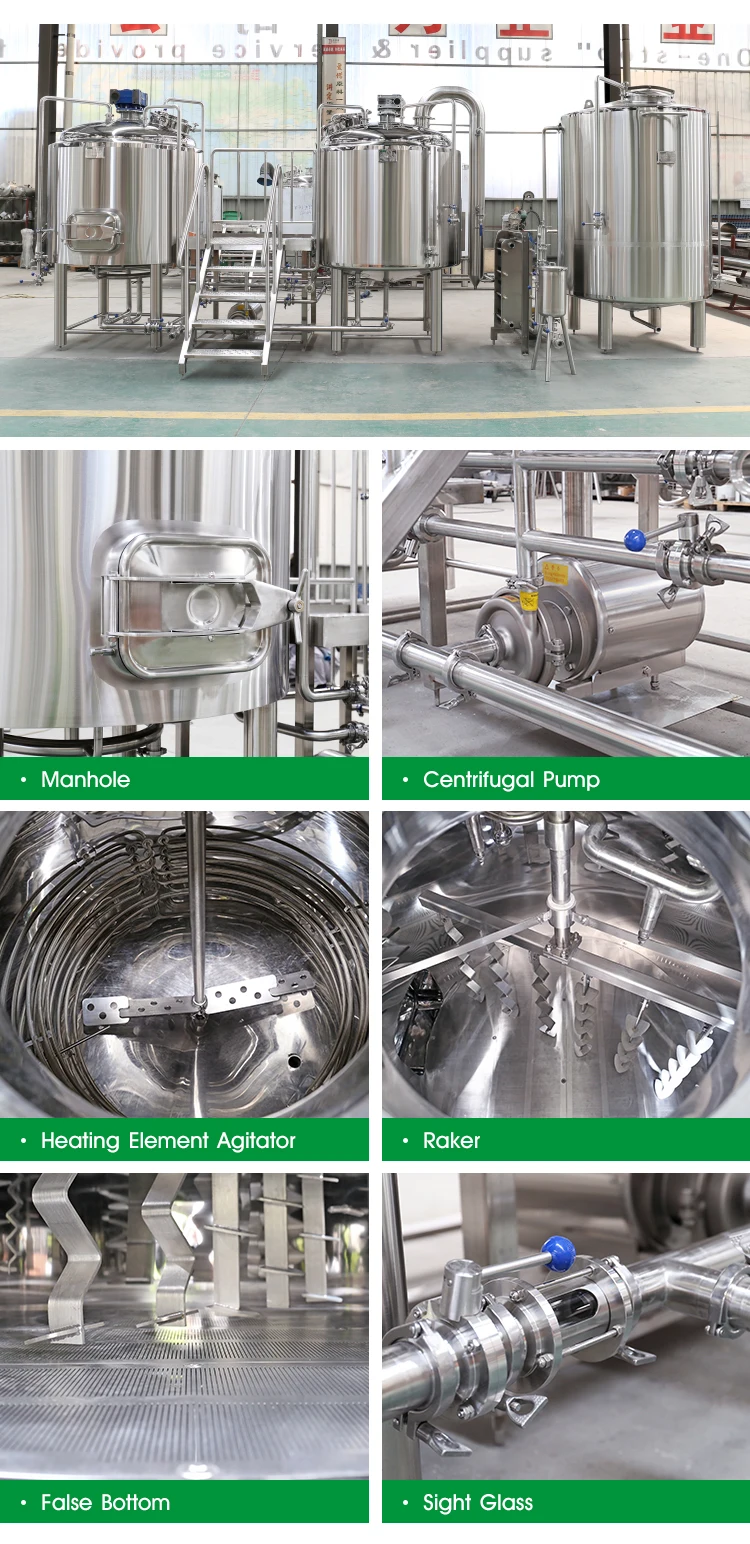

1. 1000L Brewery Components
Milling system | Malt miller | 300-500kg/h | 1pcs |
Auger(option) | Ability is 1000KG/h | 1pcs | |
Hopper(option) | Volume is 0.6m3. SUS 304 with pre-masher | 1pcs | |
Brewhouse | Mash tun/ Lauter tank | Volume is 1000L, with a false bottom, grant, raker with motor | 1pcs |
Kettle/whirlpool tank | Volume is 1000L, electric heating | 1pcs | |
HLT water tank | Volume is 2000L, electric heating | 1pcs | |
Includes plate heat exchanger, wort pump, motors, hops filter, yeast adding tank, oxygen device and pipelines | |||
Fermenting | Fermenters | Volume is 1000L or 2000L (double batches) | 6pcs |
BBT(option) | Volume is 1000L or 2000L (double batches) | 2pcs | |
Racking arm, spunding valve, pressure gauge, carbonation stone, sample valve | |||
Cooling system | Glycol tank | Volume 2000L or 3000L | 1pcs |
Cold water tank(option) | Volume 2000L, cooled by glycol tank | 1pcs | |
Chiller | 5HP, Copeland | 2pcs | |
Cleaning | CIP | 100L two tanks, heated by electric, with pump and trolley | 1pcs |
Controlling | Control cabinet | PLC touch screen or PID controller | 1pcs |
2. 1000L Saccharifying System
NDL Craft's experienced team of engineers and brewers work together to design every brewhouse. We meticulously focus on the details, like pump and valve placement, aiming to maximize brewhouse efficiency and ease of use. With an NDL Craft Brewhouse, you will hit your gravity targets quicker and run up and down the platform less often.
Send Inquiry>>
Click to Contact Us Now!!!
3. 1000L Fermentation System
| No. | Item | Introduction |
01 | Volume | 1000L |
02 | Dimension | 1260*2650mm |
03 | Material | Stainless steel 304 or 316,or red copper |
04 | Insulation | Polyurethane, TH: 80mm |
05 | Fermentation tank | Glycol jacket: Dimple jacket on the cone and side Or single wall with jacketed,or single layer fermentor. |
06 | Head | Double or single dish head on the top |
07 | Accessories | Sample valve, pressure gauge, solenoid valve, pressure relief valve, racking arm, CIP arm and Blow off arm, dry hops port and so on. |
Send Inquiry>>
Click to Contact Us Now!!!
4. Accessories & Auxiliary Equipment
Production Process
Processing Equipment
Company Information
NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes, and institutes production and quality control methods according to both European and American quality standards.
Certifications
We have established an ERP management system and have passed quality audits for internationally recognized certifications.
ISO 9001: Certification for the Quality Management System
ISO 14001: Certification for the Environmental Management System
ISO 18001: Certification for the Occupational Healthland Safety Management System
CE: Certification of Compliance
PED(TUV): Certification of Compliance, Certification of Conformity
SGS: Gold Plus Supplier Assessment Certificate
Exhibition
Packaging & Delivery
