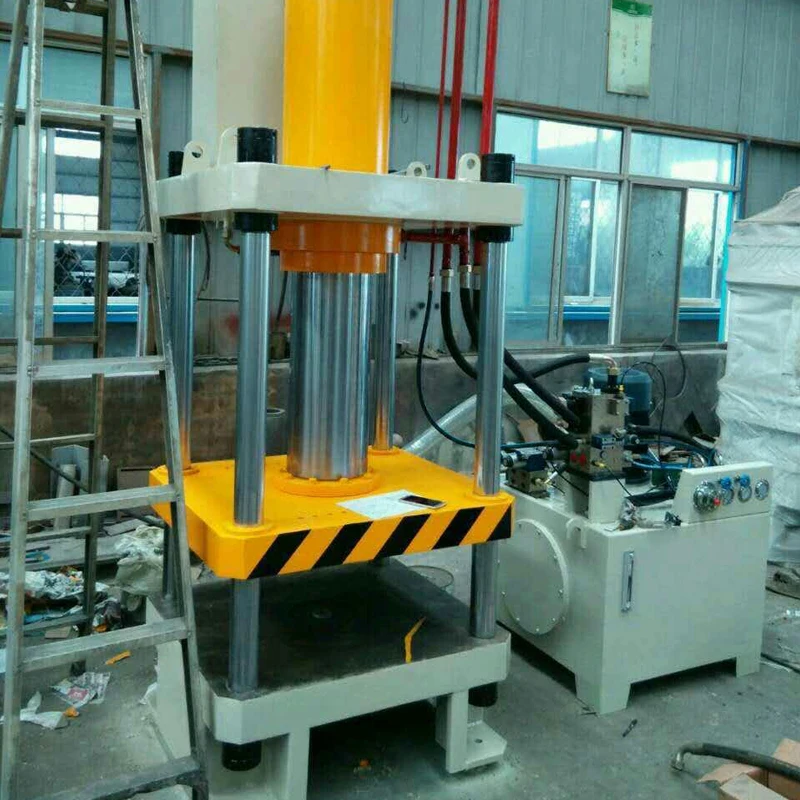

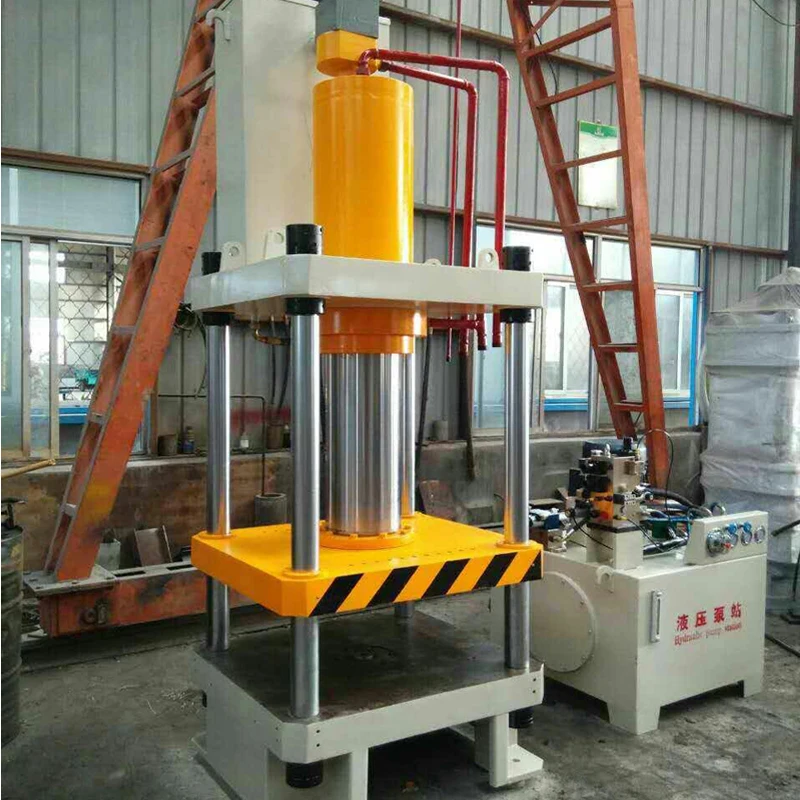

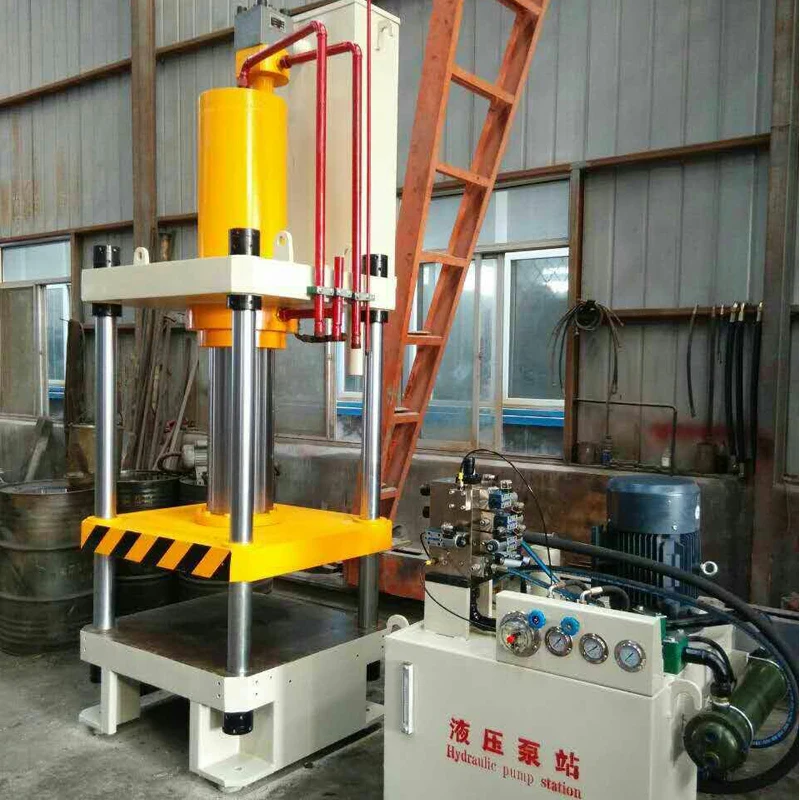

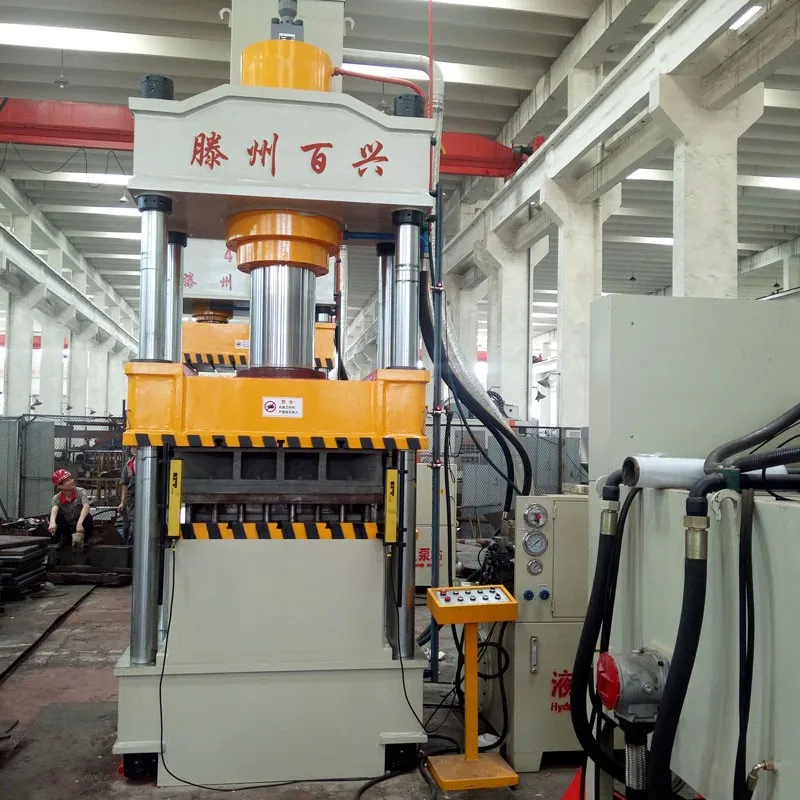

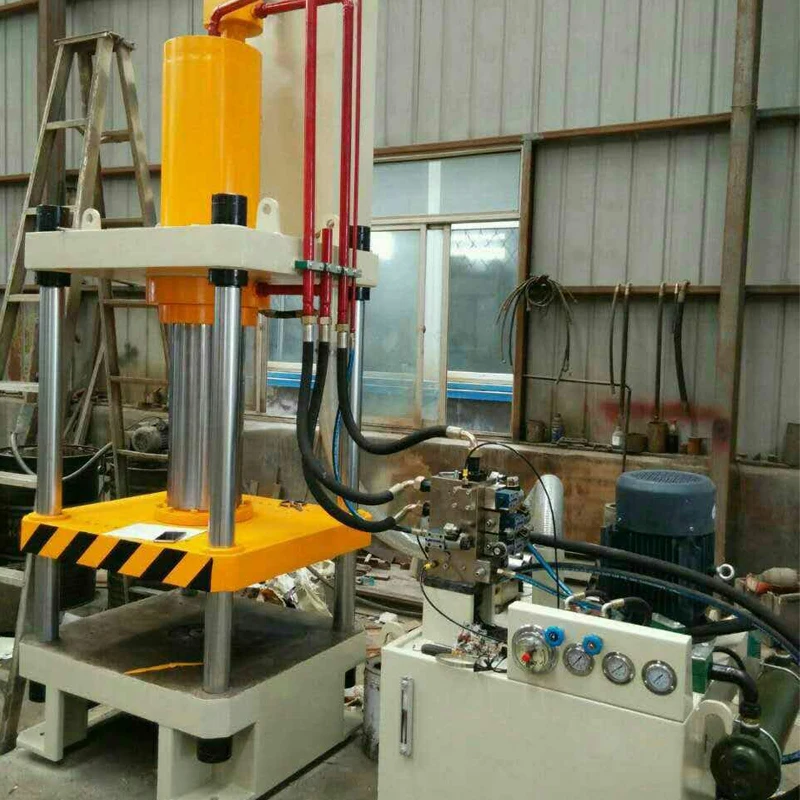

200 tons small hydraulic press brick making machine

Product Application

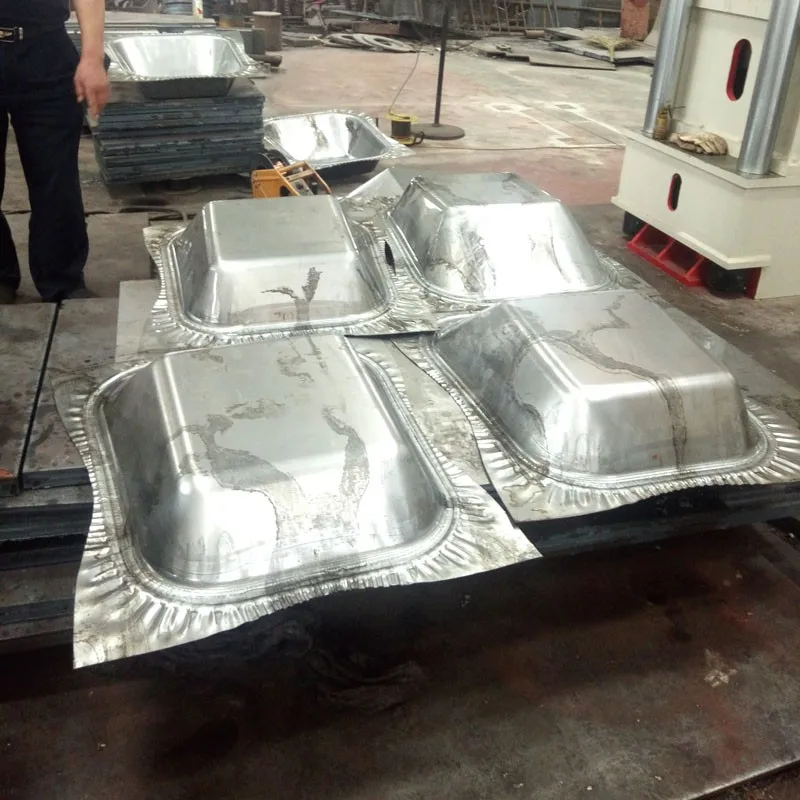

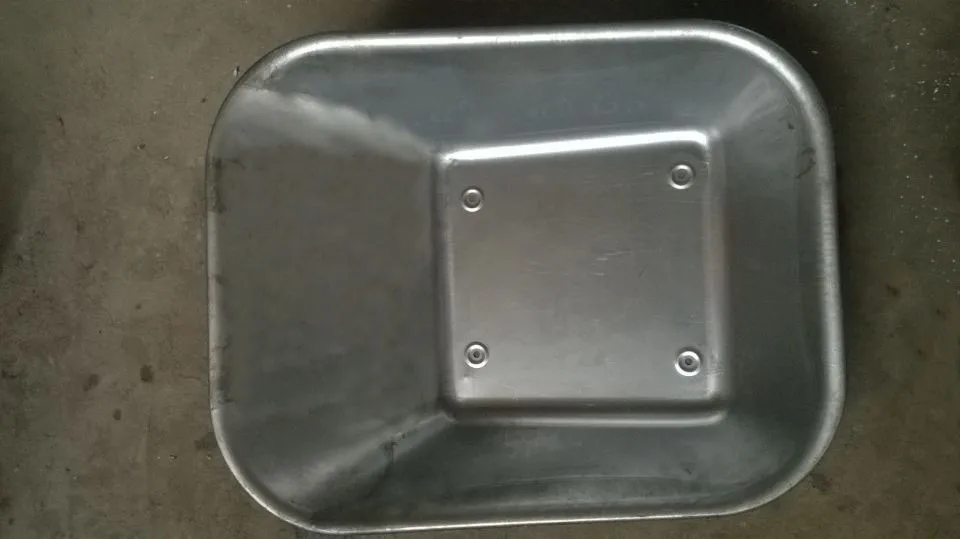

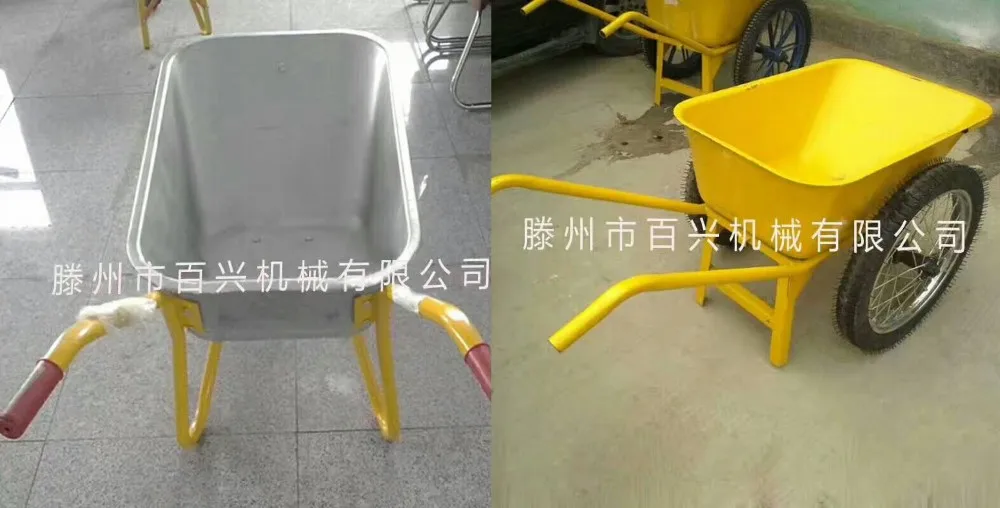

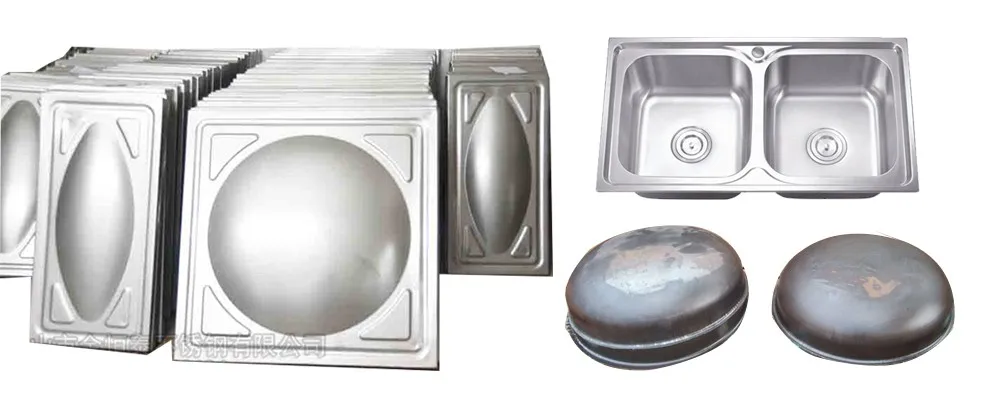

The 200 tons stretching machine is suitable for deformation, stretching and bending of sheet metal. For example, stainless steel pots, pots, bowls, spoons, heads, trolleys, auto parts, parts and many other products. The company provides a full set of production equipment, welcome to consult +8613062021867, 15589227896

FEATURES

■ Press bldy Integral forged 45# steel, quenching and tempering

■ High efficient, convenient and safe operation

■ High quality steel plate welded with accuracy and stability

■ Multi-rod design ensures the depth and shape of the pressed product

Main Features

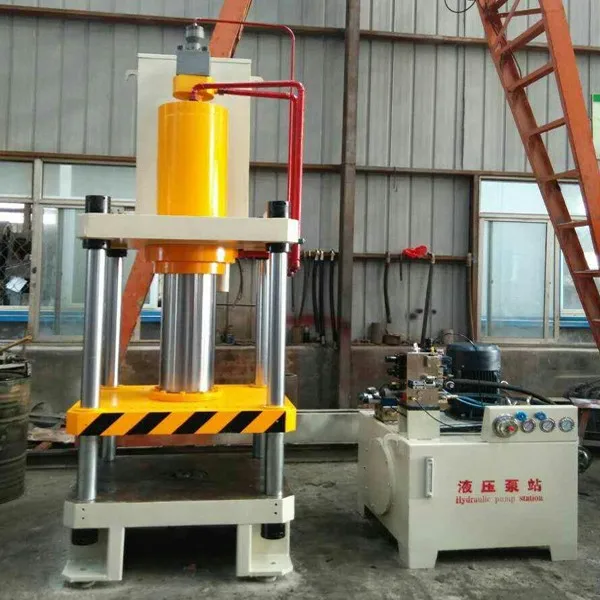

This series of presses is a general-purpose hydraulic press, also known as universal hydraulic press. It is suitable for the stretching, bending, flanging, cold extrusion, punching and other processes of metal materials. It is also suitable for calibration, press-fit, powder products, abrasive products. Molding and press molding of plastic products and insulating materials.

The working pressure, pressing speed and stroke of the machine can be adjusted within the specified parameters according to the process requirements. This machine has independent power mechanism and electrical system, and adopts button centralized control, which can realize manual, semi-automatic and two operation modes. It can realize two pressing methods: constant pressure and fixed stroke.

Equipment use conditions:

1. Equipment working area temperature: -10~60°C (±)

2, power supply: three-phase four-wire system 380V, 50HZ, voltage fluctuation range 380V ± 10%

3, cooling method: water cooling device

4, the hydraulic system uses the medium: No. 46 anti-wear hydraulic oil

Machine  parameters

Nominal force: 3150KN
Maximum working pressure of liquid: 25MPa
Slider effective stroke: 600mm
Maximum opening height: 1000mm
Effective area of the workbench:
   1260mm inside and outside the column
   Front and rear edges 1200mm

_{Operation interface}

PLC smart computer can compile more than 100 templates

Chinese and English logo button operation at a glance

Mechanical detail

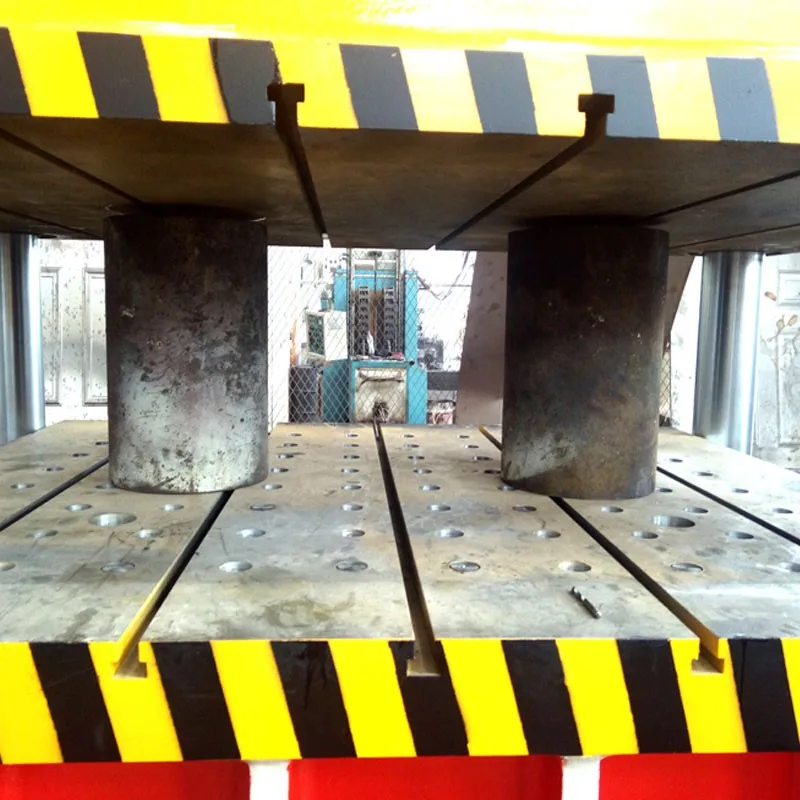

The multi-rod design is beneficial to the deep drawing and forming process of the product and is suitable for products with deep drawing depth.

Electrical part

Configure brand-name appliances, servo motors are more energy efficient
