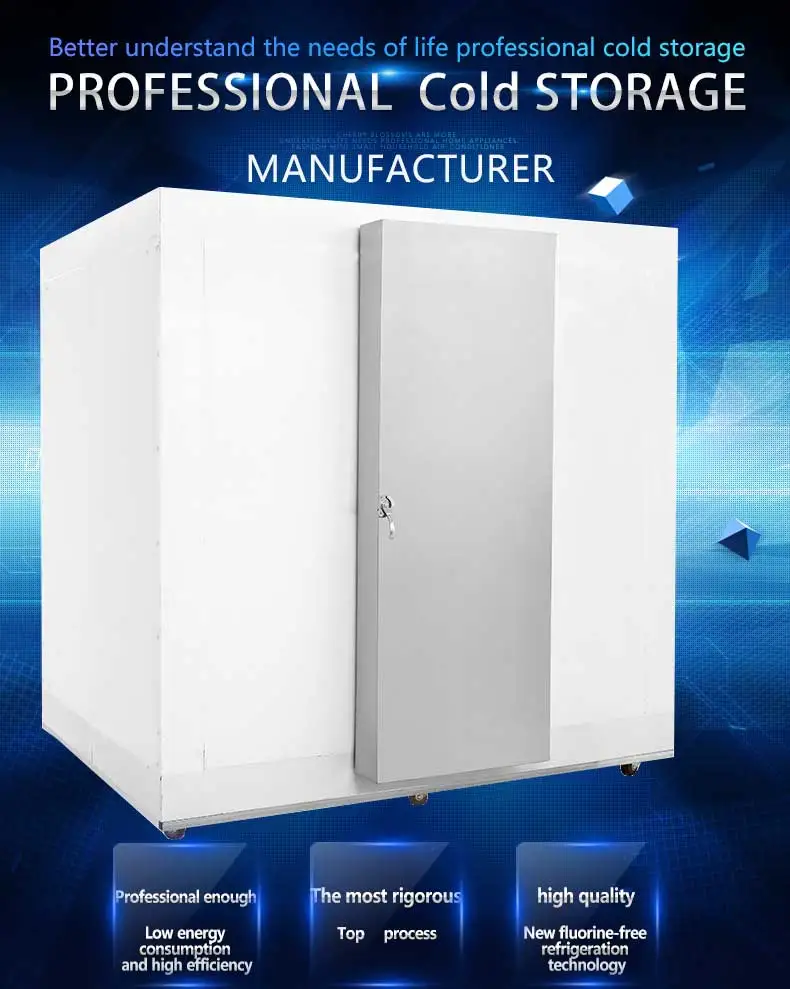

Cold Storage Hinged Swing Door for Cold Room
US $199.00-$229.00

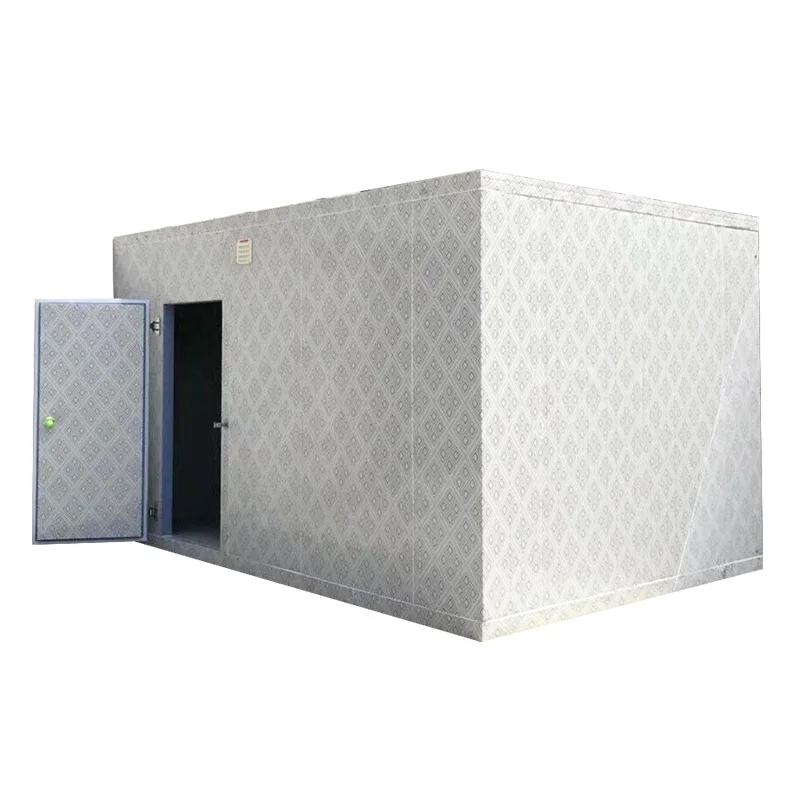

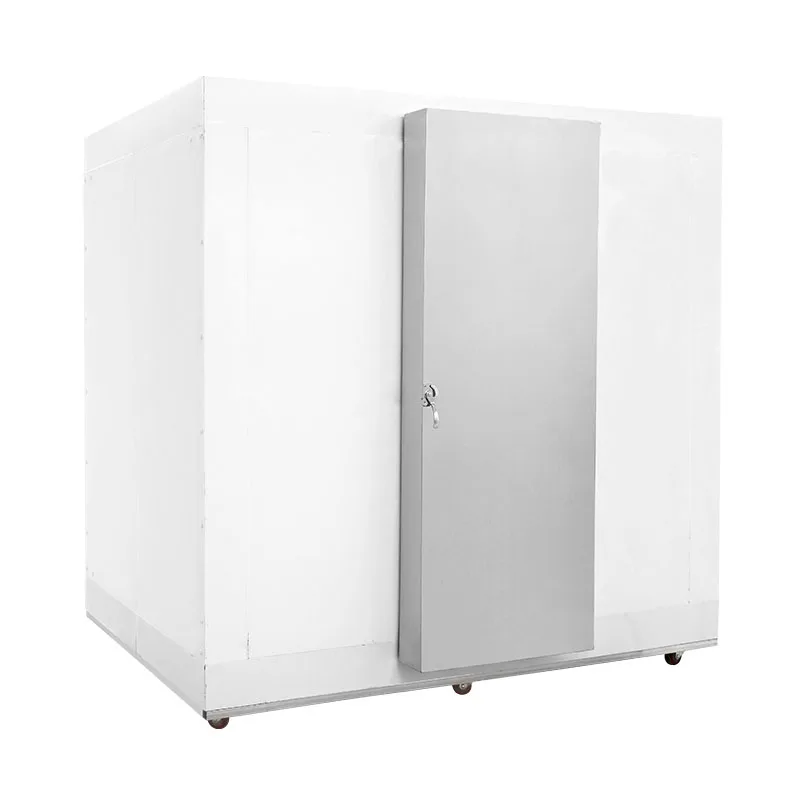

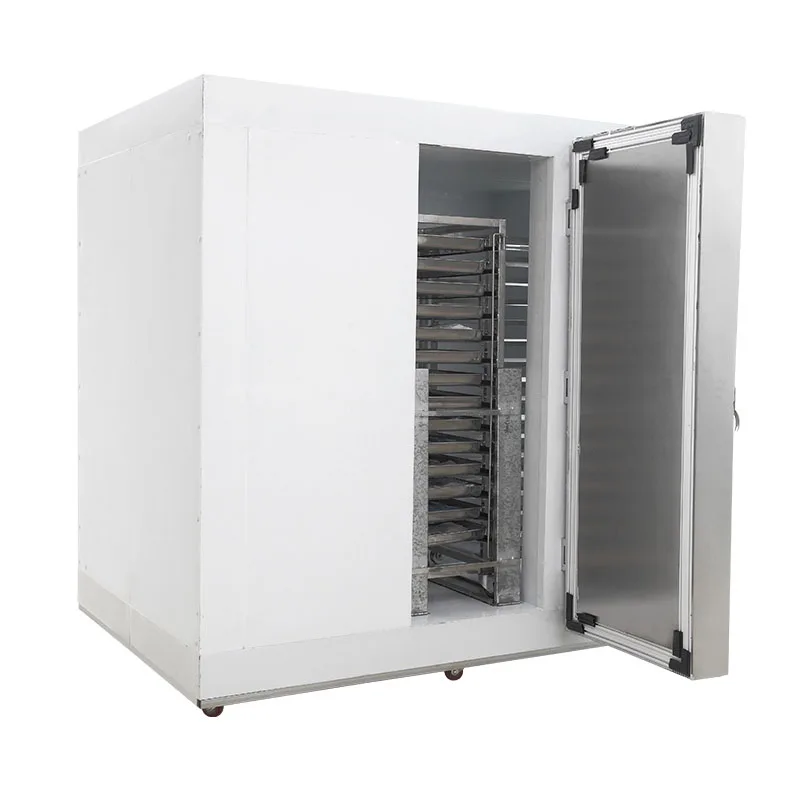

Ce Certification Cold Room/Cold Storage/Walk in Freezer for Fruit and Meat
- Category: Cold Room >>>
- Supplier: Foshan Micheal Electrical Appliance Co. Ltd.
Share on (62109629286):
Product Overview
Description
Cooling one
| Product Name | Cold Storage Room |
| NO. | HR-8 |
| Size (L*W*H) | 12000*4000*2500 |
| Temprature (Degree) | 0 ~ 10 / -18 ~ -22 |
| Cooling System | Air Cooling/ water Cooling |
| Compressor | Copeland |
| Power | 6HP |
| Voltage | 220/380v 50-60HZ |
| Refrigerant | R134a / R404a |
| PU Foam Thickness | Refrigerator 80mm / Freezer 100mm |
| Installation | With drawing |
| Plug | Yes |
colding two
Dimension | Length (m) *Width (m)*Height (m) |

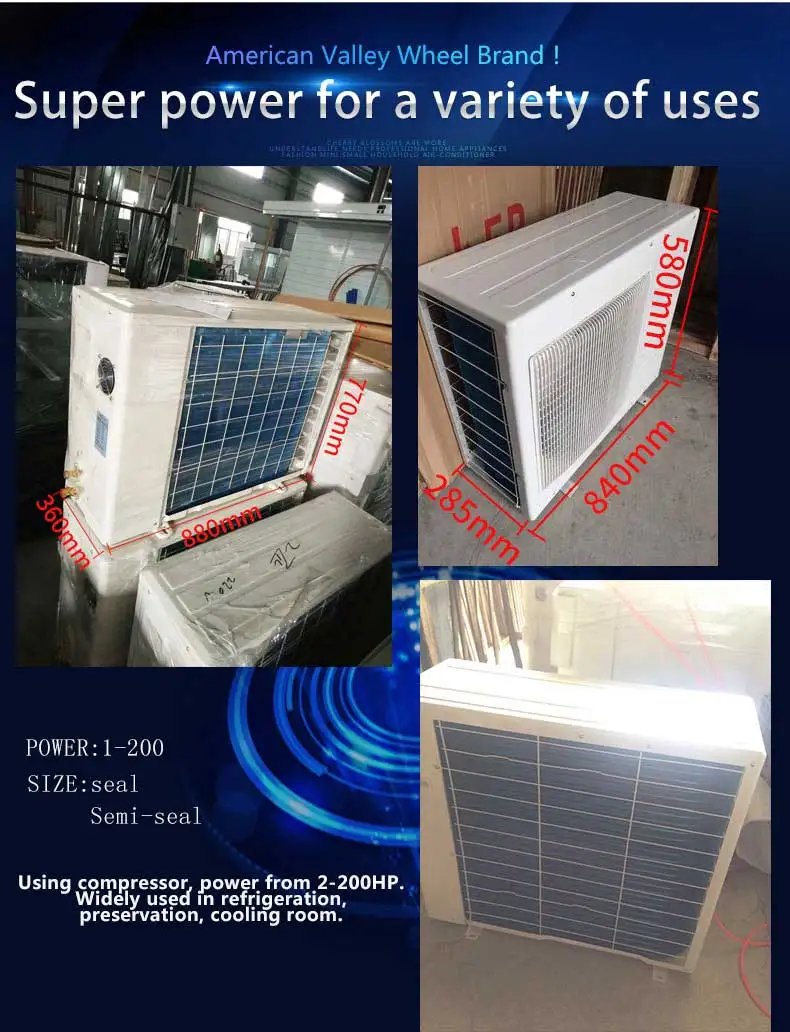

Refrigeration unit | Copeland / Bitzer etc |
Refrigeration type | air cooled / water cooled / evaporation cooled |
Refrigeration | R22, R404A, R407, R408, Refrigerant |
Defrost Type | Electric defrosting |
Voltage | 220V/50HZ, 220V/60HZ, 380V/50HZ, 380V/60HZ optional |

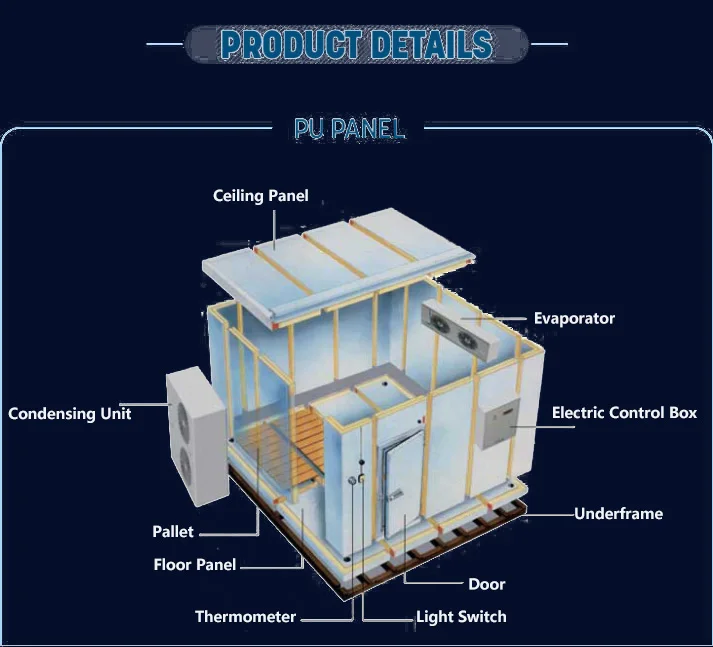

Panel | Polyurethane insulation panel, 43kg/m3, fire retardant / EPS panel |
Panel thickness | 50mm,75mm,100mm,150mm,200mm |
Type of door | hanged door, sliding door, double swing door etc
|
Temp.of room | -30~+20degree C, optional |
Purpose of cold room | fruit,vegetable,flower , fish,meat ,chicken medicine, chemical, electronics,etc. |
Functions | all necessary fittings are included, optional |
Fittings | all necessary fittings are included, optional |
Place to assemble | indoor/outdoor(concrete/construction building/steel construction building) |
FOB two
Q1. What is the material of cold storage panel?
Stainless steel, Painted galvanized steel or Galvanized steel
Q2. What is the thickness of the cold storage panel?
The thickness of the cold storage panel is 50mm,75mm, 100mm, 150mm, 180mm, and 200mm,300mm.
Q3. What is the applicable temp range base on different thickness?
1.75mm medium temperature (-5°C or above)
2.100mm low temperature (-15°C or above)
3.150mm ultra low temperature (-35°C or above)
4.200mm ultra low temperature (-50°C or above)
Q4.If you want to customize the cold storage, the details about the cold storage as follows you should tell me.
1. What is the size of the cold storage?
2. What is the cold storage used for?
3. What is the required temperature of the cold storage?
Q5.What's the difference of plug-in PU sandwich panel compared with cam-lock PU sandwich panel?
Plug-in PU sandwich panel is fixed by self tapping screw.(Mainly used in large duty cold storage)
Cam-lock PU sandwich panel is fixed by cam lock. (Mainly used in small duty cold storage)
Q6.How is the temperature displayed on a cold room / freezer?
All controllers on cold rooms have an electronic display that will show the set point and running temperature.

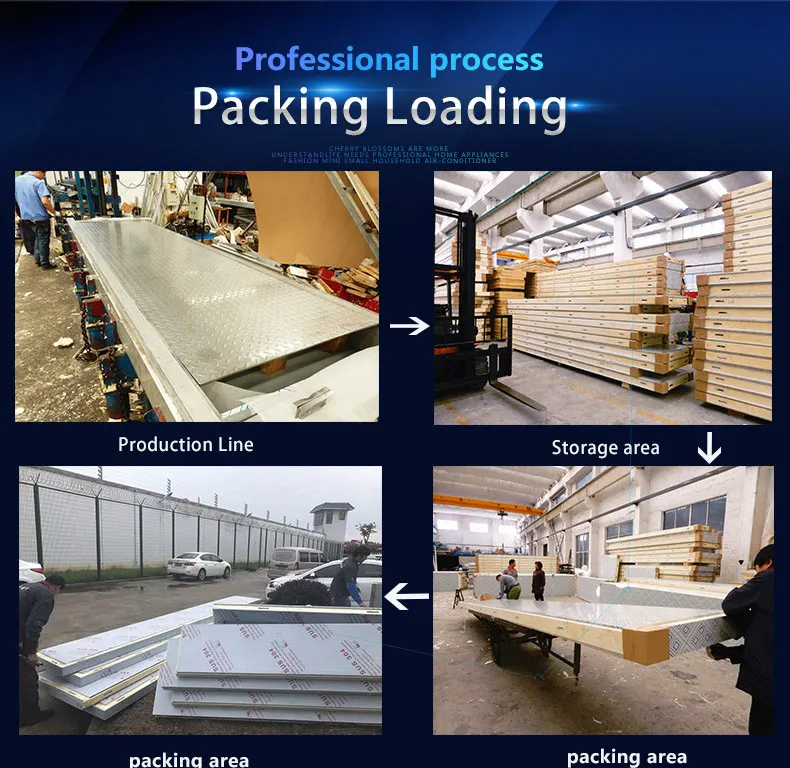

Q7.Packaging & Shipping
Packing: Pallet, wooden case or with outer carton, or as per customers' specific requirements.
Shipping: Sample By Express (DHL /UPS /TNT /FedEx /EMS), By Air, Mass products By Sea.
Q8.How can you guarantee the quality?
A: 2 year's warranty against B/L date. If quality problem occurs, we promise to replace goods or return your payment accordingly.
