20ton Hydraulic Dock Leveler Electric Dock Leveling Platform

Product Overview

Description



Real Pictures





Features & Benefits

• Operated via a single push-button control for sequenced deck and lip operation
• Operating range is up to 12” (305mm) above and 12” (305mm) below the dock leveler
• Lip bevel helps protect forklift tires and steering systems and cargo - optional
• Full operating range toe guard protection
• Stationary side toe guards with high-visibility
• Integral maintenance strut supports the deck and lip for safe maintenance

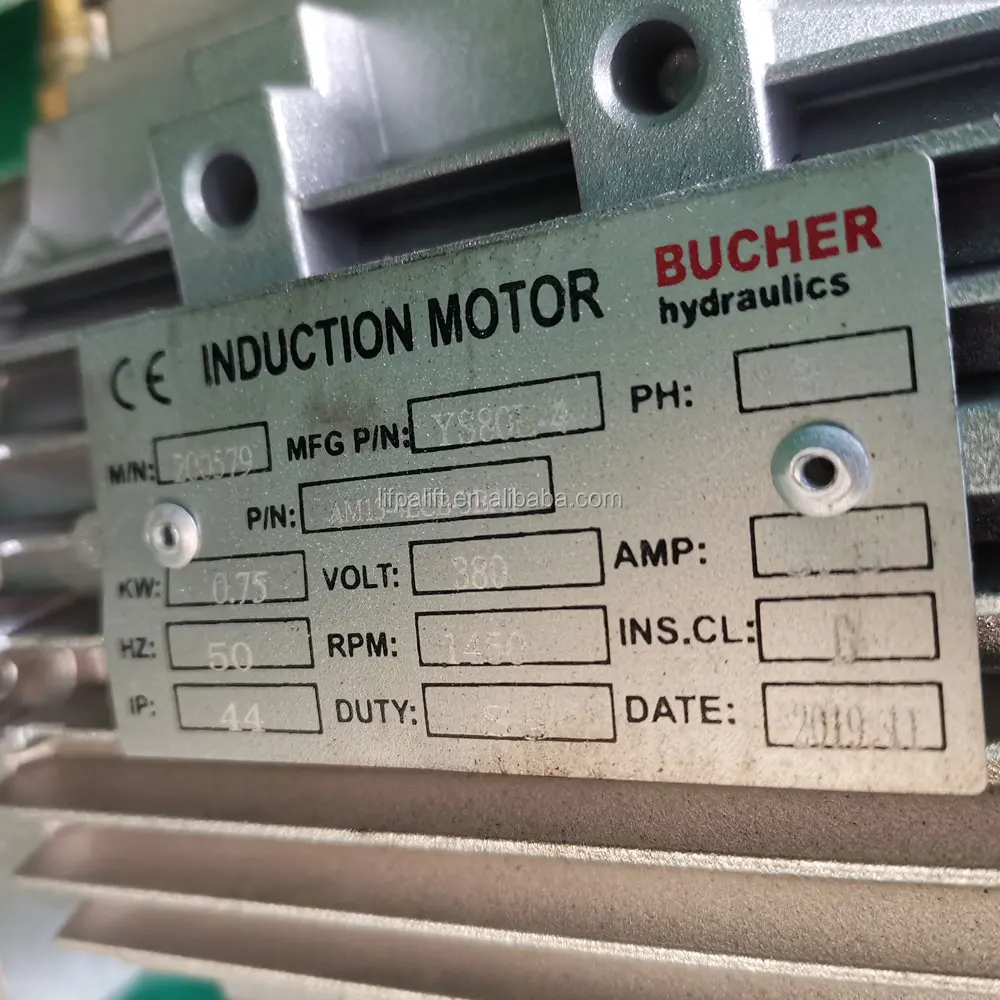

• Optional imported hydraulic power unit
• Custom paint





Product Details

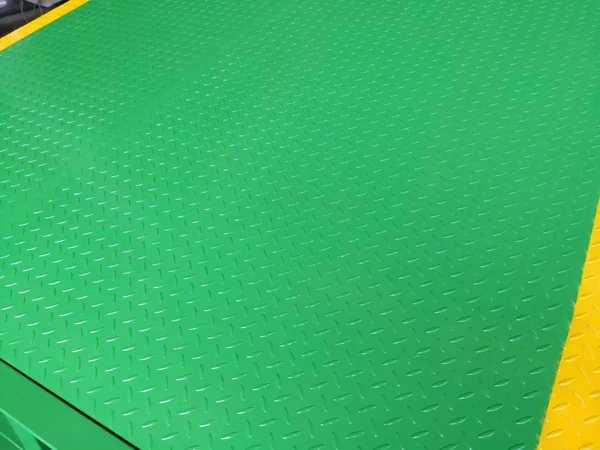

• Deck with Steel checkered plate

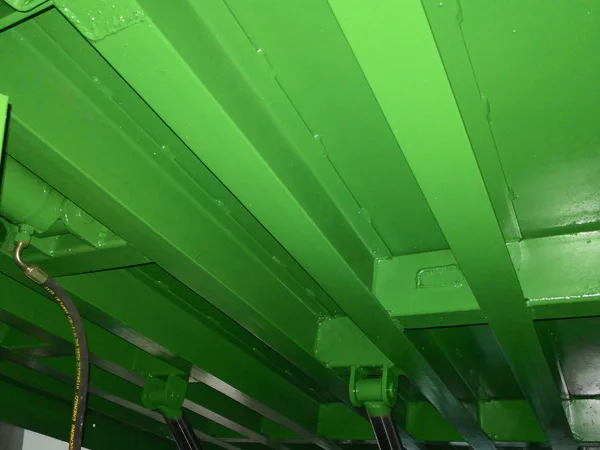

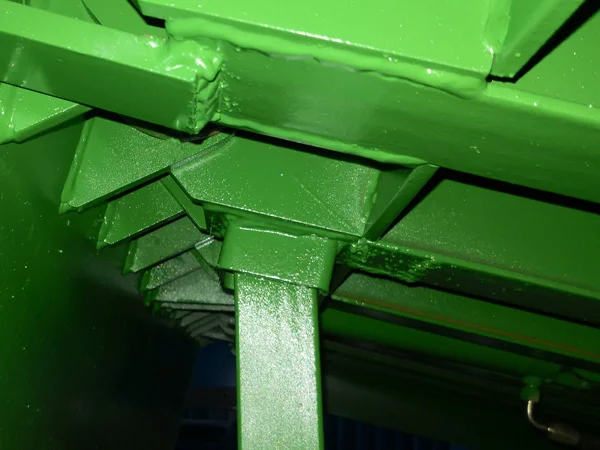

• Enhanced I-steel beams are welded to the underside of the deck

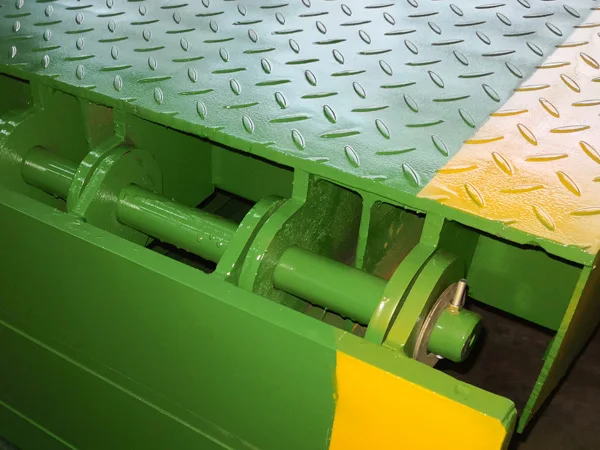

• Standard Swing-type front hinge

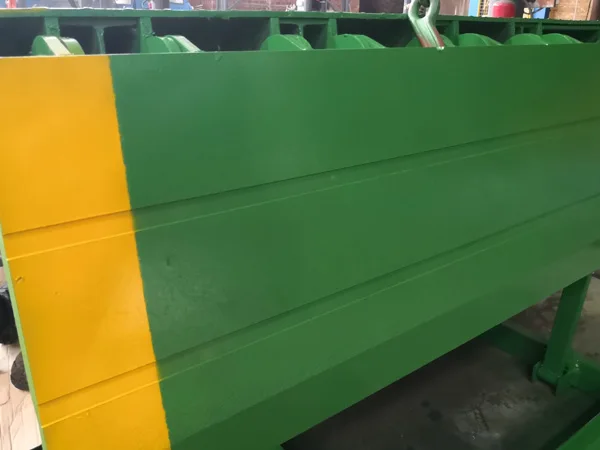

• One piece Lip - steel plate, THK 16.0mm







• Integral maintenance strut supports





Main Parameters

Model		LH-06 / LH-08 / LH-10
capacity - dynamic	ton	6.0 /8.0 / 10.0
height difference	mm	-300 / +300
platform size - W x L	mm	1830 x 2140	1830 x 2440	2140 x 2440
lip dimenisons	mm	400 x 1830	400 x 1830	400 x 2140
power		1.10kW/ AC 110 - 230V, 50 - 60 Hz
net weight	mm	950	1050	1200

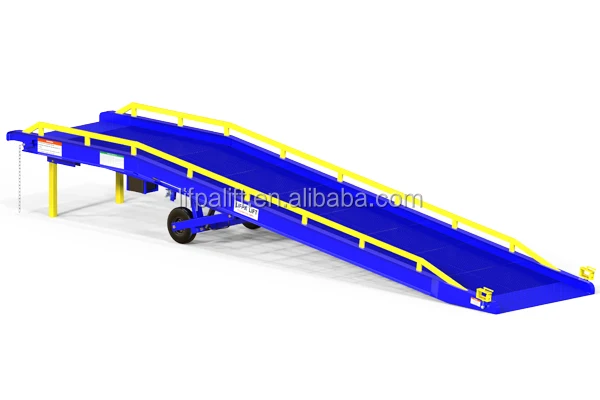

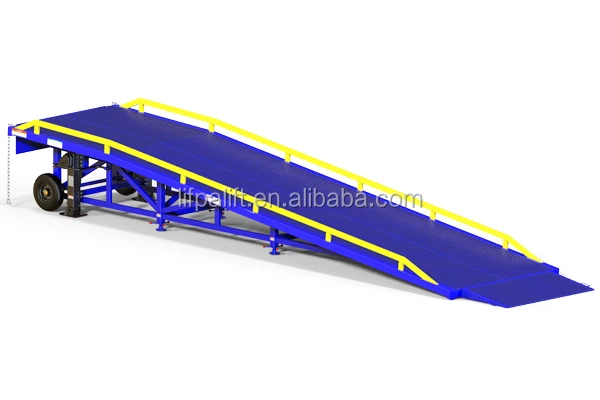

• Economy mobile loading ramp for 3-Point electric forklifts, Model - RM-B
