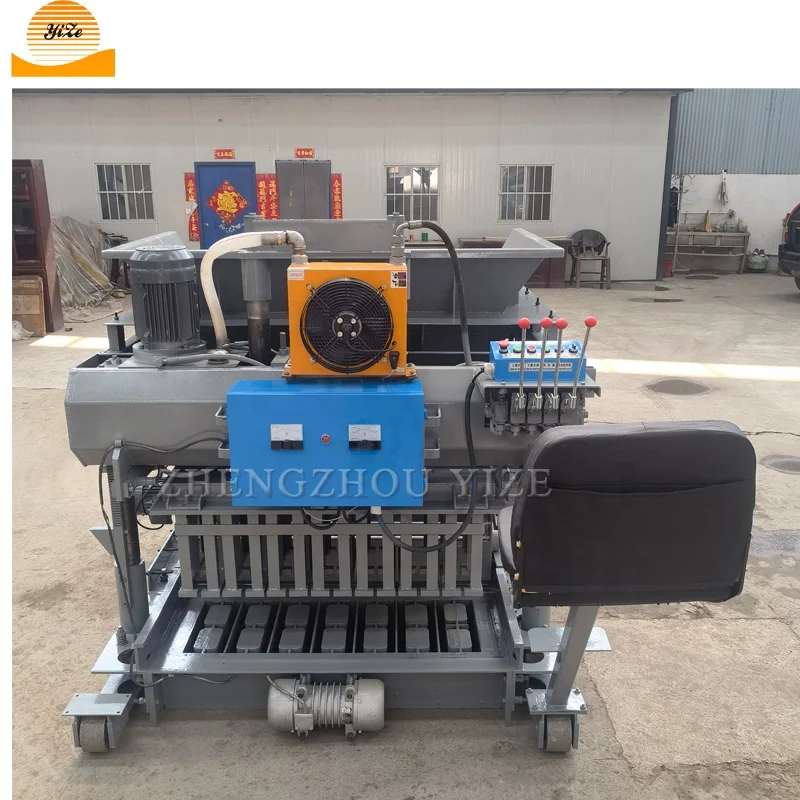

automatic hydraulic press interlocking vibration cement brick block making machine hollow block brick maker machine
This machine has been adopting high frequency die shock technology, hydraulic demoulding, electric walking, hydraulic steering, the machine works faster due to the automatic feeding system. High-quality steel and precision welding make the machine last longer, and the rational design makes its hydraulic system extremely low failure rate during operation.
The machine has the features of reliable performance, convenient operation, stability, low power consumption, etc. Raw materials, concrete, cement, small stones, stone powder, sand, slag, construction waste, etc. are used in the production process.
Because the mobile brick machine adopts high-frequency mold vibration technology, which is different from the table vibration technology of the fixed machine (the table vibration technology refers to that the vibrator is directly placed on the host, and the body is vibrated by the vibrator, and the body is transmitted to the pallet, the pallet And then transmit it to the mold to achieve the effect of vibration), the vibrator of the mobile brick machine is directly placed on the mold, only the mold is vibrating when working, the mold and the body use shock-absorbing rubber spring and shock-absorbing steel spring to isolate the host from the shock , so the noise is very low.
1.Brick Making Machinery can produce various size of hollow bricks,solid bricks, paver bricks by easily changing moulds.The machine has the features of reliable performance, convenient operation, stability, low power consumption, etc. Raw materials, concrete, cement, small stones, stone powder, sand, slag, construction waste, etc. are used in the production process.
Because the mobile brick machine adopts high-frequency mold vibration technology, which is different from the table vibration technology of the fixed machine (the table vibration technology refers to that the vibrator is directly placed on the host, and the body is vibrated by the vibrator, and the body is transmitted to the pallet, the pallet And then transmit it to the mold to achieve the effect of vibration), the vibrator of the mobile brick machine is directly placed on the mold, only the mold is vibrating when working, the mold and the body use shock-absorbing rubber spring and shock-absorbing steel spring to isolate the host from the shock , so the noise is very low.
2.For less investment and quicker results, it is an ideal choice for block factory. Only with1 worker, it is enough for operating this machine.
Model | YZYYZJ-6A |
Vibration mode | High frequency stereo mode vibration |
Drive mode | Hydraulic transmission |
Walking mode | Electric walking,hydraulic steering |
Brick forming mode | Hydraulic+vibration |
Working pressure of hydraulic system | 12-20Mpa |
Capacity | 400*200*200mm,6pcs/time; 6800pcs/8h |
Voltage | 380v/220v |
Motor power of hydraulic cylinder | 4kw |
Motor power of hydraulic air cooling equipment | 90w |
Power of walking motor | 2.2kw |
Power of vibration motor | 1.1kw |
Hopper size | 170*100cm |
Dimension | 2040*2010*1800mm |
Weight | 2200kg |
Details Images
We have two types of hydraulic brick making machine,mobile hydraulic brick making machine and fixed hydraulic brick making machine.

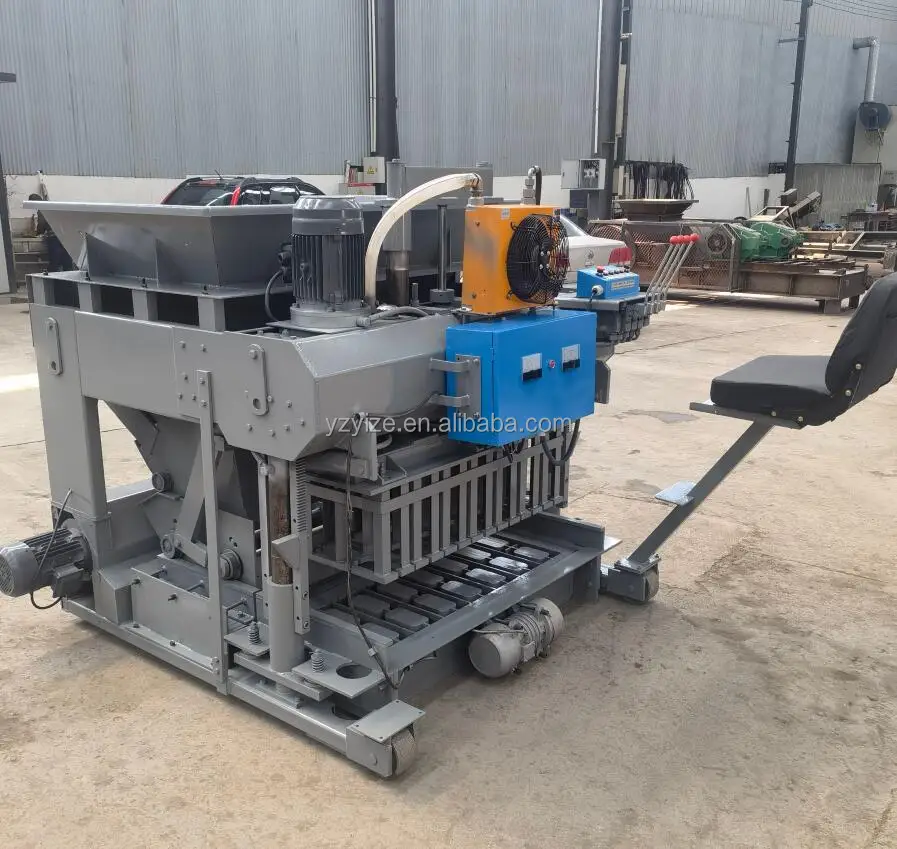

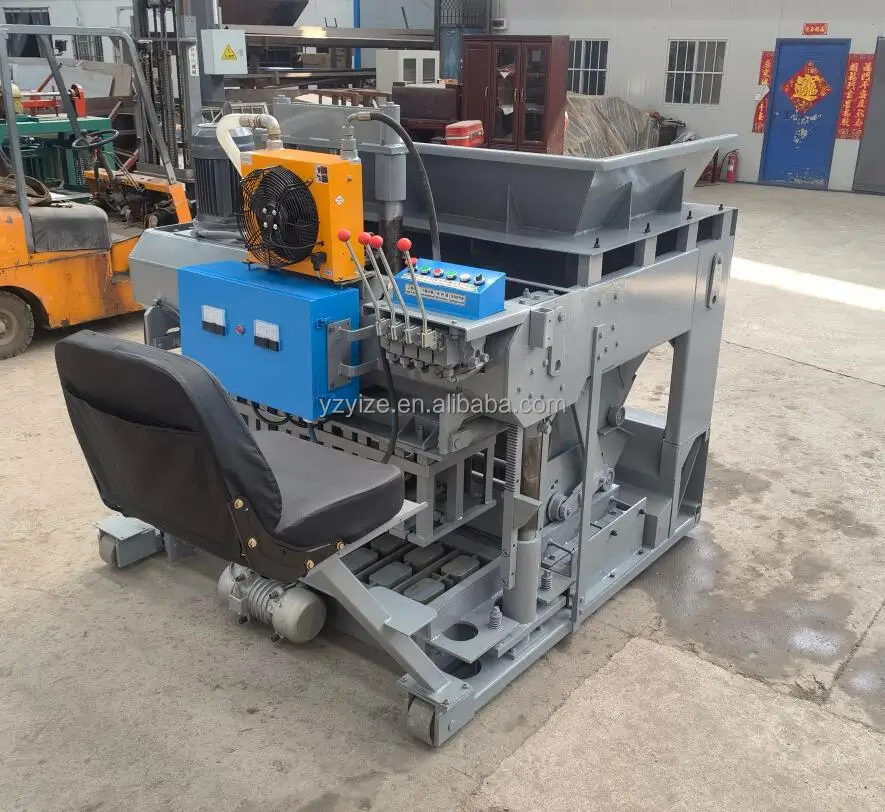

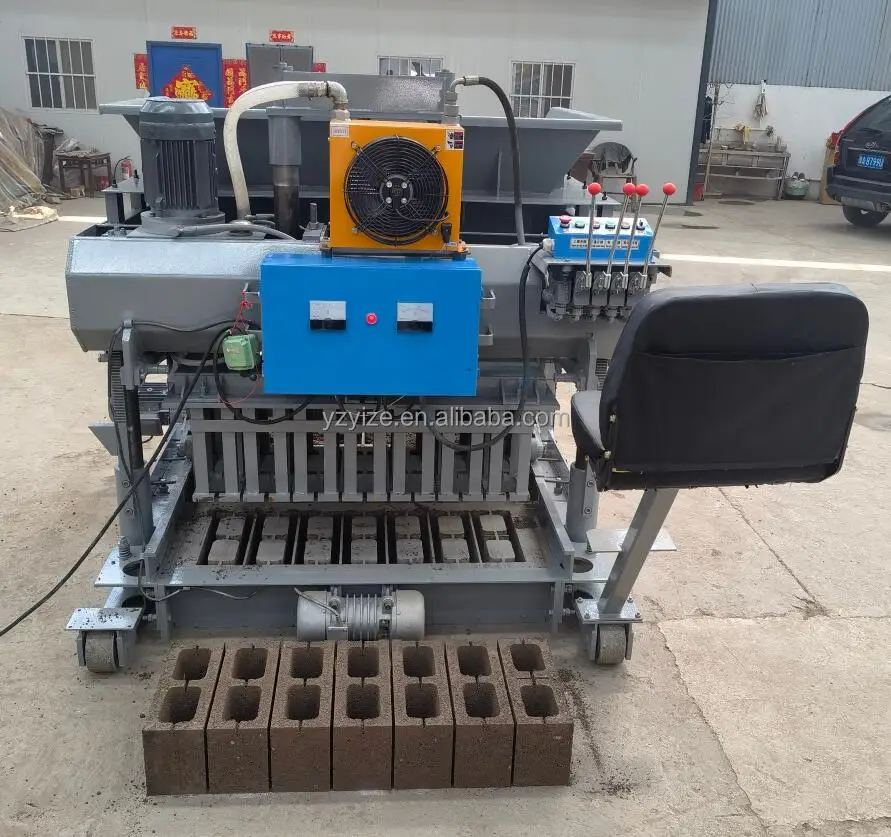

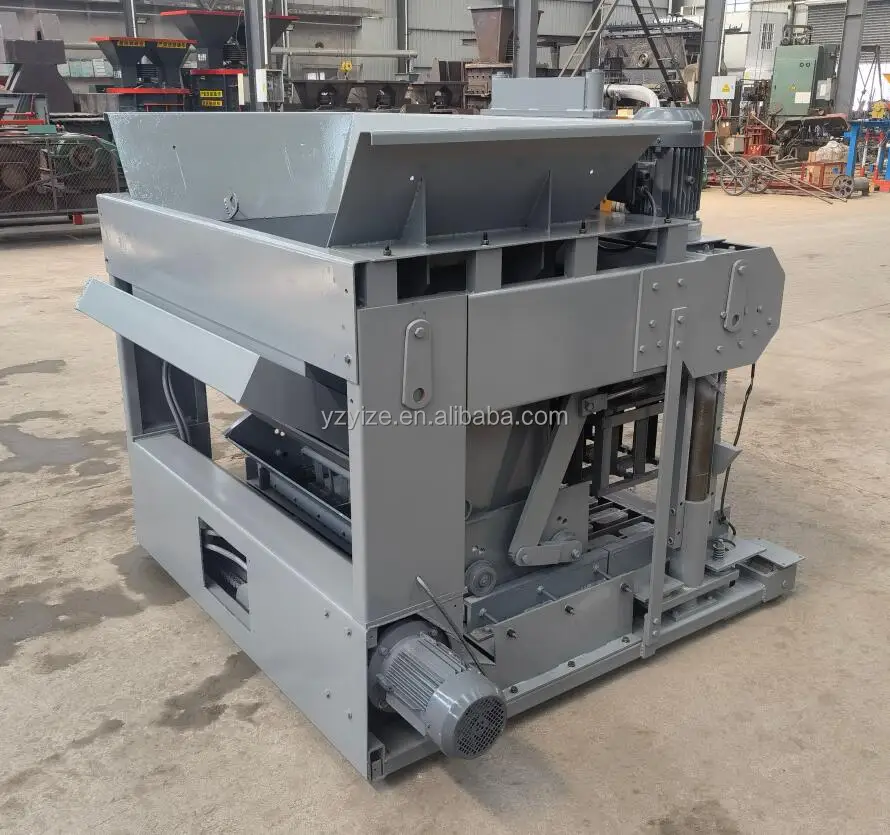

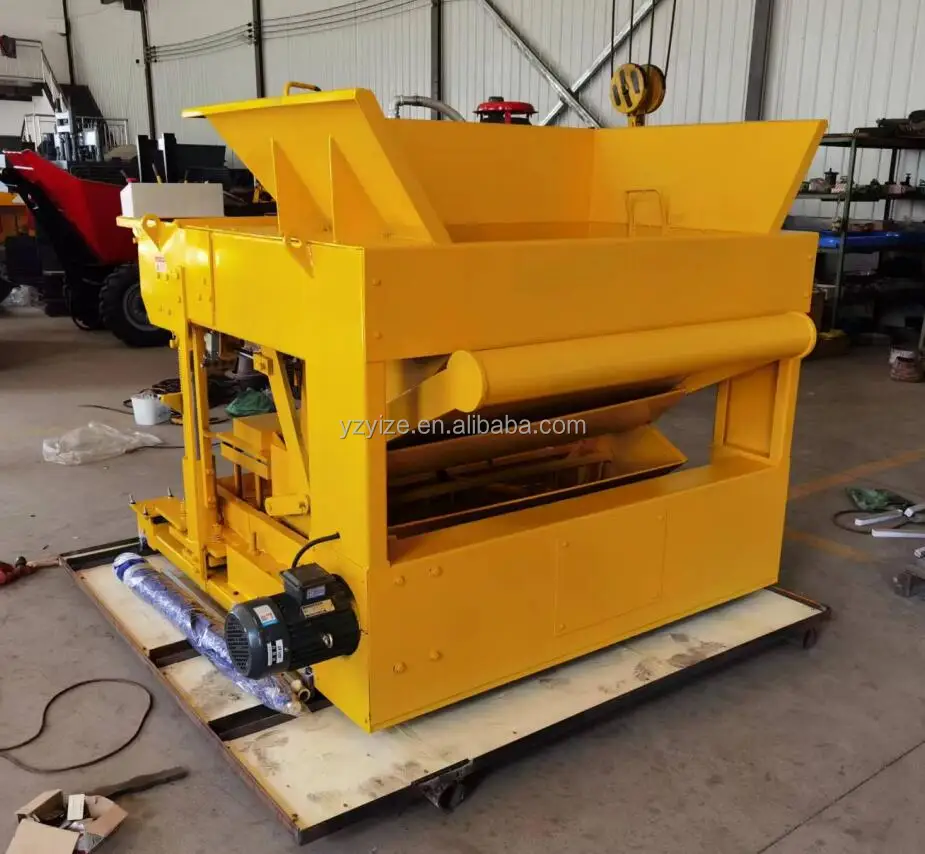

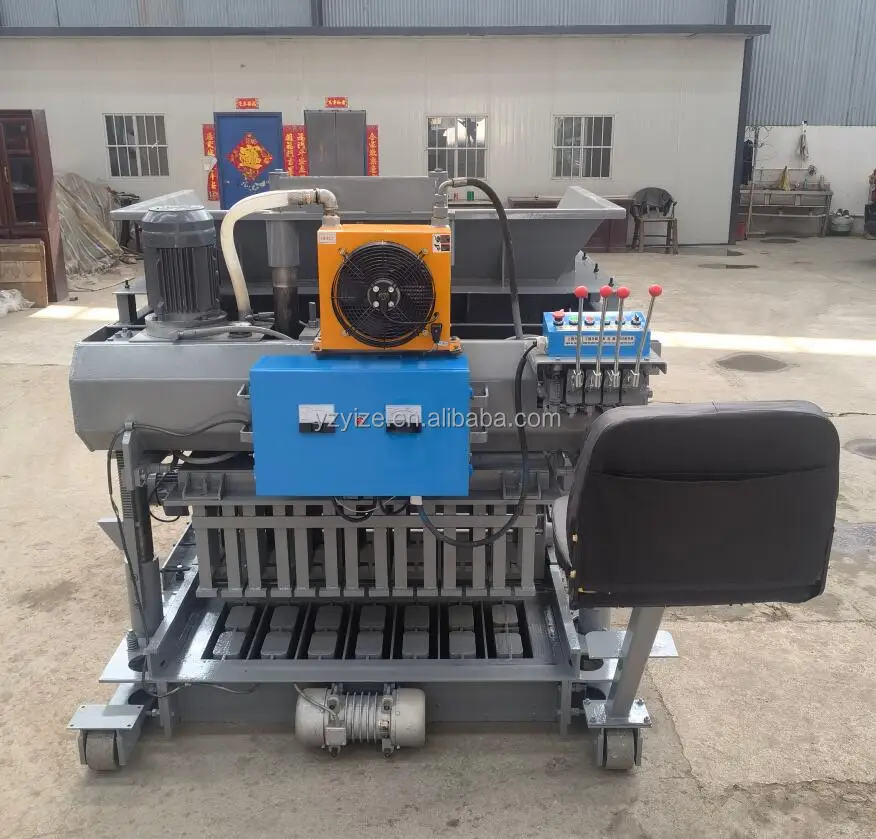

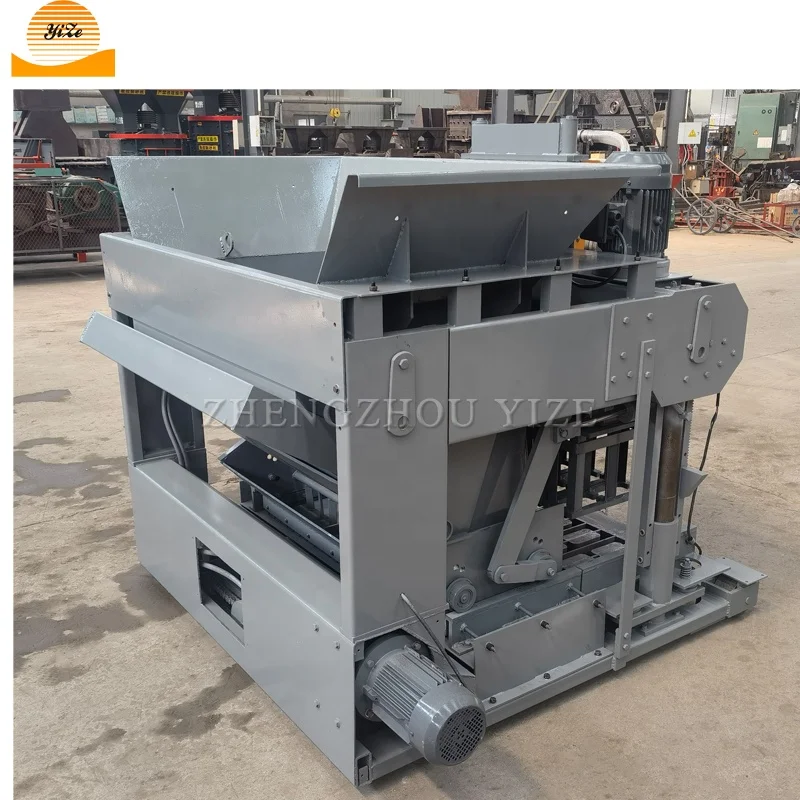

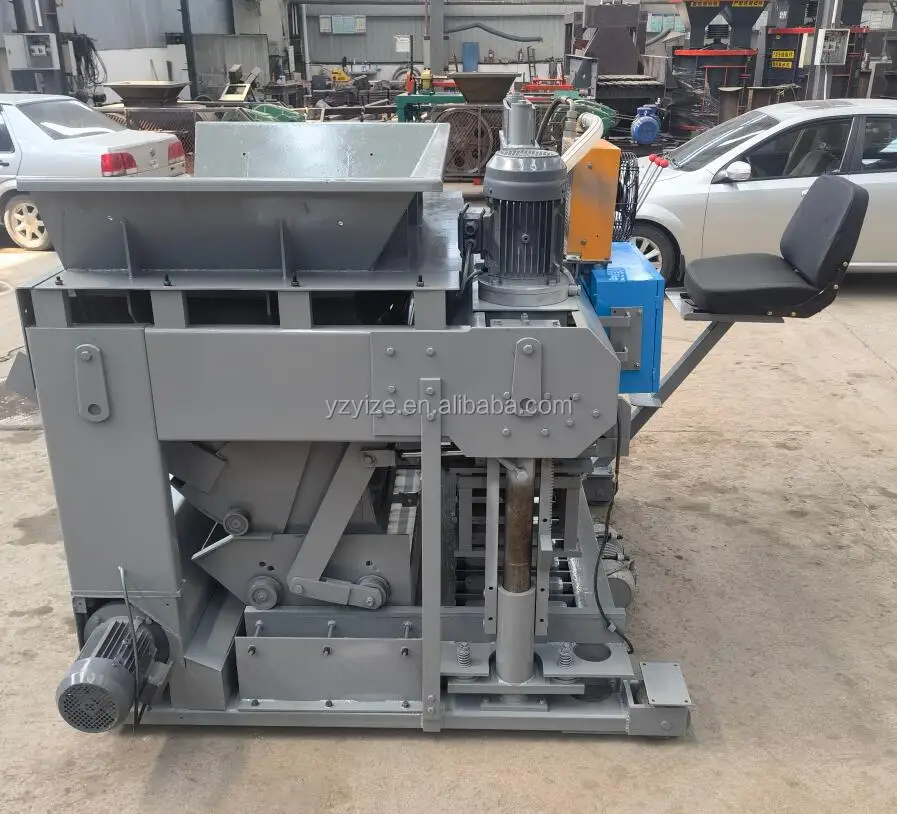

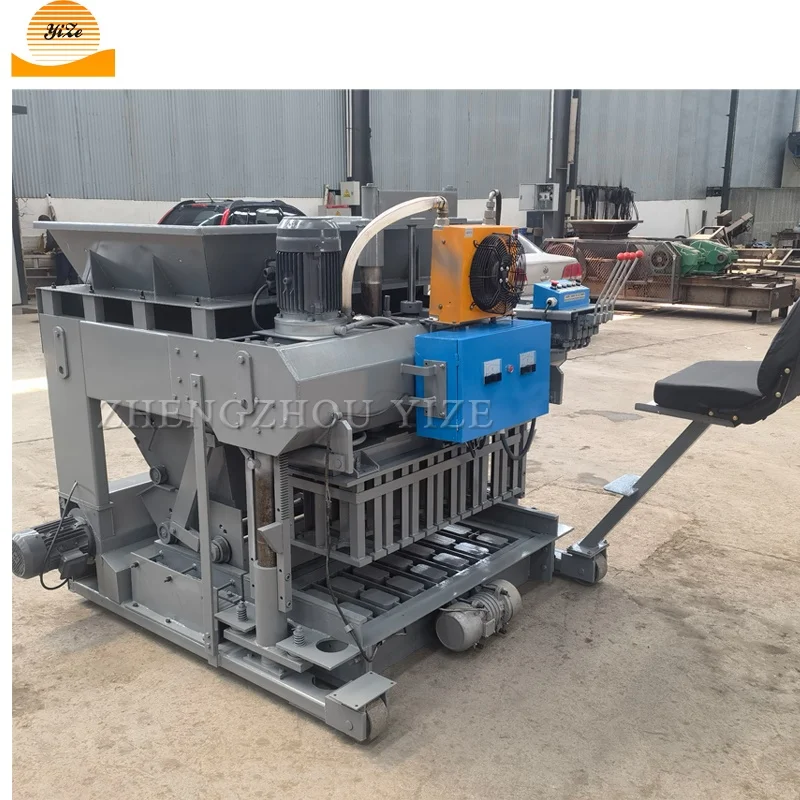

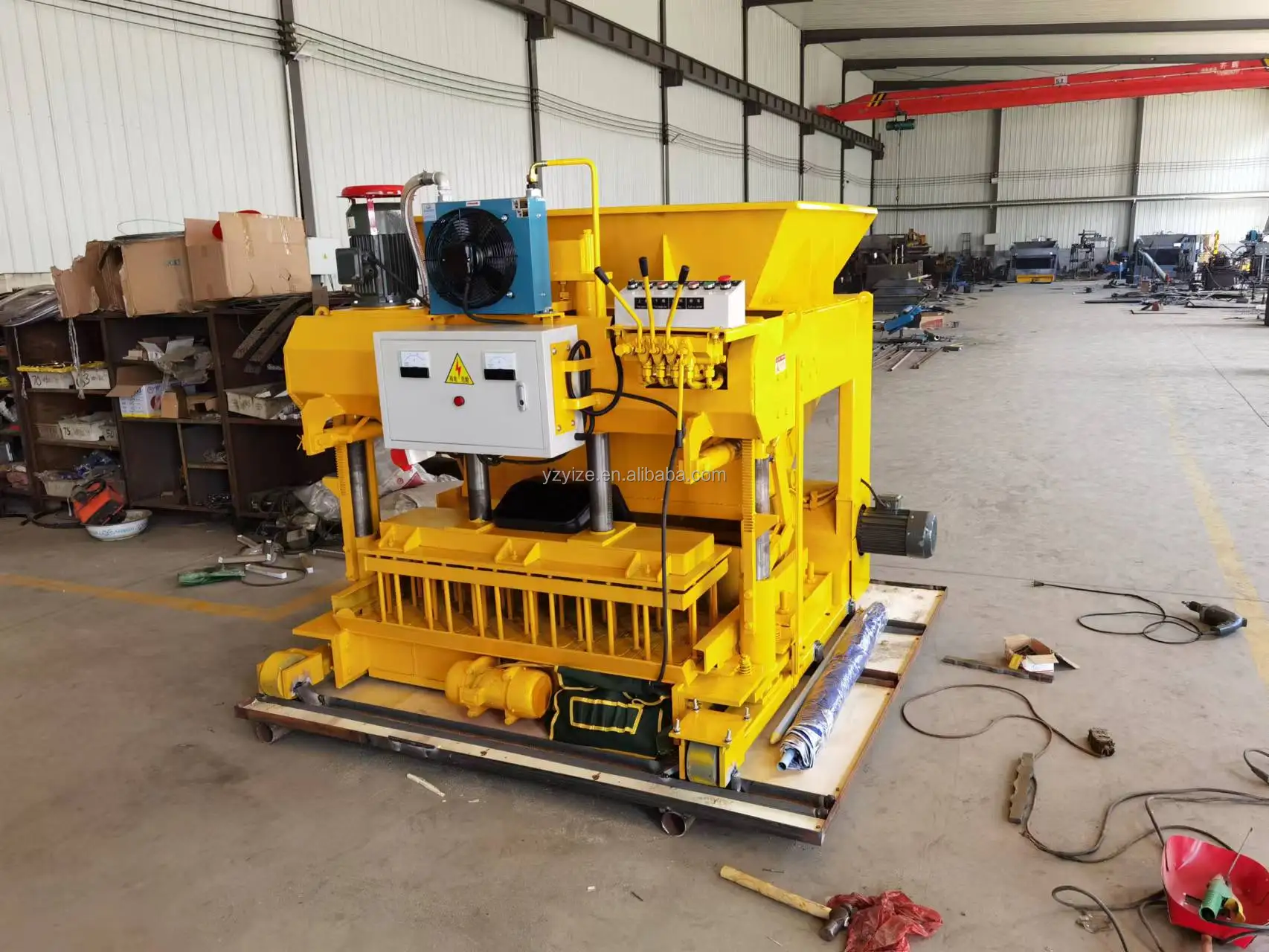

1.Mobile hydraulic brick making machine:

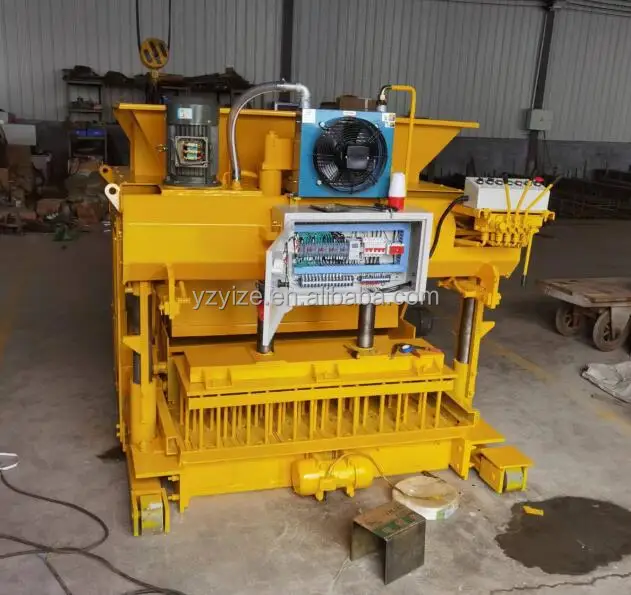

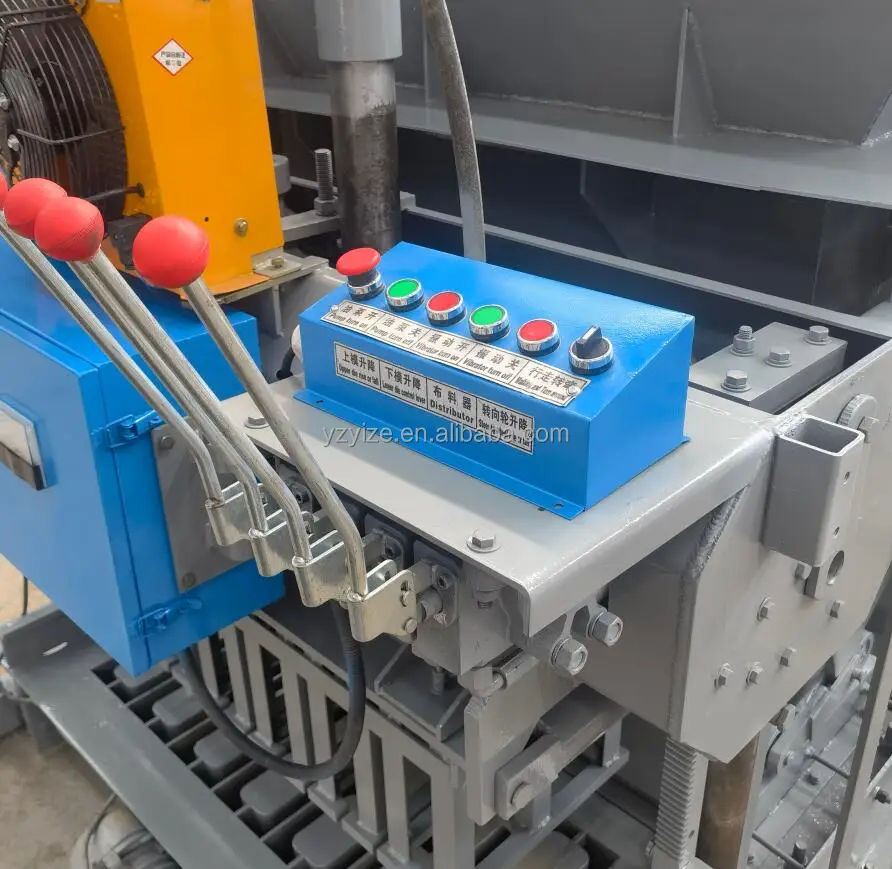

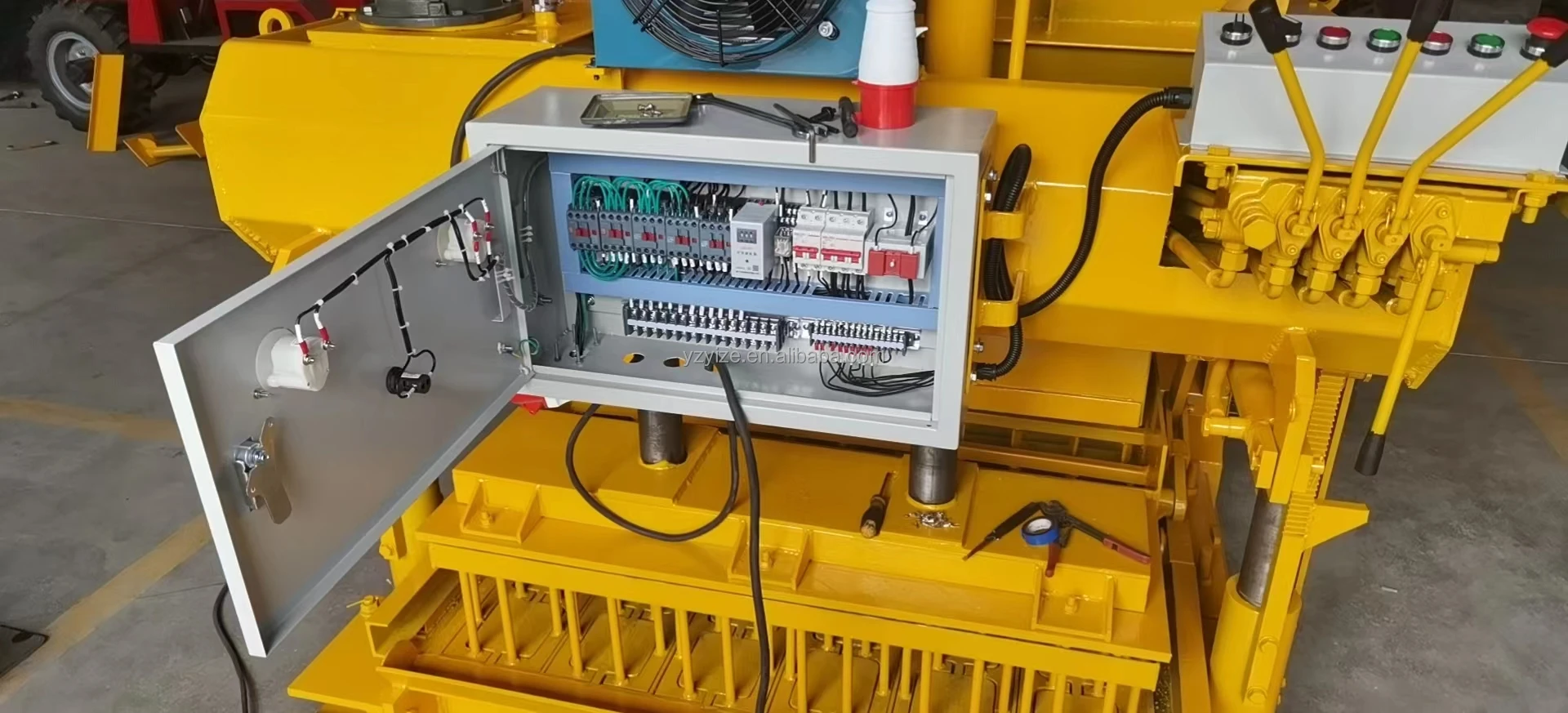

Control system:

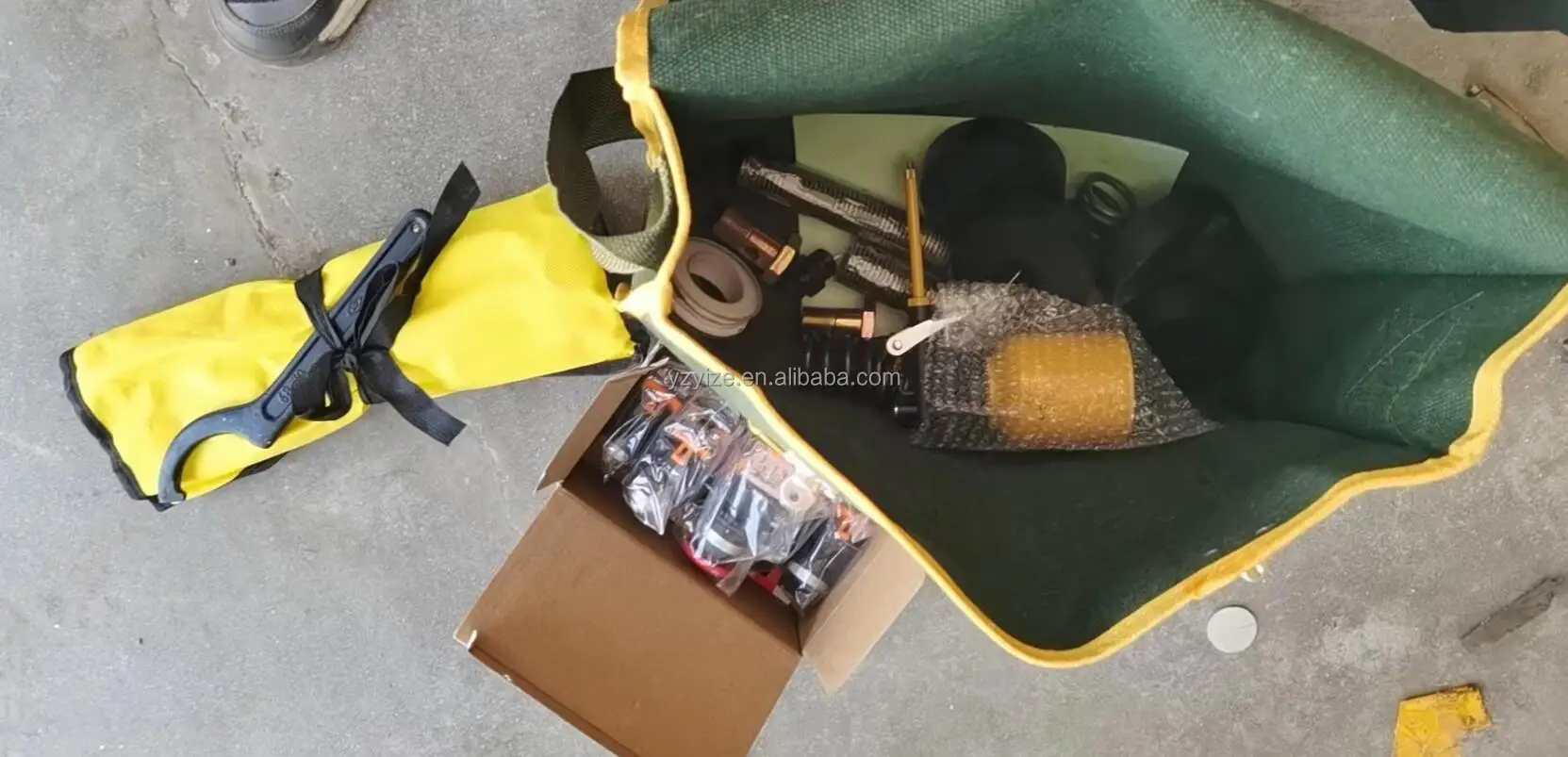

Spare parts for free:

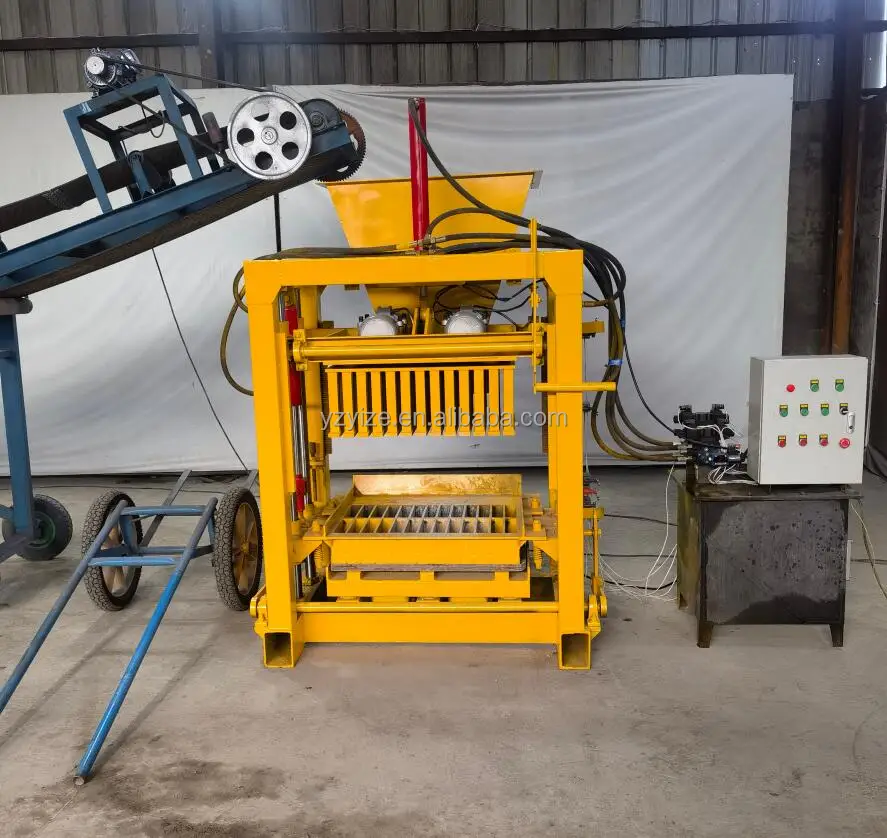

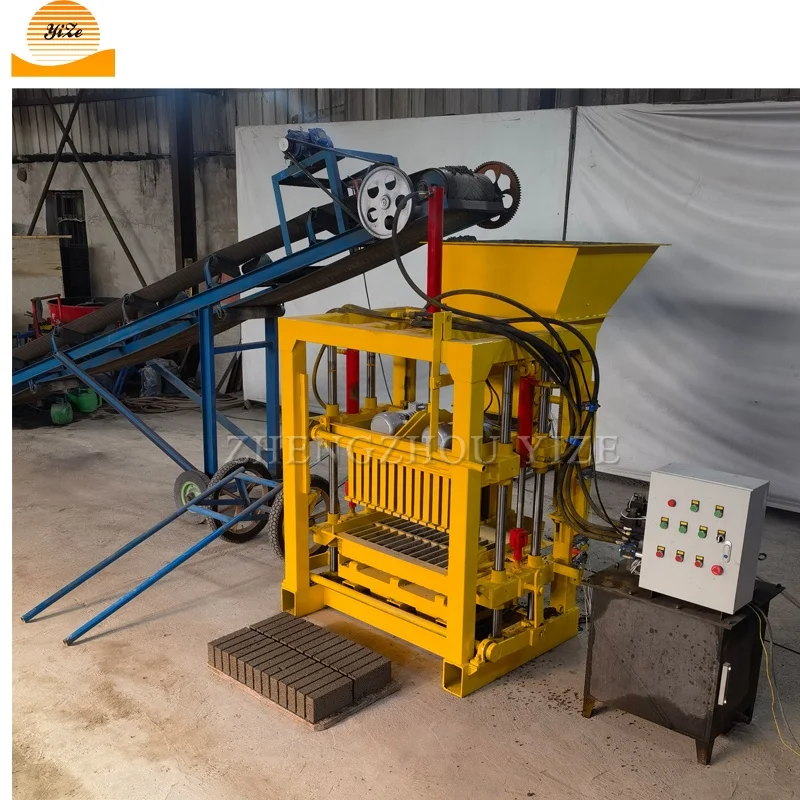

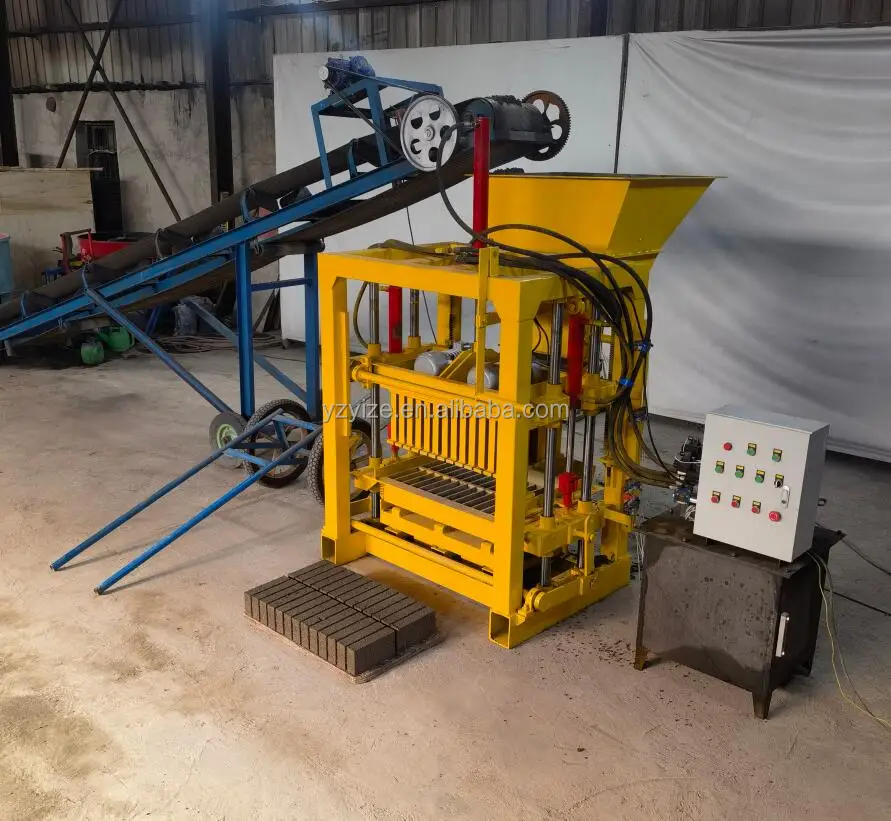

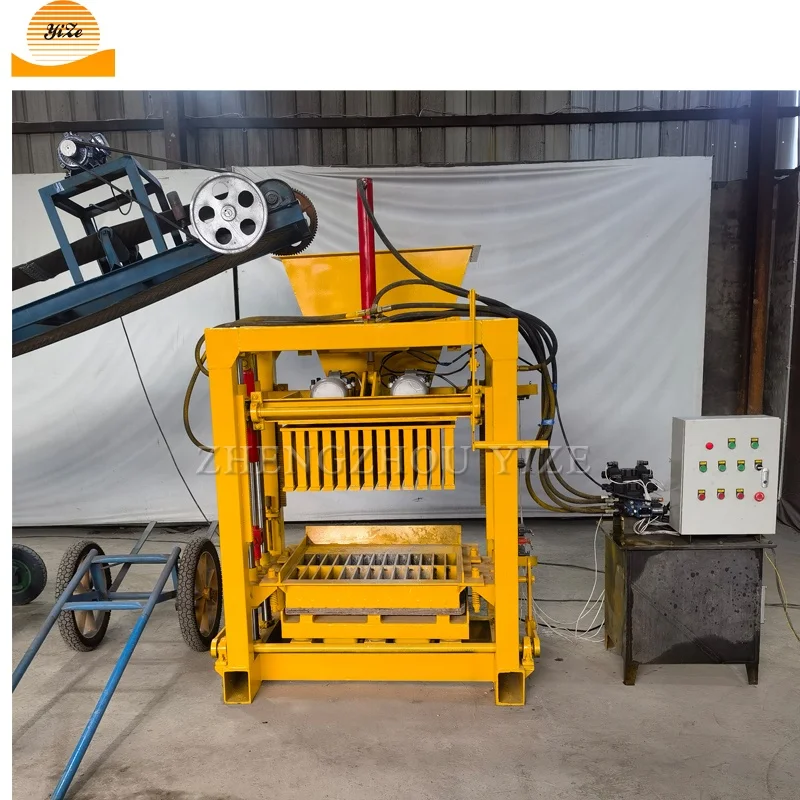

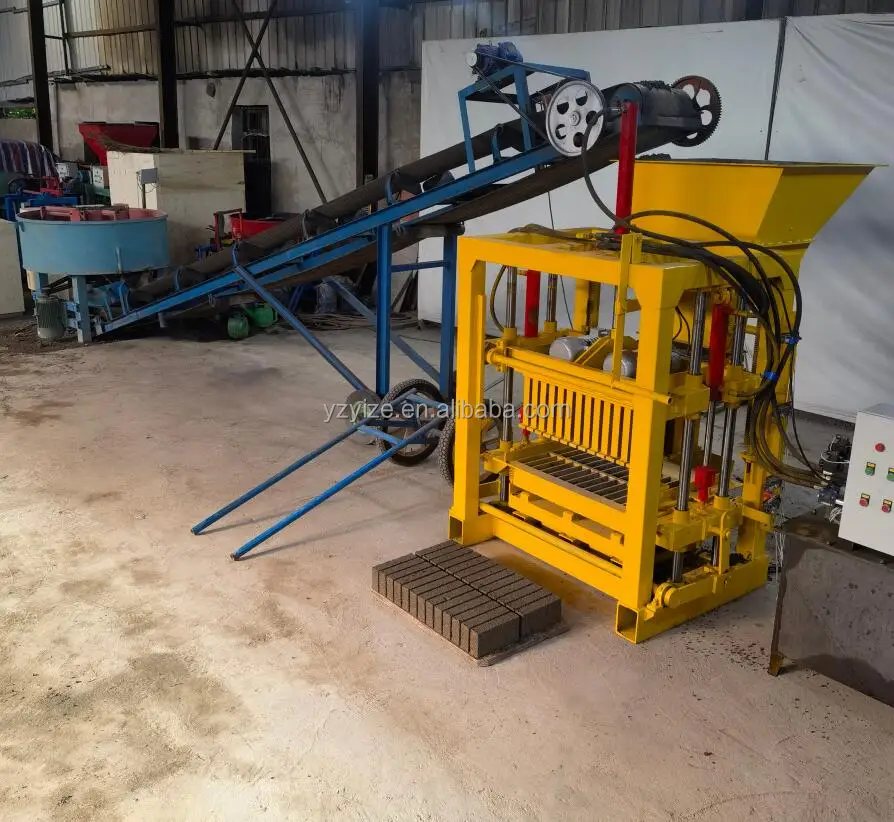

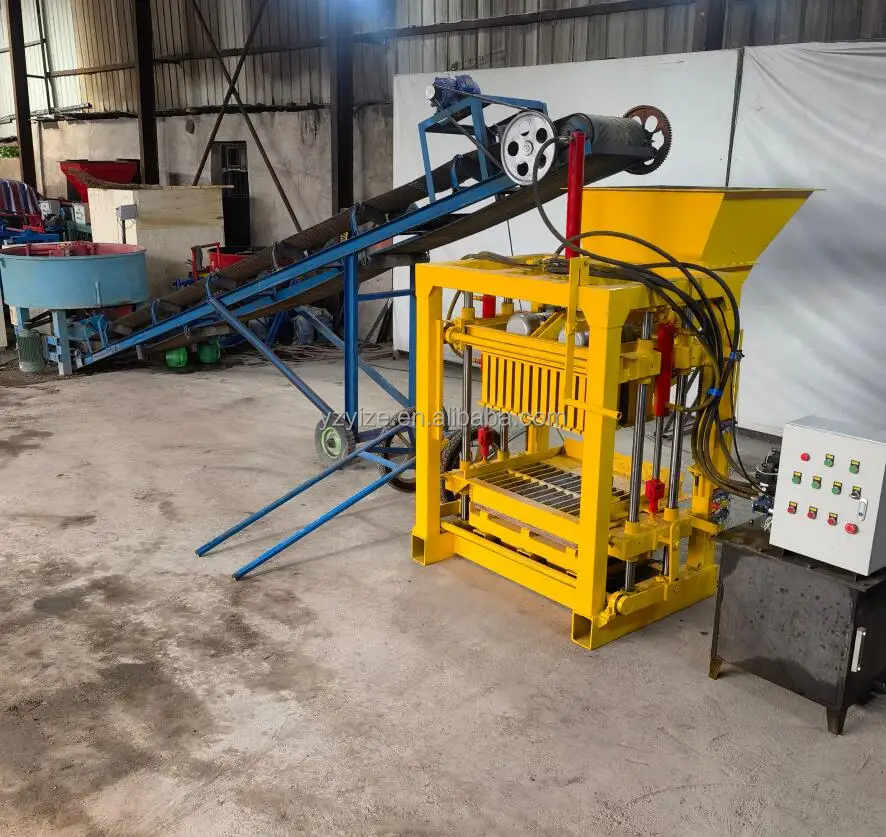

2.Fixed hydraulic brick making machine:

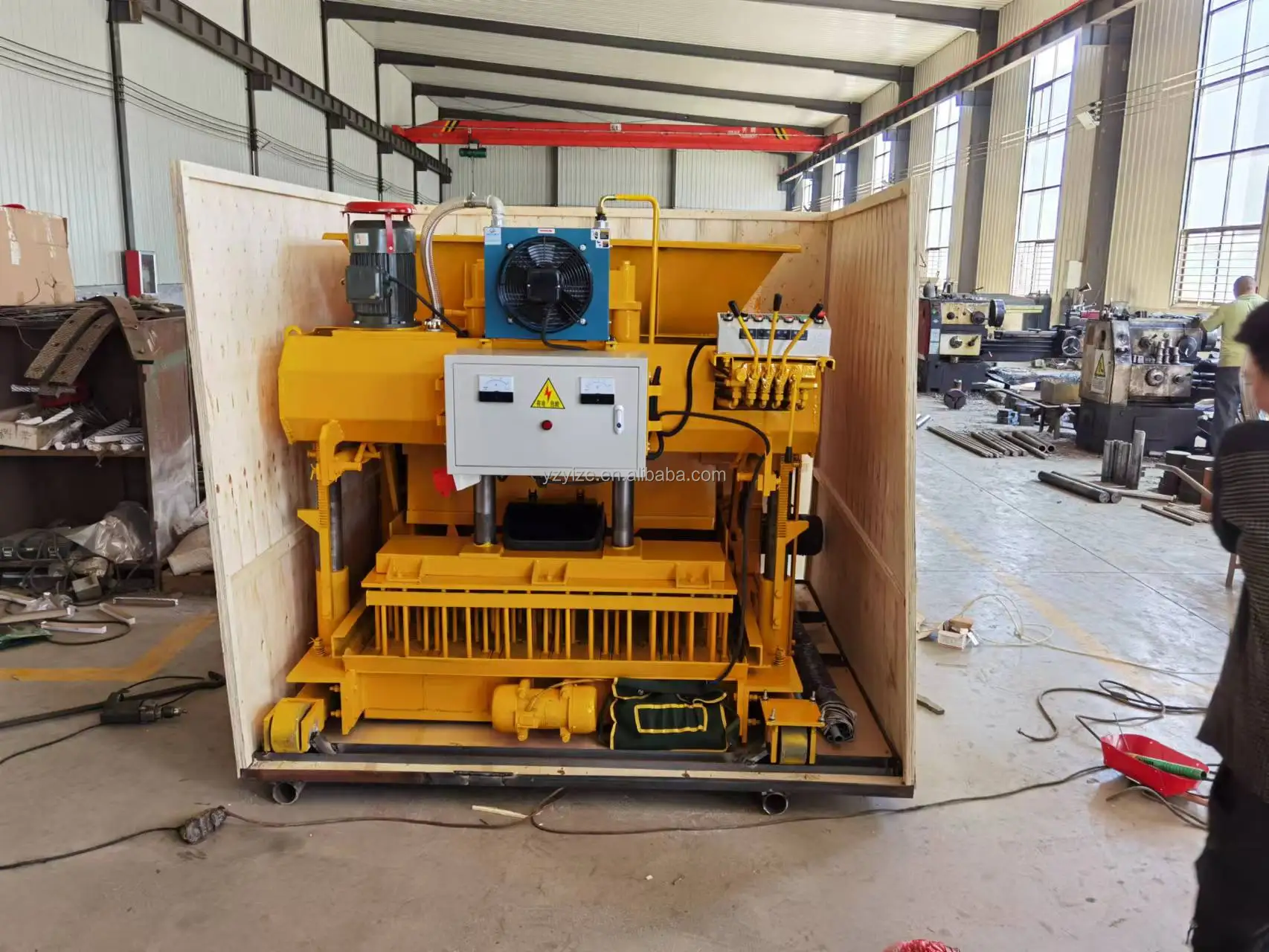

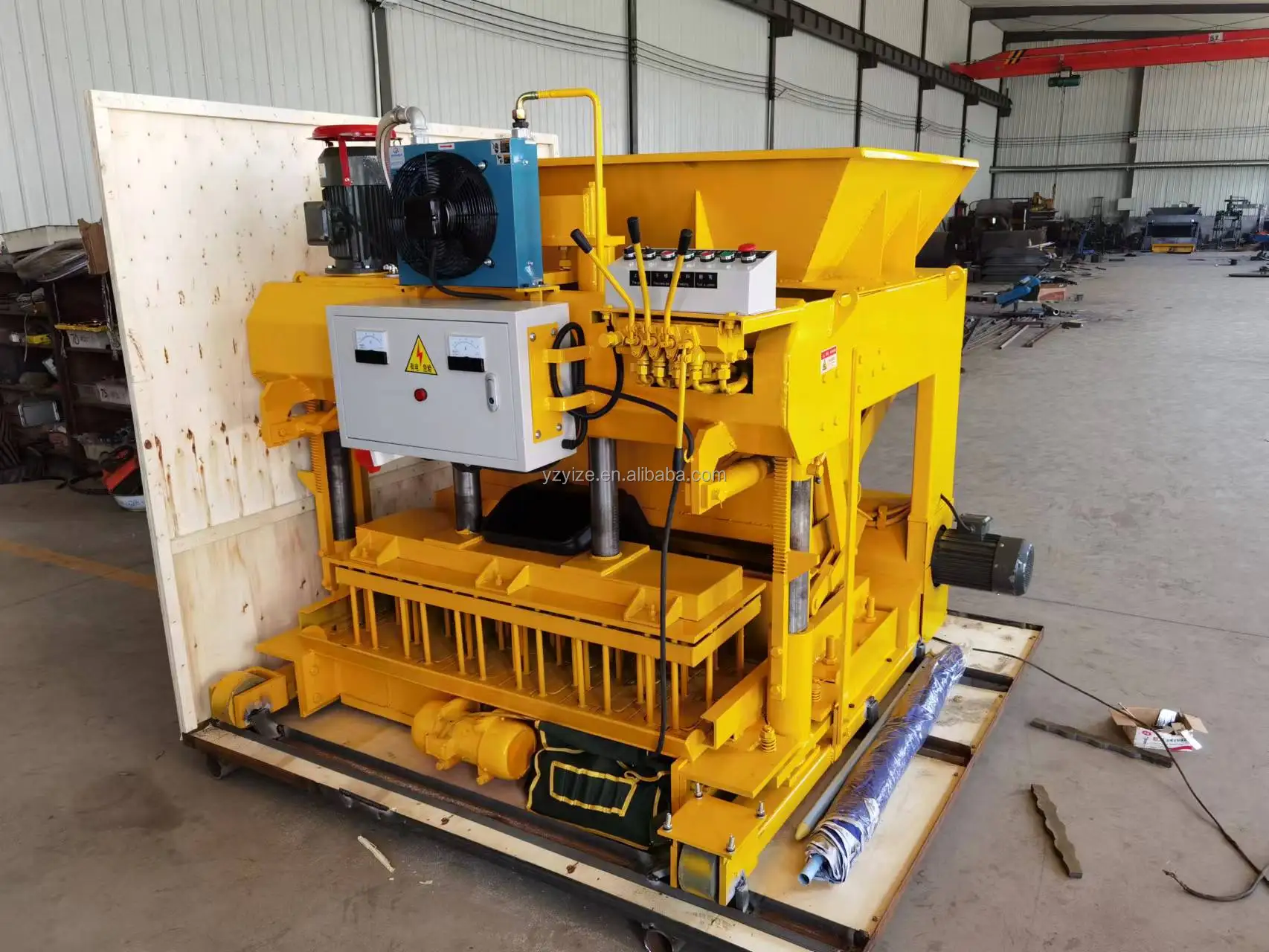

Packing pictures:

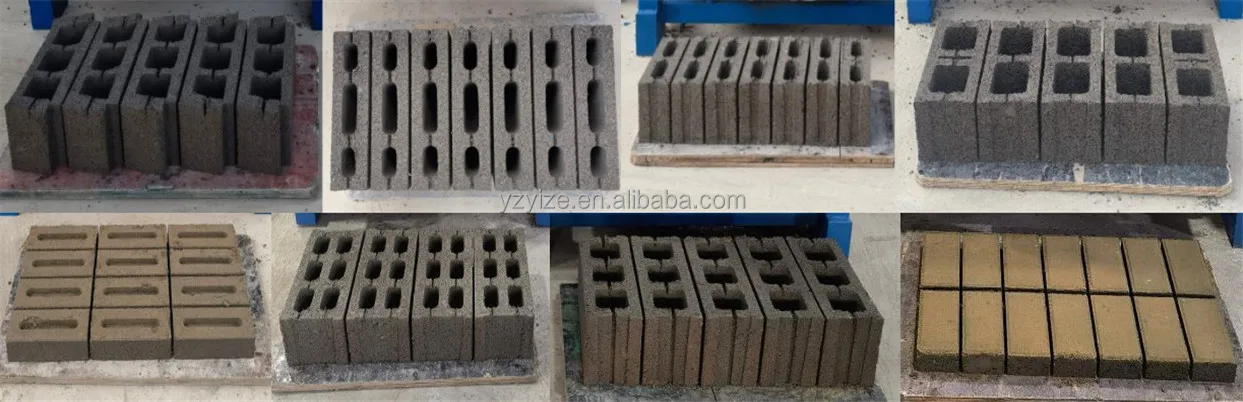

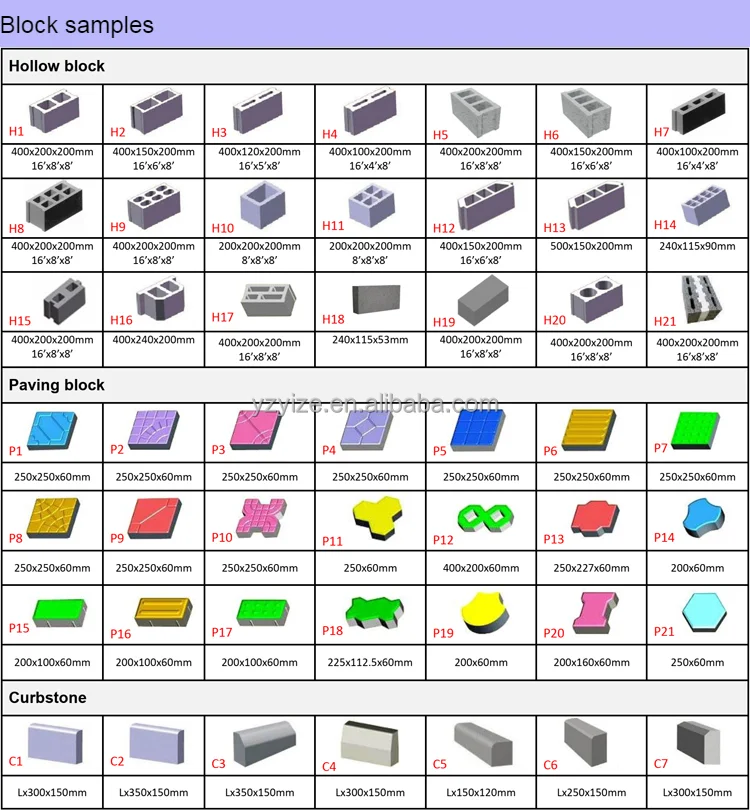

The machine can make many different bricks，we can also customize the brick mold based on the brick shape and size you need.
CE Approved:
