Промышленный Ethernet коммутатор OEM 12 В 36 В постоянного тока с 5 портами на Din рейке
- Category: Network Switches >>>
- Supplier: Shenzhen Hi-Net Technology Ltd.
Share on (62109900175):
Product Overview
Description
Product Description

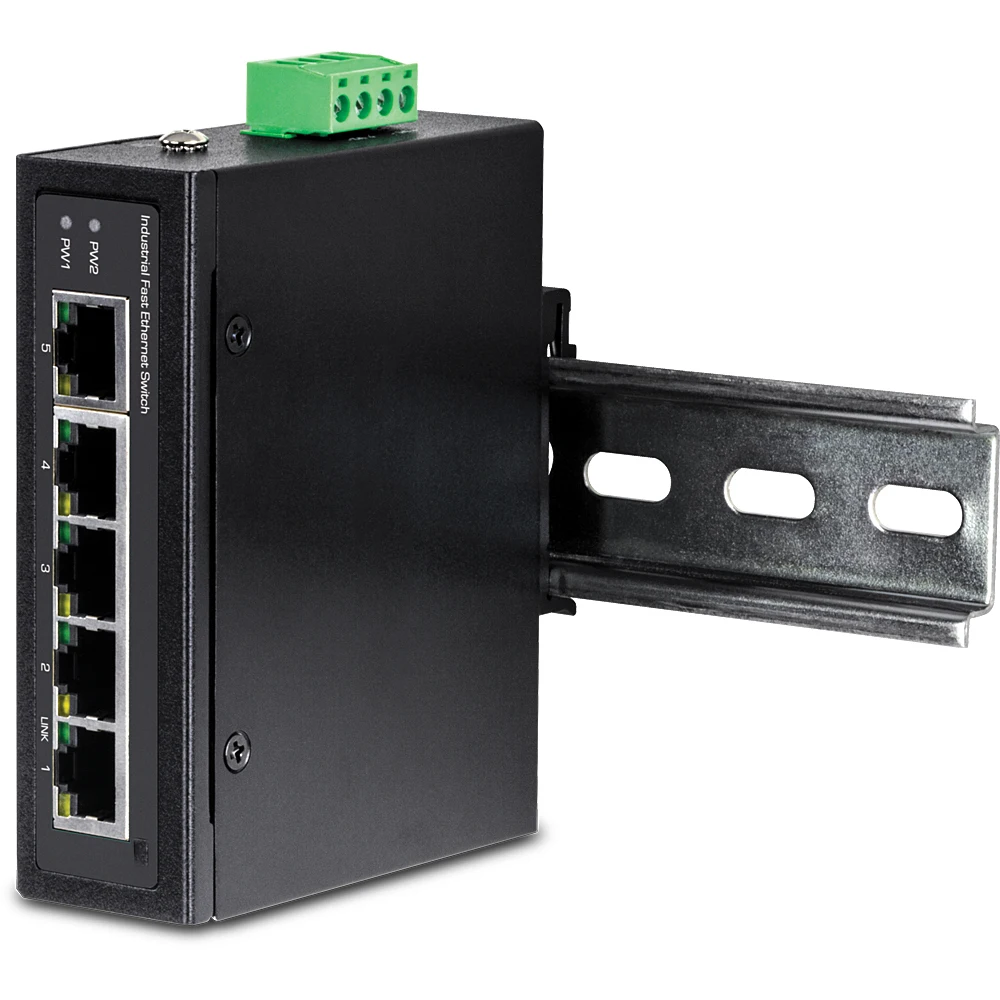

OEM 12v-36vdc input 5port Din-rail Industrial Ethernet Switch
IDS1005-DC-C is a Unmanaged Din-rail Industrial Ethernet Switch, which can provide economical solution for your Ethernet. Its dust proof fully sealed structure (pr protective case of IP30 level), over-current, over-voltage and EMC protected wide power input, which can work reliably in harsh and dangerous environment.
It provides 5 10/100Base-TX RJ45 ports.
Features:
•\tConforms to IEEE802.3, IEEE 802.3u
•\tProvides 5 10/100Base-TX RJ45 ports
• High back-plane bandwidth 1Gbps
• Surge protection for power port and data ports
• Wide power input: 12V~36VDC
• Wide working temperature: -10℃~65℃, [-40℃～75℃ (-W, Option)]
• IP30 DIN-Rail mounting metal case
• 200,000 hours MTBF (Parts count reliability prediction)
Sepcification:
Item | Description |
Summarize | |
Fixed port | 5 10/100Base-TX RJ45 ports. |
LED Indicators | PWR, Link/Act LED. |
Input voltage | 12V～36VDC. |
Power consumption | ≤6W. |
Operating temperature | -10℃~65℃, -40℃～75℃ (-W, Option). |
Storage temperature | -40℃～75℃. |
Relative humidity | 5%～95% (non-condensing). |
Layer 2 Switching | |
Switching capacity | 1G |
MAC address table | 1K |
Order Information
IDS1005-DC-C | 5-port Unmanaged Din-rail Industrial Switch |
IDS1005-DC-W-C | 5-port Unmanaged Din-rail Industrial Switch (Wide Operating Temperature) |

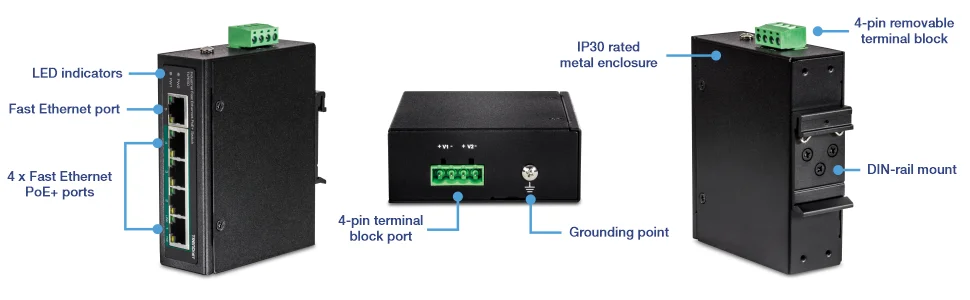

Detailed Images
Easy Installation
No configuration needed, simply connect PoE+ network devices to the industrial Ethernet switch

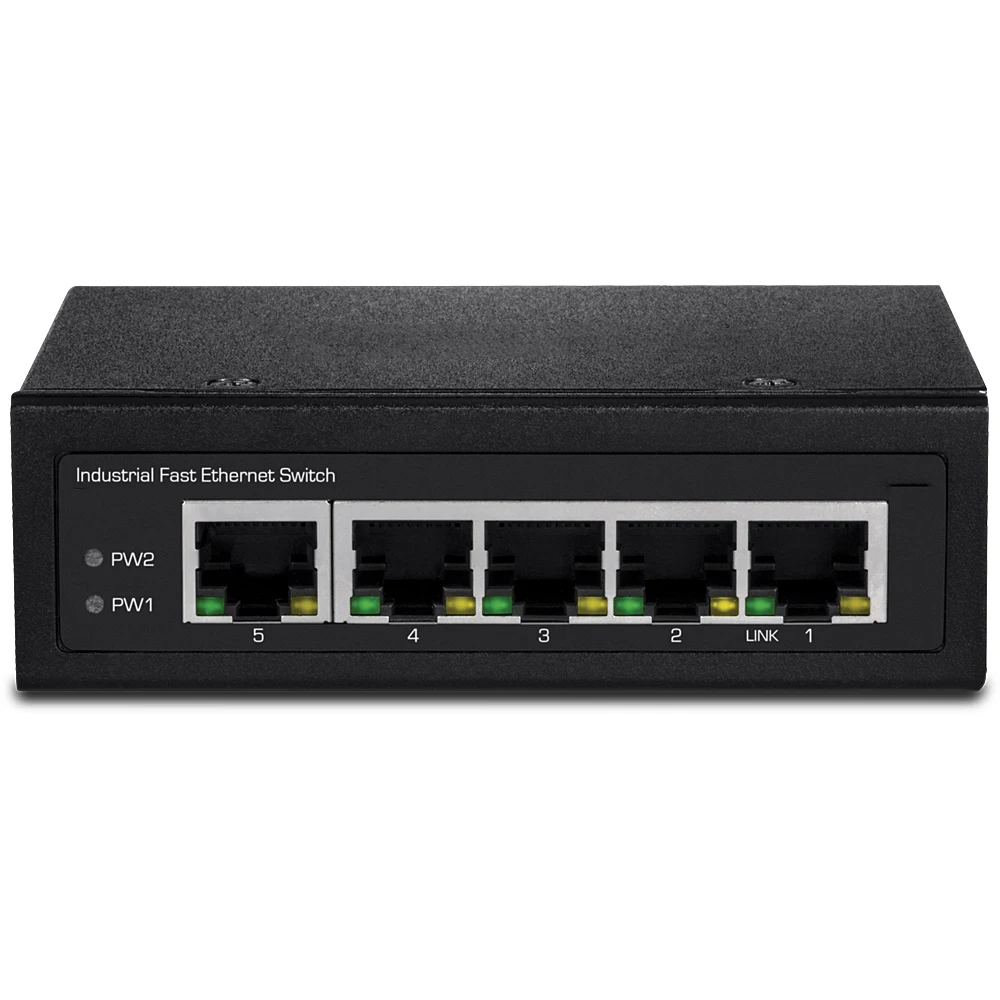

Fast Ethernet Ports
4 x Fast Ethernet PoE+ ports and 1 x Fast Ethernet port

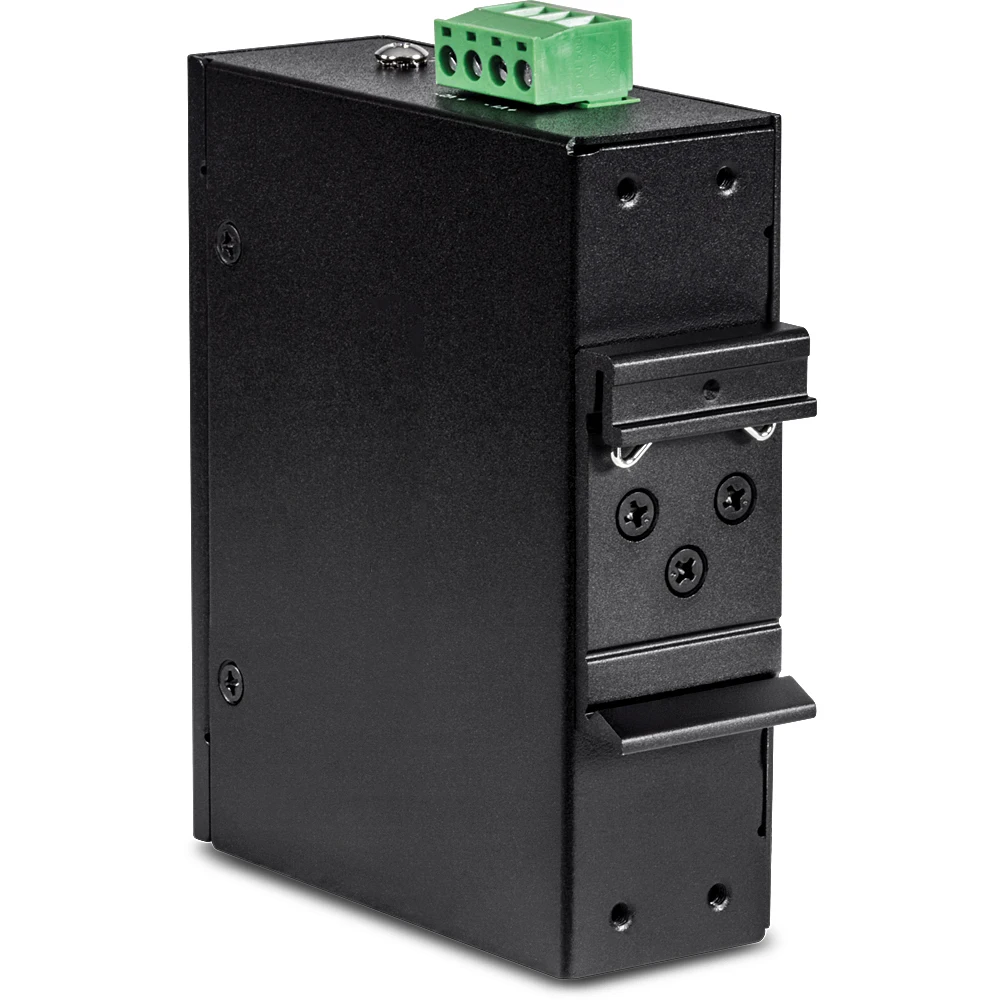

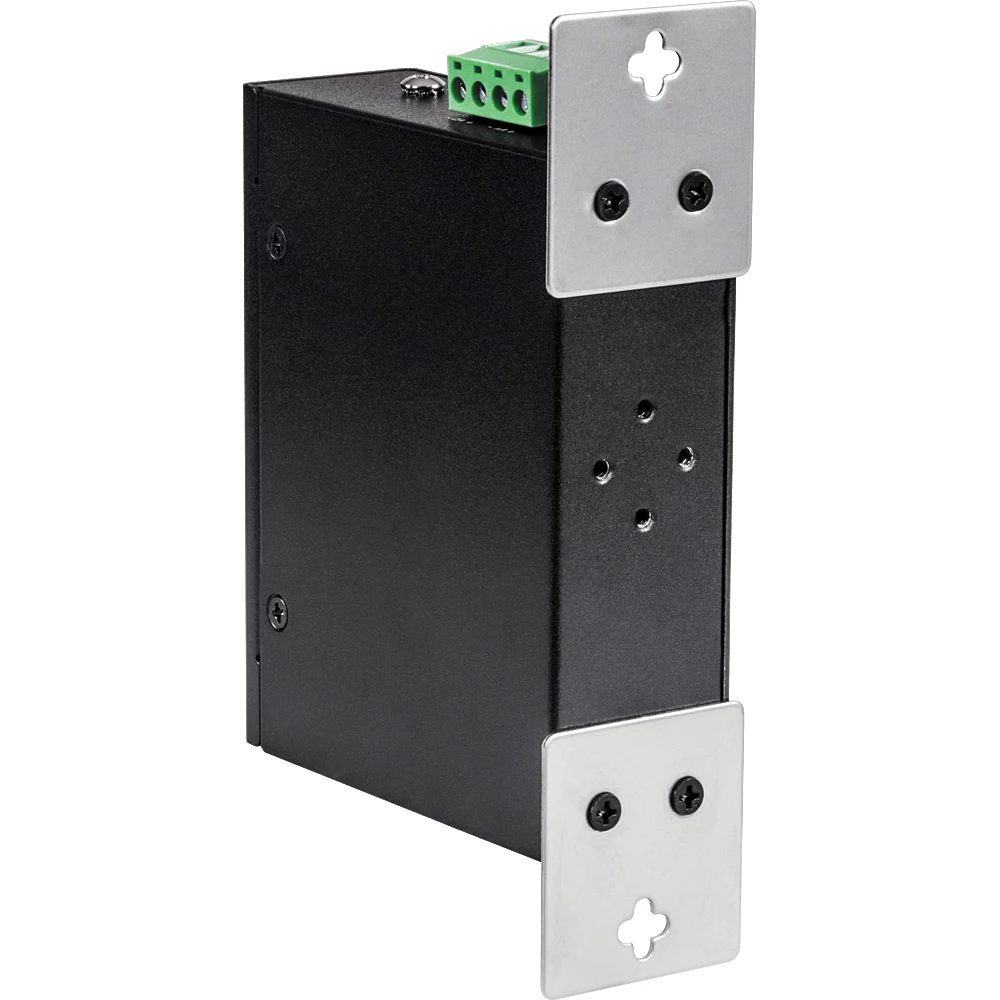

DIN-Rail / Wall Mounts
IP30 rated metal enclosure with included DIN-Rail mount and wall mount hardware
Switching Capacity
Industrial Ethernet switch with 1Gbps switching capacity
Wide Temperature Range
A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with extreme hot or cold conditions

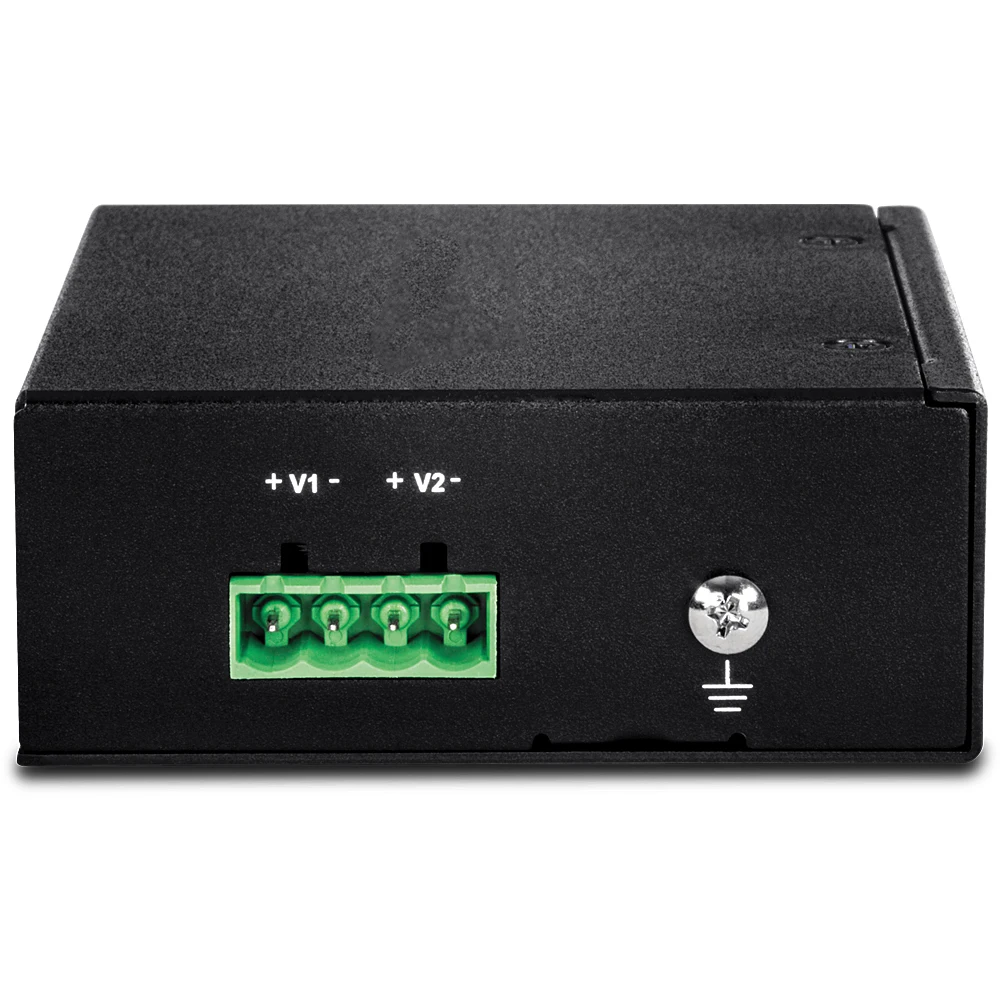

Grounding Point
Industrial Ethernet switch with grounding point to protect equipment from external electrical surges
Related products

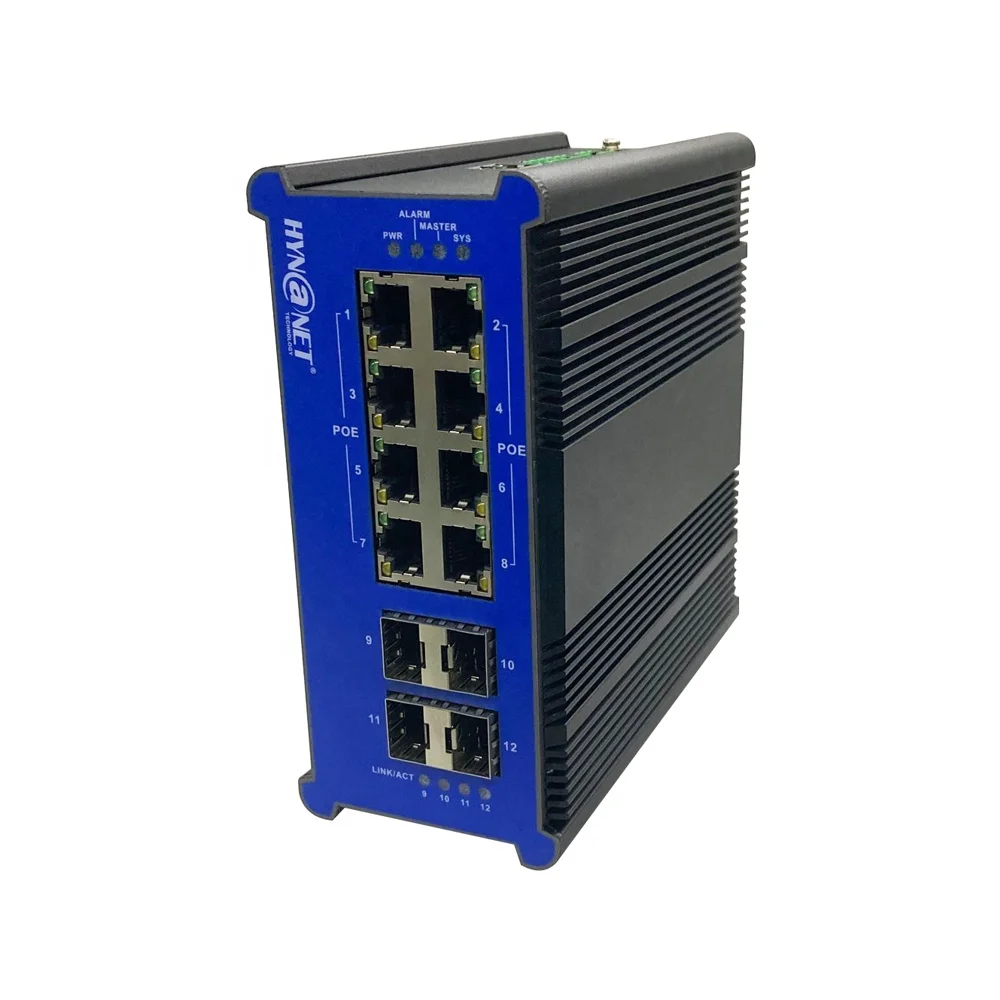

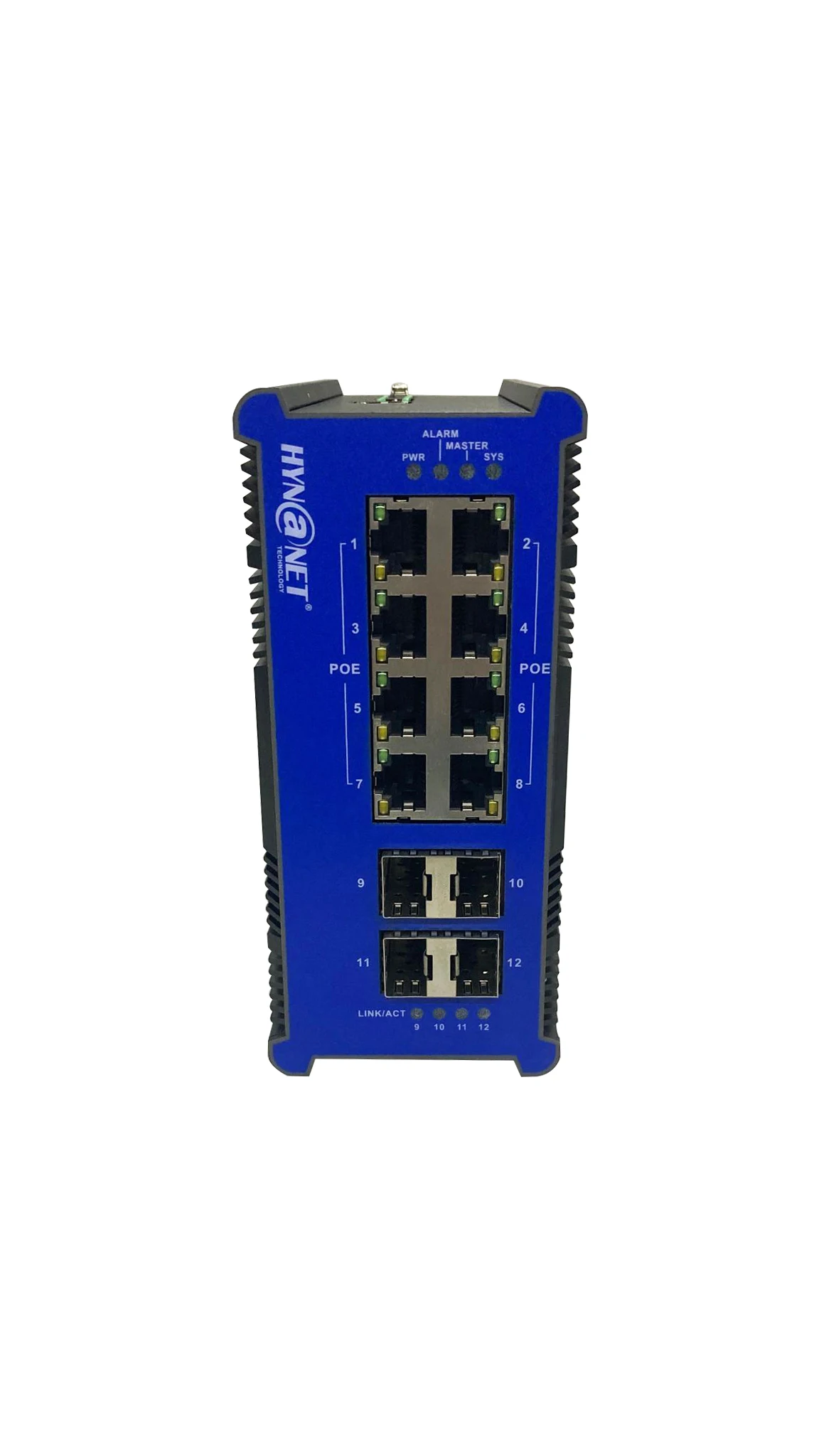

10G Layer3 90W Ultra industrial poe switch 8x10/100/1000M+4x10G SFP din rail switch
