Terracotta clay baguette terracotta louvre for exterior cladding
- Category: >>>
- Supplier: Jiangsu Paneltek Ceramic Co. Ltd.
Share on (62111052222):
Product Overview
Description
Product Picture
Paneltek

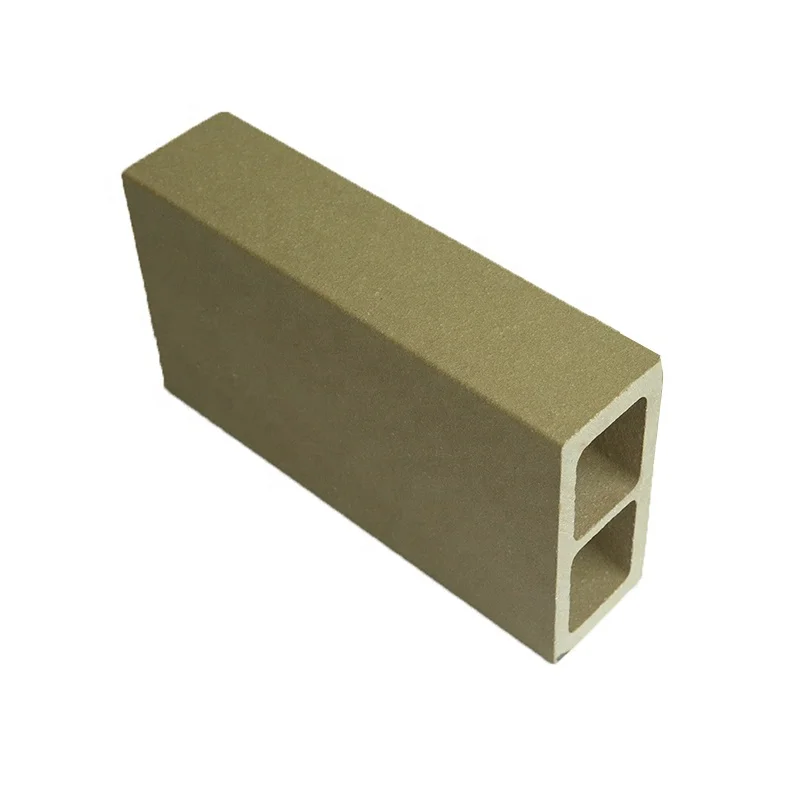

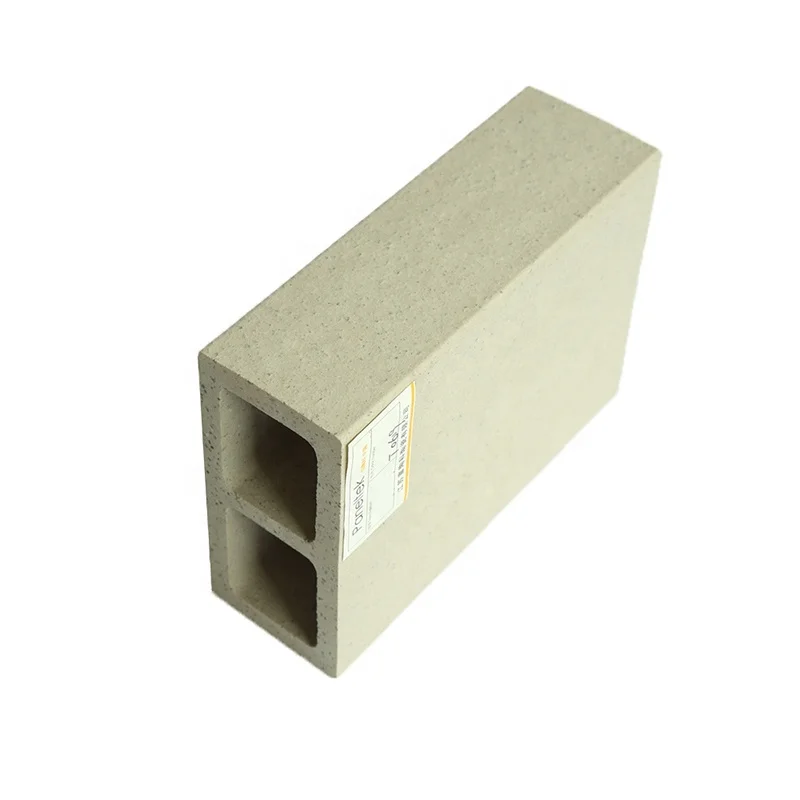

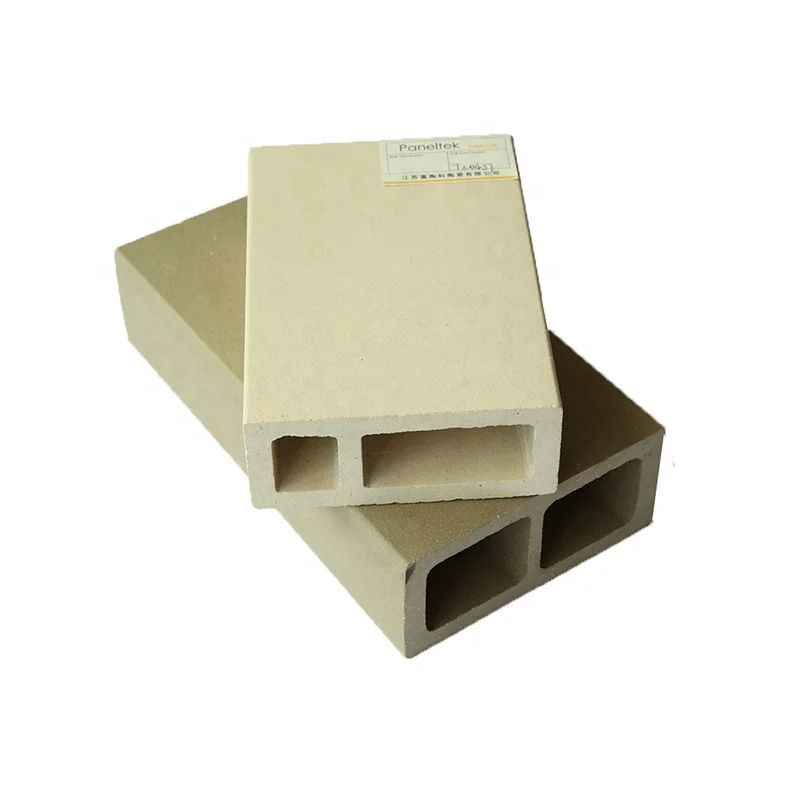

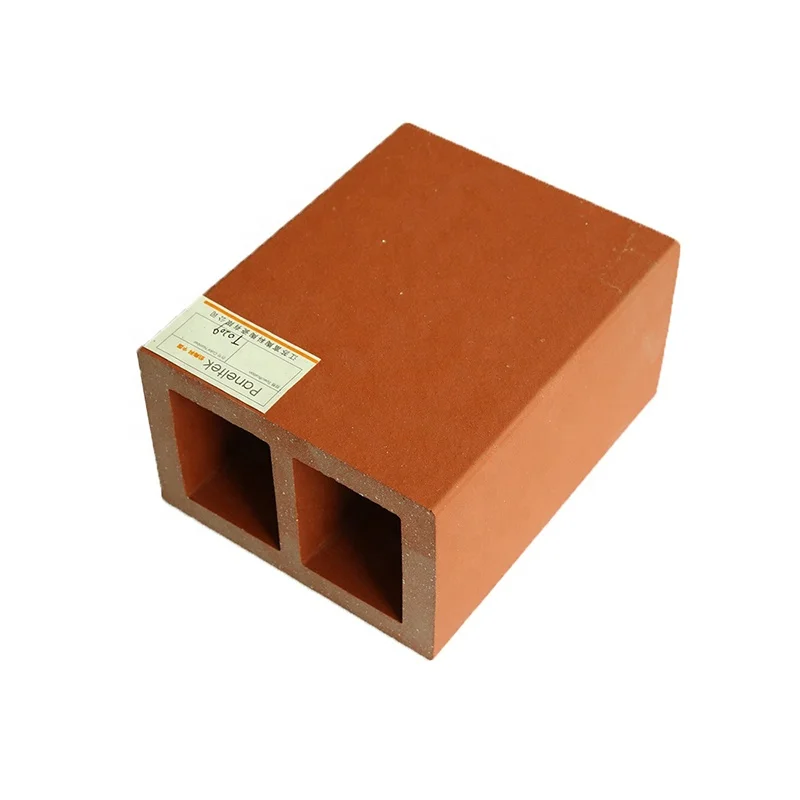

Terracotta clay baguette terracotta louvre for exterior cladding
| Product Name | Terracotta Louver/Baguette |  |
| Length | 300-1500mm | |
| Thickness | 8mm /customized | |
| Width | 50*50 60*100 60*150mm | |
| Color | White/Red/Gray/Yellow/Blue/Green... | |
| Surface | Custom Surface | |

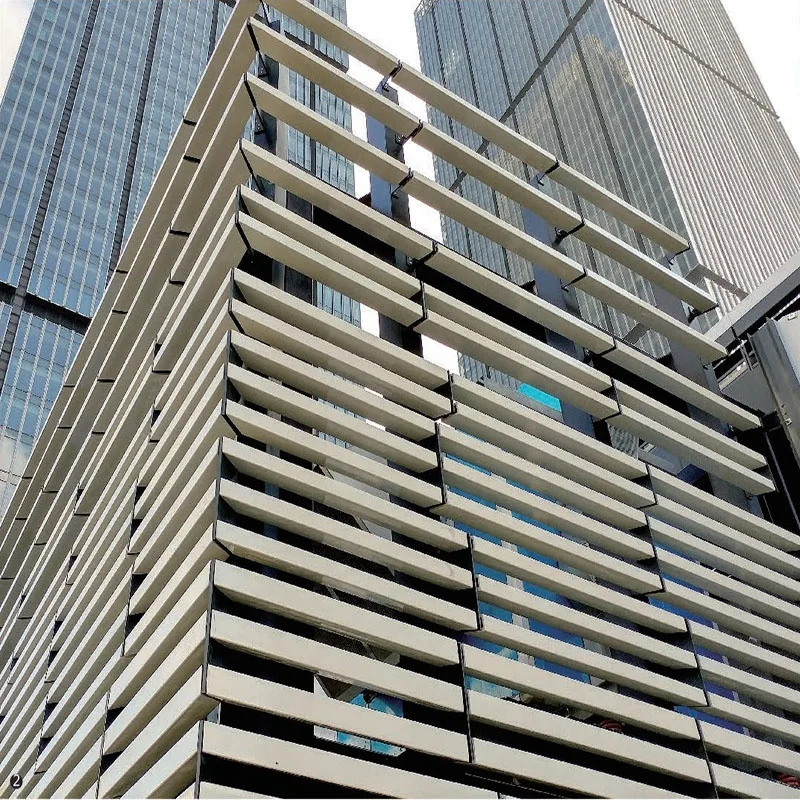

| Application | Curtain Wall, Decoration Wall Louver | |
| OEM&ODM | Yes |
Product Details
Performance Indicators | Technical Performance of Terracotta Products | GB | EN14411 | ||
306*F18 WHITE Terracotta Panels | 306*F18 GRAY Terracotta Panels | 310*F30 YELLOW Terracotta Panels | |||
| Water Absorption | 1.1% | 1.4% | 2.34% | (I)3%-6% (II)6%-10% | (I)3%-6% (II)6%-10% |
| Dry Weight | 31kg/m2 | 31kg/m2 | 41kg/m2 | / | / |
| Frost Resistance | No damage after 100 | No damage after 100 | No damage after 100 cycles | Testedvalue of the report | Tested value of the report |
| Damage Strength | 4966N | 4779N | 8722N | ≥750N | ≥750N |
| Rupture Modulus | Avg: 97MPa Min: 86MPa | Avg: 59.36MPa Min: ≥50MPa | Avg: 92.43MPa Min: 80MPa | Avg: ≥9MPa Single Value:≥ 8MPa | Avg: ≥9MPa Single Value:≥ 8MPa |
| Poisson's Ratio | 0.16 | 0.16 | 0.16 | / | / |
Modulus of Elasticity | 44GPa | 34GPa | 34GPa | / | / |
| Fire Resistance | Level A1 | Level A1 | Level A1 | / | / |
| Resistance to Acid&Alkali | Level ULA | Level ULA | Level ULA | Tested value of the report | Tested value of the report |
| Radioactivity | Class-A decorative material | Class-A decorative material | Class-A decorative material | / | / |
| Earthquake Resistance | Over 10 degrees | Over 10 degrees | Over 10 degrees | / | / |
| Test under Simulated Wind Load | No breakage under 11kPa | No breakage under 119kPa | No breakage under 11kPa | / | / |
| Sound Insulation | Noise reduction by over 9dB | Noise reduction by over 9dB | Noise reduction by over 9dB | / | / |
| Heat Conductivity | 0.31w/m.k | 0.31w/m.k | 0.41w/m.k | / | / |
| Thermal Shock Resistance | No cracks | No cracks | No cracks | Tested value of the report | Tested value of the report |
| Fouling Resistance | Level 2 | Level 2 | Level 2 | Level 2 at least | Level 2 at least |
| Impact Resistance | 0.78 | 0.78 | 0.78 | Tested value of the report | Tested value of the report |
| Linear Coefficient of Thermal Expansion | 5.2×10-6 °C -1 | 5.2×10-6 °C -1 | 5.2×10-6 °C -1 | Tested value of the report | Tested value of the report |
