Yellow peas grinding machine chickpea flour grinder for baking

Product Overview

Description

Yellow peas grinding machine chickpea flour grinder for baking





 Technical Data:



product Name	HX-WFJ series fine Grinding machine:
	Yellow peas grinding machine chickpea flour grinder for baking
Model	WFJ-15	WFJ-20	WFJ-30	WFJ-60	WFJ-80	WFJ-100
Capacity(kg/h)	60-150	150-300	150-400	200-500	300-1000	800-1300
Size of input granules(mm)	≤10	≤12	≤15	≤20	≤20	≤20
Crushing Fineness(mesh)	80-500(Adjustable )
Motor power(kw)	13.5	22	46	84.15	102	122
Speed of principal axis(rpm)	≈6000	≈4800	≈3800	≈2800	≈2800	≈2800
Overall Size(L*W*H)	4200*1000*2600	4700*1200*2700	6640*1300*3960	7500*2300*4530	8200*2500*4600	9200*2600*5000
Weight(kg)	980	1300	1500	4200	4200	4200





Machine Construction and Working Method:

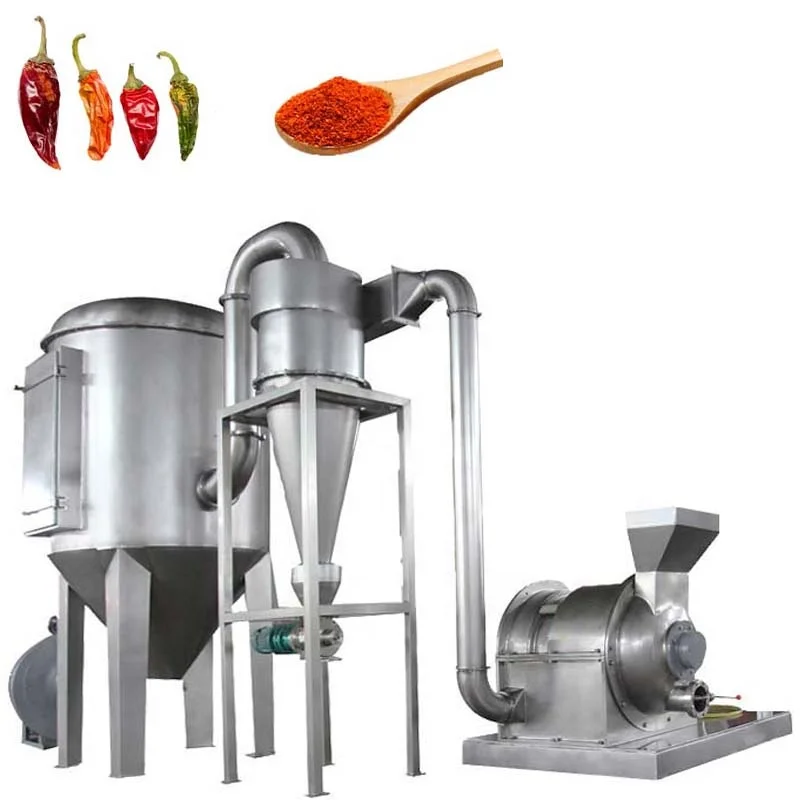

The material enters the grinding chamber via the funnel and spiral conveyor it is sheared and broken by the fast-rotating blades. The powder passes the guide ring and enters the classification chamber. AS the classification wheel is in revolution, both the air force and centrifugal force act on the powder . As the particles whose diameters are greater than the critical diameter(diameter of the classification particles) have a great mass, the yare thrown back into the grinding chamber to be ground again,while the particles whose diameters are smaller than the critical diameter enter the cyclone separator and bag-type collector via the material exit pipe by means of negative pressure wind conveyance. The discharge material meets the requirement for the product.



 Main Usage:

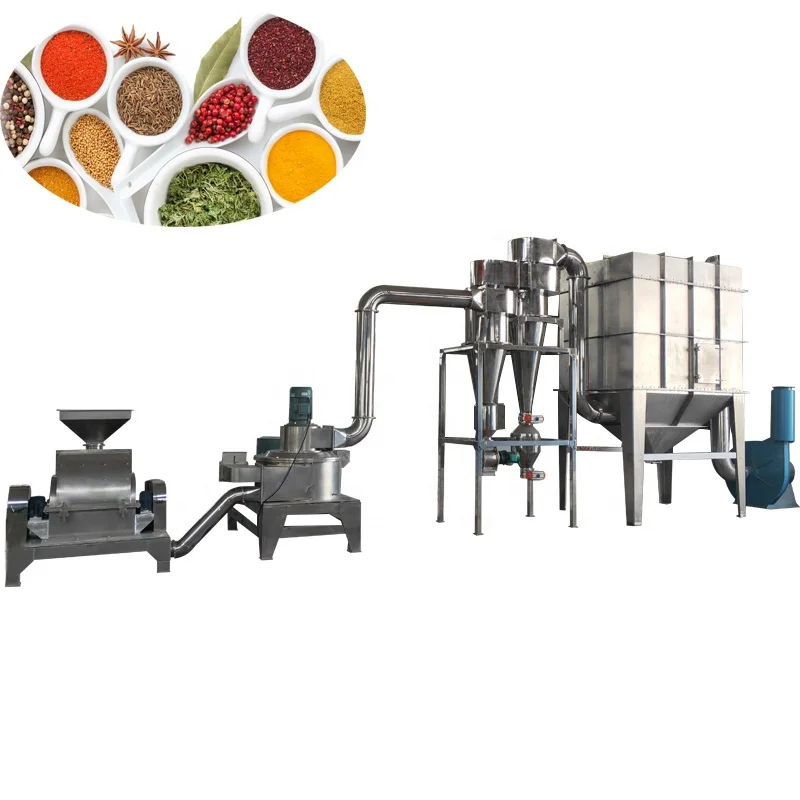

The machine is made up of three parts: main machine ,auxiliary machine and electric control box. Lt has the properties of wind selection, having no sieve or net,  and an even granularity of the processed material. The production process going on continuously, the machine can undertake the grinding of chemical products. Food. Medicine, medicament,  cosmetics, plastic, dyestuff, resin, colourant, grain, etc.





other product link:







About our factory:





Jiangyin Huixu Powder Machinery Manufacturing Co.,Ltd

Located in the Zhutang Town of Jiangyin city,Jiangsu province.The company has a professional technical team and strong technical force.Our company's productions mainly include six major categories sush as pulverizer ,mixer,dryer,sifter,granulator and so on.Productions are widely used in food, medicine, chemical industry. Our company always take the "quality first" as the purpose.

Warmly welcome foreign friends to our company for visiting and guidance.





Packing and Shipping:



Remark	small machine  LCL freight	big machine  FCL frieght
Packing	The normal package is wooden box(Size: L*W*H) or pack it according to customers special request.	Fix the machine inside container with steel wires  Machine won't move inside the container.
Shipping	FOB Shanghai Sea Port or according to customer request



Certificates:

Contact:

FAQ:

A. Detail requirements

 When you want to send enquiry to us ,please  answer below questions first

 1.show me your material with the characteristics and sizes

 2. tell me the fineness you want ( size :mesh or mm  both is ok)

 3. tell me your ideal capacity kg/h



B. Technical service

1, We calculate the capacity and recommend the best models.

2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.

3, We supply the spare parts and technical support in & after the warranty time.

4, We supply the training course to your workers at our factory if you need.



C. After-sales service

1, Technical support for your installation, operation and maintenance.

2, One year’s warranty, and you can pay for extended warranty.

3, Spare parts and technical support at most economic prices after the warranty.
