Automatic double leaf arm operators swing gate opening system self closing gate kit

Product Overview

Description

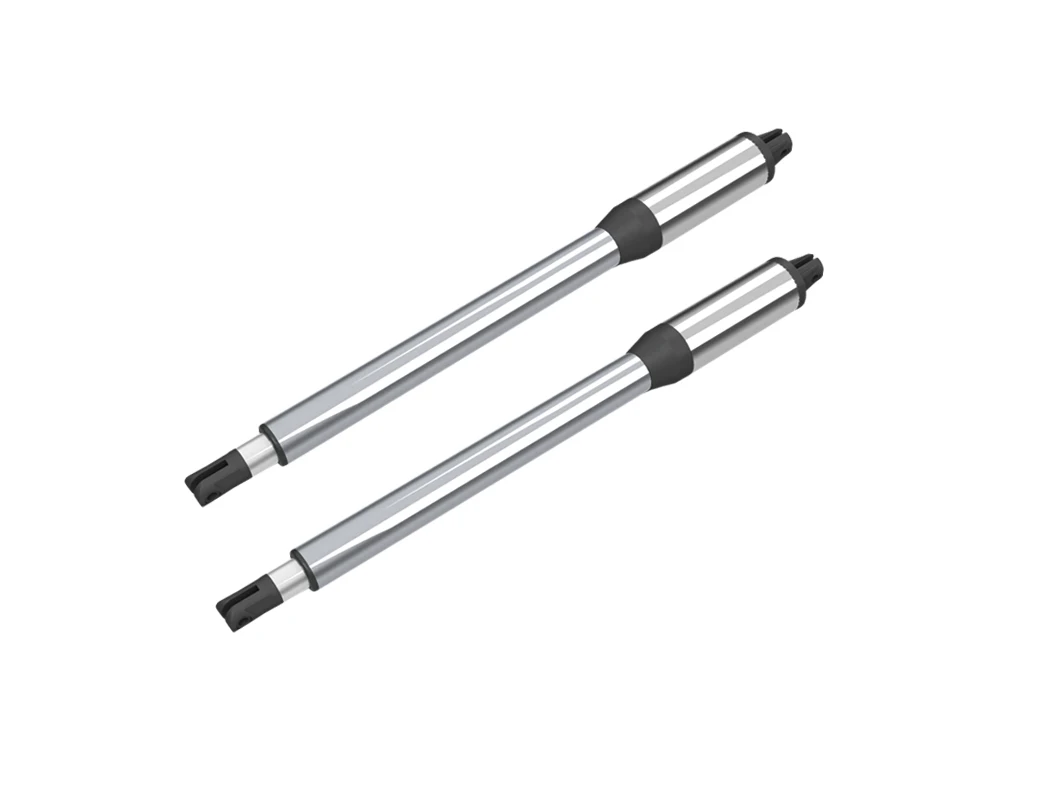

Descripation of Dual Arms Gate Motor Solar Swing Gate Operator PKM-C01:

Dual Arms Solar Swing Gate Operator is designed for residential/commercial applications.Stay warm and dry in your vehicle.This Swing Operator will handle dual swinging gates up to 4meter(2meter per leaf) in length and weighing up to 500KGS.(250KGS per leaf)

Swing Gate Motor PKM-C01 has a powerful 24VDC motors,which provide exceptional starting torque and features soft start/stop operation.This promotes longer gate and operator life,as well as dependable performance.All the gate operators supplied are pre tested and of good quality long lasting and have a 12 Months back to base warranty on the complete system.

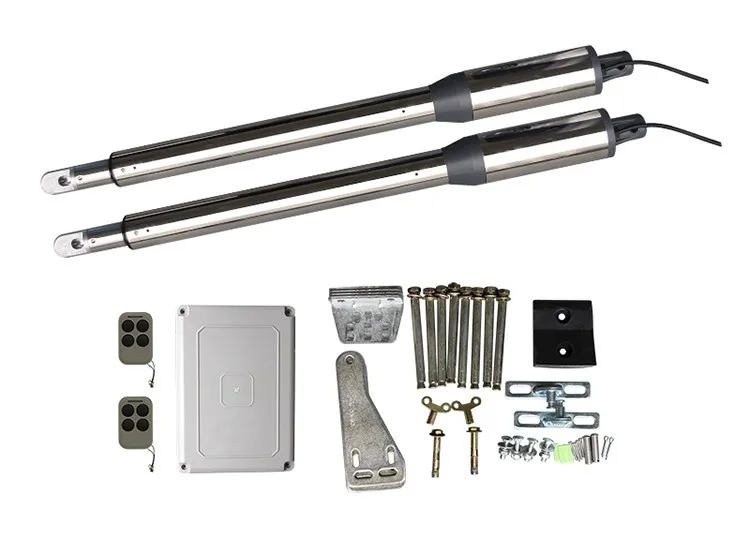

Complete set electronic swing gate operators includes :

2* Arms Gate Openers

2* Transmitters

1* Control Panel

2* Gate Bracket

2* Post Bracket

1* Manual

2* Allen Key

A set of Hardware Accessories

Advantages of remote control swing arms gate openers :

1.Easy to install and operate,and easy to connect wired.
2.Open and close the gate by remote control and keypad.
3.Time promotation function.when open gate,speed is slow,then a little quick,and when close the door,speed is slow again.
4.In case of power failure,release the clutch easily,and can operate the gate manually.
5.Working life about 5 years.
6.Stop working when gate meets with obstacle.
7.Rod's max travel is 300mm.
8.Motor's Poweer : 24VDC 40W
9.Running Speed :1.6cm/s

Automation swing arms gate openers controller info :

1.EG-22A Control board can connect flashing light,and photocell,and back up battery,solar system,and keypad and so on.
2.Controlling single or dluble-leaf motor is optional.
3.Can adjust open and close door time.
4.24VDC back-up battery can be input.(this is use large controller,our standard controller is small size.)
5.High speed operate can be adjustment.
6.Set extra remote control is easily,up to 120pcs remote control.
7.As for remote control : button 1 is open,stop,close one gate,button 2 is for open,stop,close two gates.

swing gate operator control board :





Spec Size of swing arms gate openers PKM-C01 :



Product Description of Swing Gates Openers Kit:



Installation Diagram of swing gate openers PKM-C01:



CE certification of swing arms gate openers PKM-C01:



Port of export:Xiamen

Guarantee time: 1 year

The delivery deadline:1 days delivery after you payment it

The package:One set in a one carton,35sets in a cubic when shipment by sea.

Minium Order Quantity: 10sets(the price will be more lower )

Payment terms:T/T PAYPAL WESTERN UNION

If you have any questions,pls contact with me.thank u very much.
