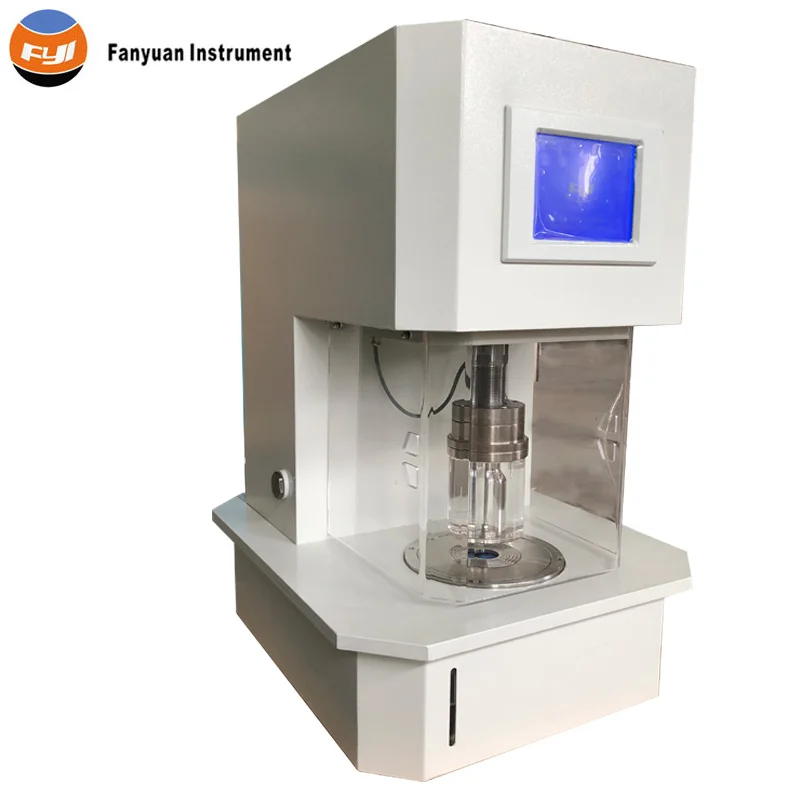

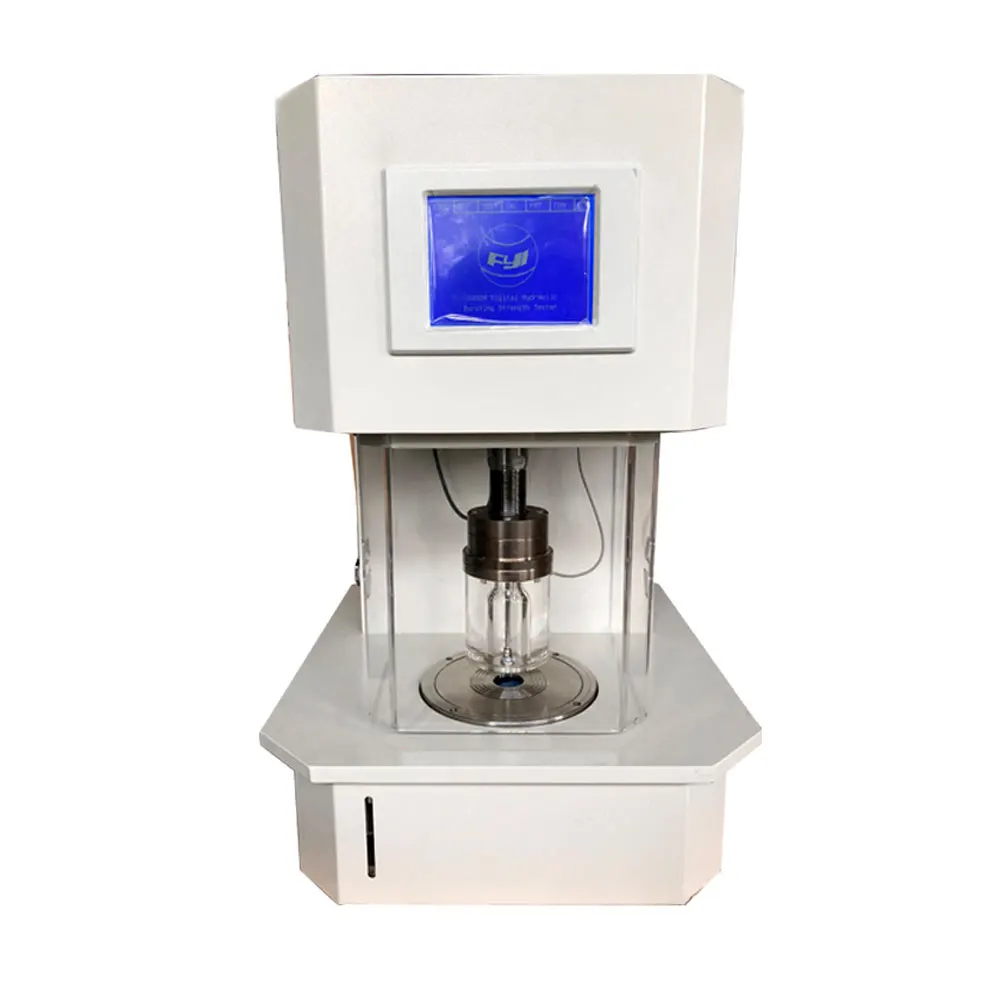

Digital Hydraulic Bursting Strength Tester YG032M
- Category: >>>
- Supplier: Hefei Fanyuan Instrument Co. Ltd.
Share on (62111410387):
Product Overview
Description
Product Description
Application.
YG032M Digital Hydraulic Bursting Strength Tester is used to determine the bursting strength and distension at burst of a variety of materials, including textiles (knitted and woven), nonwovens, paper, plastics, medical products, etc.
Standards.
ISO 13938.1 ASTM D3786 GB/T 7742.1
Note: Hydraulic Bursting Strength Tester can conform to but not limit to the standards above, for more standards conformance, please contact us.
FEATURES OF Hydraulic Bursting Strength Tester
Touch screen with concise and intuitive interface, simple and convenient to use;
Transparent organic glass cover with built-in LED illumination, easily view tests in progress;
Automatic burst-sensing system, sensitive and reliable;
FEATURES OF Hydraulic Bursting Strength Tester
Four test methods: constant-speed extension until burst, extension to specific pressure, extension to specific distension and extension to specific time;
With data storage and printing functions and support on-line operation.
Hydraulic method;
\t\t\t\t\t\t\t\t\tKEY SPECIFICATIONS \t\t\t\t\t\t\t
Measuring range | 0~2.00MPa or 0~6.00MPa (Please specify before placing order) | ||||
Minimum division | 0.001MPa or 0.003MPa | ||||
Diaphragm thickness | ≤2mm | ||||
Test areas | Standard: 7.3cm²(Φ30.5mm) and 50cm²(Φ79.8mm) | ||||
Optional: 10cm²(Φ35.7mm) and 100cm²(Φ112.8mm) | |||||
Max. distension | 75mm | ||||
Pressurization speed | (20~600)ml/min | ||||
Test methods | 1.\tConstant-speed extension until burst | ||||
2.\tExtension to specific pressure | |||||
3.\tExtension to specific distension | |||||
4.\tExtension to specific time | |||||
Units | kPa, kg/cm2, bar, lb/in2 | ||||
Output method | Display and print output, support on-line communication | ||||
Power supply of Hydraulic Bursting Strength Tester | AC 220V, 50Hz | ||||
Dimensions of Hydraulic Bursting Strength Tester | 550×450×700mm (L×W×H) | ||||
Weight of Hydraulic Bursting Strength Tester | 125kg | ||||
Company Profile
Packing & Delivery
Packing with foam
Packing with Plastic or PE film
packed in wooden cases
Truck transportation
Covered with canvas to protect rain
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
\t\t\t\t\t\t\t\t\tOur Advantage \t\t\t\t\t\t\t
1. Focused on testing instruments for 30 year
2. Export to universities, factories, research institutes in over 45 countries
3. In accordance with ISO, AATCC, ASTM, etc.
4. Experienced engineers available to service overseas
5. Supplier verified by Bureau Veritas
