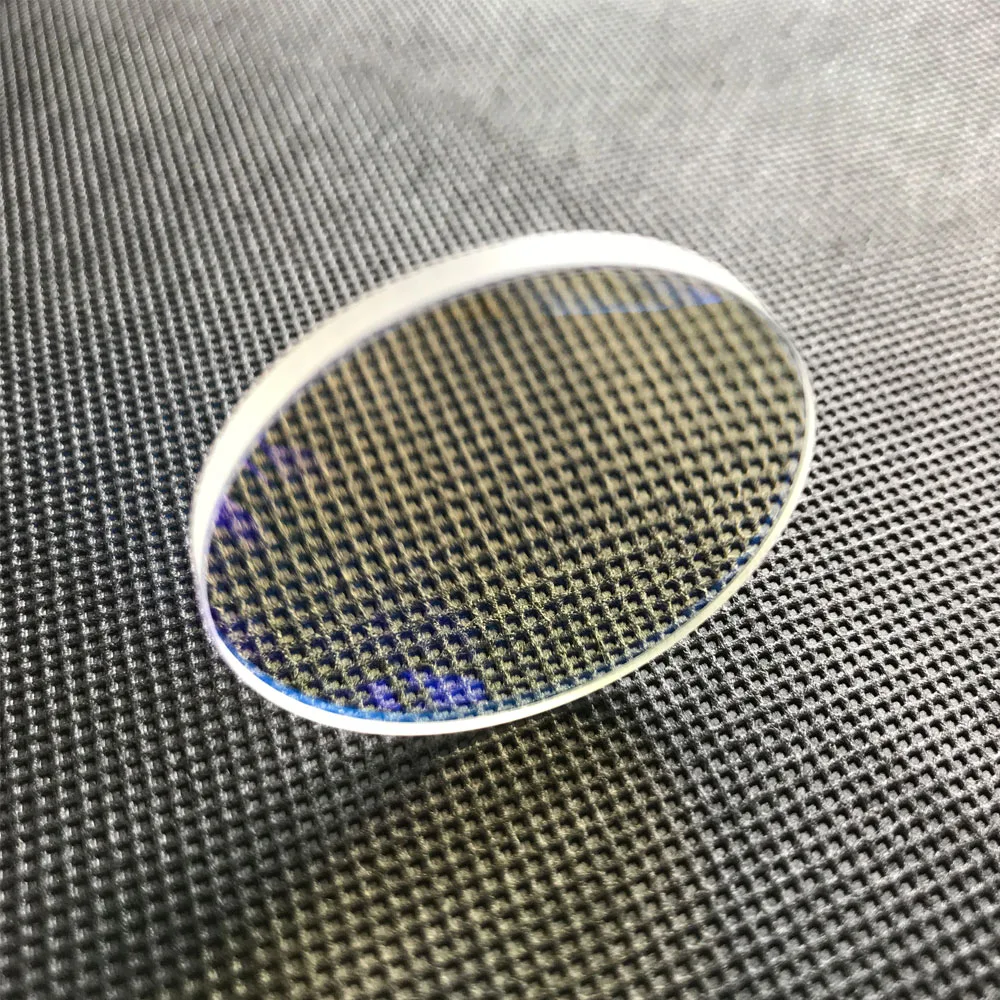

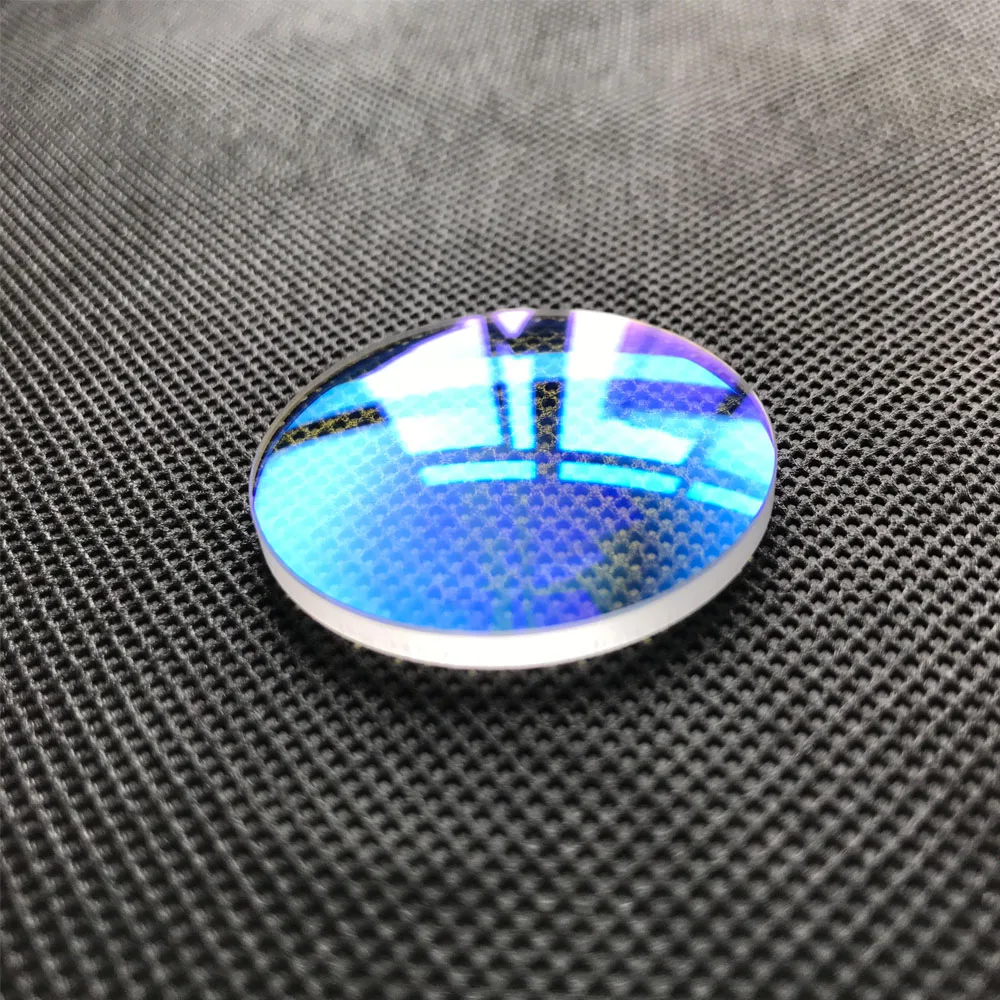

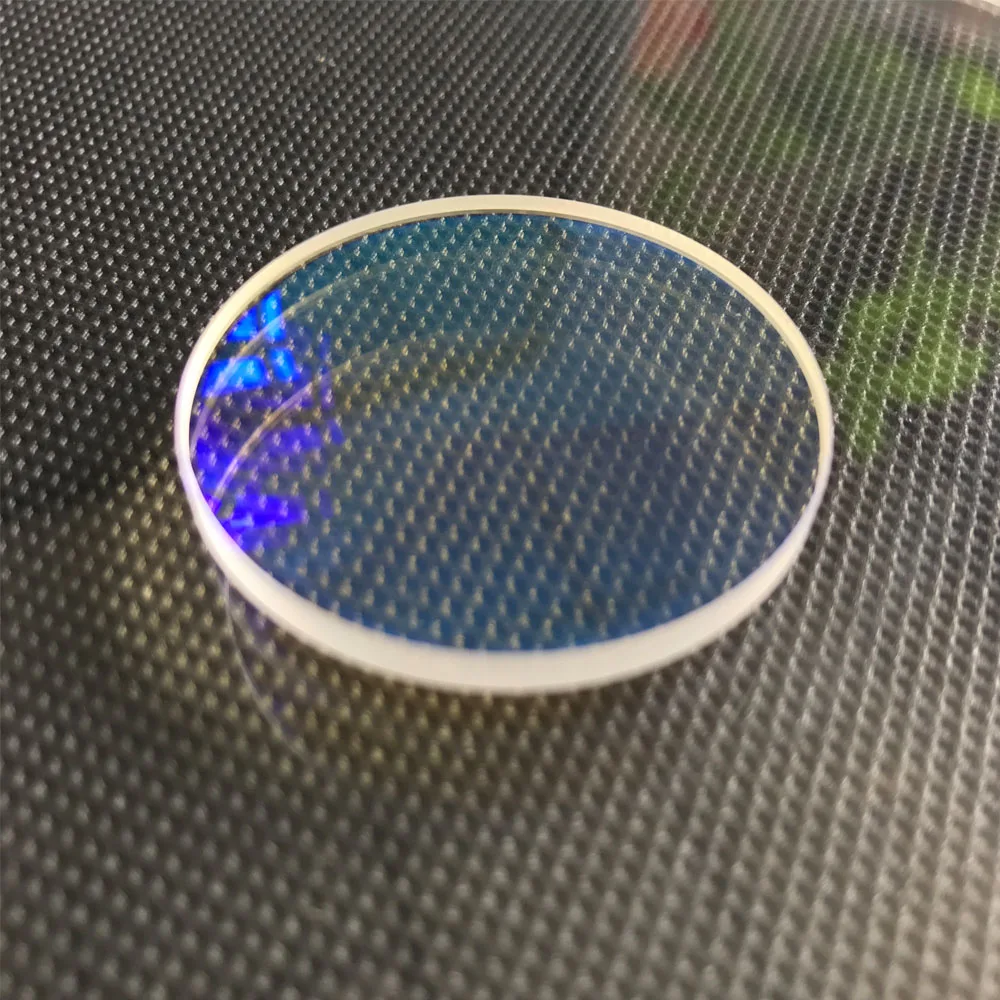

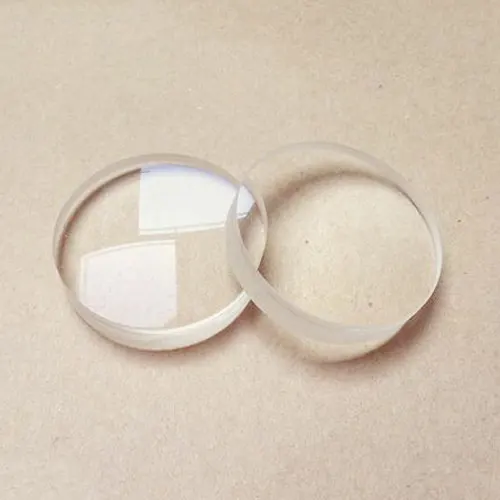

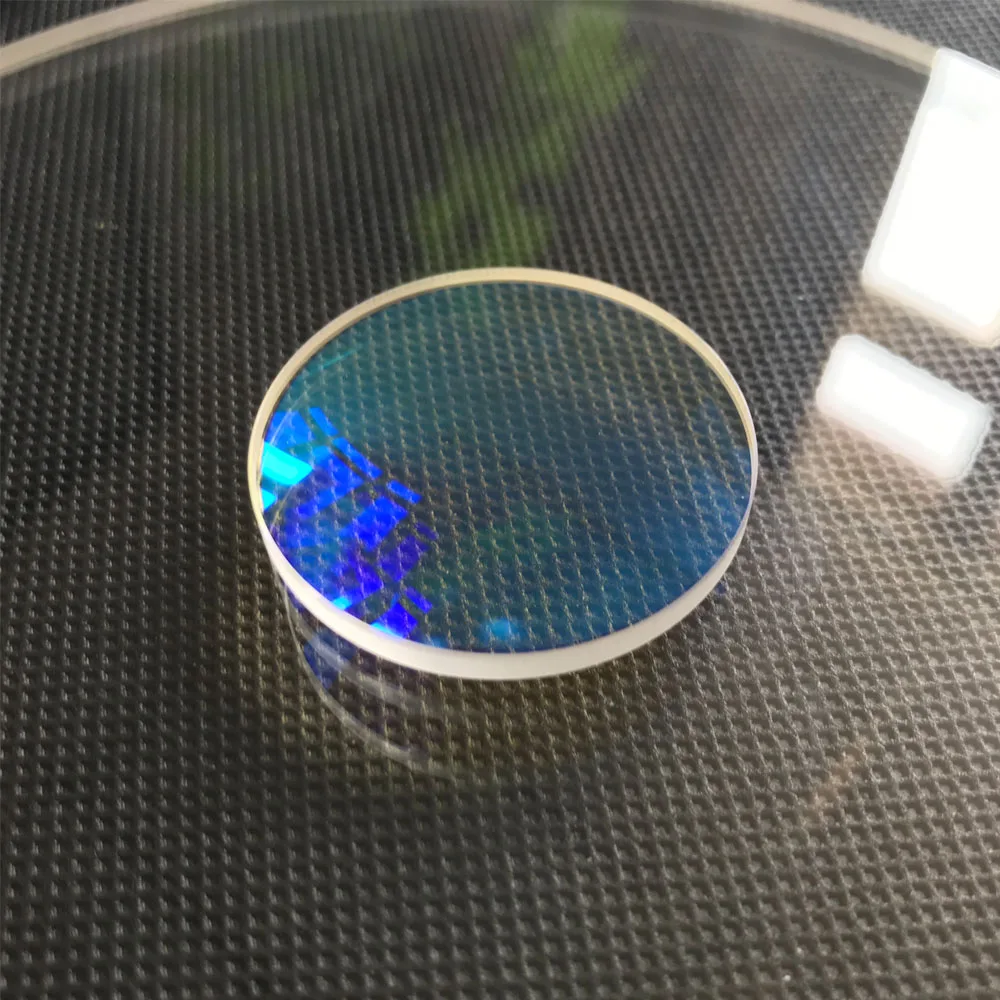

Factory Manufacture AR Coating Plano Convex/Concave Lenses With BK7/Fused Silica Glass
- Category: Lenses >>>
- Supplier: Wuhan Especial Optic Inc.
Share on (62111506173):
Product Overview
Description
Product Description
Plano-concave lenses are negative focal length optical elements that have one concave surface and one flat surface. PCV lenses is used to diverge a beam of parallel light.
Wuhan Especial Optic custom Plano-cocave Lenses from BK7/K9, Fused Silica, CaF2, Silicon, Germanium and ZnSe. Diameter and focal length are based on your unique requirements. AR coatng, BBAR coating and uncoated are available.
Wuhan Especial Optic custom Plano-cocave Lenses from BK7/K9, Fused Silica, CaF2, Silicon, Germanium and ZnSe. Diameter and focal length are based on your unique requirements. AR coatng, BBAR coating and uncoated are available.
Material | BK7/K9, Fused Silica | ||||
Dimensions | Min Dia 2mm - Max. Dia 30 0± 0.0/-0.1mm | ||||
Radius Tolerance | ±0.5% | ||||
Surface Quality | 60/40, 40/20, 20/10 | ||||
Power(fringe@633nm) | 3 | ||||
Irregularity(fringe@633nm) | 0.5 | ||||
Centration | <3 arc minute | ||||
Focal Length Tolerance | ±2% | ||||
Clear Aperture | >90% | ||||
Chamfer | Protective <0.5mmx45deg | ||||
Our Company
Wuhan Especial Optic established in 2012, compliance with ISO 2009.
WHEO is very good at developing and processing kinds of infrared optical components at ultra high precision, ultra thin, very large, ultra small and customization. Like 0.5mm thickness CaF2 window, 300mm diameter Germanium and ZnSe window. Our featured products include: Optical Protective Window (AR BBAR coating), High Reflection Mirrors (Metalic and Dielectric coating), Optical Lens (Aspheric Lens, Achromatic Lens, Cylindrical lens, Ball Lens, Powell Lens, Collimator Lens), Optical Filters (UV pass, IR pass, narrow bandpass, notch filter), Optical Prism, Galvo Mirror, Polarization rotators.
WHEO is very good at developing and processing kinds of infrared optical components at ultra high precision, ultra thin, very large, ultra small and customization. Like 0.5mm thickness CaF2 window, 300mm diameter Germanium and ZnSe window. Our featured products include: Optical Protective Window (AR BBAR coating), High Reflection Mirrors (Metalic and Dielectric coating), Optical Lens (Aspheric Lens, Achromatic Lens, Cylindrical lens, Ball Lens, Powell Lens, Collimator Lens), Optical Filters (UV pass, IR pass, narrow bandpass, notch filter), Optical Prism, Galvo Mirror, Polarization rotators.
We can custom all these optical components strictly as per your requirements. For instance, surface quality, flatness, tolerance and so on.
In addition, we have various kinds of products in stock. If you need samples, please write to us at sales@wheo.cn for free sample.

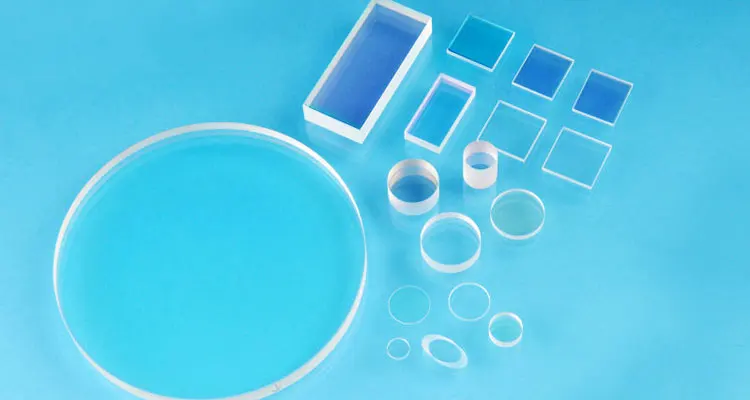

Our products
BK7 windows
caf2 window
AR coating Ge window
ZnSe window
AR coating SI window
AR coating ZnS window
Sapphire window
Fused Slica window
Plano convex Lenses
Cylindrical Lens
Powell Lens
Dielectric coating Mirror
Al coated mirror
Gold coated mirror
Optical Filter
Optical Prism
Galvo Mirror
Our Service
a: Dimesion size : 5-300mm , thickness up to customer requirements
b: Many material could be choosed, like BK7, Fused Silica, Sapphire, MgF2, CaF2, Ge, Si, Znse, ZnS and so on.
c: AR HR DLC coating or as your request
For more please visit our website: www.wheo.cn
Optical design
We can design optical components according to your requirements.
Production
Our current production capacity includes but not limited to cutting, grinding, polishing,coatin and testing.
After-sales service
Make you satisfied during the whole procurement.
Packing & Delivery
Packing Details: Protective film or Capacitor paper,Pearl cotton,Cardboard box.
Delivery Details: 7 days for stock.
3-4 weeks for custom-made products for sample.
in common, 4 weeks for mass production
Contact us
Wuhan Especial Optic Inc.
Contacts: David Liu
T: 86-027-87504830
P: +86 18622556450
Skype: +86 18622556450
Email: David(at)wheo.cn
Website: www.wheo.cn
