DC DC Converter 20A 300W Step Up Step Down Adjustable Charger Board Module Driver Constant Voltage Constant Current Power Supply

Product Overview

Description



Product Description:
Product Specifications:constant voltage power module 300W brand new high quality
Input Voltage:5 V to 40 V DC (10 V to 40 V recommended)
Output Voltage:1.2 V to 36 V DC
Output Current:20 A (max.), 15 A (recommended)
Efficiency:95% (24 V to 12 V, 20 A)
Ripple Output:< = 50mV
Working Frequency:150KHZ
Method:Wiring Terminal
Short Circuit Protection:self-recovery (not short circuit)

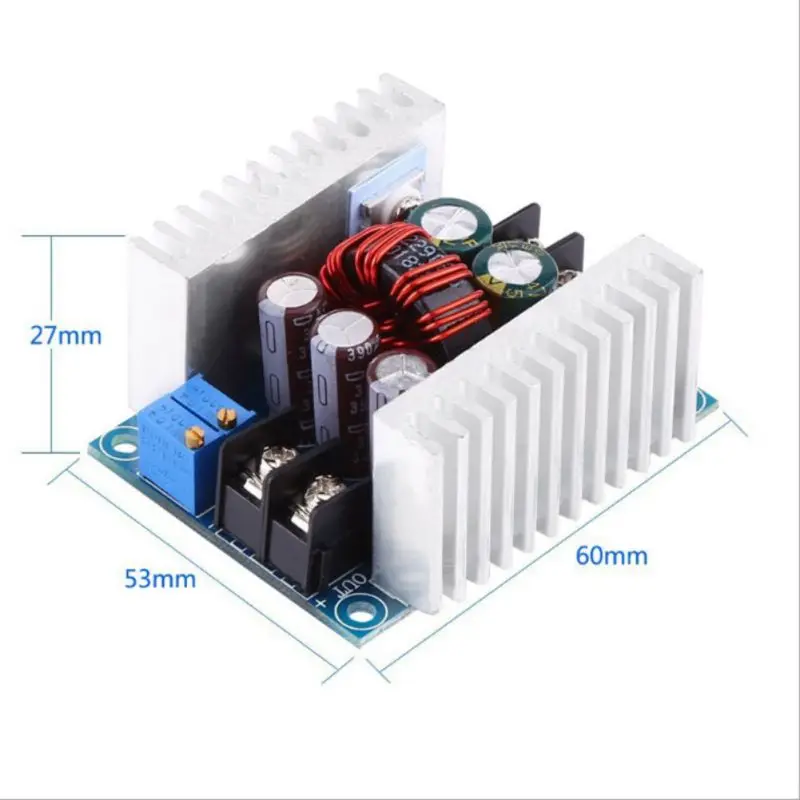

Size:60x53x27mm / 2.36x2.08x1.06"

Features:
1. Wide input voltage range, output voltage range is 6 V to 40 V. The converter reducer can precisely adjust the output voltage and current.
2. Efficiency can be as high as 96%, measured in 20a, converting 24 V to 12 V.
The 3.75 V / 80A features a large double mos tube design.
4. Electrolytic capacitors have high frequency and low resistance, low resistance and stable output.
5. These large screw terminals 30A are easy to connect with current.
6. Step-down has 2 module heat sinks to improve heat dissipation.
7. When there is a large difference between the input and output voltages, reduce the power and current.
8. Is enabled low output voltage OF VOLTAGE level; suspension, high voltage level is valid.
9. When the input and output are shared to ground, the constant voltage output CV has no load and constant current DC output.

Package Include:
1 x Converter
