Low speed 5kw 220v 3 phase ac permanent magnet generator price

Product Overview

Description

5kw low rpm pm generator permanent magnet alternator features



1,  Gearless, direct drive, low RPM generator



2,  Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.





3.  Our pmg is suitable for driven by following equipment to



1. Driven by Wind Power --------Wind turbine
2. Driven by Water Power ------- Hydro generator
3. Driven by Belt with  Motors
4. Driven by Motor
5. Dirven by  perpetual motion machine
6. Dirven by test plant
7. Dirven by yourselves  creation
8. Driven the permanent magnet generator and make it rotate then it can generate power

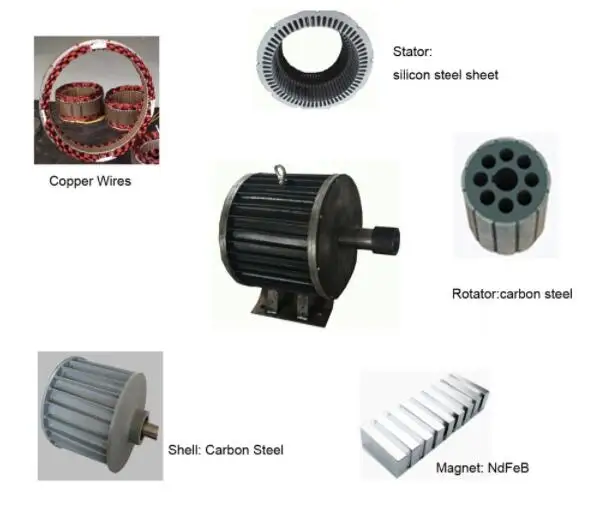

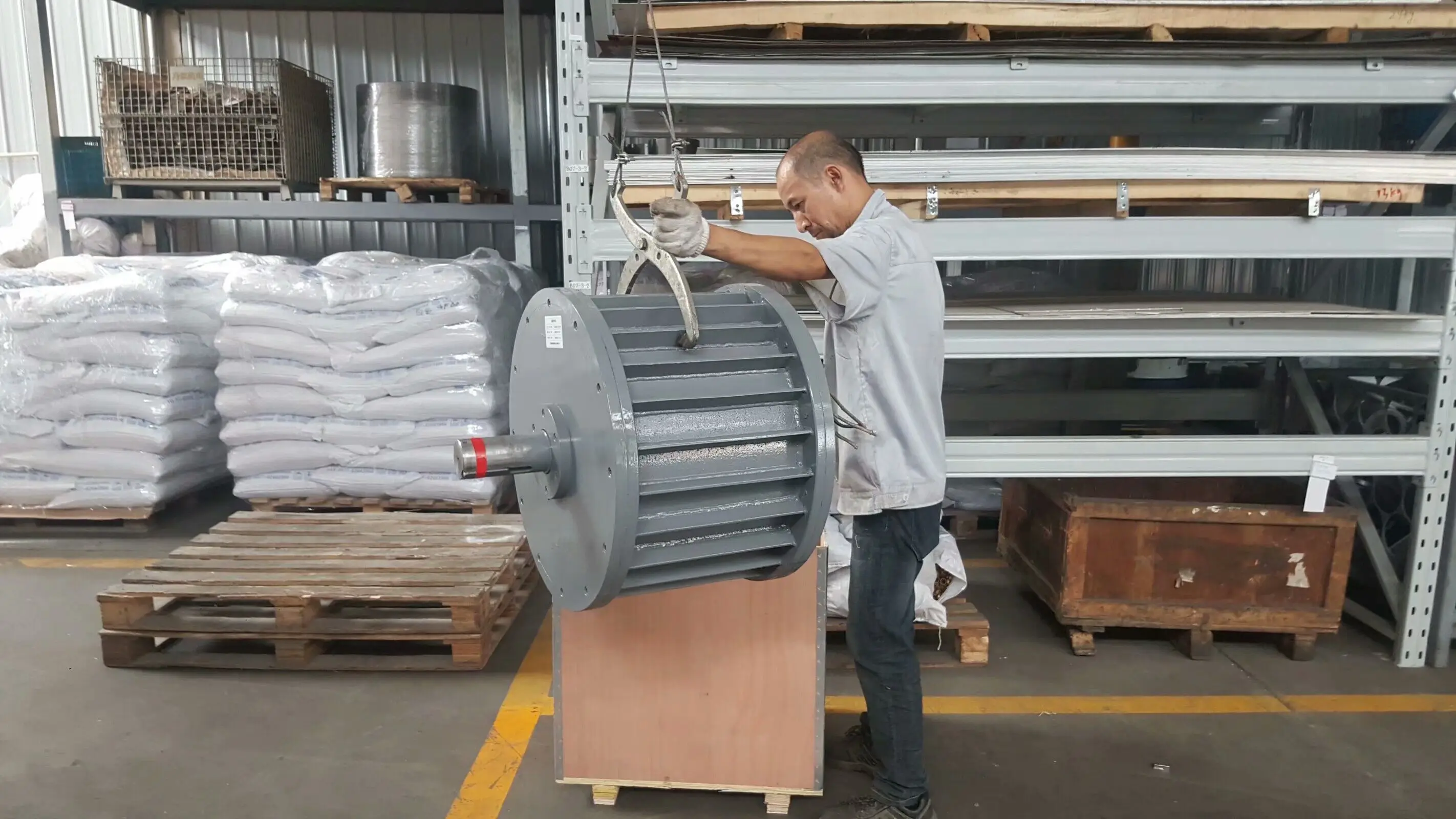

5kw low rpm pm generator permanent magnet alternator pictures

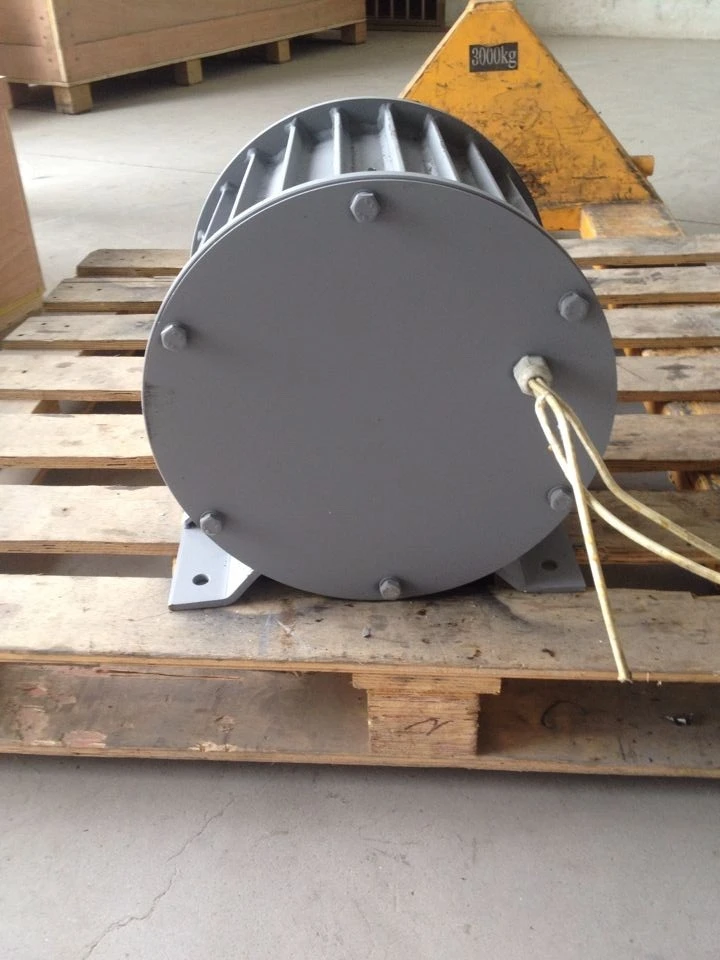

with mounting base

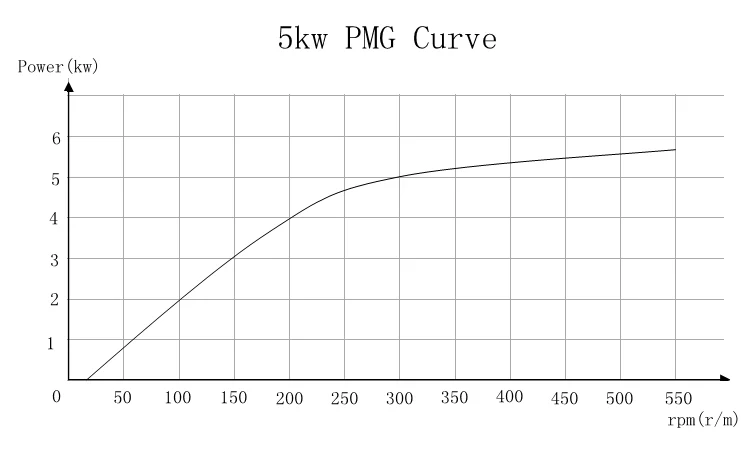

5kw low rpm pm generator permanent magnet alternator tech data





Model	NE-5kw
Rated Power(w)	5000w
Max Power(w)	7000w
Rated Voltage(v)	96V/120V/220V or as your order
Rated rotated speed(r/m)	300r/m
Top net weight(kg)	90kg
Output Current	AC
Start Torque(N*M):	1.1Nm
Rated Torque(N*M):	159.2 Nm
generator	3 phase permanent magnet synchronous generator
Insulation Class:	F
Service Life:	More Than 20 years
Bearing	HRB or for your order
Shaft Material	Iron
Shell Material	Carbon Steel
Permanent Magnet Material	Rare Earth NdFeB
Protection Grade	IP54
Lubrication	Lubrication Grease
Working temperature	-40℃ - 80 ℃





5kw low rpm pm generator permanent magnet alternator details

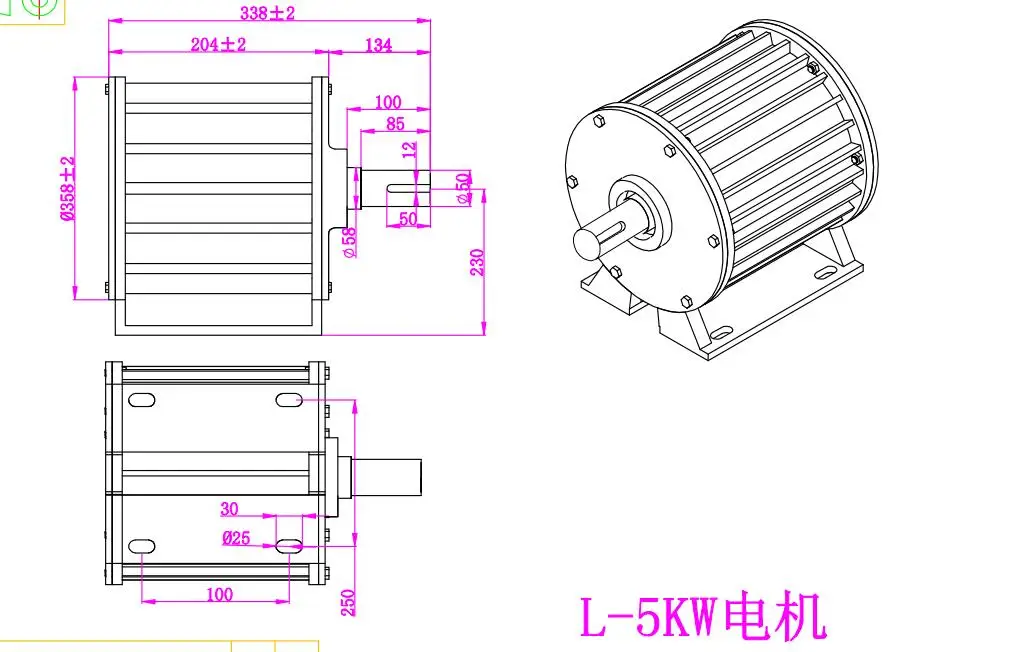

Dinension

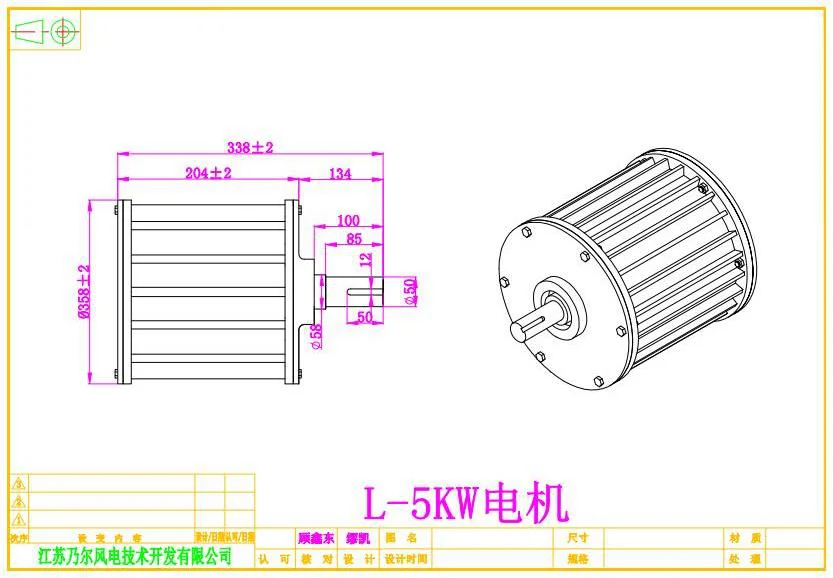

Straight shaft

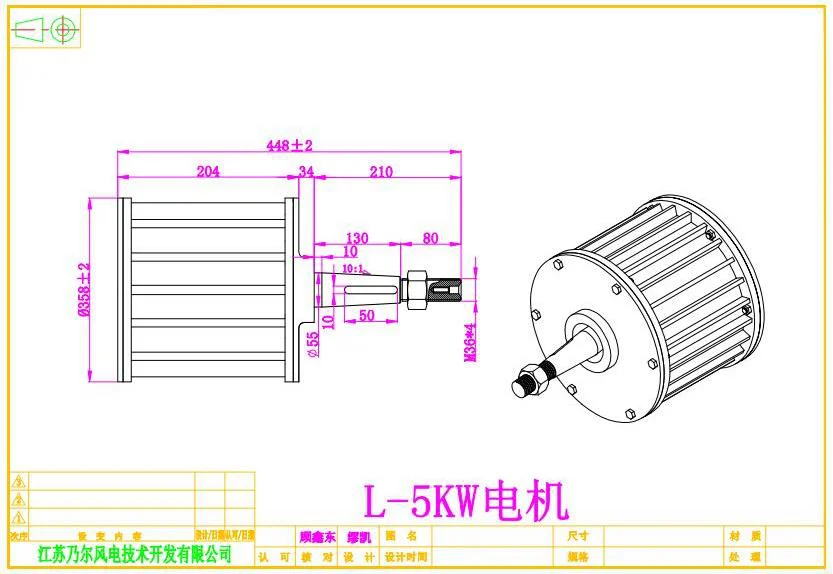

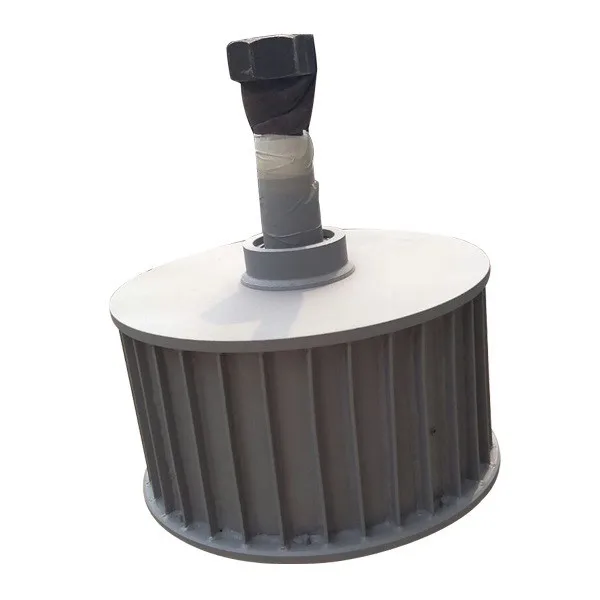

Cone shaft

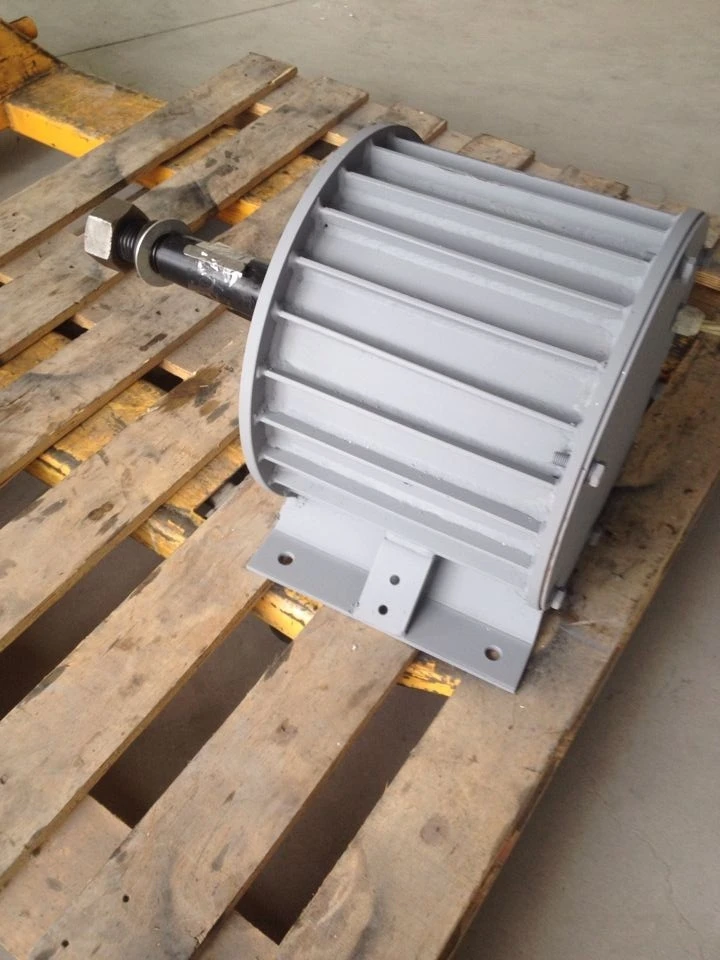

With mounting base





Stock

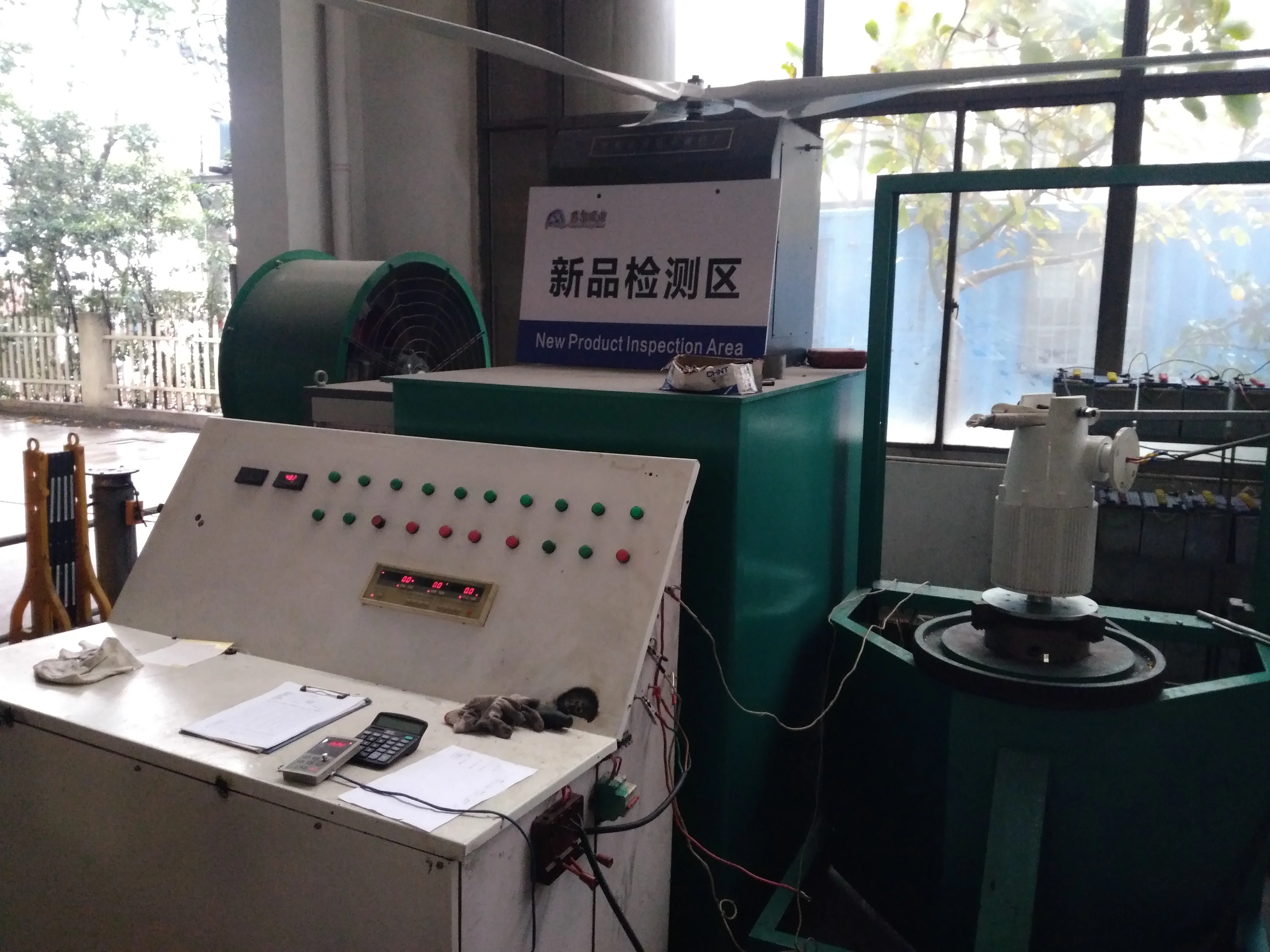

Special Test Area

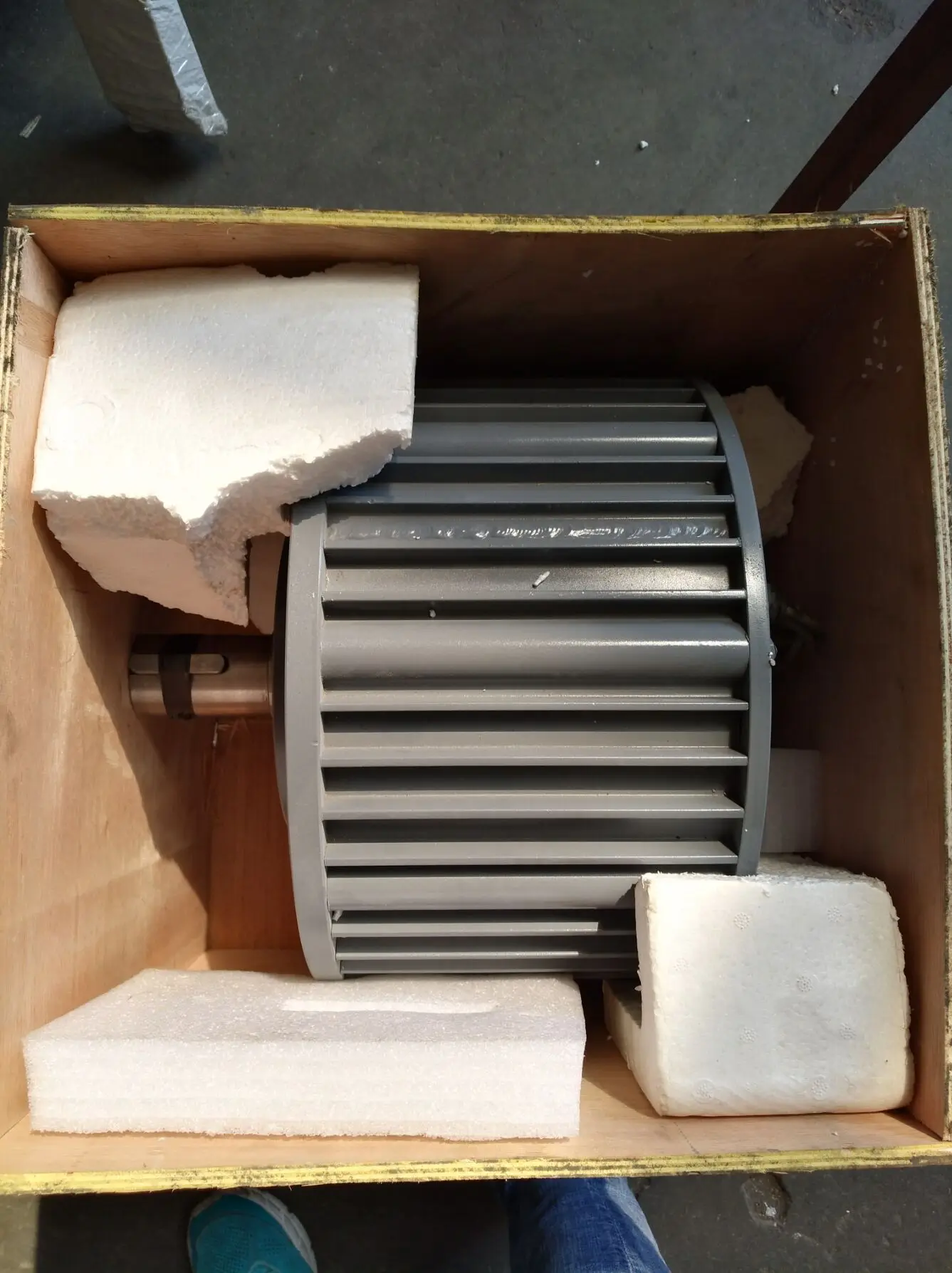

Package
