750W Solar Inverter 3 Phase 380V Solar Panel Inverter without Battery for Pump System
- Category: >>>
- Supplier: Shenzhen Sincrea Electrical Technology Co. Ltd.
Share on (62111767896):
Product Overview
Description
Product Description

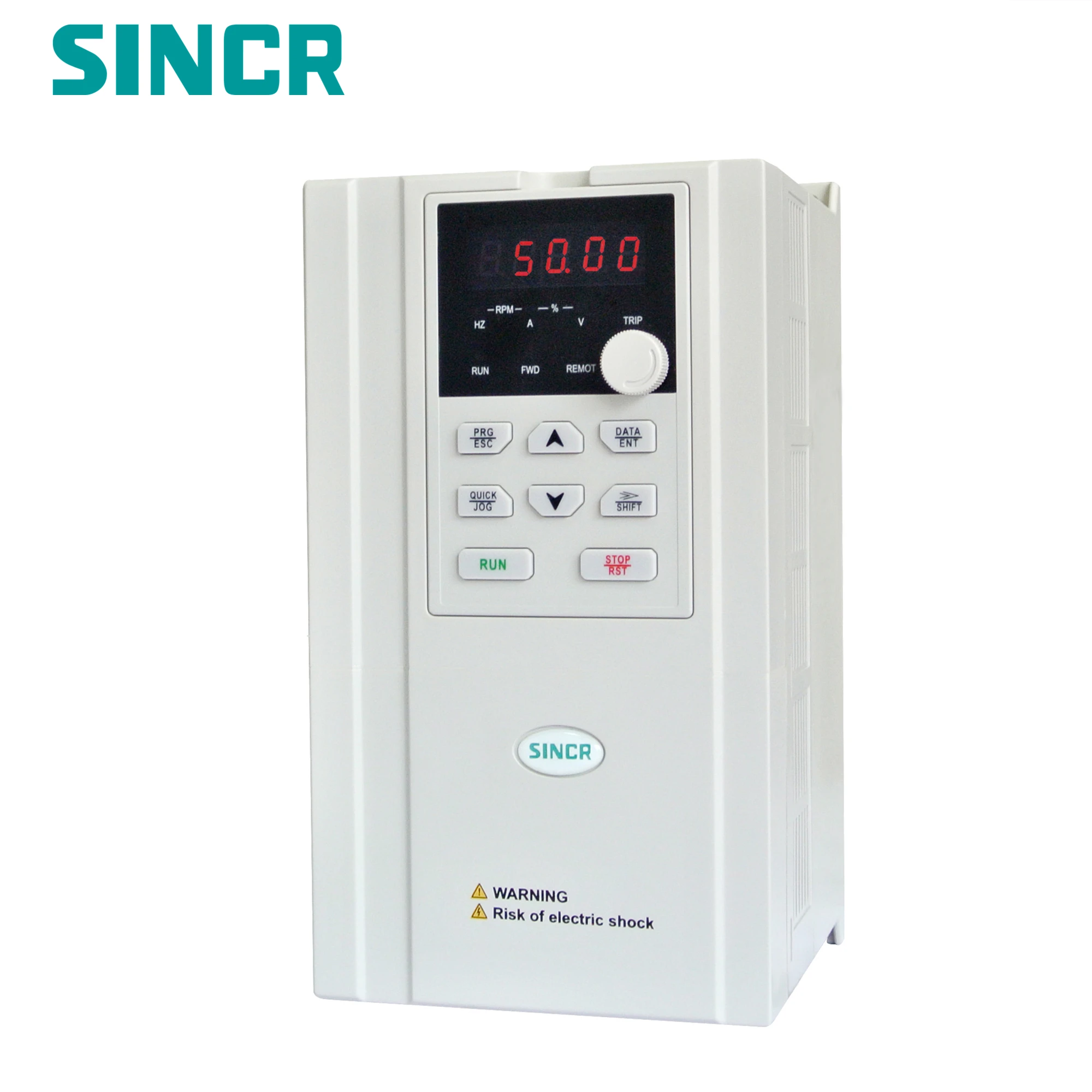

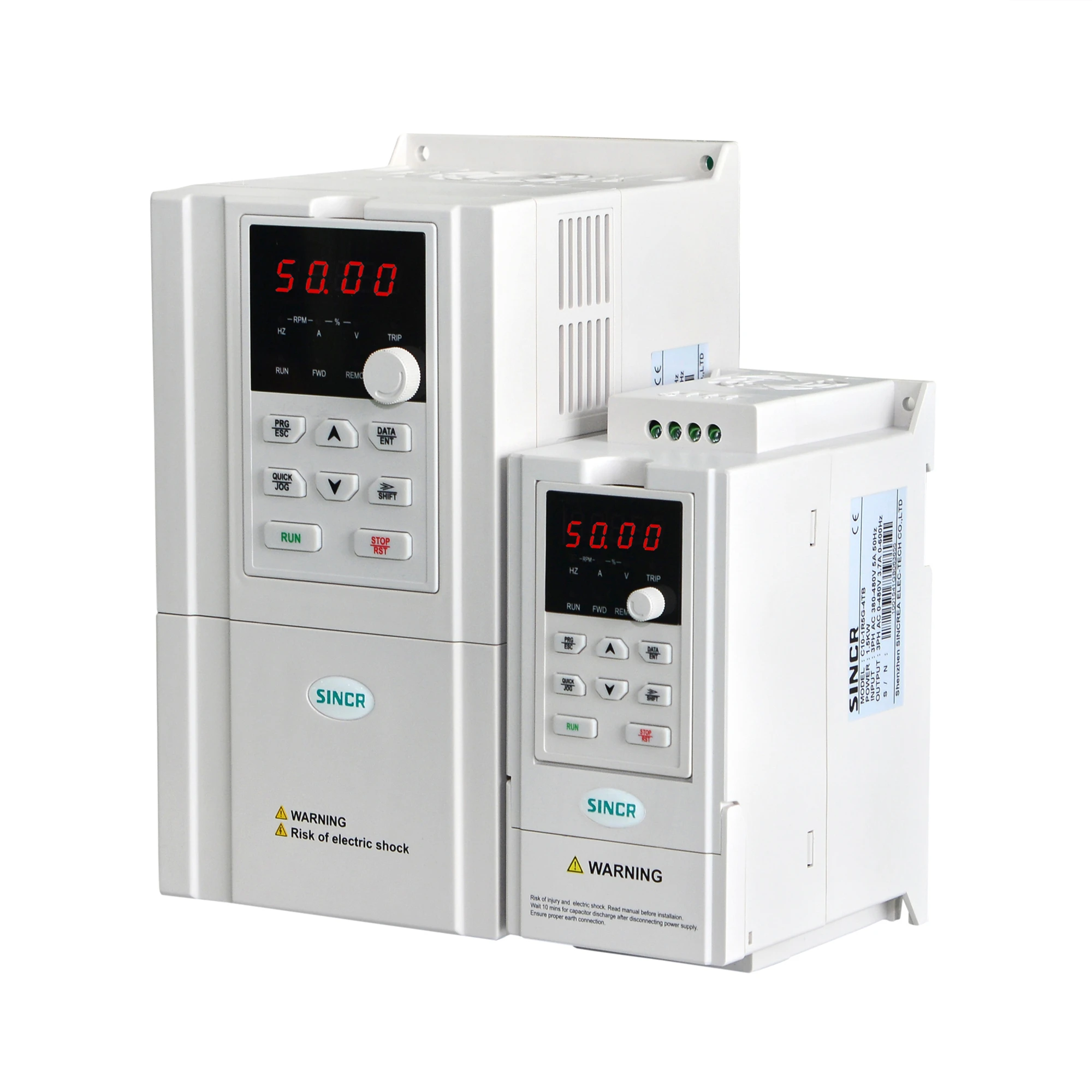

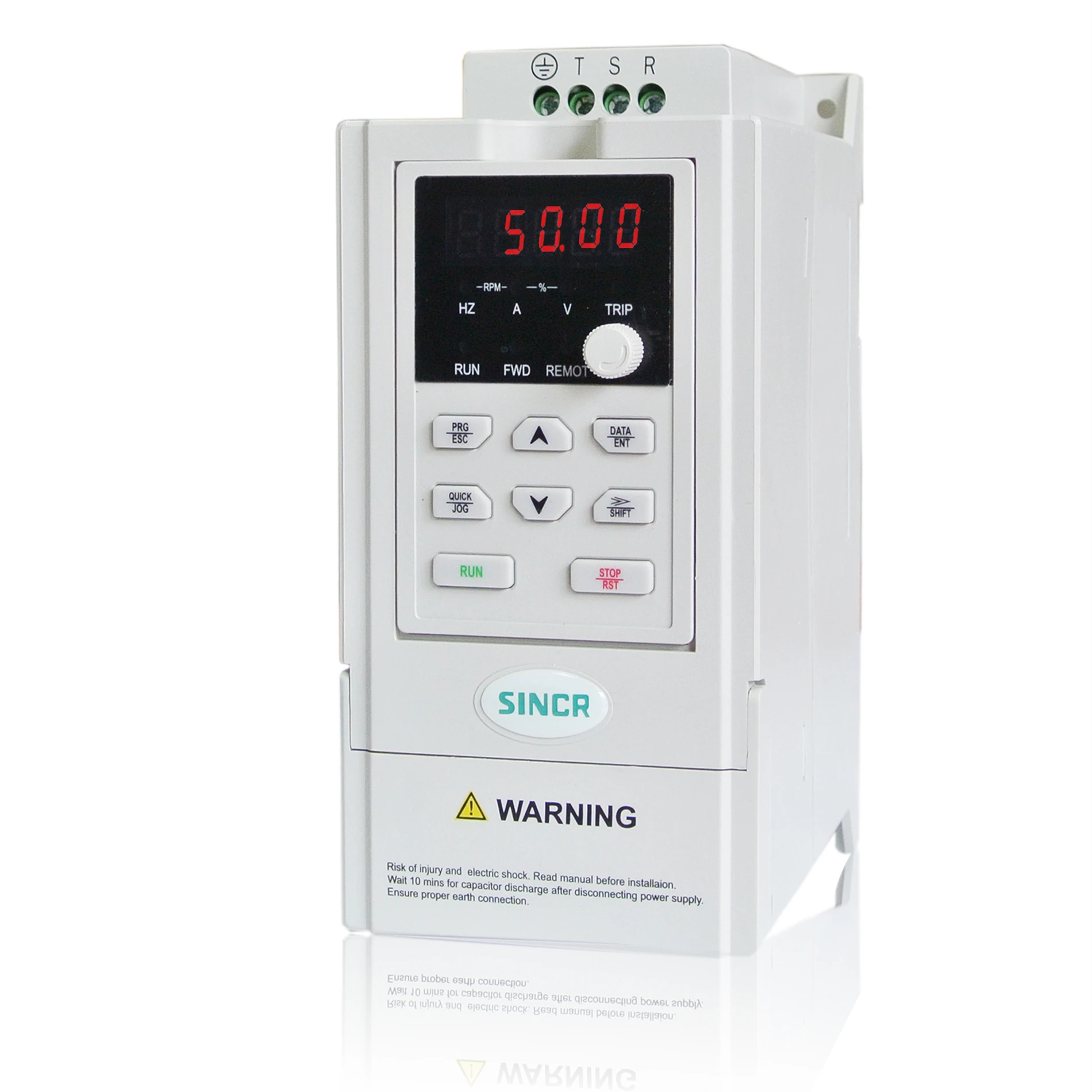

750W Solar Inverter 3 Phase 380V Solar Panel Inverter without Battery for Pump System
This product is specially designed solar pump inverters. Solar pump inverter transfer solar DC current to be AC to drive the water pump to work. With maximum power tracking (MPPT), light weak sleep, light intensity wake-up, protection for well lack of water,protection for tank full of water, underload protection, photovoltaic and grid automatic switching, unattended automatic operation and other control and protection functions. No need for batteries, water storage instead of battery, easy installation, low cost and low maintenance, economical and environmental protection, zero carbon emissions, widely used in solar agricultural irrigation, irrigation station renovation, domestic water supply, desert greening, etc.area.
Technical Features of solar inverter for water pump
- Use for single-phase 110V/220V and three-phase 220V/380V pumps, power range: 0.75KW-220KW.
- Built-in high-precision MPPT maximum power tracking function, the accuracy reach up to 99%, make use of solar enerygy efficiency;
- Automatic shutdown and restart, fully automatic control, unattended. (1) Deep well: By the water level sensor, automatically stop when shortage of water,and automatically restart when with enough water. (2) Reservoir: By the water level sensor, automatically stop when full of water,and automatically restart when with shortage of water. (3) Automatically sleep when the light is weak, such as sunset; automatically restart when the light intensity is strong, such as sunrise.
- Compatible with solar energy and mains power (generator).
- Optional boost module for small power solar pump inverter,to reduce the number of solar panel and reduce the system cost.
- RS485 real-time remote monitoring system, remote control and monitoring system status.

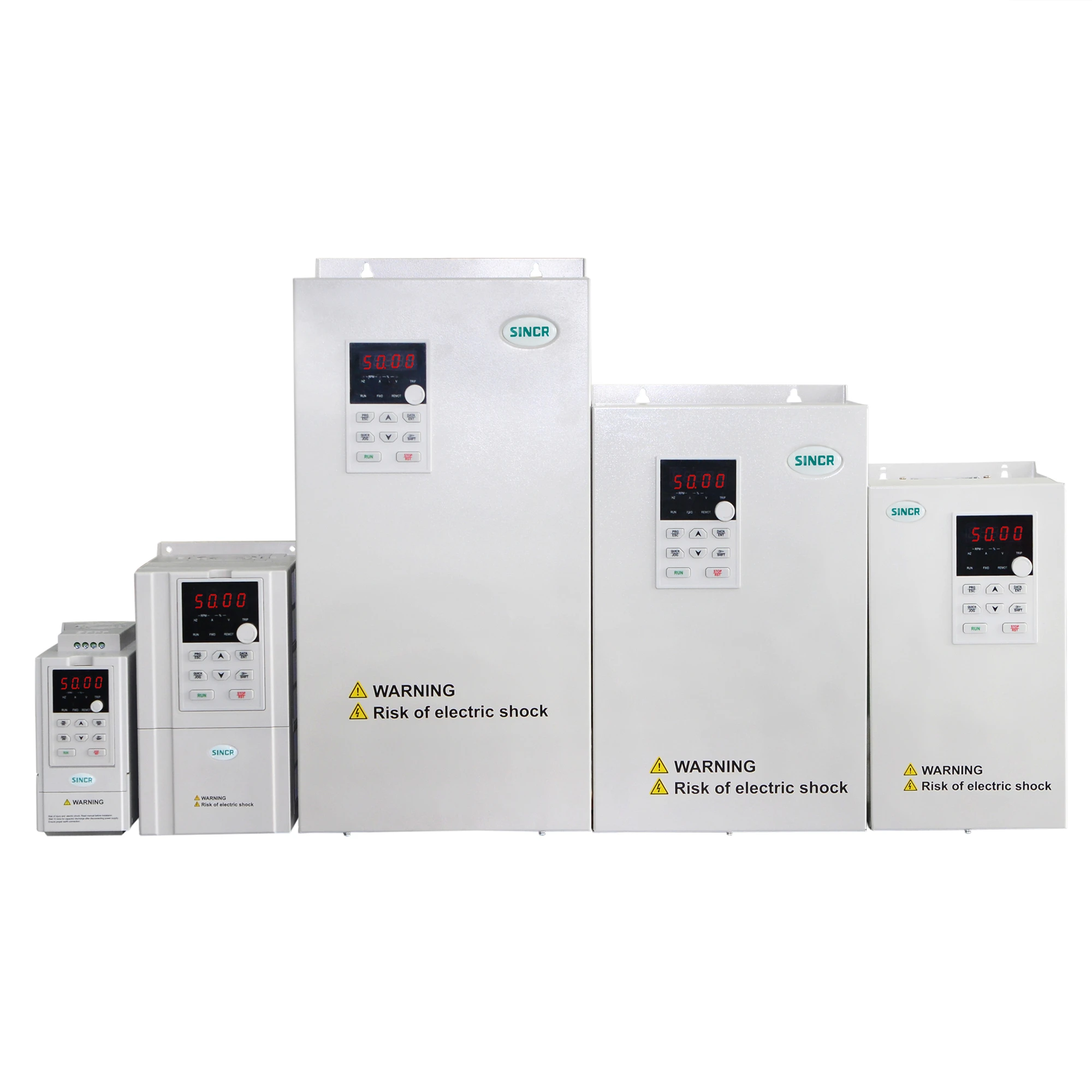

Product model No.
Model No. | AC input voltage | MPPT voltage range | Output power | Input current | Output current |
SV500-0R7-4TB | 3 Phase | 500~700V DC | 0.75 | 3.4 | 2.5 |
SV500-1R5-4TB | 1.5 | 5 | 3.7 | ||
SV500-2R2-4TB | 2.2 | 5.8 | 5 | ||
SV500-004-4TB | 4.0 | 10 | 9 | ||
SV500-5R5-4TB | 5.5 | 15 | 13 | ||
SV500-7R5-4TB | 7.5 | 20 | 17 | ||
SV500-011-4TB | 11 | 26 | 25 | ||
SV500-015-4TB | 15 | 35 | 32 | ||
SV500-018-4TB | 18.5 | 38 | 37 | ||
SV500-022-4T | 22 | 46 | 45 | ||
SV500-030-4T | 30 | 62 | 60 | ||
SV500-037-4T | 37 | 76 | 75 | ||
SV500-045-4T | 45 | 90 | 90 | ||
SV500-055-4T | 55 | 105 | 110 | ||
SV500-075-4T | 75 | 140 | 150 | ||
SV500-090-4T | 90 | 160 | 176 | ||
SV500-110-4T | 110 | 210 | 210 | ||
SV500-132-4T | 132 | 240 | 250 | ||
SV500-160-4T | 160 | 290 | 300 | ||
SV500-185-4T | 185 | 330 | 340 | ||
SV500-200-4T | 200 | 370 | 380 | ||
SV500-220-4T | 220 | 410 | 415 | ||
input DC votlage range(VOC) | 2S,2T:70~450V DC | ||||
Input Max open circuit voltage (VOC) | 2S,2T:450V DC | ||||
MPPT efficiency | >99% | ||||
Over-load capacity | 150%:60S;180%:10S;200%:1S | ||||
Ouput frequency | 0~600HZ(Default:50/60HZ) | ||||
On grid/Generator input | Yes | ||||
Automatic switch between on grid/generator | Yes | ||||
Working temperature | -20℃~60℃; | ||||
Cooling Method | Fan Cooling | ||||
Communication port | Standard isolater RS-485, Modbus protocol | ||||
IP grade | Standard:IP20(can customized IP54 or IP65) | ||||
Built-in protection | shortage of water protection for deep well,full of water protection for tank, light weak sleep, light intensity wake-up, lightning protection, overvoltage protection, undervoltage protection, overcurrent protection, dry pumping protection, overload protection, phase loss protection, short circuit protection, overheat protection. | ||||
Wiring diagram
Quality Contral (QC)
Product Application
| Pakistan 3KW solar agriculture irrigation system | ||
| Location | Sindh-Pakistan | |
| Purpose | Agriculture irrigation | |
| Water source | River. water depth 8-10m, 2m from river to tank | |
| Requiredments | Pakistan is a large country with traditional agricultural production. Due to the shortage of electricity, when agricultural irrigation requires water, it often loses power, which will have a great impact and loss on the cultivation of local farmers. In order to solve the actual pumping difficulties, SINCREA solar pump irrigation system was introduced to meet the needs of agricultural irrigation. | |

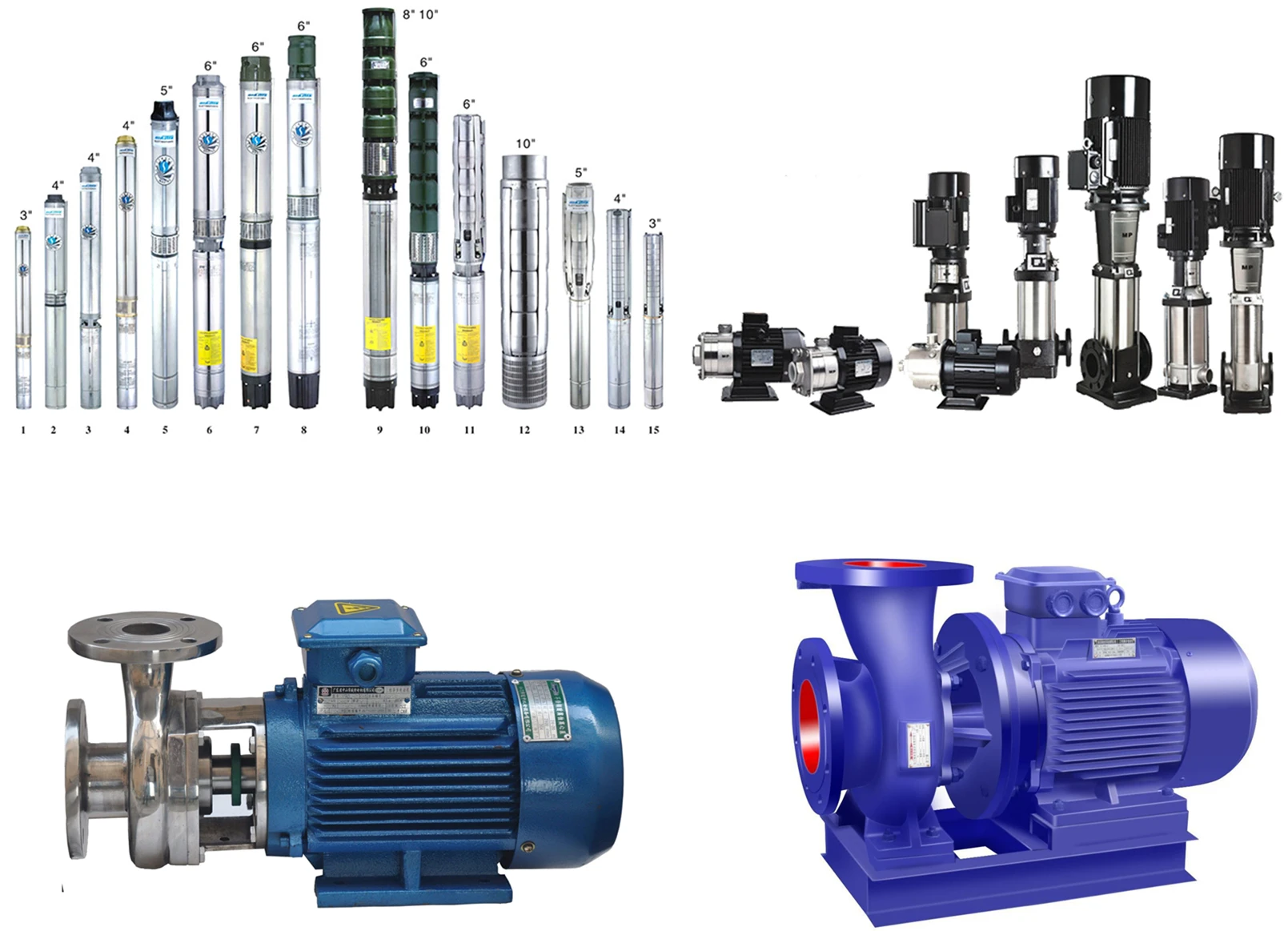

| Solutions | Water pump | 3KW AISI304 submersible pump,3phase,380V Rated water flow:20 m³/h;Rated lift head:10m |

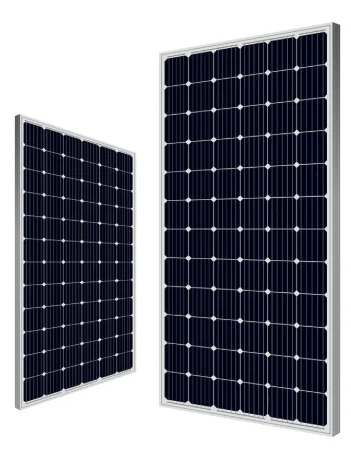

| Solar panel | 4.8KW,15pcs 320W Mono solar panel in series | |
| Solar pump inverter | SINCREA,Model:SV500-004-4TB 4KW Solar pump inverter,3phase 380V | |
| Mounting bracket | Ground fixed Q235 hot galvanizing steel mounting bracket | |
| Accessoires | DC/AC cables,MC4 connector,water level sensor,DC/AC multi-meter,installation tool.etc | |
| Benefits | Adopting SINREA 3KW solar pump system, the 4.8KW solar panel drive the 3KW pump by the 4KW solar pump inverter. The system pump water from the 8m depth river to the tank, and then flows to each farmland through the channel, working 6-8 hours a day, 100~150 cubic meters of water can be pumped for farmland irrigation, solving the water shortage due to power outage and water shortage, fully automatic operation, and no manual operation. | |
| Oman 100KW+50KW Solar power pump system | ||
| Location | Muscat-Oman | |
| Purpose | Farm fishery, animal husbandry | |
| Water source | Tank | |
| Requiredments | The farm is located in the mountains and deserts, with drought and long sunshine radiation all the year, inconvenient for water supply, unable to meet the demand for electricity in the farm, and the high dependence of the fishery on water. Considering the power grid limit, the electricity price during the day is high and the electricity price is low at night. So to install SINCREA solar pump power supply system to provide protection for fish farming and farm electricity, saving electricity costs. | |
| Solution | Water pump | 2pcs 15KW pump+8pcs 7.5KW pumps+4pcs 4KW pump |
| Solar panel | 150KW,480pcs 300W Mono solar panel in series and in parallel | |
| Solar pump inverter | SINCREA,Model:SV500-015-4TB + SV500-7R5-4TB + SV500-004-4TB 15KW,7.5KW,4KW Solar pump inverter,3P 380V | |
| Mounting bracket | Ground fixed + roof type Q235 hot galvanized steel bracket | |
| Accessories | DC/AC cables,MC4 connector,MC4 branch connector,water level sensor, installation tools,DC/AC multi-meter.etc | |
| Benefits | The SINREA 100KW ground fixed +50KW roof-type photovoltaic pump power supply system is installed in the farm. During the day, all solar energy is used to power the pump, and the electricity consumption at night is low. Now saves $1,500 in electricity bills per month, which not only solves the demand for electricity, but also saves the whole cost of electricity. | |
