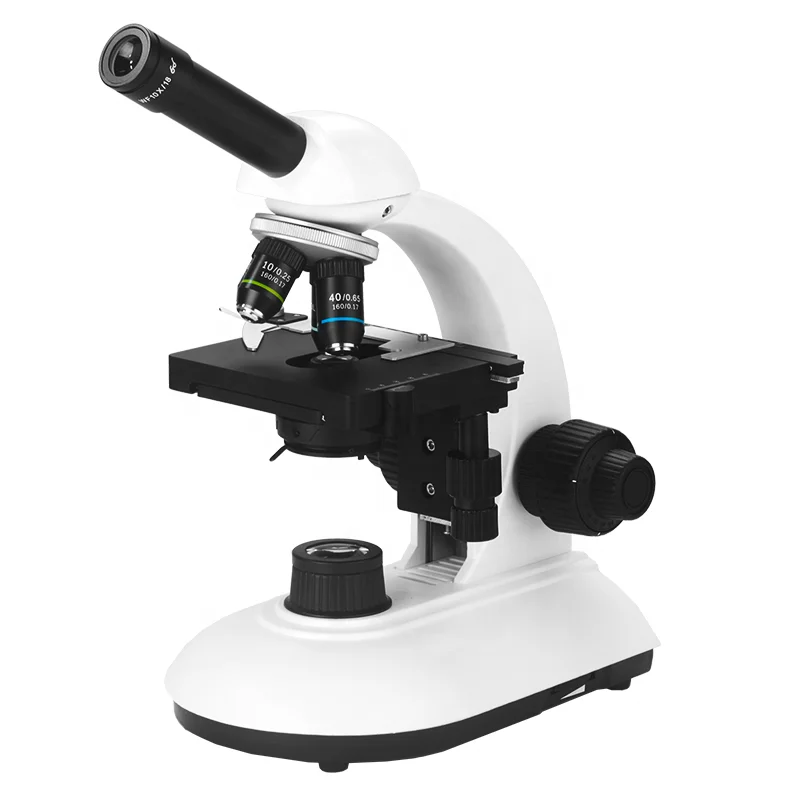

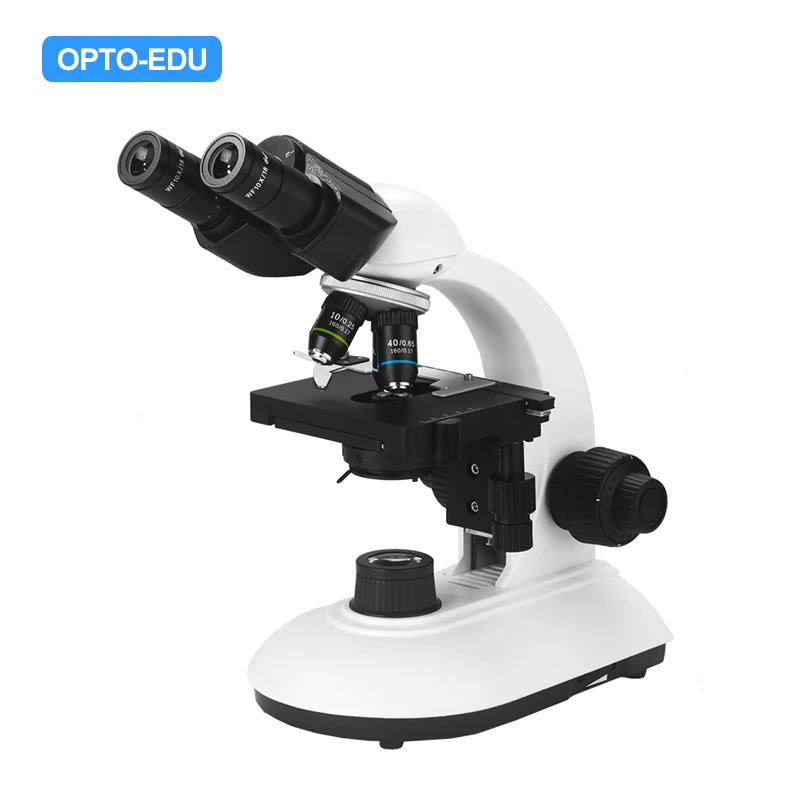

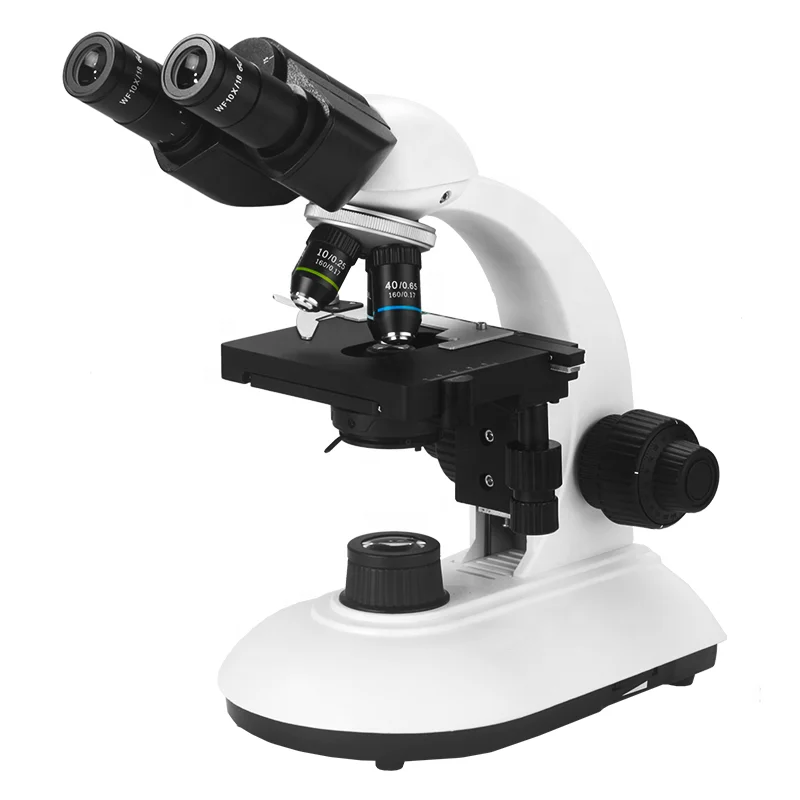

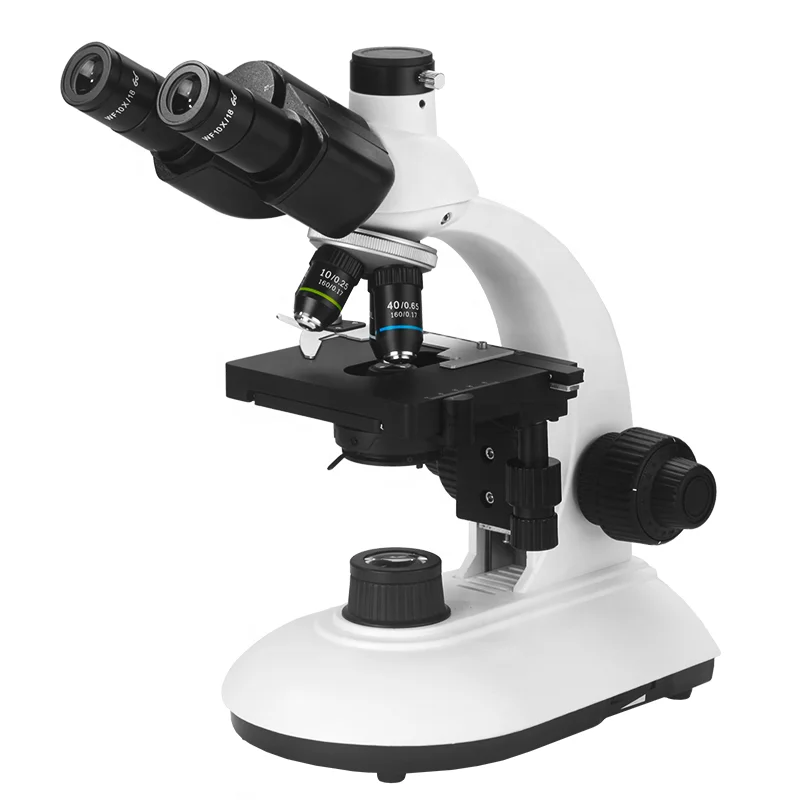

OPTO EDU A11.2601 B Best China Science Led Biological Compound Optical School Microscope Binocular
- Category: >>>
- Supplier: Opto-Edu (Beijing) Co. Ltd.
Share on (62112367451):
Product Overview
Description
Head

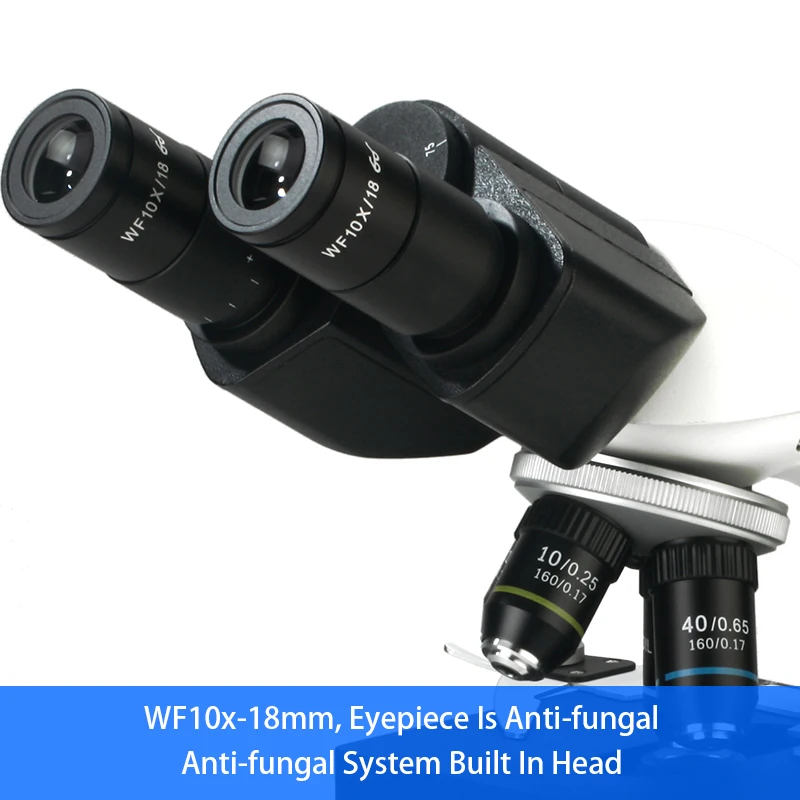

WF10x-18mm, Eyepiece Is Anti-fungal, Anti-fungal System Built In Head

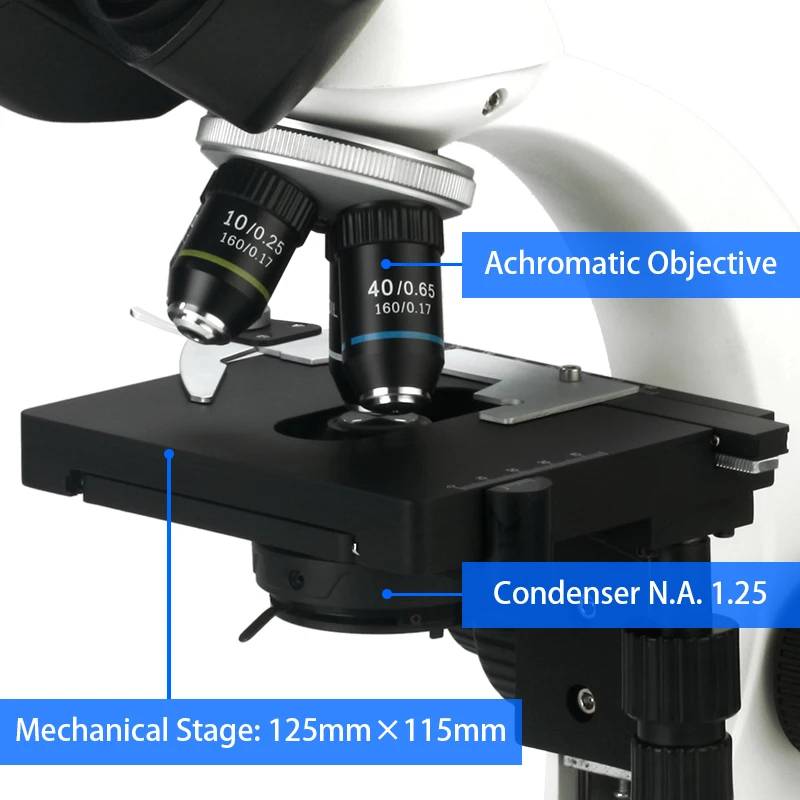

Objective & Working Stage & Abbe Condenser
Achromatic Objective: 4x, 10x, 40x(s), 100x/1.25(oil)(s), Objective Is Anti-fungal
Mechanical Stage, Stage Size:125mm×115mm,Travel: 35mm×75mm
N.A. 1.25, Adjustable Aperture, Aperture Center Is Adjustable, Built In Blue Filer, ф38.5mm
Mechanical Stage, Stage Size:125mm×115mm,Travel: 35mm×75mm
N.A. 1.25, Adjustable Aperture, Aperture Center Is Adjustable, Built In Blue Filer, ф38.5mm
Focus & Light Source

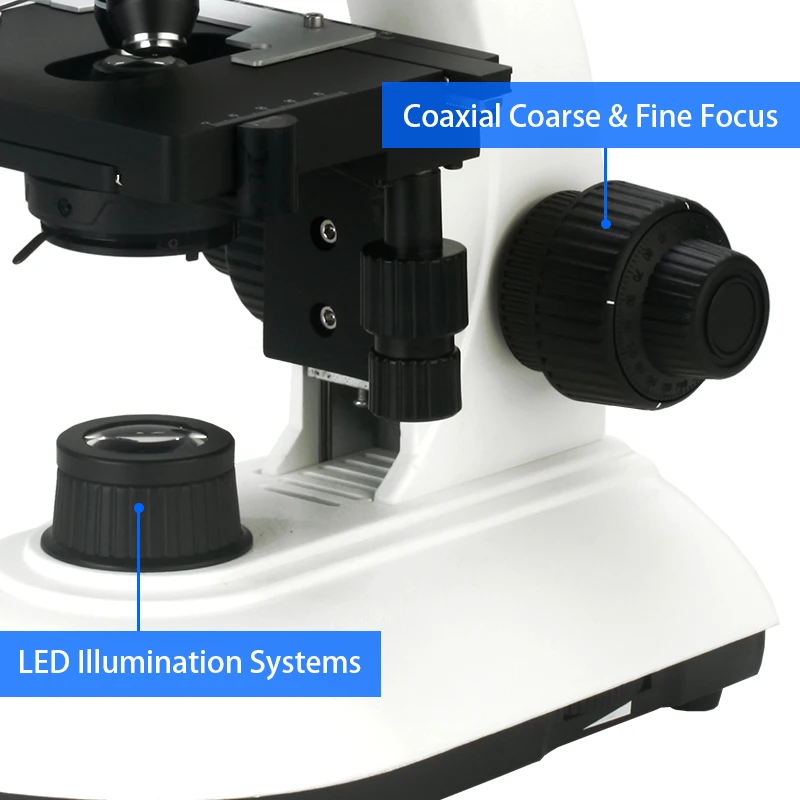

Coaxial Coarse & Fine Focus, Stage Moving Knob Can Move Stage Turn Left Or Right
LED Illumination Systems (Non-rechargeable), Rotation Potentiometer With Power Switch
LED Illumination Systems (Non-rechargeable), Rotation Potentiometer With Power Switch

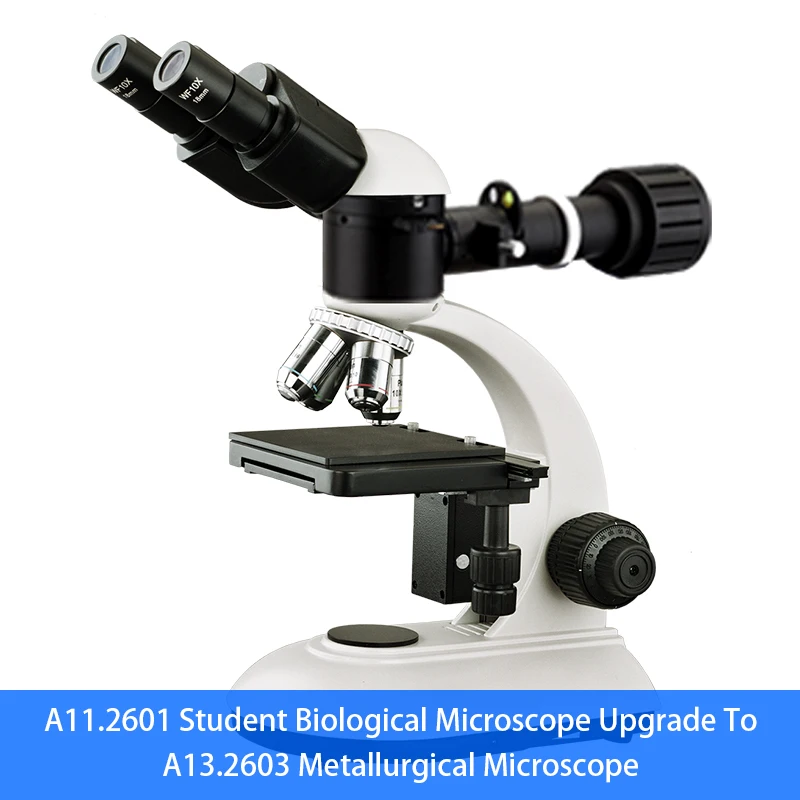

A11.2601 Student Biological Microscope Upgrade To A13.2603 Metallurgical Microscope
A13.2603 Metallographic microscopes are often used to observe opaque objects such as wafers
Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
Items | A11.2601 Student Biological Microscope Specification | -B | Cata. No. | |||

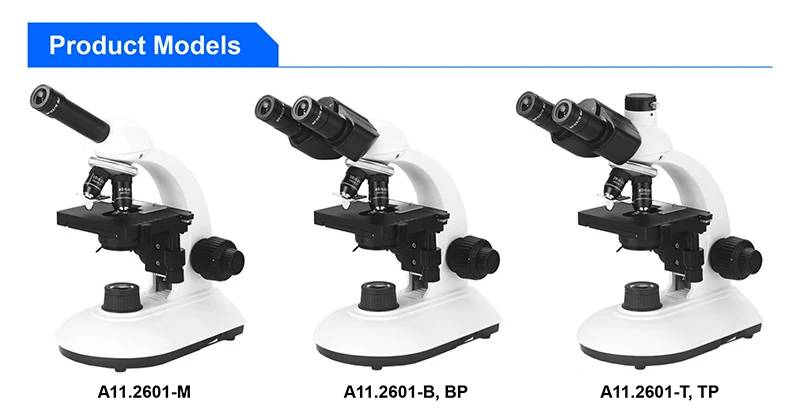

Head | Monocular Head Inclined 30°, Rotatable 360° | A53.2601-M | ||||
Seidentopf Binocular Head Inclined 30°, Rotatable 360°, Interpupilary Distance 48-75mm | ● | A53.2601-B | ||||

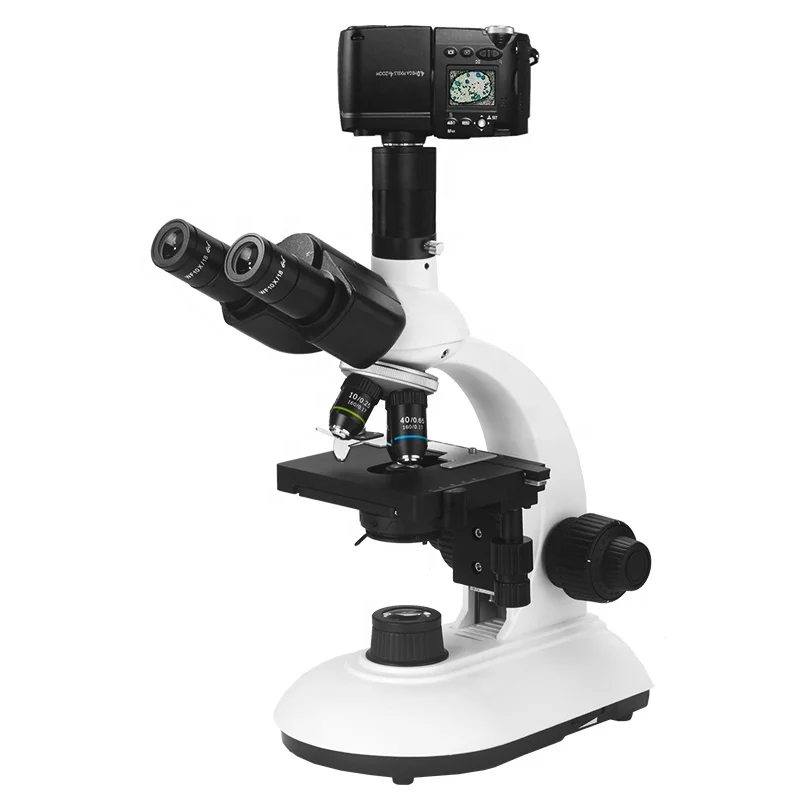

Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20/E80 | A53.2601-T | |||||
Eyepiece | WF10x/18mm | ●● | A51.2602-1018 | |||
WF16x/13mm | ○ | A51.2602-1613 | ||||
WF10x/18mm With Pionter | ○ | A51.2604-1018 | ||||
WF10x/18mm, With Micrometer X-0.1mm*180 Div / Y-Single Line | ○ | A51.2605-1018 | ||||
WF10x/18mm With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable | ○ | A51.2605-1018D | ||||
Nosepiece | Quadruple, Backward | ● | A54.2610-N03 | |||
Achromatic Objective | 4x/0.1, W.D.=18.6mm | ● | A52.2601-4 | |||
10x/0.25, W.D.=6.5mm | ● | A52.2601-10 | ||||
20x/0.40, W.D.=1.75mm | ○ | A52.2601-20 | ||||
40x/0.6(S), W.D.=0.47mm | ● | A52.2601-40 | ||||
60x/0.80(S), W.D.=0.10mm | ○ | A52.2601-60 | ||||
100x/1.25(S,O), W.D.=0.07mm | ● | A52.2601-100 | ||||
Plan Objective | 4x/0.1, W.D.=14.5mm | A52.2603-4 | ||||
10x/0.25, W.D.=5.65mm | A52.2603-10 | |||||
20x/0.40, W.D.=5.65mm | A52.2603-20 | |||||
40x/0.6(S), W.D.=0.85mm | A52.2603-40 | |||||
100x/1.25(S,O), W.D.=0.07mm | A52.2603-100 | |||||
Stage | Double Layer Mechanical Size 125×115mm, Travel Range 35×75mm | ● | A54.2601-S03 | |||
Condenser | Abbe N.A. 1.25(Iris Diaphragm) | ● | A56.2614-09 | |||
Focusing | Coaxial Coarse And Fine Focusing Knobs, Travel Range: 22mm, Scale: 2µm | ● | ||||
C-mount | 1.0x (Focus Adjustable) | A55.2601-B10 | ||||
0.5x (Focus Adjustable) | A55.2601-B05 | |||||
Light Source | 3W LED Illumination, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | ● | A56.2613-3W | |||
3W LED Illumination (Rechargeable), Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | ○ | A56.2651-3WR | ||||
12V 20W Halogen Lamp, Wide Voltage: 100V-240V | ○ | A56.2650-20W | ||||

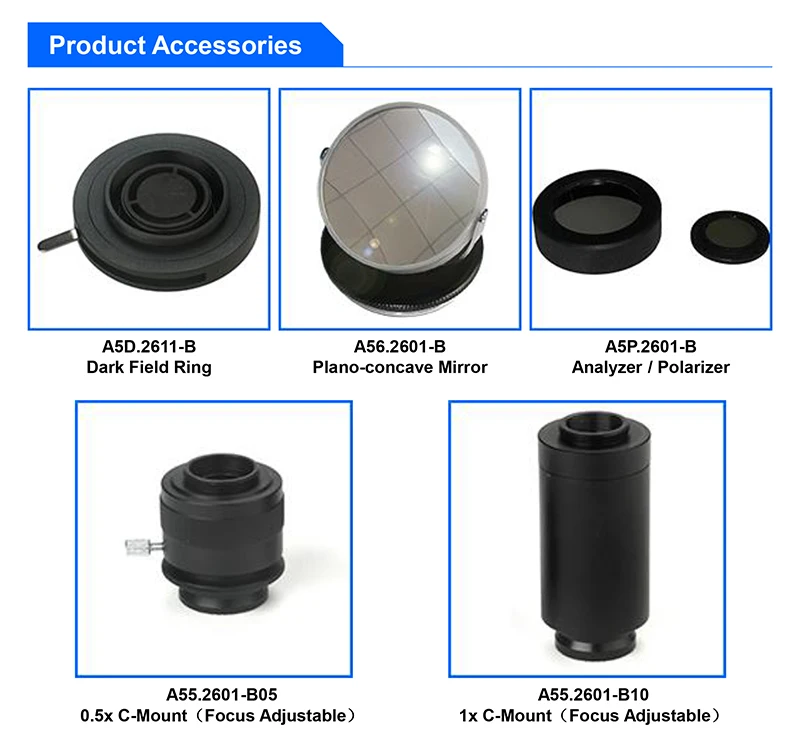

Plano-Concave Mirror | ○ | A56.2601-B | ||||
Dark Field | Dark Field Ring, For 4x~40x Objective | ○ | A5D.2611-B | |||
Polarizing | Analyzer + Polarizer Set | ○ | A5P.2601-B | |||
Package | Carton Size 337*242*417mm, 1 Unit/Ctn | |||||
Weight | Gross Weight 7.0kgs, Net Weigth 5.5kgs | |||||
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories. | ||||||
