MN H35D Electric Garbage Collection Equipment

Product Overview

Description

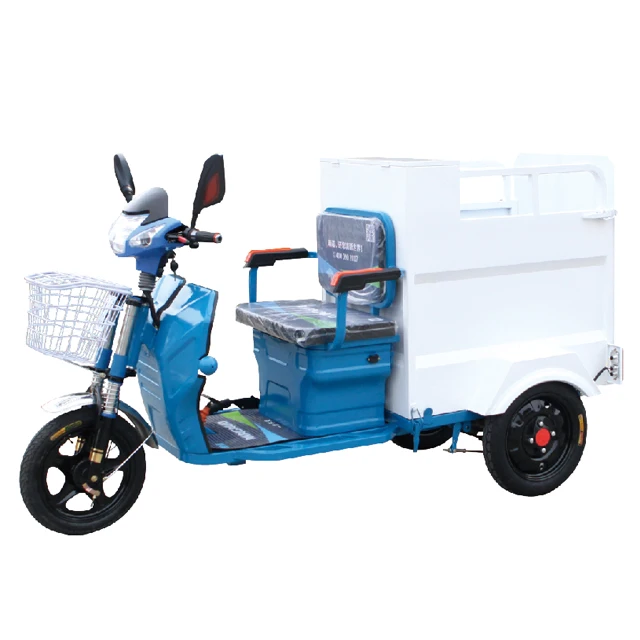

MN-H35D Electric Garbage Collection Equipment



The electric tricycle can load one 240L standard garbage cans, which is easy to operate, easy to clean, easy to load and unload, convenient for garbage collection and management, storage, cleaning and transportation. It is economical and practical, and can effectively prevent the secondary pollution of garbage. It is suitable for garbage collection and circuit cleaning in urban streets, factories, schools, hospitals, residential areas, government offices and other units. It is convenient and flexible to stop at any time.

PARAMETERS



NO	Item Name	Unit	Specification
1	specification	mm	2250×930×1250
2	Dustbin dimension	mm	940×660×890
3	Staff		1
4	Max speed	km/h	25
5	Turning radius	mm	1650
6	Mileage	km	35
7	Max gradeability	%	15
8	Engine power	w	650 DC brushness(800 opitional)
9	Power supply	v	48V20AH(32AH)
10	Min ground clerance	mm	180
11	Min brake distance	m	2
12	Loading trash can specification	L	240
13	Weight	kg	180
14	Loading weight	kg	170



Performance feature

lThe frame is an integral welded girder, split differential rear axle, front suspension is a double-barrel with a helical spring front fork, and rear suspension is a non-independent suspension with strong bearing capacity.

lThe whole vehicle is sprayed after special anti-rust treatment of pickling phosphating and electrolyzing, which is not easy to rust and durable.

lThree kinds of braking modes, i.e. foot-stepping mechanical connecting rod drum rear wheel brake, left-handed soft-axle front wheel brake and manual mechanical parking brake, have good braking effect.

lA toolbox is designed on the back box to facilitate sanitation workers to carry their belongings with them.

lThe whole vehicle adopts sheet metal body structure, which is not easy to deform and damage when scratched.

lThe rear box body is refined with thick steel plate, and the rear box tail plate is anti-skid steel plate, which is durable.

lThe whole vehicle is equipped with LED lighting, left and right steering lights, brake lights, meters, electric horns, rear-view mirrors, anti-theft alarms and etc. to effectively ensure the safety of driving.

lWorking warning lights can be optional.
