DC Blower Fans 3507 35x35x7mm 12V small micro centrifugal fans price

Share on (62113049545):


Price:$1.15 - $1.30

Quantity:


Product Overview

Description

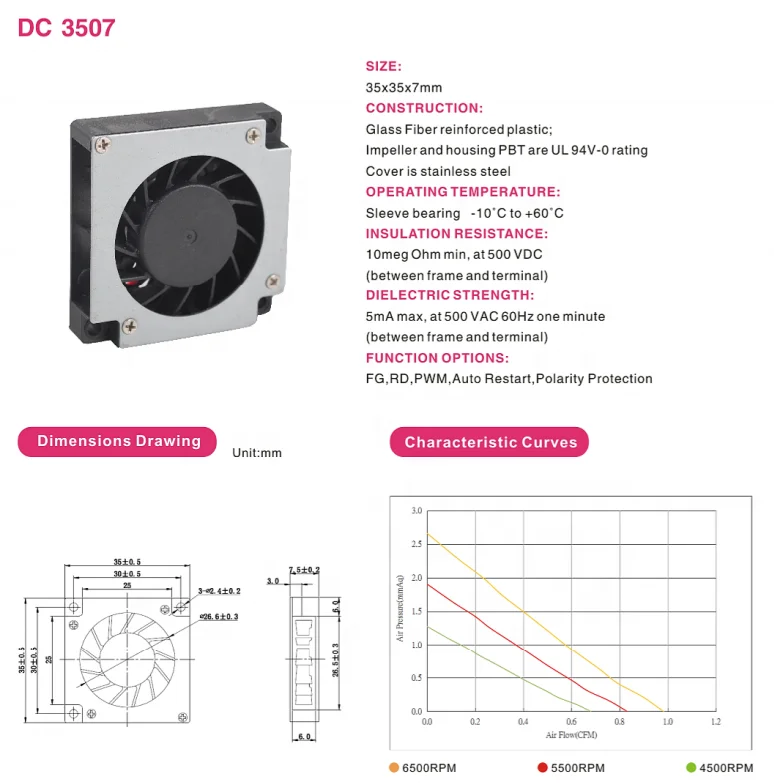

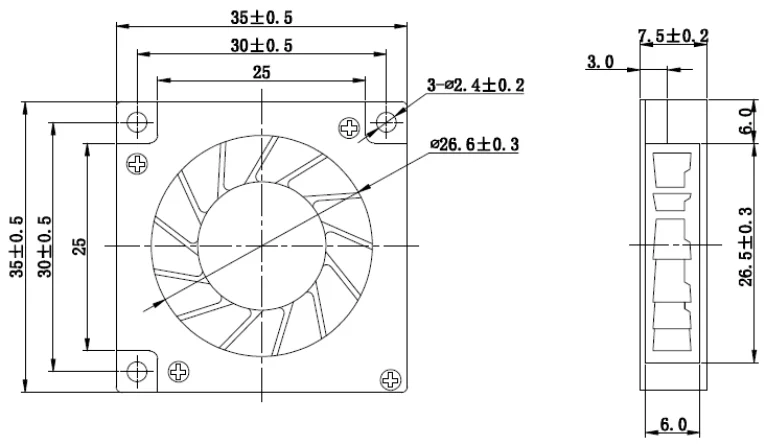

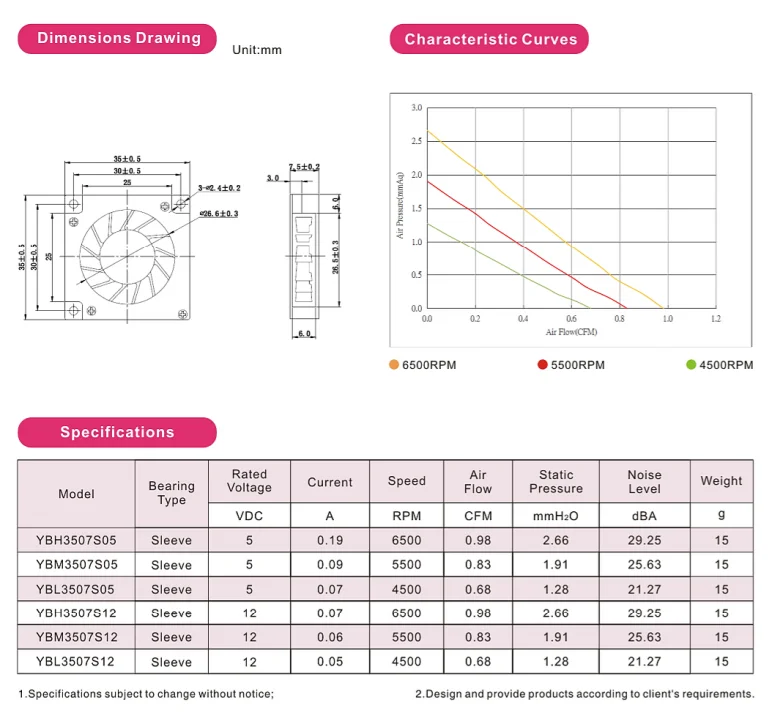

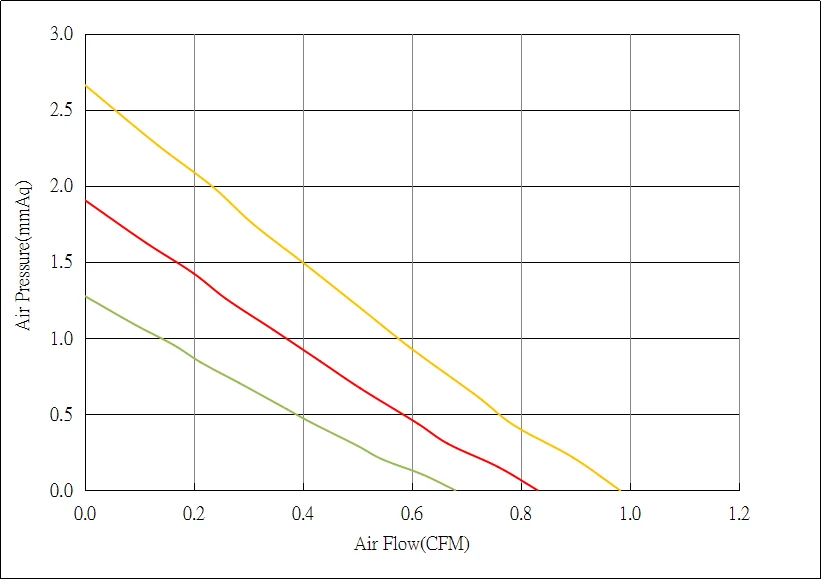

DC Blower Fans 3507 35x35x7mm 12V small micro centrifugal fans price



Item

Specification

Dimension

35*35*07mm

Bearing System

Hypro Bearing

Rated Voltage

5.0VDC

Operating Voltage Range

4.5~5.5VDC

Start-up Voltage

3.5VDC

Rated Current

0.17±0.02(Label:0.20)Amp

Rated Power

0.85Watt

Rated Speed

7500±10%RPM

Air Flow/

1.38CFM

Air Pressure

8.65mmAq





DC Blower Fans 3507 35x35x7mm 12V small micro centrifugal fans price





Our Services



1 : Customized Fan

YCCFAN provide cooling solution for cusomter's special product and requirement.

Customized fan_.png



Application industry :



Thanks for all customers support,we will do better.

Panasonic , Sony , Mitsubishi , Fuji , Midea, HYUNDRI,SENSICA, PLANTOWER, KSTAR , INVT ,INFY POWER etc.



Fan's pplication_.png

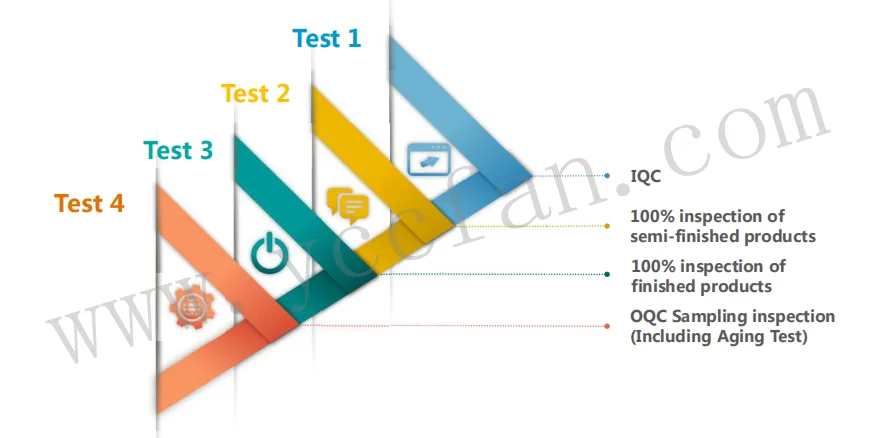

2 : Quality Assurance



a : 100 %  testing before the fan leave our factory

b. Good after services to every customer



c. Inspection 100% raw material for quality, UL94V-0 plastic are compliance to RoHS SGS standard.

d.Warranty : Two-year for ball bearing fan, one-year for sleeve bearing fan

 control process_.png





3 : Good Reputation & After-sales Service



Focus on customer , Grow together, YCCFAN always do the best.



If any requirement, pls mail Teresa directly via oversea02 at yccfan.com

Skype: teresa3573   Wechat : T1036693615

Tel : 86-13631613620



DC Blower Fans 3507 35x35x7mm 12V small micro centrifugal fans price





Trade Show



YCCFAN attend exhibition on HK,SZ,USA,TAIWAN,GERMANY ,SHANGHAI EACH YEAR.










Exhibiton-shows





DC Blower Fans 3507 35x35x7mm 12V small micro centrifugal fans price



R & D Ability
Product Showing





YCCFAN RELATED PRODUCT:

DC Axial Fan

DC Blower Fan


2006


3507


2010


4010


3010


5015

4010



5020

6038



6015

8025



6028

8038



7530

9225



9330

9238



9733

12025



10025

12038



12032



DC Blower Fans 3507 35x35x7mm 12V small micro centrifugal fans price



FAQ

Q1: How to choose a DC fan ?
A1: Consider main point:size,voltage,speed/airflow,lifespan

B1: Consider your product inlet&outlet,choose axial fan or blower fan.
Axial fan blows air along the axis and blades,while blower fan blows air from the fan hole.
Airflow of axial fan is powerful, while static pressure of blower is stronger.


Q2: Can you tell me the normal DC fan Model?

A2: 20*20*6mm 20*20*10mm  25*25*10mm 30*30*7mm

30*30*10mm 40*40*10mm  40*40*20mm 40*40*28mm

50*50*10mm  50*50*15mm 50*50*20mm

60*60*15mm  60*60*25mm  60*60*38mm  70*70*15mm

80*80*15mm 80*80*25mm  80*80*38mm  92*92*25mm  92*92*38mm

120*120*25mm  120*120*38mm

150*150*51mm  172*150*51mm  172*51mm

We have more model,just e-mail me to get details...


Q3: Can YCCFAN make special design fan ?
A3: Sure, just tell me the request deetails, our R&D will provide the solution.


Q4: Can I get samples before order?
A4:Definely,that's our suggestion too.when mass production,performance is compliance to sample checked.
