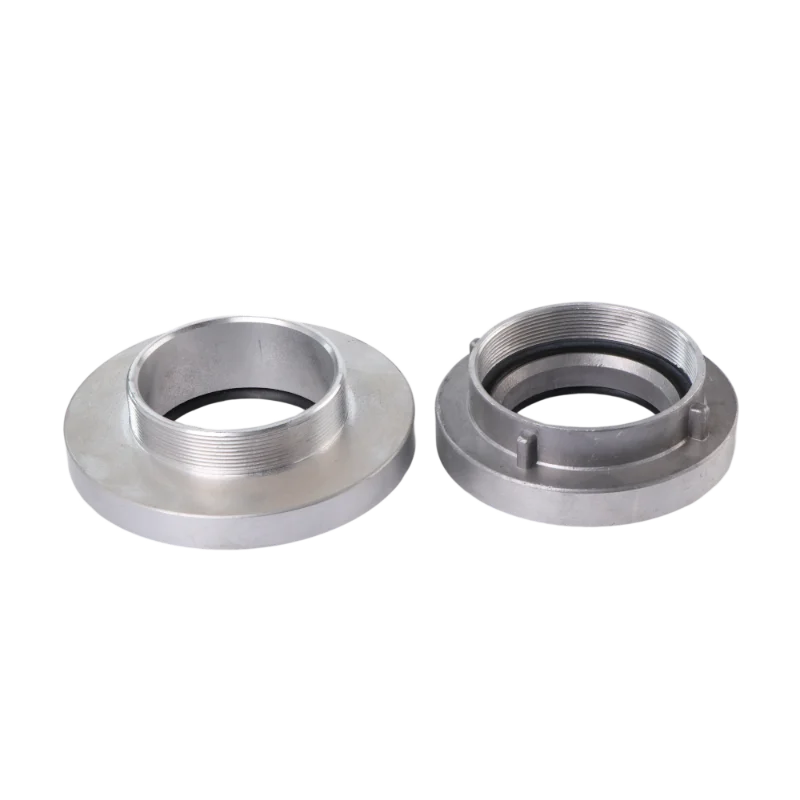

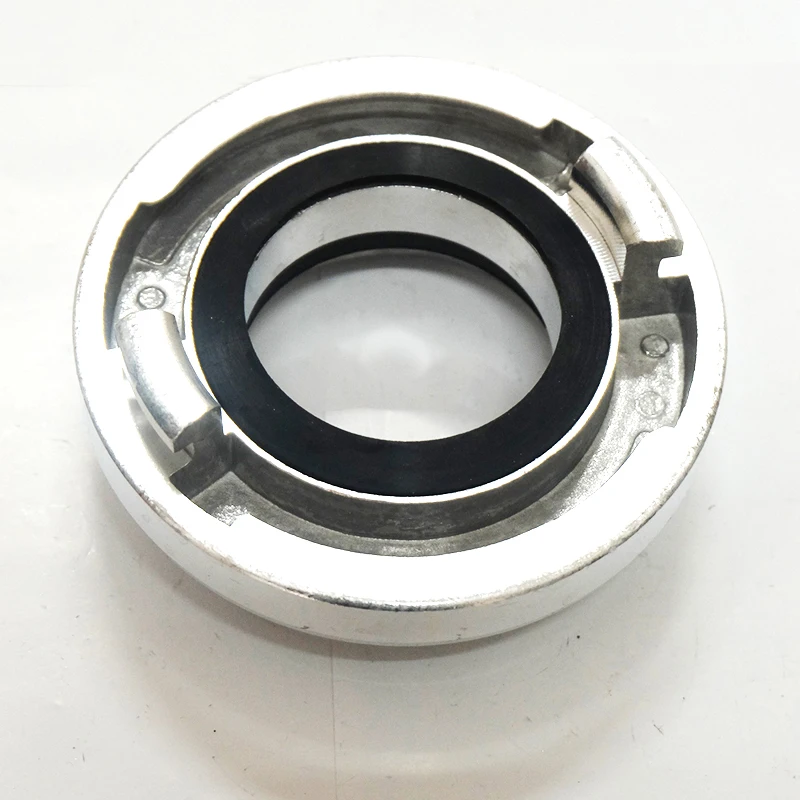

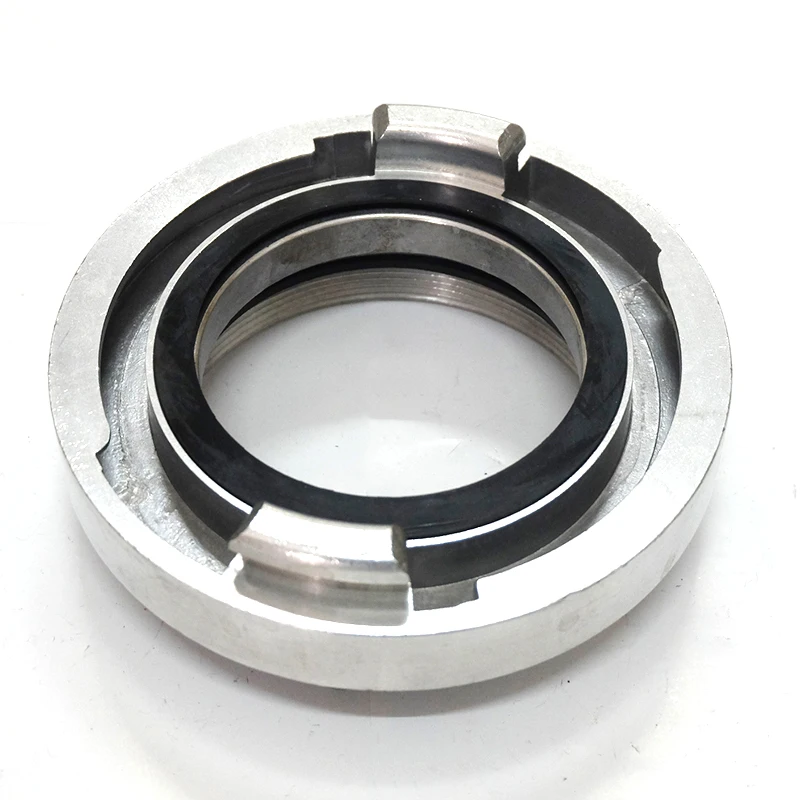

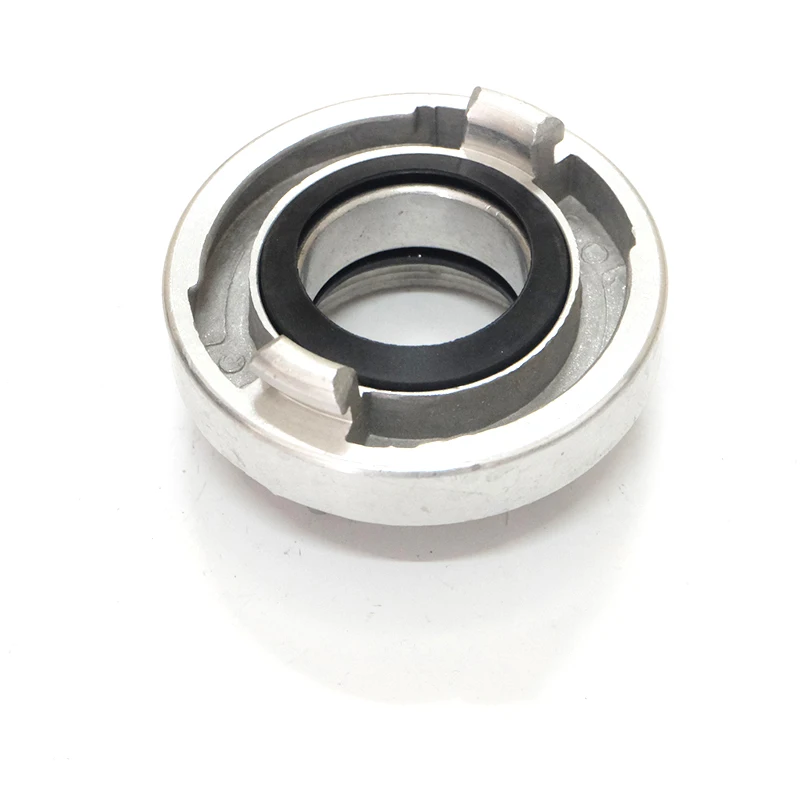

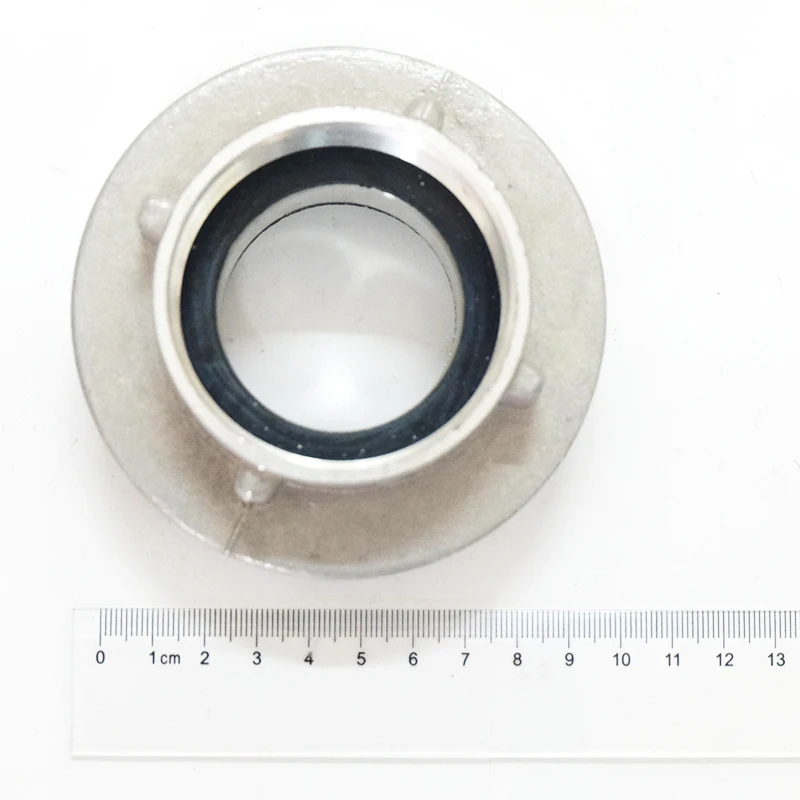

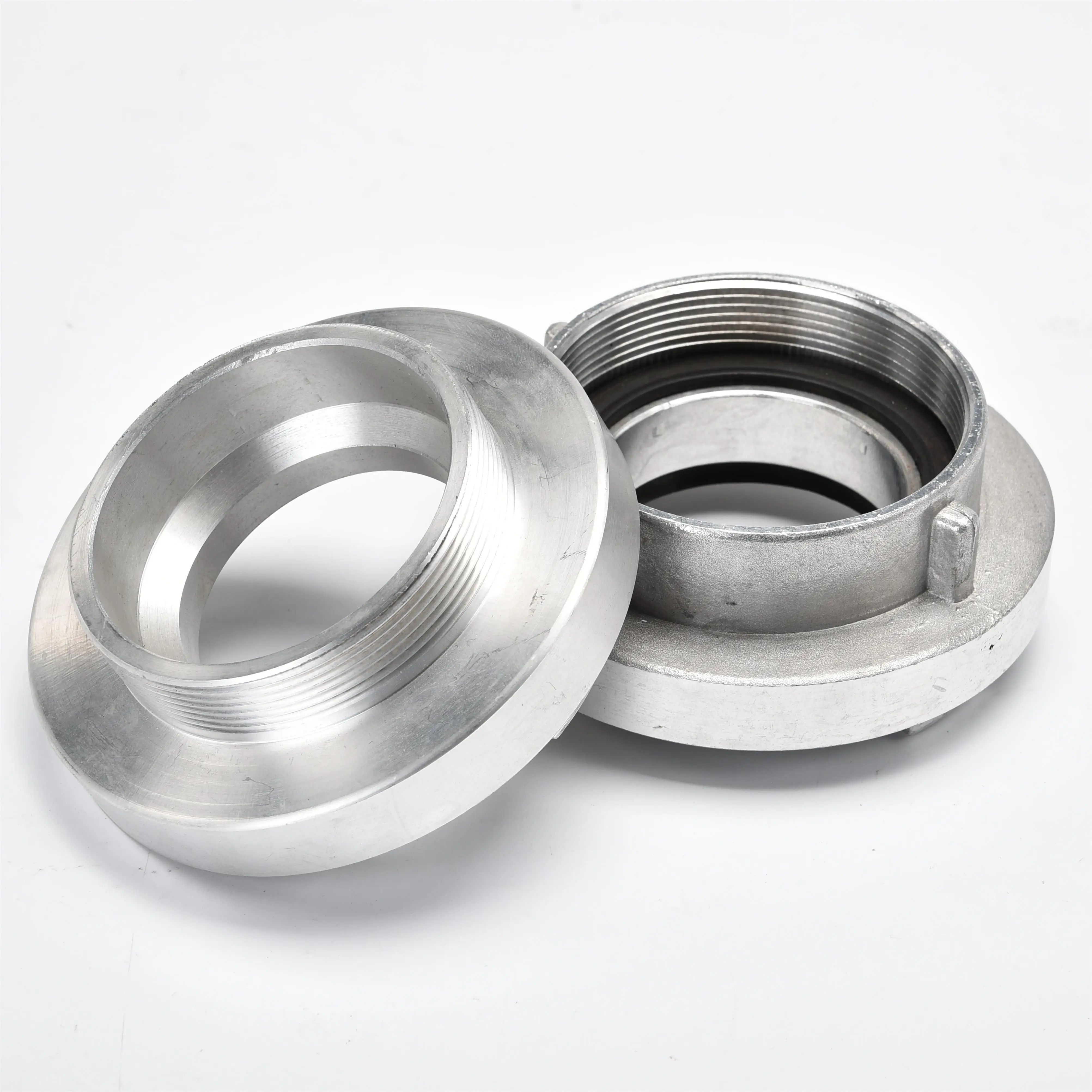

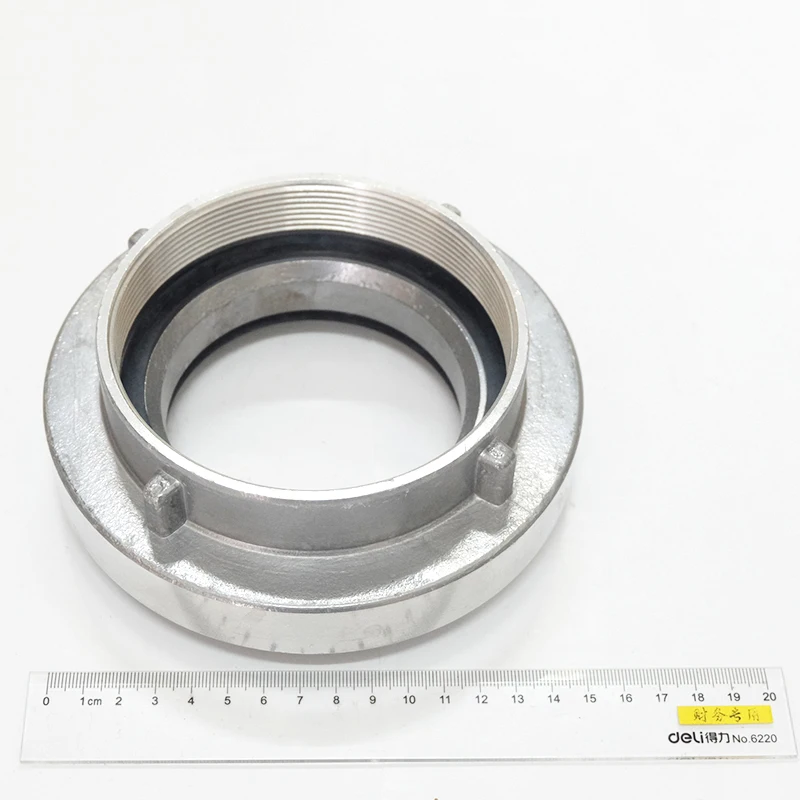

XHYXFire Aluminum Combinations Couplings / Aluminum Storz Coupling With Male Thread / Storz Male Adapter
- Category: >>>
- Supplier: Xinghua Yongxing Fire Fighting Equipment Co. Ltd.
Share on (62113080508):
Product Overview
Description
Thread Storz coupling
Storz couplings are unique because they do not have male or female components like traditional threaded couplings. Instead, they employ a hermaphroditic connecting system, which allows any two Storz couplings of the same size and locking type to connect seamlessly. This design eliminates the need for adapters and reduces the time spent matching and threading different couplings when time is of the essence.
The coupling consists of two identical halves, each connected to a hose or a fixed connection point. The halves connect by inserting the lugs of one half into the slots of the other half and then twisting them such that the lugs lock into place. An integrated sealing ring on one or both halves ensures a watertight seal when the halves are connected.
A thread Storz coupling refers to a specific type of Storz connector that includes a thread, allowing it to be screwed into another component with a corresponding thread. This type of coupling can be used to retrofit existing threaded outlets to accept Storz connections or to integrate Storz functionality into equipment that traditionally utilizes threaded connections.
Thread Storz couplings are typically made from materials like brass, aluminum, or stainless steel, which provide durability and resistance to corrosion. Aluminum couplings are lightweight and widely applicable, while brass and stainless steel couplings are better suited for environments where corrosion or higher pressure ratings are considerations.
The coupling consists of two identical halves, each connected to a hose or a fixed connection point. The halves connect by inserting the lugs of one half into the slots of the other half and then twisting them such that the lugs lock into place. An integrated sealing ring on one or both halves ensures a watertight seal when the halves are connected.
A thread Storz coupling refers to a specific type of Storz connector that includes a thread, allowing it to be screwed into another component with a corresponding thread. This type of coupling can be used to retrofit existing threaded outlets to accept Storz connections or to integrate Storz functionality into equipment that traditionally utilizes threaded connections.
Thread Storz couplings are typically made from materials like brass, aluminum, or stainless steel, which provide durability and resistance to corrosion. Aluminum couplings are lightweight and widely applicable, while brass and stainless steel couplings are better suited for environments where corrosion or higher pressure ratings are considerations.

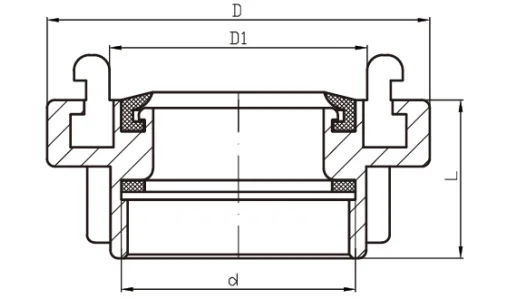

D1 | D | L | d | Specs | Material |
Φ31 | Φ55 | 31 | G1" | 1" | Aluminium Alloy |
Φ52 | Φ79 | 31 | G1½" | 1½" | Aluminium Alloy |
Φ59 | Φ88 | 36 | G1¾" | 1¾" | Aluminium Alloy |
Φ66 | Φ98 | 40.5 | G2" | 2" | Aluminium Alloy |
Φ81 | Φ118 | 40 | G2½" | 2½" | Aluminium Alloy |
Φ89 | Φ126 | 42.5 | G3" | 3" | Aluminium Alloy |
Φ115 | Φ156 | 47 | G4" | SMALL4" | Aluminium Alloy |
Φ133 | Φ182 | 47.7 | G4" | BIG4" | Aluminium Alloy |
Φ148 | Φ196 | 51.7 | G5" | 5" | Aluminium Alloy |
Φ160 | Φ215 | 60 | G6" | 6" | Aluminium Alloy |
