Меньше отходов, высокая Выходная трехслойная производственная линия ABC выдувной пленки
- Category: >>>
- Supplier: Hebei Chengheng Plastic Machinery Technology Co. Ltd.
Share on (62113346606):
Product Overview
Description
Product Description

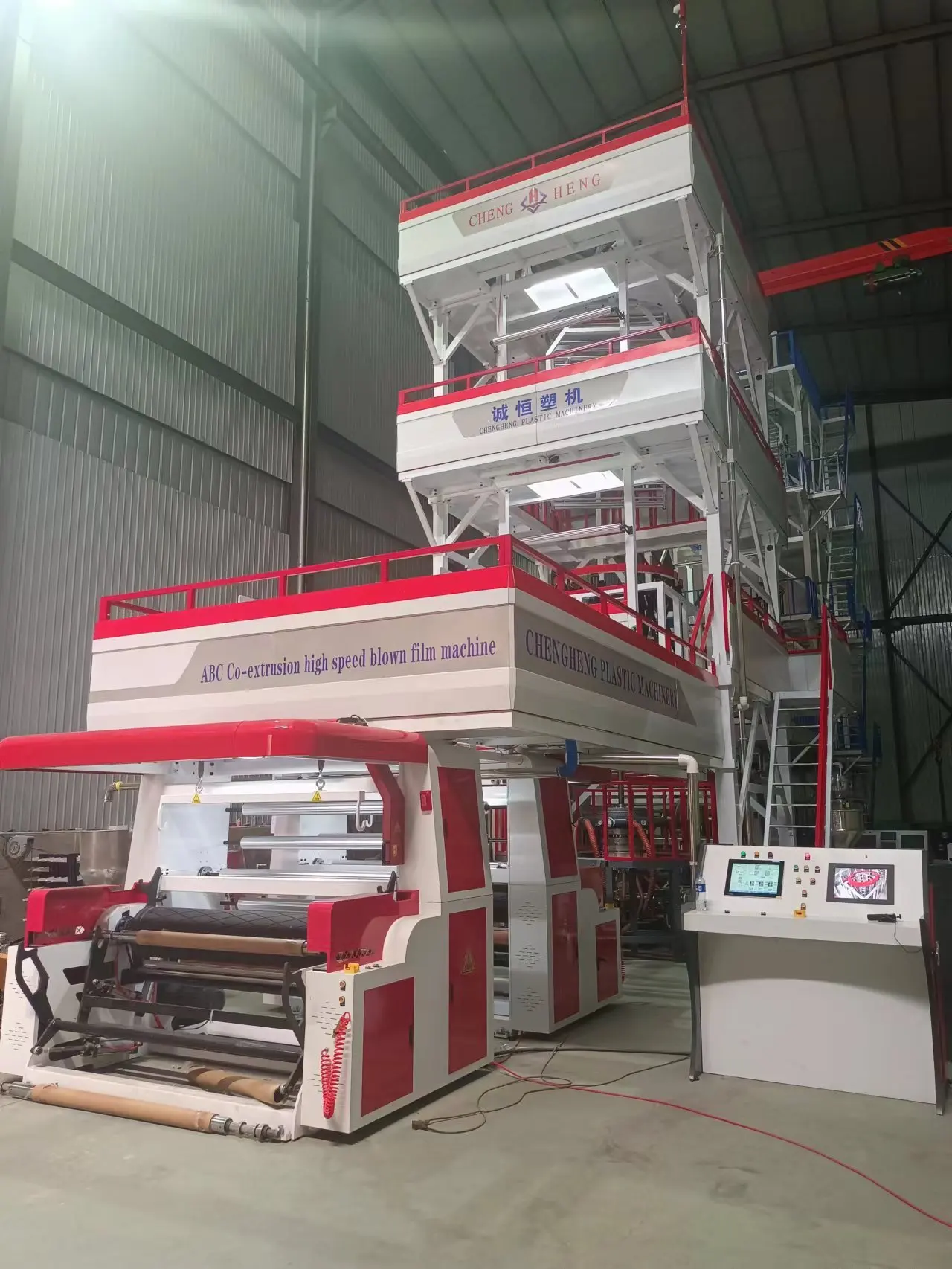

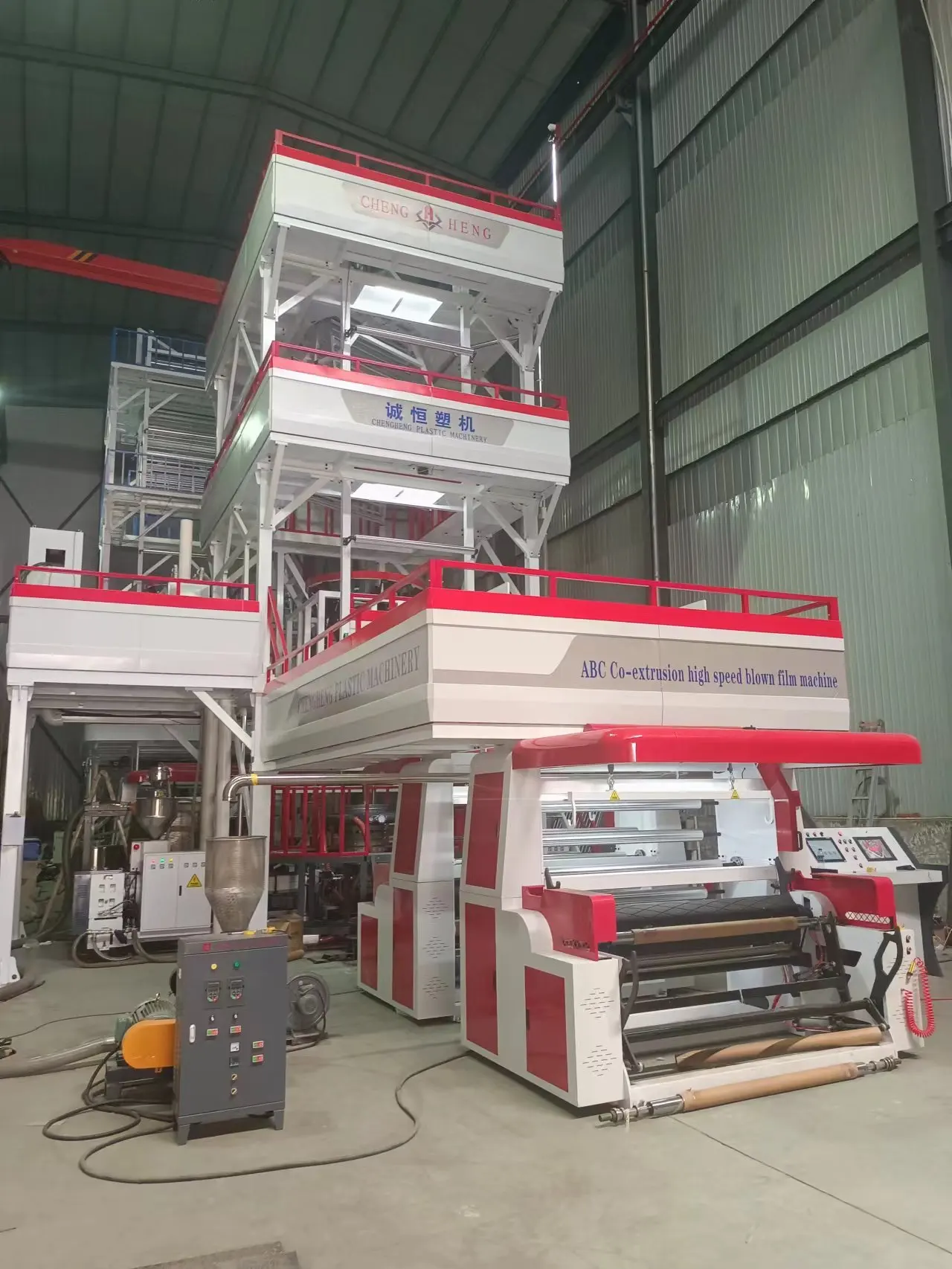

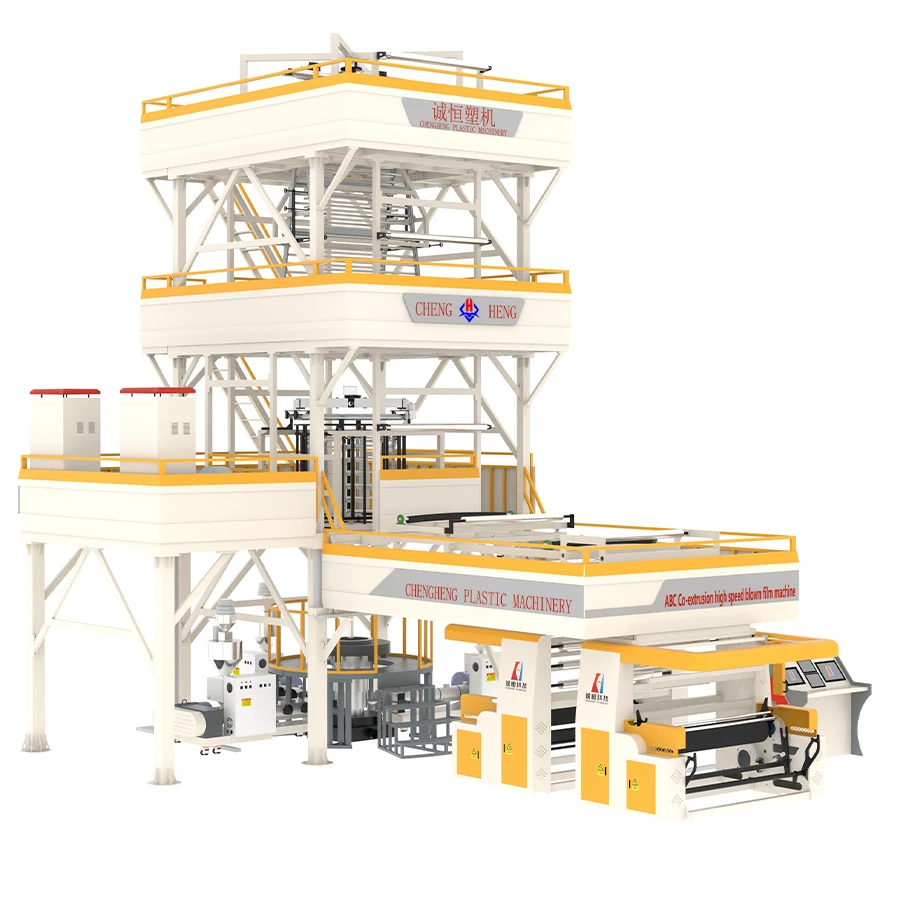

ABC Three Layers Co-extrusion Film Blowing Machine
The machine has advantage of higher output, low energy consumption, stable performance and simple operation etc. It's a ideal equipment which can produce multi-function films.
Model | 3L-45-50-45/1200 | 3L-50-55-50/1400 | 3L-55-65-55/1600/1800 | 3L-65-75-65/2200 | |||
Width of the film | 600-1000mm | 600-1200mm | 800-1400mm 1000-1600mm | 1400-2000mm | |||
Film thickness | 0.02-0.2mm | ||||||
Output | 160kg/h | 250kg/h | 300kg/h | 380kg/h | |||
According to different width, thickness of film,die size and raw material characteristics to change | |||||||
Raw material | HDPE/LDPE/LLDPE/MDPE/EVA | ||||||
Diameter of screw | Φ45/50/45 | Φ50/55/50 | Φ55/65/55 | Φ65/75/65 | |||
L/D ratio of screw | 32:1(With force feeding) | ||||||
Gear box | 146# 173# 146# | 173# 180# 173# | 200# 225 200# | 225# 250# 225# | |||
Main motor | 15kw/18.5kw/15kw | 18.5kw/30kw/18.5kw | 37kw/45kw37kw | 45kw/55kw/45kw | |||
Die diameter | Φ250mm | Φ300mm | Φ350mm/400mm | Φ500mm | |||
Five Years Guarantee
Our machines are stable and durable, which have created more value for our clients.
High Speed Screw
SACM 645, bimetallic, superior wear resistance.

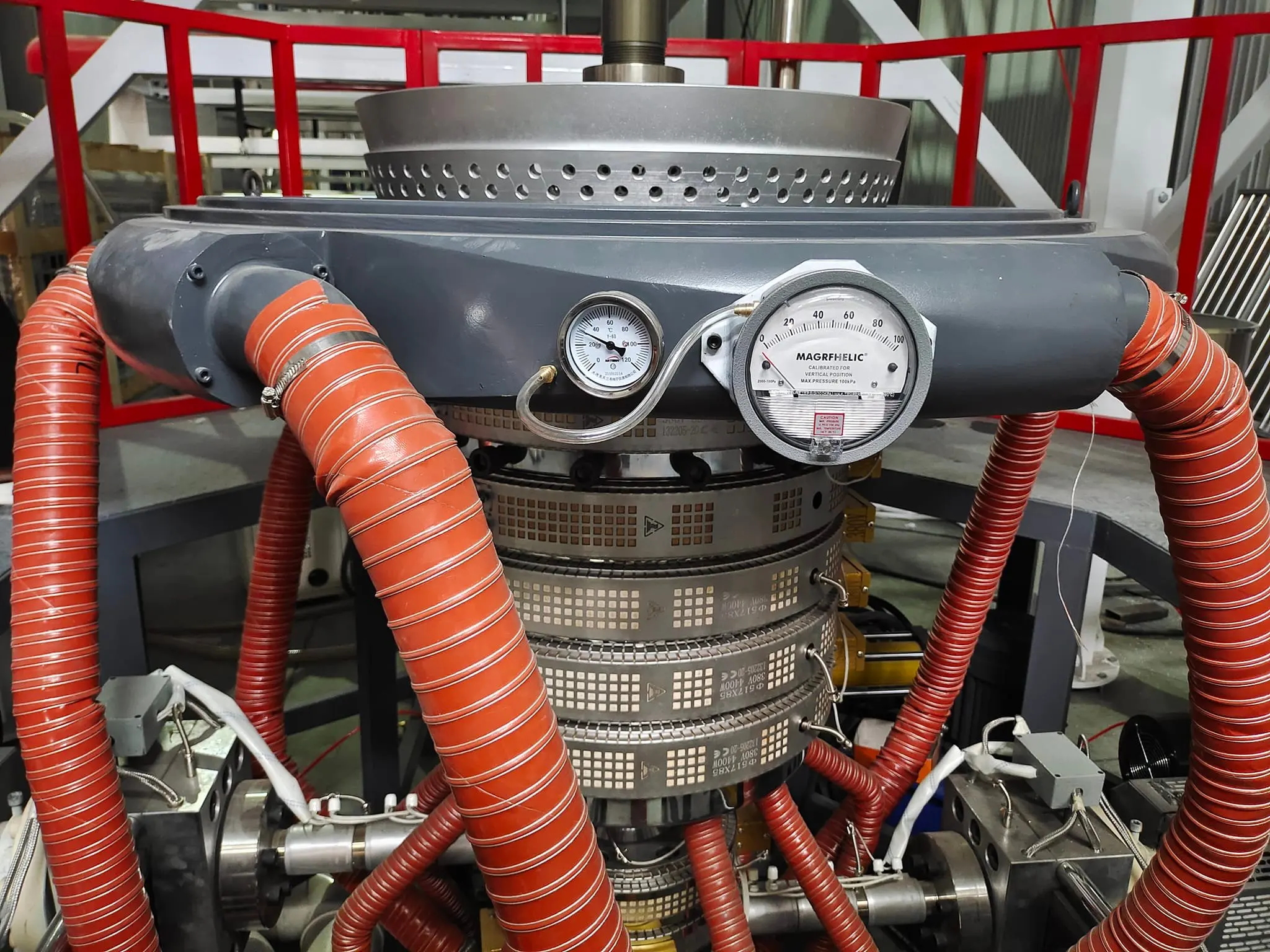

Die Dead
High precision die, 45Cr steel forging finishing, eight feed trough runner, uniform flow channel, good plasticizing effect.

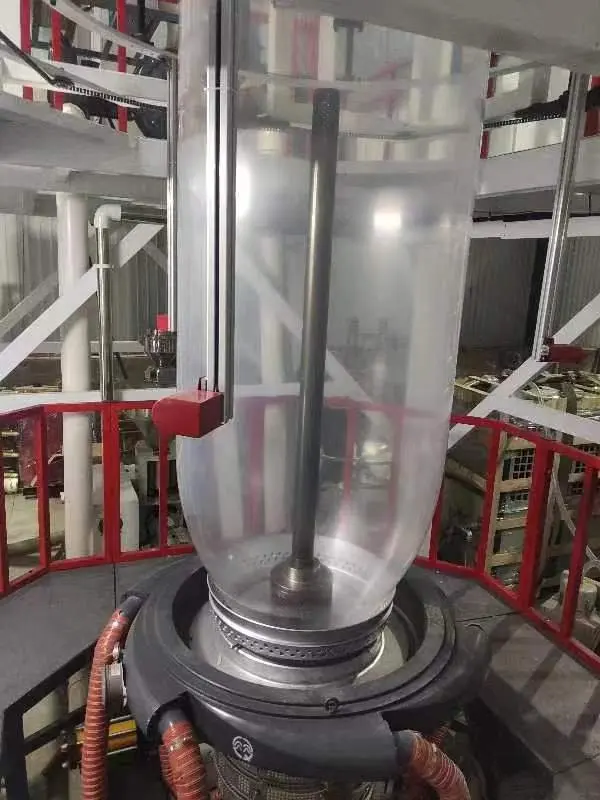

IBC inner cooling system
It can reach better cooling effect, improve the output, reduce energy consumption, which is good for better film quality.
PLC computer control
It can be fully automatic
Automatic Gauge control system
It automatically measure and adjust thickness, which makes the thickness of the film more uniform.
Grametric batch blender system at hopper

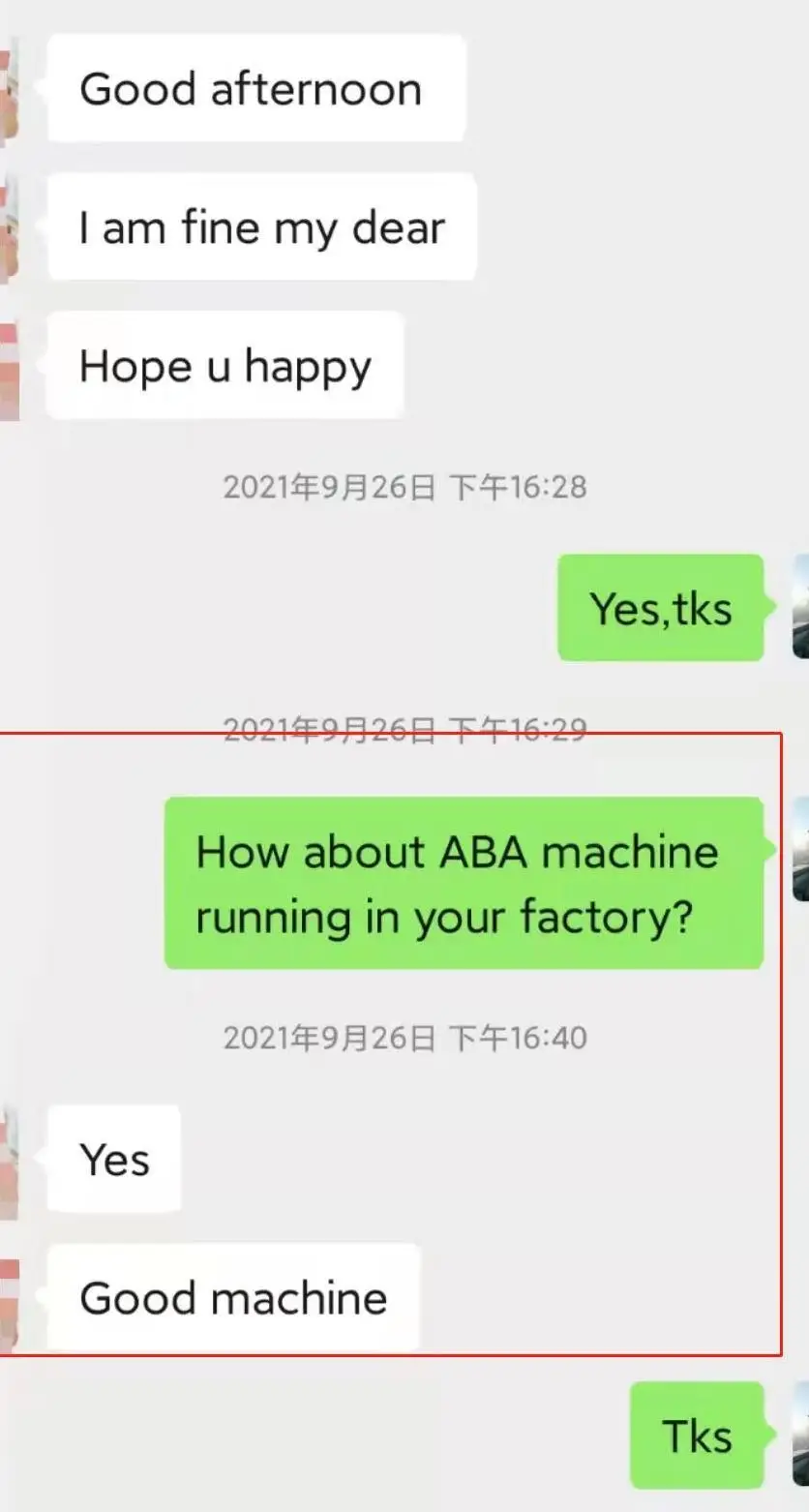

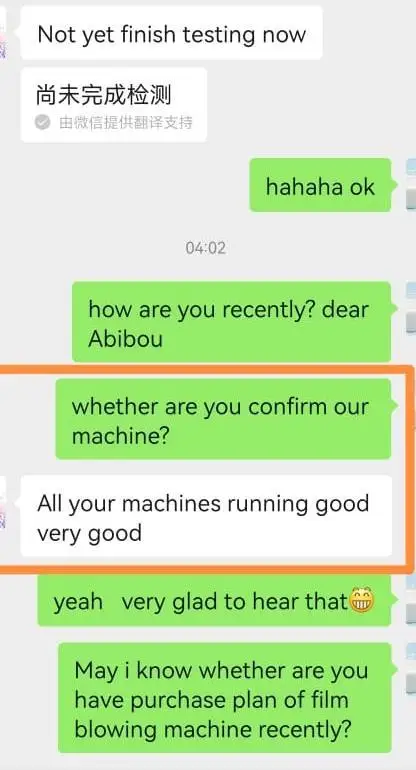

Product Reviews
Our Company
Our company is a professional manufacturer of plastic machine with over 20 years. We own the strict management system and experience workers. We are BV and SGS audited factory, also get ISO9001, CE certificate.
Exhibition

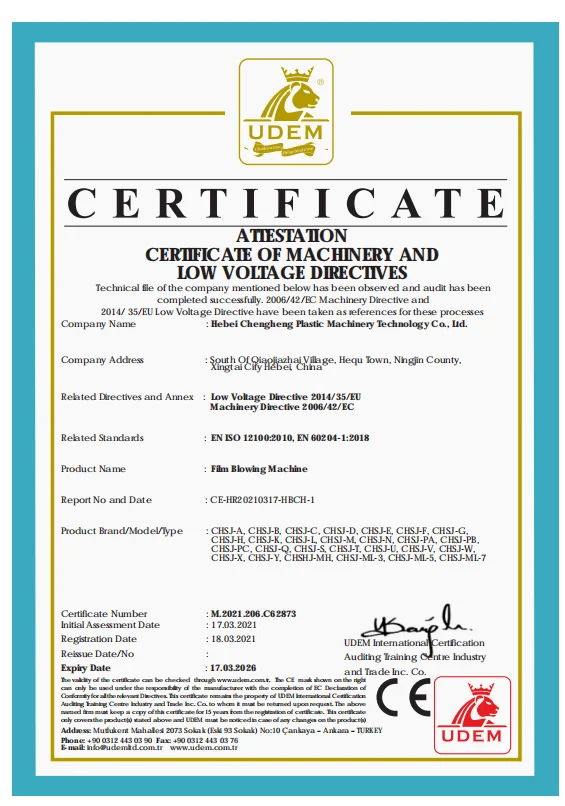

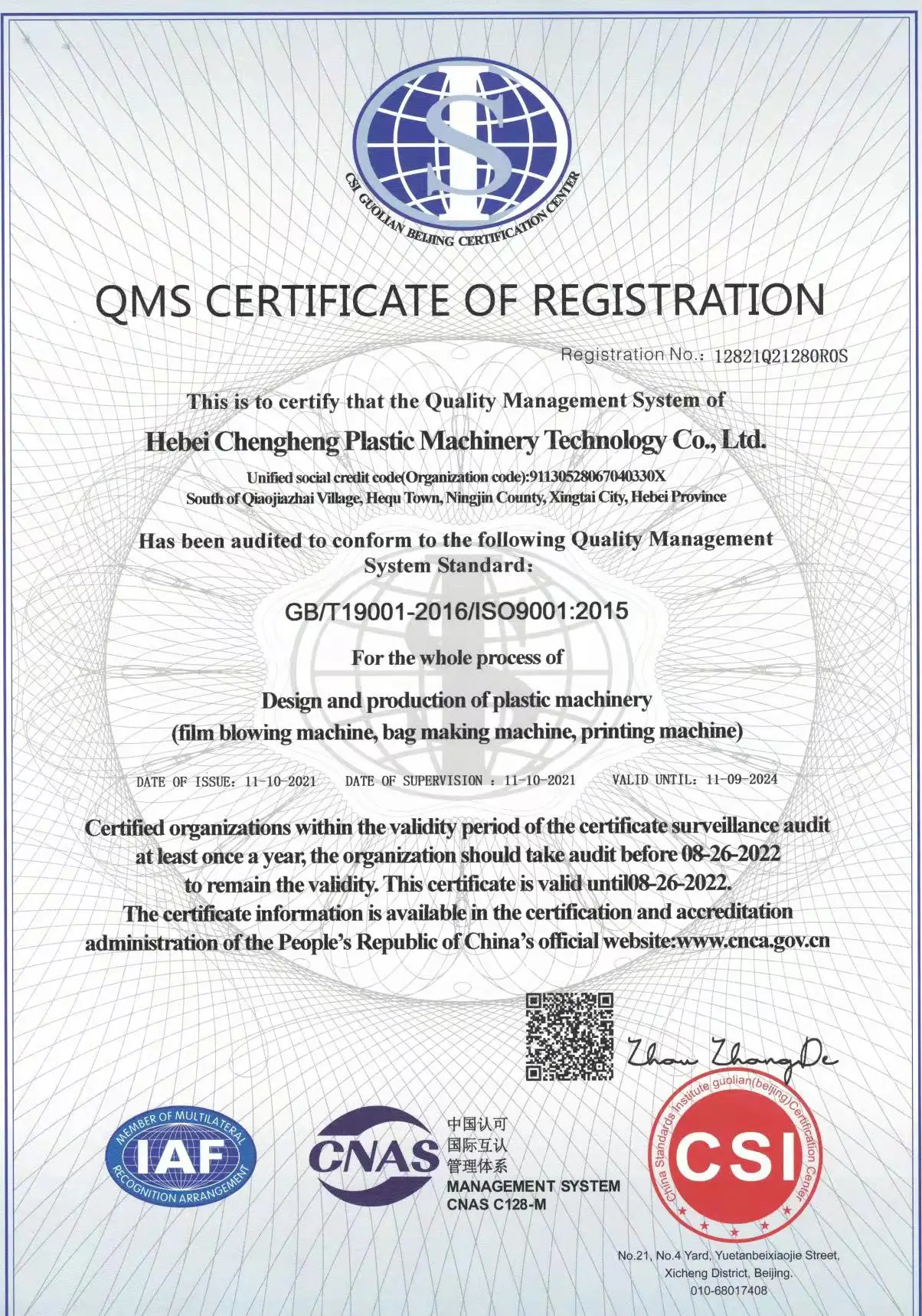

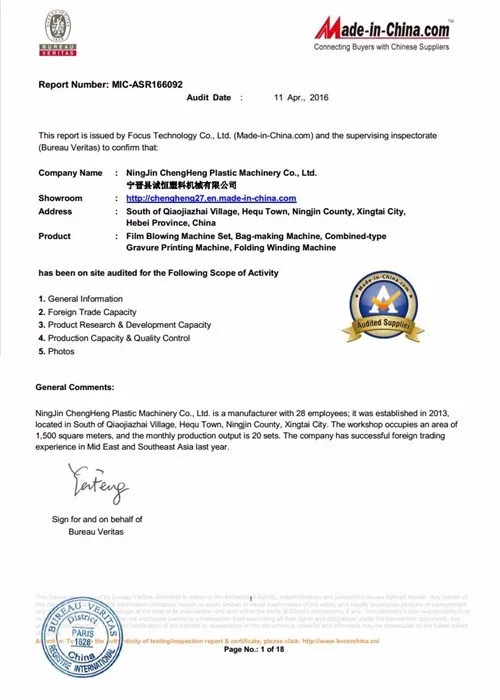

Certifications
Packing & Delivery

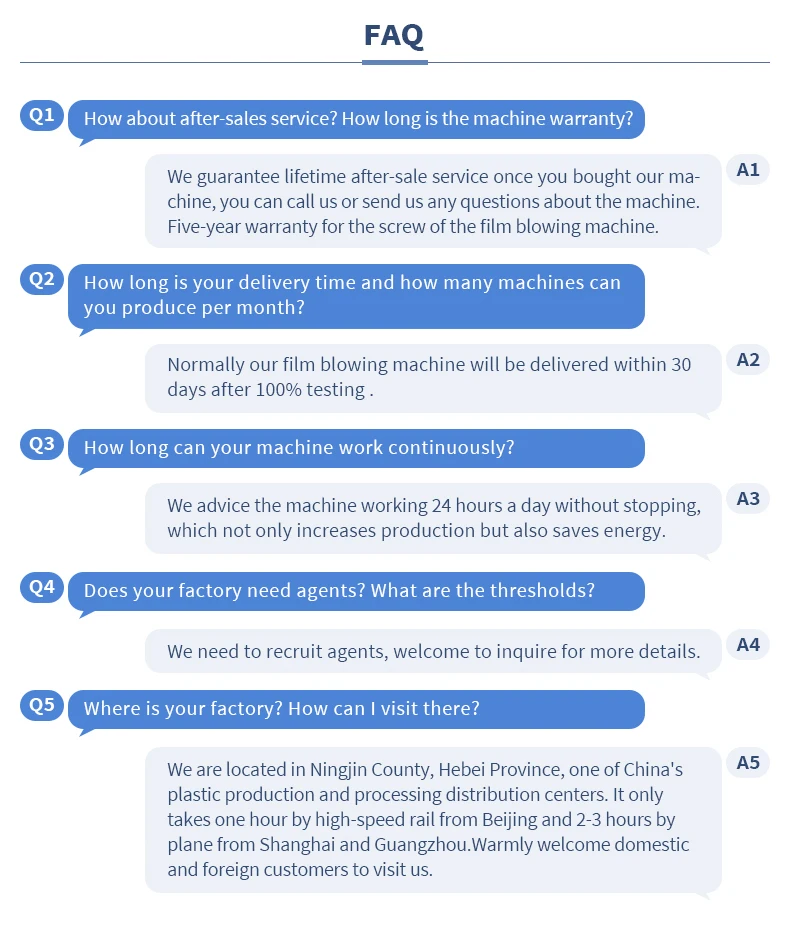

FAQ
