JK2828 LCR Meter with 20 Hz~1MHz Testing Frequency

Share on:

Price:$2,031.00 - $2,257.00
Price in USD:Details


Product Overview




JK2828 high precision LCR Meter is a kind of multifunctional element parameters for the various electronic components inspection tester.With 7 inches 800 x480 color TFT LCD display, High speed and stability and more than 20 Hz – 1MHz frequency point and the accuracy of 0.05%, JK2828 is used for incoming inspection of components, quality of product line and goods inspection and laboratory measurement requirements etc.



 Brand new 32-bit processor core, data completely foreign first-class equipment

 7 inch true color TFT screen

 20Hz-1MHz test frequency

 0.05% of basic measurement accuracy, fast test (75 times/SEC)

 Graphics scanning analysis function, support/level/frequency /offset scan, insight into a feature to be tested/.

 Multi-parameter testing capabilities.

 The test voltage or current automatic level control of ALC function

 30 Ω, 50 Ω,100 Ω,10/CC four different signal source output impedance

 The built-in comparator,10 bins and bin counters

 10 spots list sweep function

 Internal 100 group set file, 500 U disk test file can be saved or invocation

0V, 1.5V and 2V internal DC bias voltage

 optional ±5V(±100mA)and 1A internal DC bias source

 Can be upgrade and update by U disk instrument software version

 U disk print screen, real-time data save, can support format FAT16, FAT32 file system

 Standard configuration:RS232C,USB HOST,USB DEVICE,HANDLER,Headphone Jack,Footswitch Jack

; Optional :GPIB,LAN







Test frequency

20 Hz-1MHz,0.01Hz resolution

20Hz-500kHz,0.01Hz resolution

Test parameter

| Z|, |Y|, C, L, X, B, R, G, D, Q, θ,DCR

Basic test accuracy


Equivalent circuit

Series ,parallel

Mathematical function

Absolute value deviation, percentage deviation

Range mode

Auto, Hold, manual

Trigger mode

Internal, Manual, External, Bus

Measurement speed(≥1kHz)

Fast: 75 time/second, Med: 12 time/second, Slow: 3 time/second

Averaging rate


Delay time

0—60s, n 1 ms step by step

Correction function

Open ,short, load

List sweep

10 points

Display mode

Direct,Δ,Δ%,V/I(V/I monitor)


800×480 RGB7inch 16: 9 TFT LCD display

Test signal

Output impedance

30 Ω, 50 Ω,100 Ω, 10 /CC selectable

Test level

Normal :5mV-2 V  Accuracy:10%,with step of 1 mV

Constant level:10mV-1 V   accuracy :5%,with step of 1 mV

DC bias source




±5V(±100mA) Dc bias source option

1A:0-1A Dc bias current source option

Display range

|Z|, R, X 0.01mΩ —99.9999 MΩ

DCR      0.001 mΩ —99.9999 MΩ

|Y|, G, B 0.00001µS —99.9999S

C    0.00001pF —9.9999F

L     0.00001µH —9999.99H

D    0.00001 —9.9999

Q    0.00001 —9999.9

θ(DEG)  -179.999º —179.999º

θ(RAD)  -3.14159 —3.14159

Comparator function

10 bins: 9 pass bin, 1 fail bin, AUX bin


Four parameters can be chosen optionally measure and display at the same time

Curve scanning function

A variety of test conditions, the piece to be measured for graph scanning separation


Internal  storage,USB extended  storage


Standard : RS232C,HANDLER,USB HOST,USB DEVICE,headphone jack,Solid interface;Optional : GPIB,LAN

Size /weight

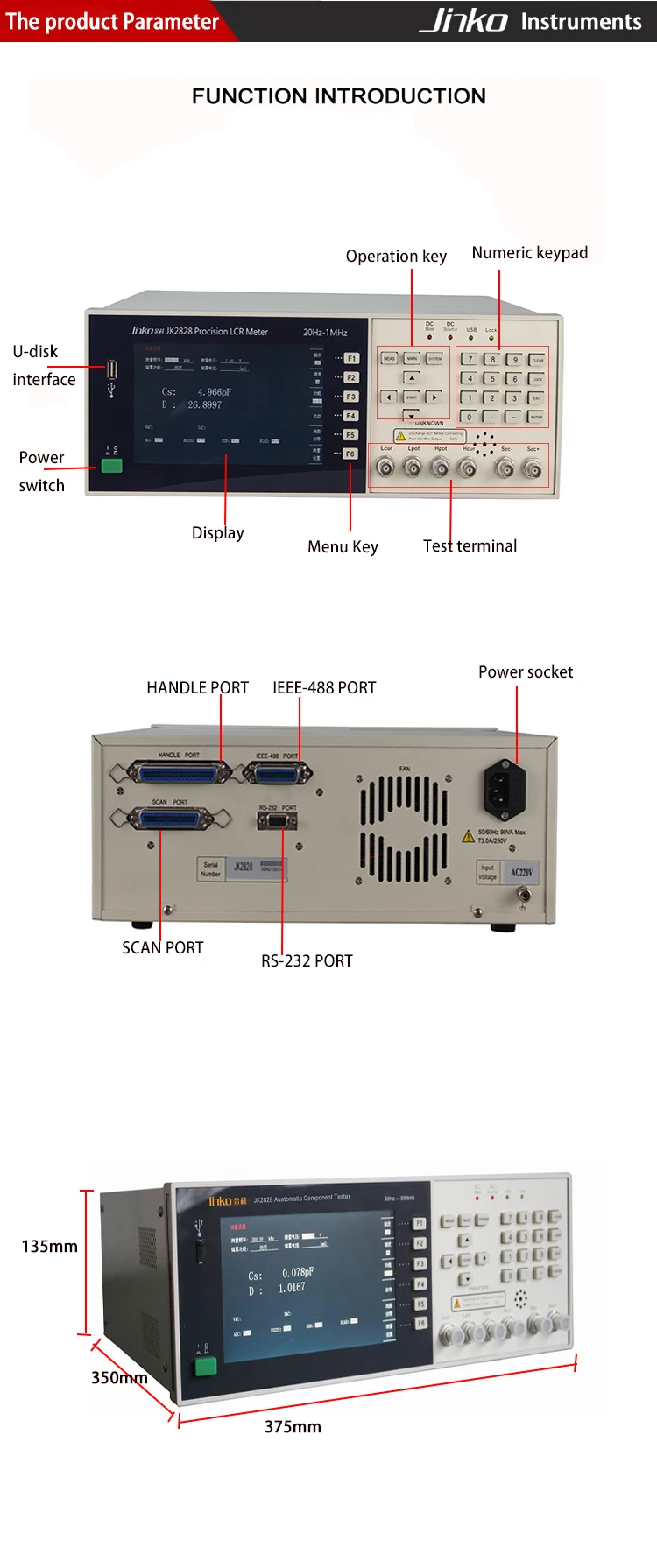

375mm(W)*135mm(H)*350mm(L),about 7 kg

Standard Accessories

26011B  4 terminal Kelvin test clip leads

26005B  4 terminal test fixture

26010         gilded shorting plate

Optional  Accessories

26009B  SMD test fixture

26008A  SMD Test box

26010          gilded shorting plate RS232 Communication software customization
