tecles lever hoist

Product Overview

Description

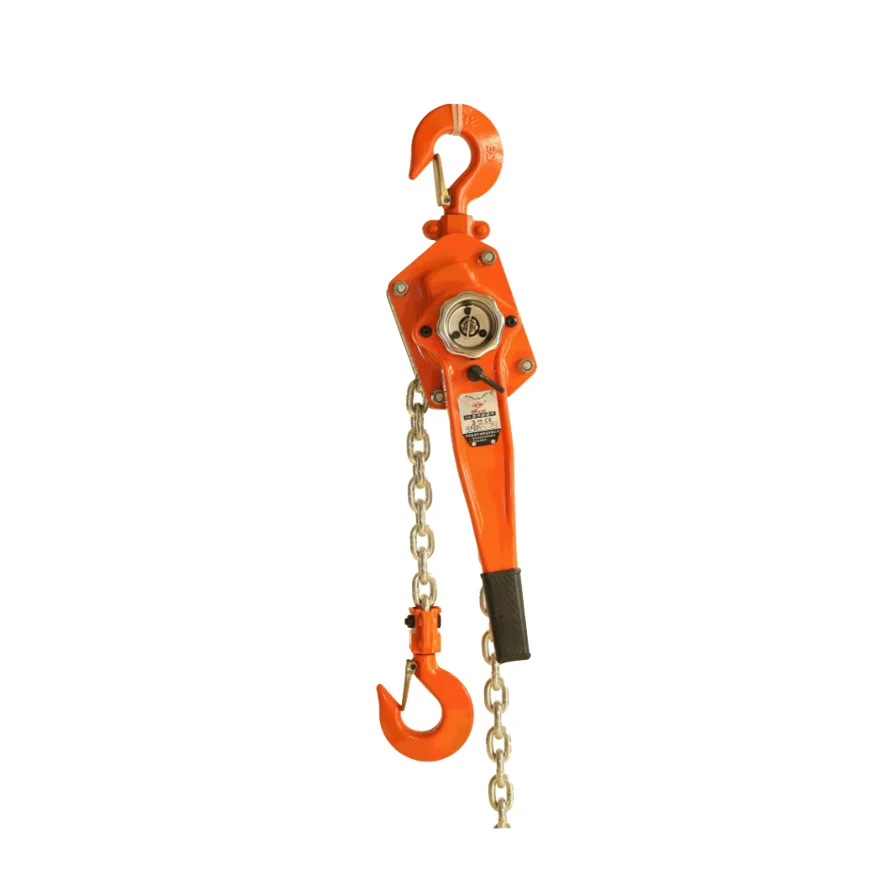

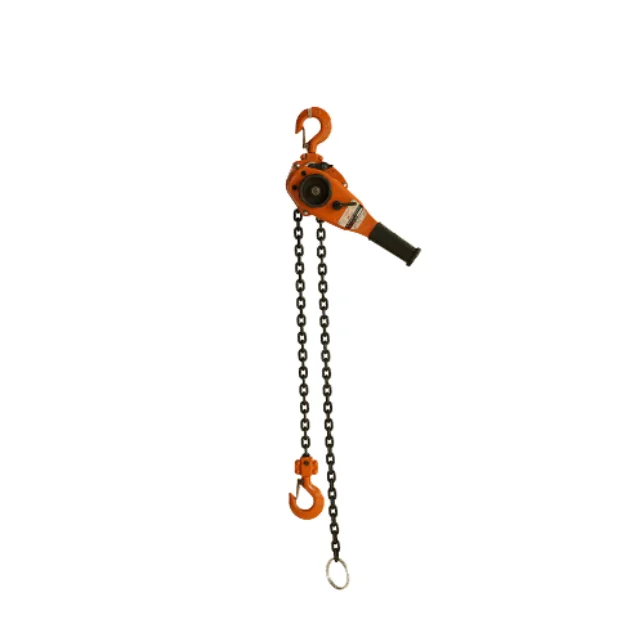

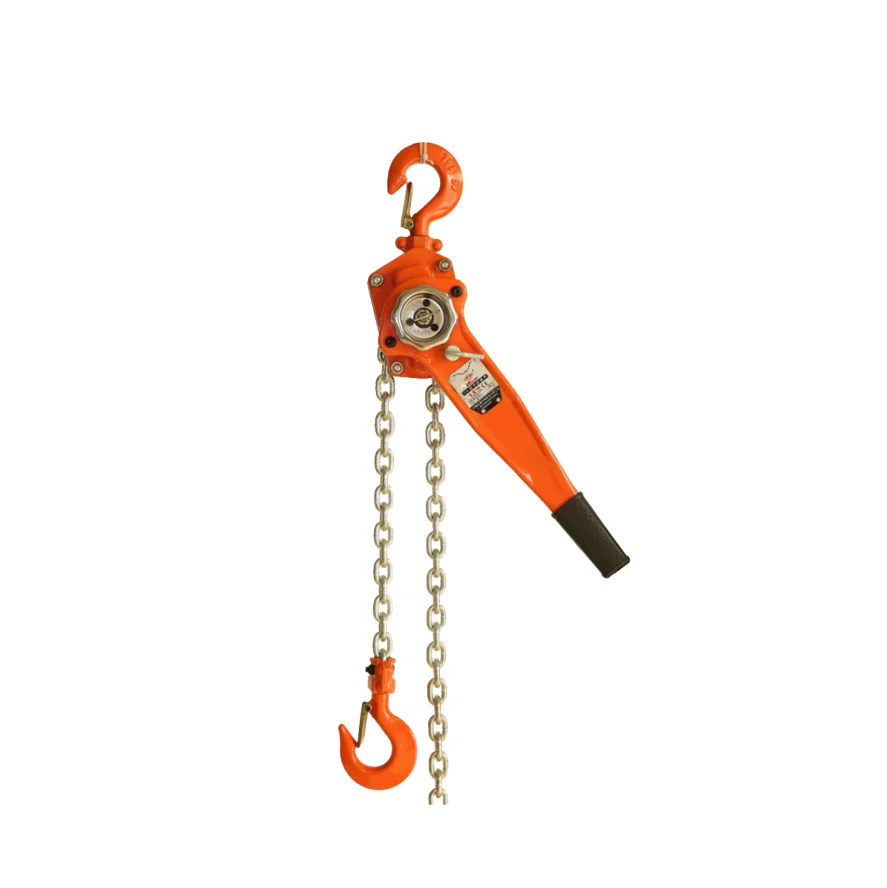

JDP Lever chain block hoist 1.5 ton 3ton



Capacity from 0.25ton to 9ton.  The Lever hoist 0.25ton is expensive, please send me email to get the price. The lever block 0.8ton 1ton 1.5ton 1.6ton 3.2ton 6.4ton 9ton are fast delivery.

Lifting height: Standard lifting height is 1.5Meter & 3Meter.






The lever hoist with tight structure and graceful outline and its weight is light. People can operate it easily even in narrow place.

The lever hoist is made of high strength low carbon alloy steel,

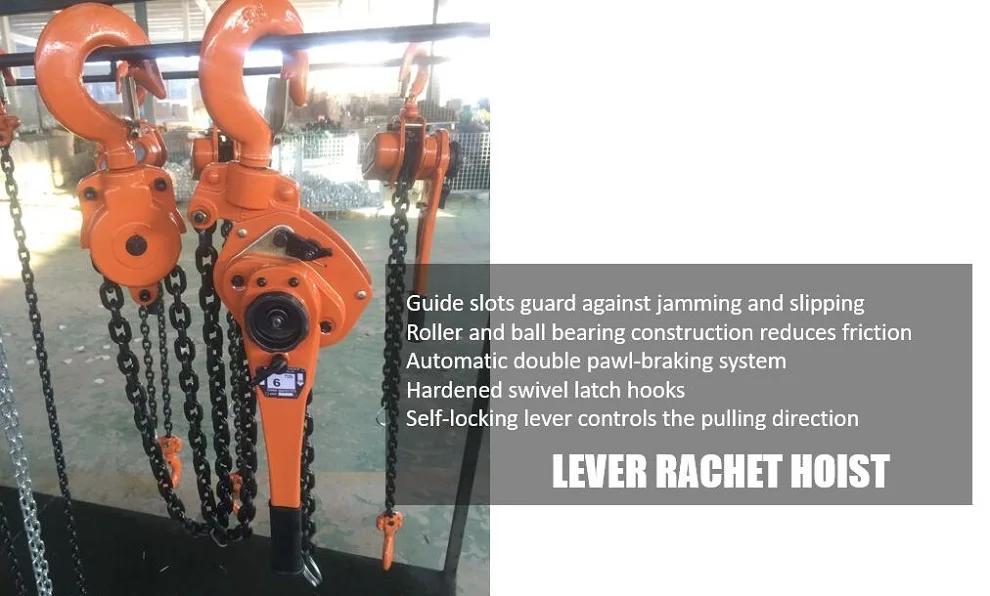

High elastic spring with double pawl brake system design featuring stable operation and smooth braking.

We design sealed guide chain construction to ensure the load chain running safely.

The top and bottom hook are made of forged high strength alloy, accomplished by heat treatment process. The hooks also have three stretch indicators. However if by any chance the hook is overloaded there is no fear of it breaking, it will simply gradually start straightening out, avoiding any load drop or personal injury.

Within auto-clutch,worker can handle the load chain with one hand when there is No-Load.



1. The lever hoist with tight structure and graceful outline and its weight is light. People can operate it easily even in narrow place.

2. The handle with human engineering design is easy to handle.

3. The braking mechanism, which makes up heart of the hoist, is enclosed in a double cover: the wheel and the brake covers. These protective covers not only keep out weather elements but also help to prevent mud and dust from entering internal mechanisms.

4. The top and bottom hook are made of forged high strength alloy, accomplished by heat treatment process. The hooks also have three stretch indicators. However if by any chance the hook is overloaded there is no fear of it breaking, it will simply gradually start straightening out, avoiding any load drop or personal injury.
Precision cast steel latch in bottom hook with embedded design can prevent the bottom hook off effectivel

5. Specially heat treated top and bottom hooks have enough strength and toughness for hard job. The design of the bottom hook, with relatively large dimensions, makes it easy to stabilize a load in proper position.
Bottom Yoke with Protecting Guard features a guard protecting the chain pin & nut from damage, enhancing safety.

6. the cloth packaging of tote and waist make the lever hoist easy to operate and carry.

7. The load chain wheel is made of high quality alloy with precision machining process. So the load chain and the wheel work smoothly



VA Lever Hoist Lever Block
Model	Capacity(T)	Standard lift(M)	Running test load(T)	No. of falls load chain	Load chain diameter (MM)	Dimensions (MM)			Net weight (kg)
						A	B	C
VA 0.75T	0.75	1.5	1.125	1	6	148	87.5	135	7
VA 1T	1	1.5	1.5	1	6	148	87.5	135	7.5
VA 1.5T	1.5	1.5	2.25	1	8	176	102	157	11
VA 2T	2	1.5	3	2	8	176	102	157	12
VA 3T	3	1.5	4.5	2	10	195	109	210	19
VA 6T	6	1.5	9.5	2	10	195	109	253	32
VA 9T	9	1.5	13.5	3	10	198	120	319	47















Hebei Huaige Hoisting Machinery Group Co.,Ltd. was founded in 1999 in Baoding. Today, the Huaige is a global player. Its main development and production facility in China, offers future-oriented solutions with various hoists and other lifting tools for a wide range of applications.



As a famous hoisting tools manufacturer, we have assembled the most complete & professional Testing Line in hoisting field in China. Every product will be perfact both in performance and appearance.

For hoisting, moving, pulling, driving and conveying, our Huaige lifting means, Huaige Electric Hoists, Manual Hoist, Lever Hoists, Chain, Transportation trolleys also other hoisting tools are a guarantee of quality, innovation and safety. Each product we produced was inspected by our experienced technician who had over 30 years research and producing experience, and we also use strict quality control testing system to ensure the products' stability and durability.



JDP Lever chain block hoist 1.5 ton 3ton

Our Huaige family has an annual turover of 58 million USD, and currently has over 200 employees working in our production facilities, and we extended our business in over 80 countries worldwide.

In Tradition of Dynamic Innovation “that is in the tradition of a modern and dynamically growing family organization, the Huaige Group has officially been nominated as a Hidden Champion of the 21st Century because we are in our defined sectors worldwide leader in quality and technology.



Please kindly note: JDP Guangzhou Technology Co.,Ltd. is the only export office of Huaige Group.

Please never believe other fake companies.

And all the email from my company should be @huaigegroup.com

More details about the product please kindly check with us export @huaigegroup.com

Whatsapp & Mobile phone Number: 008613930223782

Thanks for your business!
