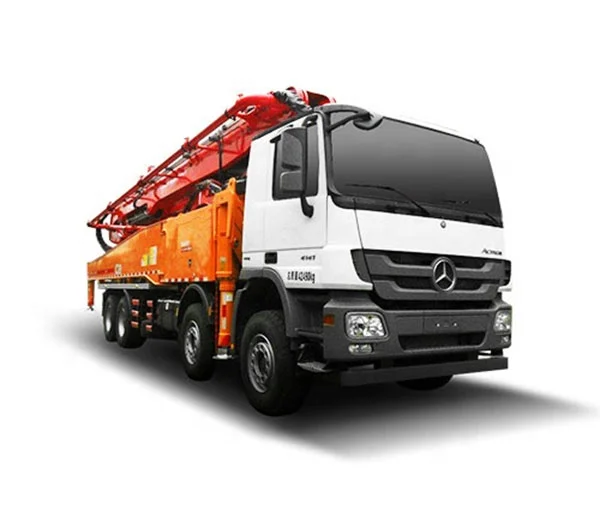

New condition concrete pump truck with 62m reach distance and famous chassis supply by fullwon

Product Overview

Description



New condition concrete pump truck with 62m reach distance and famous chassis supply by fullwon



Model			Unit
Overall	Length		mm	15730
Specification	Width		mm	2500
	Height		mm	4000
	Dead weight		kg	53000
	Vertical reach		m	62
Boom & Outrigger Specification	Horizontal reach		m	57.6
	Reach depth		m	42
	Unfolding reach		m	16.2
	1st section	Length	mm	12140
		Articulation		90°
	2nd section	Length	mm	10090
		Articulation		180°
	3rd section	Length	mm	9570
		Articulation		180°
	4th section	Length	mm	12280
		Articulation		230°
	5th section	Length	mm	7945
		Articulation		200°
	5th section	Length	mm	5100
		Articulation		100°
	Rotation			±270 º
Pumping Systerm	Outrigger spread L-R---front		mm	11420
Specification	Outrigger spread L-R---rear		mm	13880
	Output	Low-pressure	m³/h	180
		High-pressure	m³/h	125
	Pressure	Low-pressure	Mpa	8.3
		High-pressure	Mpa	12
	Max. strokes per minute	Low-pressure	times/min	29
		High-pressure	times/min	19
	Delivery cylinder diameter		mm	260
	Stroke length		mm	2100
	Hydraulic system			Open
	Hydraulic system oil pressure		Mpa	32
	Oil tank capacity		L	650
	Water tank capacity		L	700
	Pipeline size		mm	125
Chassis	End hose length		m	3
Specification	End hose diameter		mm	125
	Chassis brand
	Chassis model			ACTORS 5041
	Engine type			OM501LA
	Engine maximum net power		kW/rpm	300/1800
	Emission standard			Euro III
	Capacity of fuel tank		L	400
	Displacement		L	11.946
	Max.speed		km/h	80
	Brake distance		m	less than 10/30
