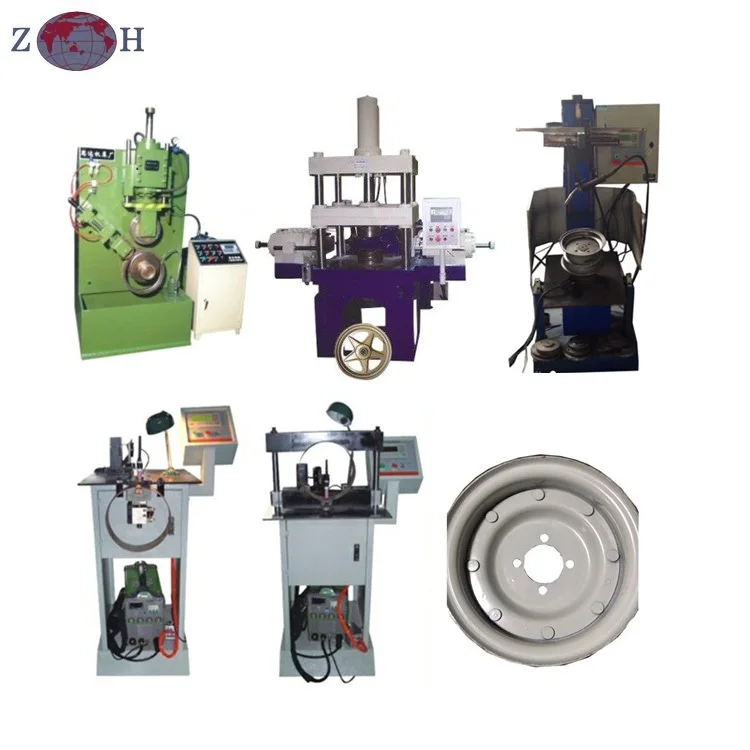

Motorcycle wheel rim production line with forming welding machine
1- Description
This production is mainly used for producing the rim of motorcycle, manpower-cycle and other similar products.
It includes sheet bending machine, roll forming machine, flaring machine, welding machine and so on. We can provide whole line and technical support. We also provide automatic line according to requirement.
2- Technical data of machines
2.1 Semi-automatic Plate Bending Machine
This production is mainly used for producing the rim of motorcycle, manpower-cycle and other similar products.
It includes sheet bending machine, roll forming machine, flaring machine, welding machine and so on. We can provide whole line and technical support. We also provide automatic line according to requirement.
2- Technical data of machines
2.1 Semi-automatic Plate Bending Machine
| Item | Data |
| Machine code | JYJ-3 |
| Structure | 3 rolls |
| Suitable thickness of sheet | 1-4mm |
| Feeding | Manual |
| Output | About 400pcs/hour |
| Electric | Schneider or Omron |
| Motor | 7.5kW |
| Voltage | 380V, 3phase, 50Hz. |
| Machine weight | 1500kg |
2.2 Vertical steel rim forming machine
| Item | Data |
| Machine code | VCX-3.5 |
| Sheet thickness of sheet | 1-3.5mm |
| Electric | Schneider or Omron |
| Hydraulic | Double high pressure vane pump |
| Output | 150-200pcs/hour |
| Motor | 18.5kW |
| Voltage | 380V,3phase, 50Hz. |
| Machine weight | 5500kg |
| Oil volume | 340kg |

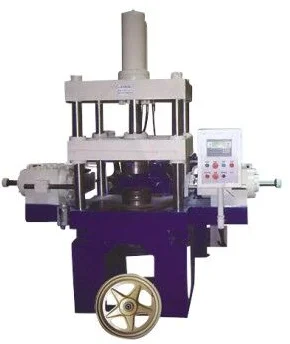

2.3 Hydraulic Flaring & Expending Machine
| Item | Data |
| Machine code | KZJ-100T |
| Electric | Schneider or Omron |
| Motor | 11kW |
| Output | About 300pcs/hour |
| Voltage | 380V,3phase, 50Hz. |
| Oil volume | 340kg |
| Machine weight | About 3500kg |

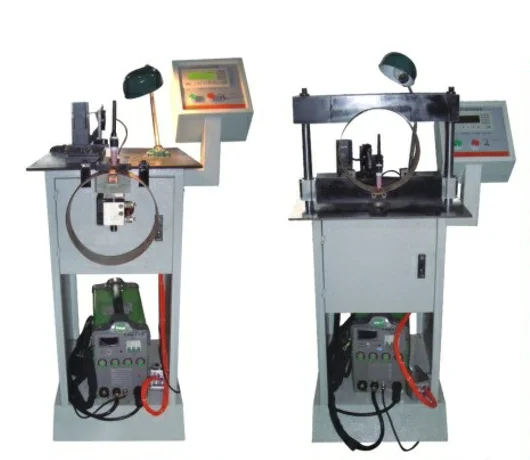

2.4 Wheel rim welding machine
| Item | Data |
| Machine code | ZFHJ-01 |
| Electric | Omron |
| Suitable thickness | 1-3.8mm |
| Motor | 3kW |
| Electric current | 400A |
| Voltage | 380V,3phase, 50Hz. |
| Welding gun | Panasonic |
| Oil volume | 120kg |
| Output | 100-150pcs/hour |
| Machine dimension | About 650 x 600 x 1550mm |
| Machine weight | About 3500kg |
2.5 Wheel rim & disc welding machine
| Item | Data |
| Machine code | QLH-2 |
| Electric | Omron |
| Electric current | 400A |
| Suitable thickness | 1-4mm |
| Motor | 3.7kW |
| Voltage | 380V, 3phase, 50Hz. |
| Welding gun | Panasonic |
| Output | 150-220pcs/hour |
| Machine dimension | 800 x 860 x 1900mm |
| Machine weight | 310kg |
