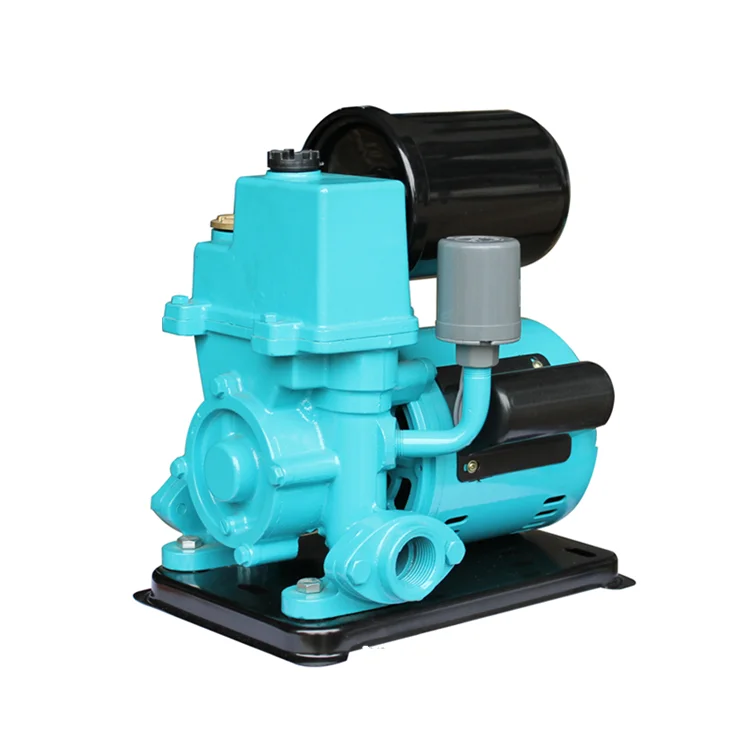

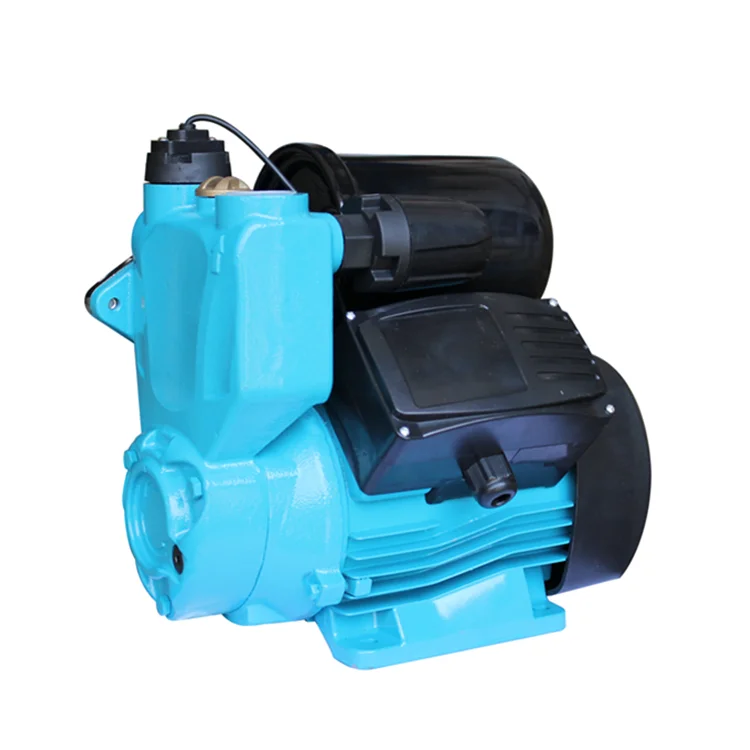

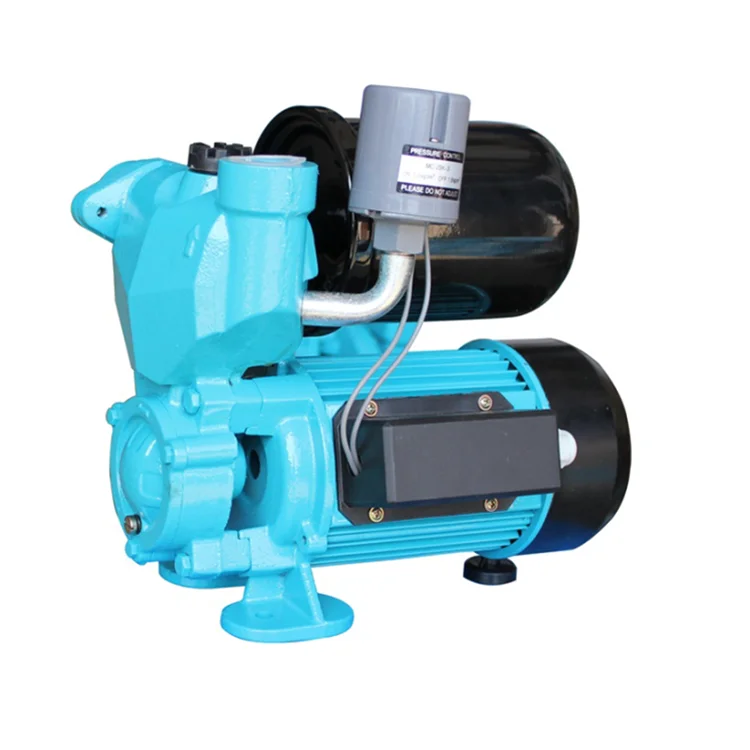

Self Priming Pump/Single Stage Pump
- Category: >>>
- Supplier: Taizhou Ouke Technology Co. Ltd.
Share on (62113840941):
Product Overview
Description
Product Details
Working Condition Motor
1.For clear water. PH: 6.5-8.5. 1.Degree of protection: IP44
2.Solid impurity no more than 0.1%. 2.Insulation class:B
3.Fluid temperature: 0-40℃. 3.Continuous operation
4.Maximum ambient temperature:+40℃.
Technical Data
| Model |
Power (Kw) |
Power (Hp) |
Max.head (m) |
Max.flow (L/min) |
Max.suct (m) |
Inlet/Outlet | Packing dimension(mm) |
| AUTOJET60S | 0.37 | 0.50 | 35 | 45 | 9 | 1"*1" | 540*350*510 |
| AUTOJET80S | 0.55 | 0.75 | 40 | 50 | 9 | 1"*1" | 540*350*510 |
| AUTOJET100S | 0.75 | 1 | 45 | 60 | 9 | 1"*1" | 540*350*510 |
| AUTOJS60 | 0.37 | 0.50 | 35 | 45 | 9 | 1"*1" | 540*330*510 |
| AUTOJS80 | 0.55 | 0.75 | 40 | 50 | 9 | 1"*1" | 540*330*510 |
| AUTOJS100 | 0.75 | 1 | 45 | 60 | 9 | 1"*1" | 540*330*510 |
| JSW/3CL | 1.1 | 1.5 | 42 | 180 | 9 | 1 1/4"*1" | 510*220*260 |
| JSW/3BL | 1.5 | 2.0 | 55 | 180 | 9 | 1 1/4"*1" | 510*220*260 |
| JDW-1A | 0.75 | 1 | 25 | 80 | 25 | 1 1/4"*1"*1" | 480*260*230 |
| DP255 | 0.75 | 1 | 25 | 80 | 25 | 1 1/4"*1"*1" | 420*275*225 |
exploded view
