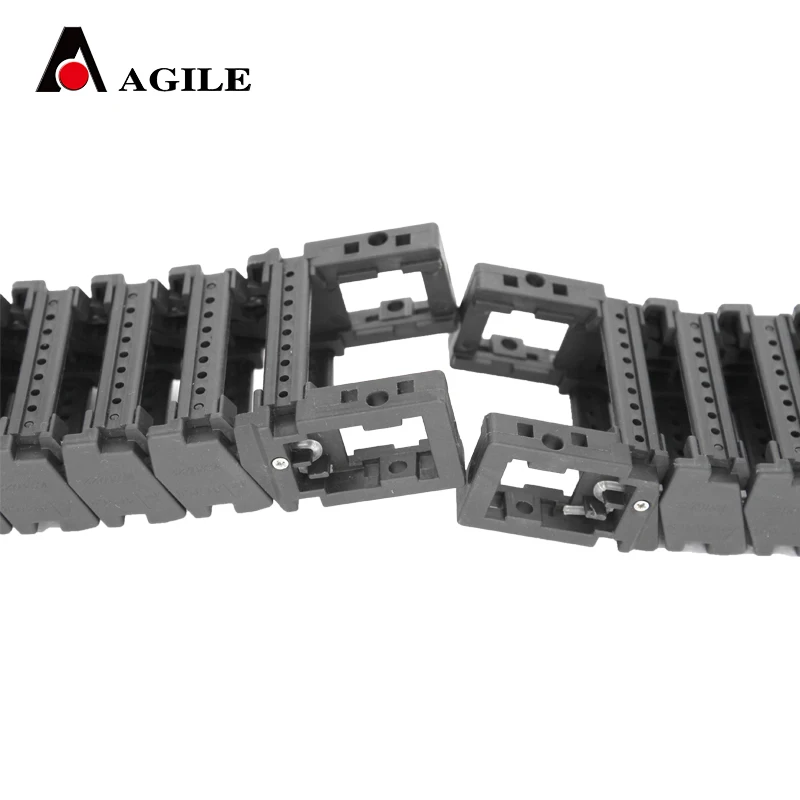

22*50 high speed low noise sabin reinforced nylon cable carrier
22*50 high speed low noise sabin reinforced nylon cable carrier
22*50 high speed low noise sabin reinforced nylon cable carrier
22*50 high speed low noise sabin reinforced nylon cable carrier
22*50 high speed low noise sabin reinforced nylon cable carrier
22*50 high speed low noise sabin reinforced nylon cable carrier
22*50 high speed low noise sabin reinforced nylon cable carrier

22*50 high speed low noise sabin reinforced nylon cable carrier

Share on (62114119253):


Price:

Quantity:


Product Overview

Description





VSK type of cable chain is low of noise during operation.
1. Material: Reinforced Nylon PA6, PA66

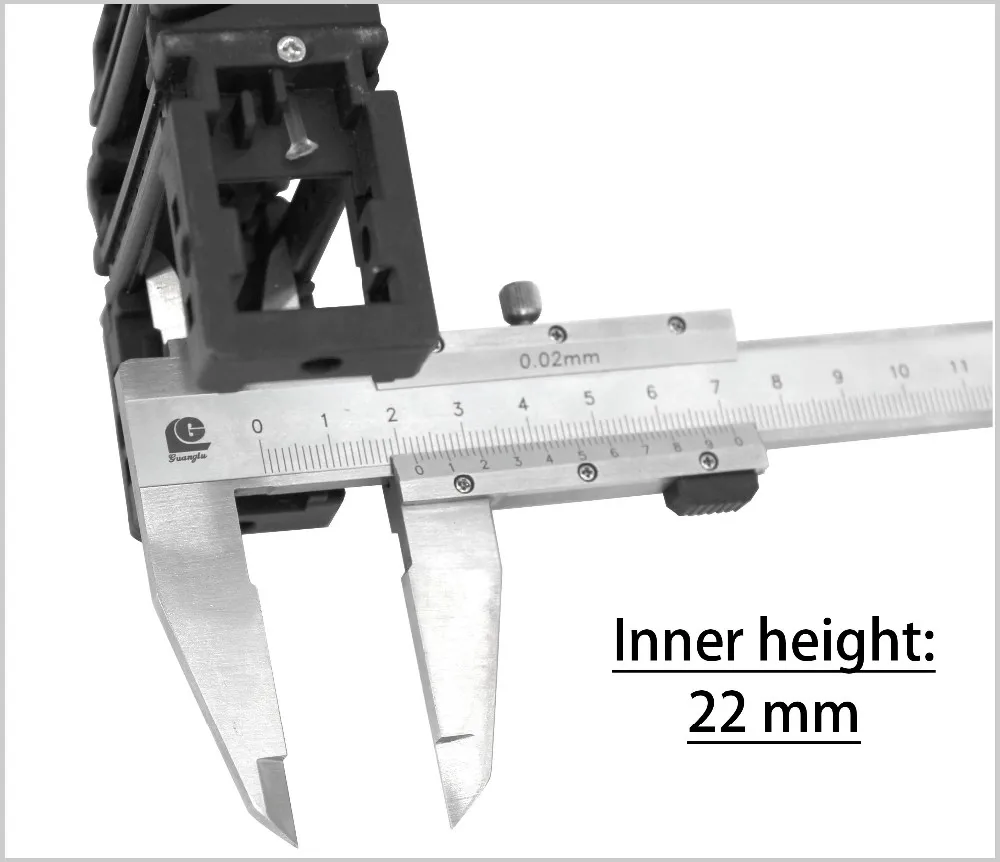

2. Size: Inner size: Height*width, 22*50 mm
3. Plenty of moulds for various sizes to choose. Also difference types, models. We can make new mould
for special requirements.
4, The raw material: Original new nylon raw material. We don't use recycling materials, which is cheap but
week in physical performance.
5, Operation and maintenance: Easy. We keep modifying and improving our moulds' structures according to
the feedback of our customers after usage. And always paying much attention to function.


Product Name
High strength nylon tank chain
Material
PA6, PA66
Color
Black
Standard
DIN GB ISO JIS BA ANSI
Working temperature
-40-130 ℃
Recommended gap
10%
Features
wearable, elastic, fire proof, self-lubricating.
Open side
Both side.

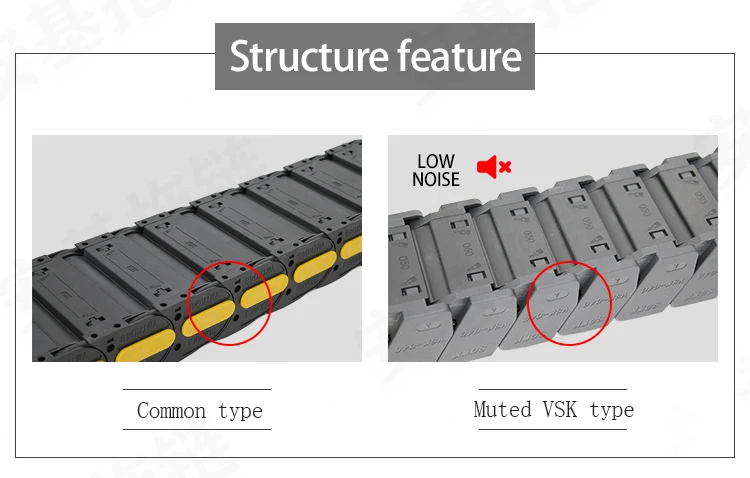

Structures

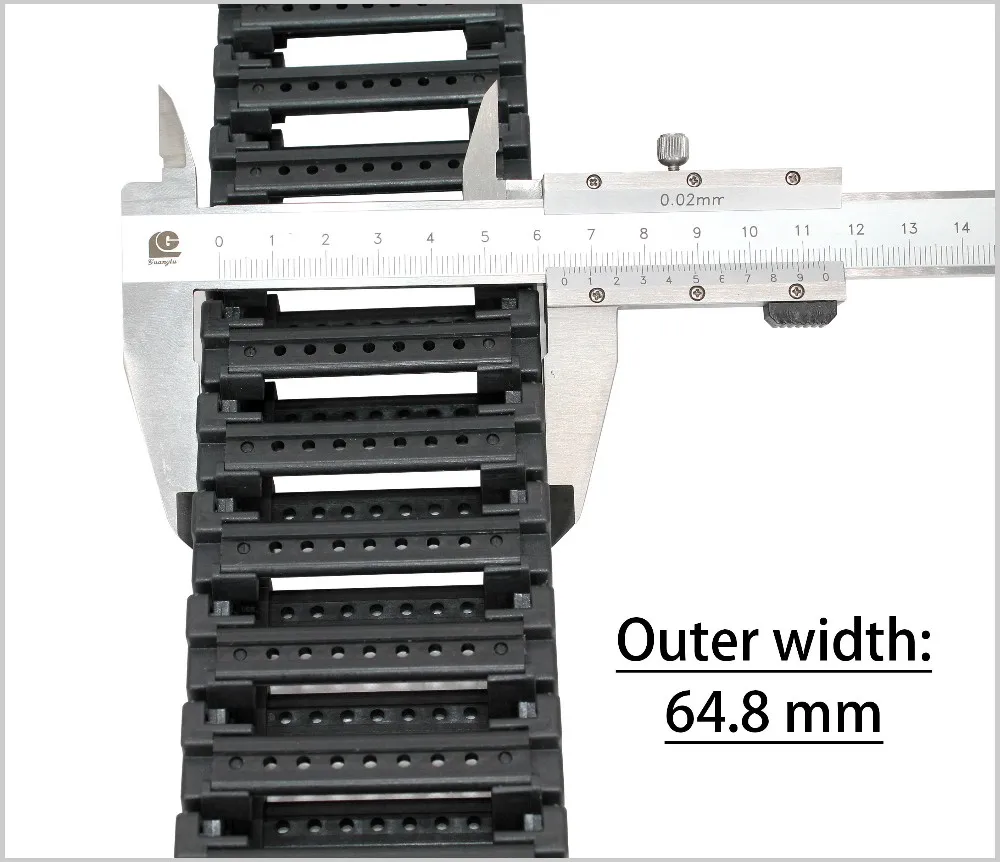

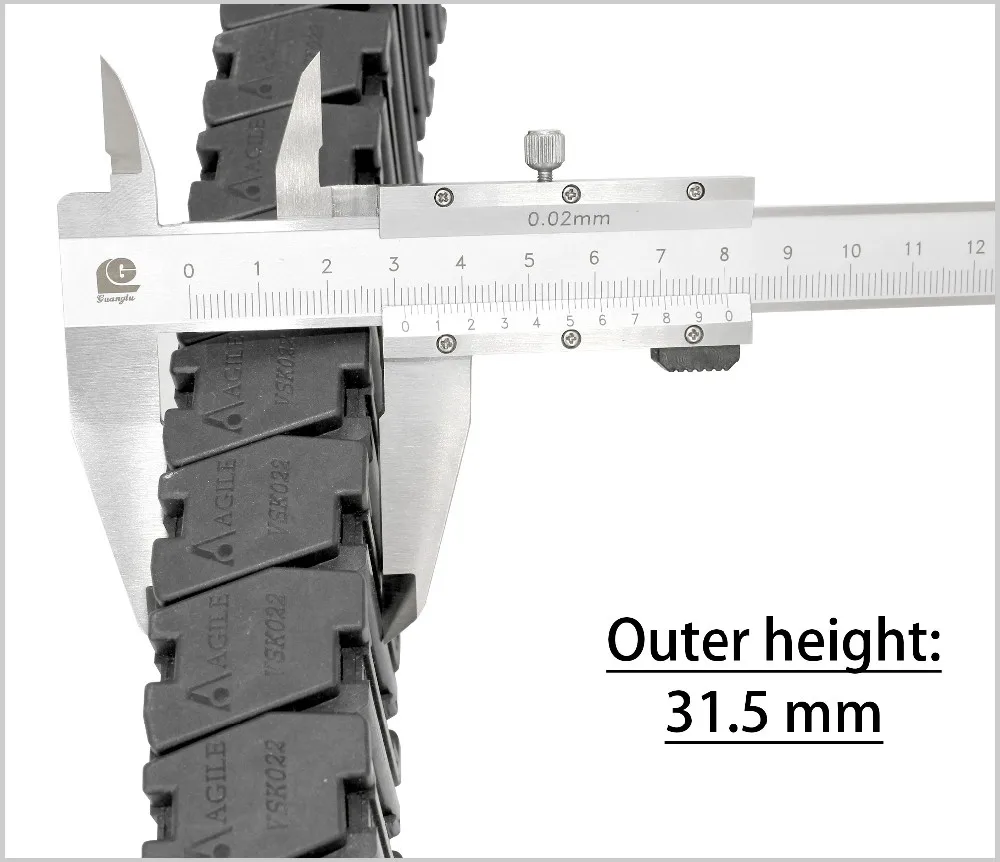

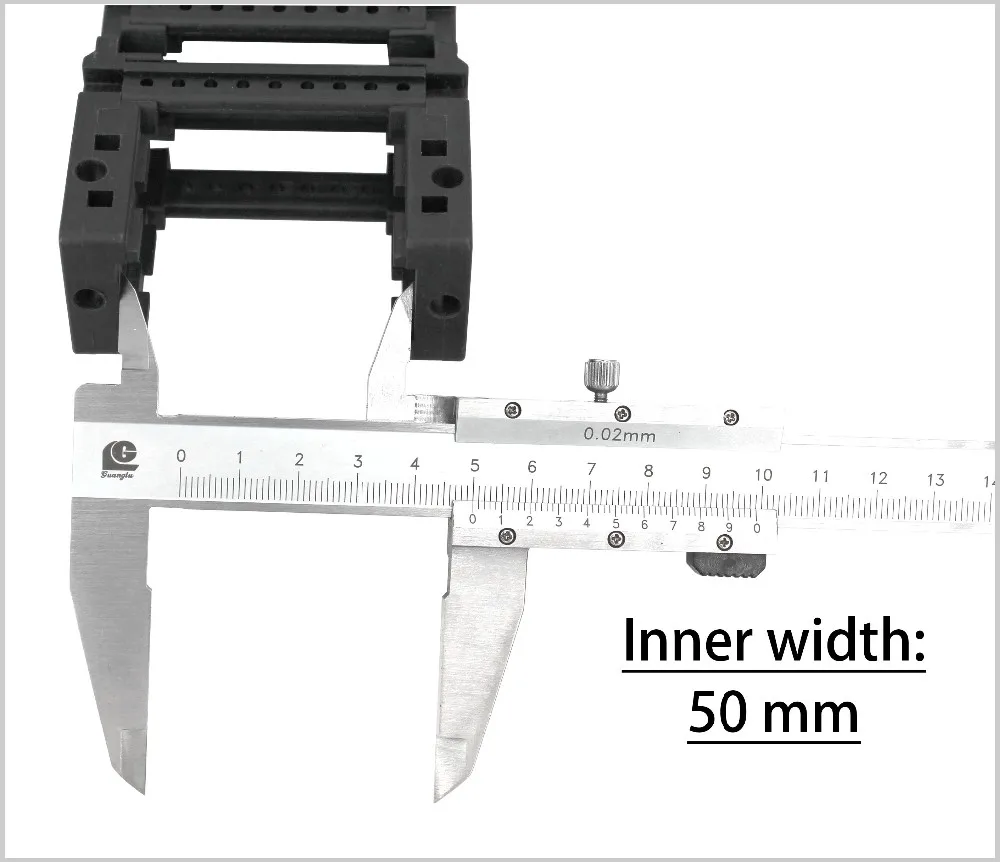

22*50 measurement






Series Dimension


TYPE
Inner dimensions Height*Width
Outter dimensions Height*Width
Radius
Pitch
Pitch/meter
Weight Kg
vsk18
18*32
23*43
R35
18.5
54
0.4kg
18*36
23*47
0.5
vsk22
22*27
30*43
R50
22
46
0.5
22*40
30*55
0.55
22*50
30*65
0.588
22*60
30*75
0.632
22*70
30*85
0.676
vsk25
25*26
35*42
R55
R75
22
46
0.6
25*35
35*51
0.7kg/R55
25*40
35*56
0.75kg/R55
25*50
35*66
0.8kg/R55
25*60
35*76
0.9kg/R55
vsk30
28*27
36*44
R50
R72
22
46
0.674
28*40
36*57
0.722
28*44
36*66
0.762
28*55
36*77
0.806
28*65
36*87
0.85
vsk40
39*43
50*71
R75
R85
R87
R100
R125
R150
33
30
1.15
39*62
50*90
0.993
39*68
50*96
1.08
39*94
50*122
1.2

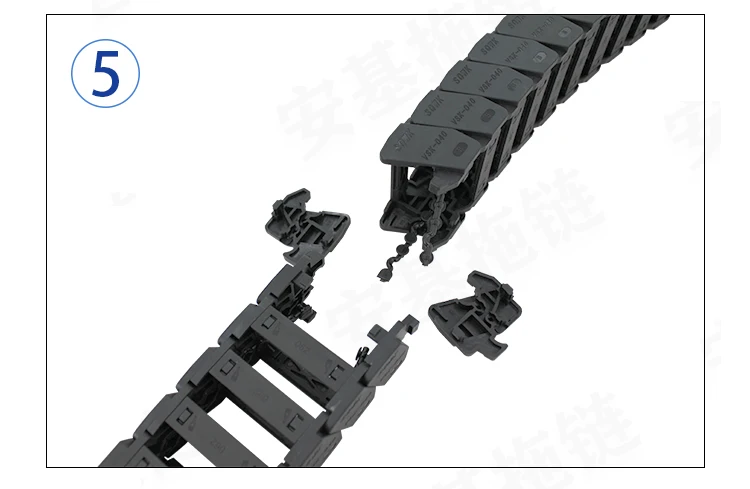

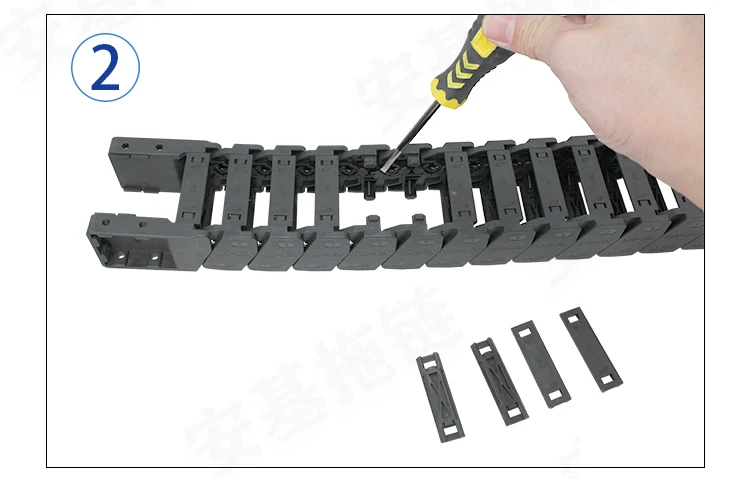

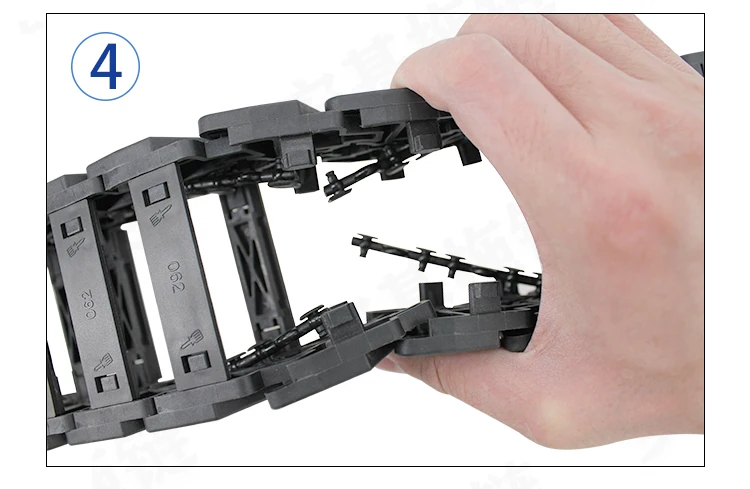

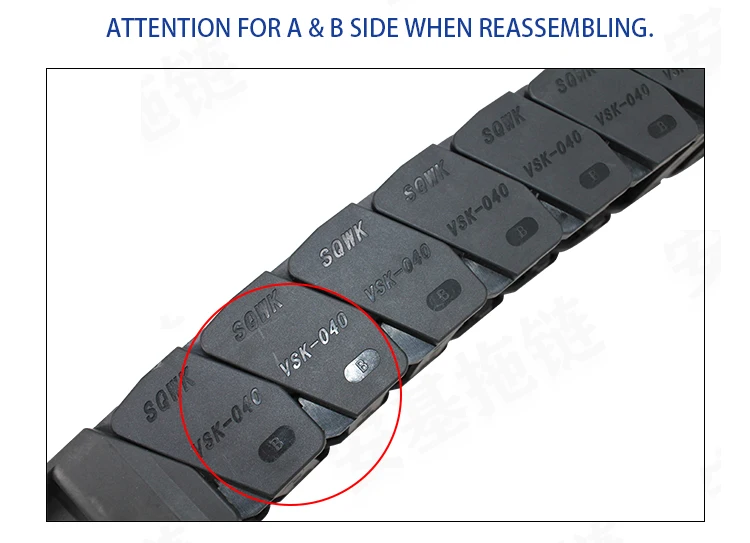

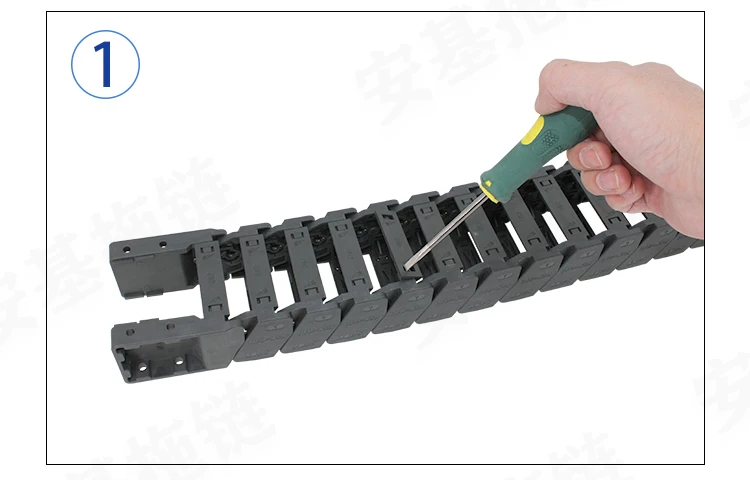

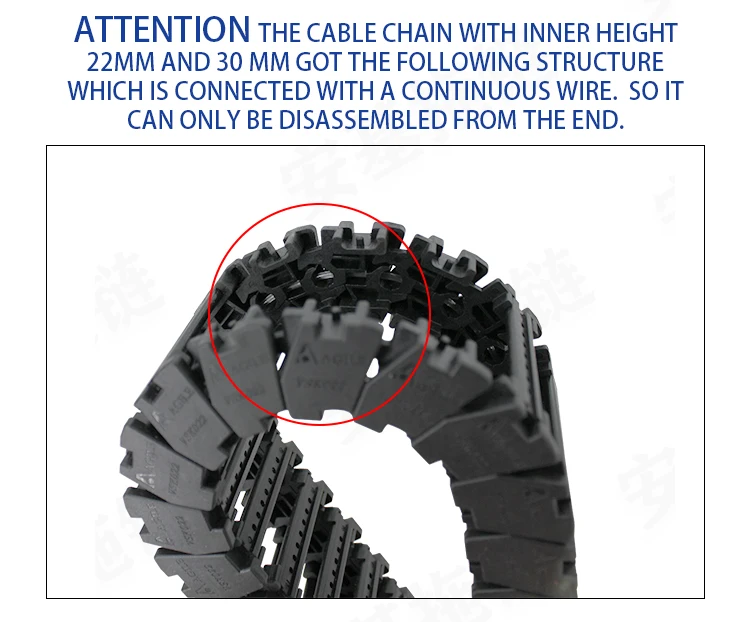

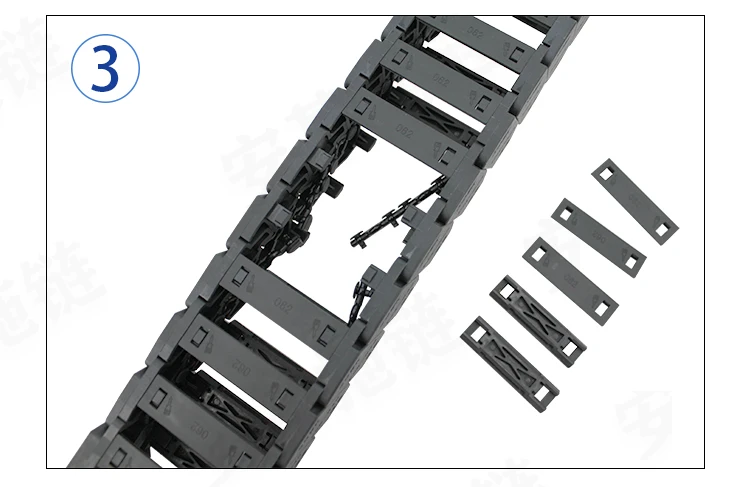

VSK disassembling


















\t\t\t\t\t\t\t\t\tProduction flow \t\t\t\t\t\t\t




\t\t\t\t\t\t\t\t\tQuality Control \t\t\t\t\t\t\t




Quality control

1
Raw material control, including various kinds of test, such us DSC, flow rate, moisture content test, tensile test etc.

2
Production control. It shall follow strict orders in production, quality test in production is important.

3
Feed back. We seek feedbacks from all our users, and keep improving our quality, and correct any structure deficiency.

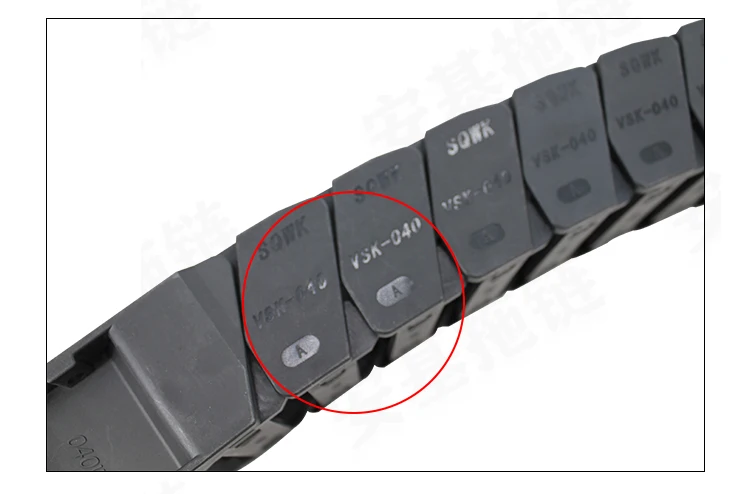

How to identify good products




\t\t\t\t\t\t\t\t\tCompany profile \t\t\t\t\t\t\t


Anjie electric

Shijiazhuang Anjie Electric Co., Ltd is located at Shijiazhuang city. Got about 300 square meters area as an office. We set the office in here to utilize the convenience of air shipping and easier approach of elites with higher abilities.

It is about 400 km from Beijing, there are 4 high speed train stations and 1 domestic airport. Which is very convenient for a visit.



Advanced nylon injection system.

Workshop.



Mould Storage.
