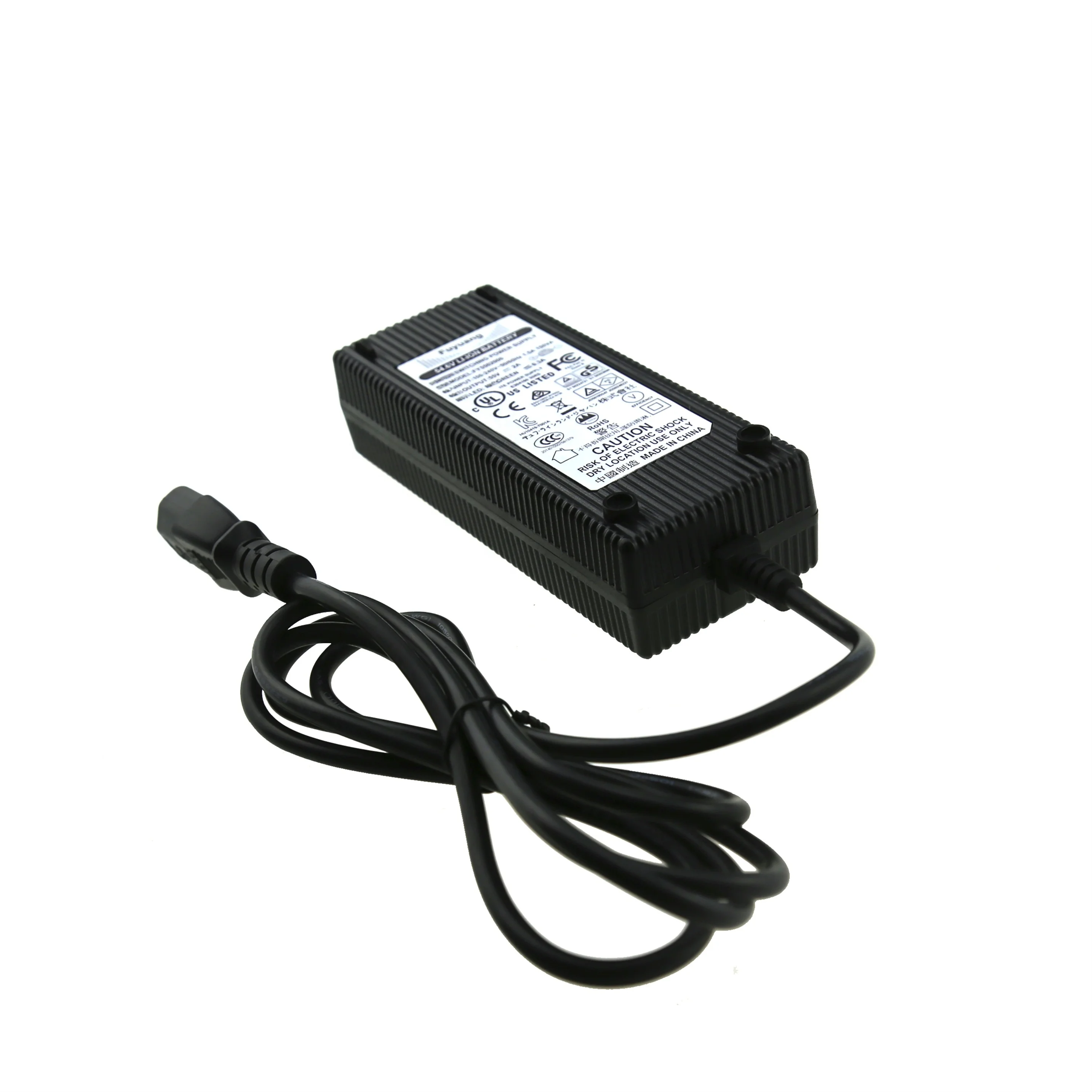

Fuyuang 58.4V Lifepo4 Battery Charger for 48V Battery with Charger Certification CE GS ROHS Fast 1 X USB 3 Years Electric Black

Product Overview

Description

Product name	Fuyuang  58.4V LifePo4 Battery Charger For 48V Battery With Charger Certification CE GS ROHS
Certificate	CCC, UL, cUL, CE, GS, PSE, SAA,C-Tick RCM, KC, KCC, CB TUV ROHS, BS
Usage	Electric vehicle, Ebike, Electric Scooter, Mortor, Golf car, car jumper,Solar Systems, Home Application, UPS,LED Torch, headlight, Portable power bank, etc.
Package	PE bag+ White box+ Carton
Environmental Protection	RoHS, REACH, CPSIA or PAHs Compliant On Request
Protection Function	Over voltage protection Over current protection Over-load protection Short circuit protection
Energy Standard	MEPS CEC-V ERP V Energy Star: Level 6 Standby Power: <0.3W
Electrical Specification	Input Plug: EU US UK AU South Korea South Africa Power cords  Output Voltage Range of main products: 4.2~60V DC (Optional)  Output Current Range of main products: 0.5-100A (Optional)
Operation And Storage Condition	Operation Temperature: -20°C to 40°C Operation Humidity: 20% to 90% R.H Storage Temperature: -20°C to 75°C Storage Humidity: 1% to 90% R.H. MBFT: > 50,000Hours

Charging Voltage:

3.65v for 1s 3v lifepo4 battery
7.3v for 2s 6v lifepo4 battery
10.8v for 3s 9v lifepo4 battery
14.6v for 4s 12v lifepo4 battery
21.9v for 6s 18v lifepo4 battery
25.55 for 7s 21v lifepo4 battery
29.2v for 8s 24v lifepo4 battery
43.8v for 12s 36v lifepo4 battery
58.4v for 16s 48v lifepo4 battery
73v for 20s 60v lifepo4 battery



♦ Charge mode: CC--CV Mode(Lifepo4 battery charger)

♦ Led display: Red--in charging; Green--full charge
♦ Cut-off Current: 10-15% of Charge current
