Металлоискатель дальнего действия, детектор золота

Share on (62114215908):


Price:9 000,00 $ - 10 000,00 $

Quantity:


Product Overview

Description


Long range metal gold detector detector de mineral

Product Description

 Long range metal gold detector detector de mineral

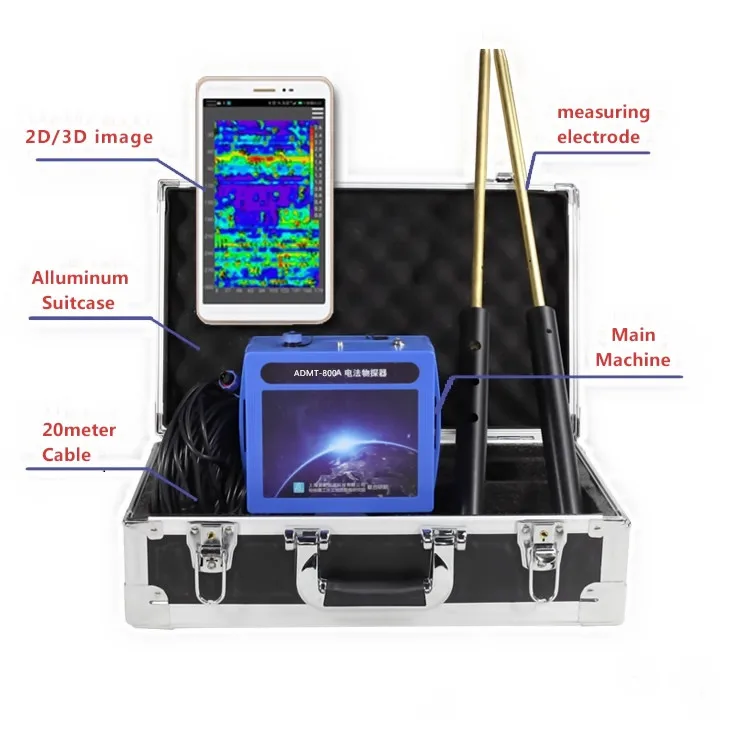

Long range metal gold detector detector de mineral , which is the world's first Internet of things instrument, based on over 40 years R&D design and exploration, the mobile phone water detector realize the technology that you can use the mobile phone or tablet PC to do complex data calculation, then the graphs will automatic form, store in the cloud, and you can communicate with experts advisors online about your graphs. Besides if use our probes to measure, then you can wirelessly detect. It uses the mobile phone's Bluetooth to connect. And in the "M N" input, you can use traditional M N cable lines or wireless sensor to measure. If with wireless sensor, you don't have to cabling and can just measure by walk and stop, free of USB disk, detection button. Automatically mapping by mobile phone, communicating with experts advisors online, uploading the data into cloud and store permanently.

Long range metal gold detector detector de mineral many for patent for invention (patent number:2013200541435, 201120214308.8, 201120567915.2,201320303919.9), especially for invention patent of field source modify of "Geophysical Methods for Earth's Electromagnetic Field Source Modify and Measuring Devices ", solved the problems of inconsistent source of natural electric filed intensity and disadvantages of changes at any time.


Product Parameters

 Similiar products at different depth of long range metal gold detector detector de mineral:

Parameter / ModelADMT-200AADMT-400AADMT-800AADMT-1200AADMT-2000A
Measuring range0-300 MV
Detector depth 0-200m0-400m 0-800m0-1200m0-2000m
Measuring mode40 frequency80 frequency
resolution0.5mv0.2mv0.1mv0.01mv
repetitive erro±2% ±1 bit±1% ±1 bit±0.1% ±1bit±0.1% ±0.5 bit
A/D switch16 bit 1Msps24bit 1Msps
Imput inpedance ≥10MΩ≥80MΩ
Power frequency suppression>80dB
Data storagePhone storage space or cloud space 20G
DispalyMobile phone or tablet PC(touching LCD5-10.1")
Connection modeBluetooth 4.0
Mainframe power supplyDC7.4V 3400mAh lithium batteryDC7.4V 6800mAh lithium battery
Mainframe power consumption 260mA330mA360mA450mA
Operating temperature-20°C~+60°C-40°C~+70°C
Mainframe size18.6*14.8*8cm
Mainframe weight0.8kg0.9kg

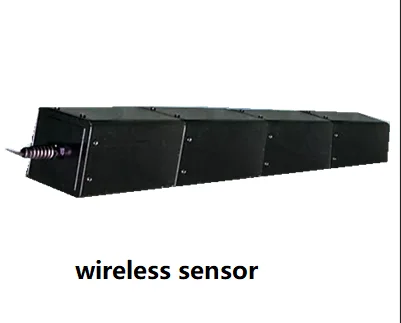

The wireless sensor probes can add for different depth

Parameter / ModelADMT-C1 high frequencyADMT-C1 low frequencyADMT-C2AADMT-C3ADMT-C4ADMT-C5ADMT-C6
Detect depth0-200m0-400m0-300m0-600m0-800m0-1200m0-2000m
Frequency range30k-10hz2k-5hz30k-5hz30k-1hz30k-0.1hz30k-0.01hz30k-0.001hz
Resolution2mv1mv0.5mv0.2mv0.1mv
Repetitive erro±5% ±2bit±3% ±bit±2% ±2bit±2% ±1bit±1% ±1bit±0.1% ±1bit ±0.1% ±1bit
Operating temperature-10°C~+40°C

-20°C~+60°C

-40°C~+70°C
Mainframe size20.8*9.8*9.8cm20.8*9.8*9.8cm41.6*9.8*9.8cm62.6*9.8*9.8cm80.2*9.8*9.9cm110*9.8*9.9cm130.8*9.8*9.9cm
Mainframe weight2.6kg2.8kg5.4kg8.2kg10kg12.8kg15.6kg




Product feature

Main feature of long range metal gold detector detector de mineral:

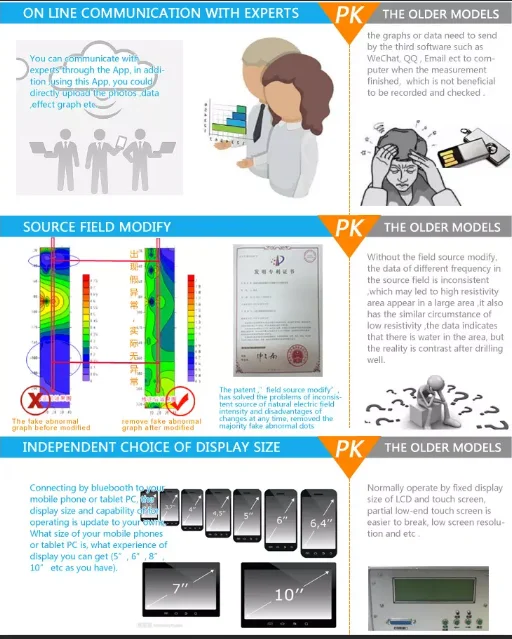

  1. Automatically forming the graphs: measuring by mobile phone and automatically forming the graphs after done.

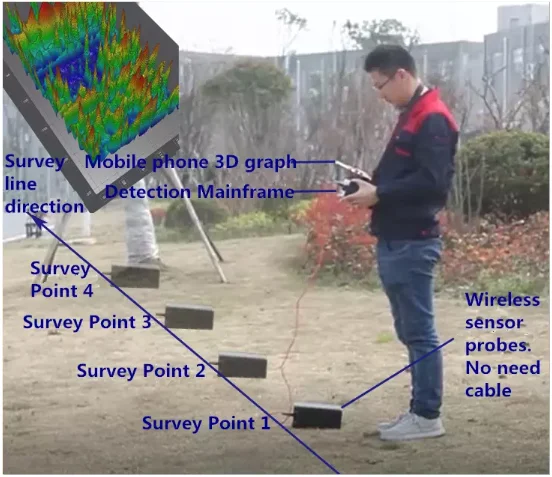

  2. Free of cabling: measuring by walk and stop, and can use wireless sensor probes to solve cabling problems.
  3. Online instant Experts communication: you can directly communicate with our online experts for advise by mobile phone App, uploading photo in the scene, instant data, effect graphs.
  4. Free of USB disk: data is directly stored in the mobile phone, or uploading to the cloud for permanently store or download to the computer.
  5. Independent choice of display size: the display size and capability of mobile phone or tablet PC for operating is update to your own, what size of your mobilephone or tablet PC is, waht expereience of display you can get(5",6",8",10", ect.as you have).
  6. More reasonable data processing: strengthen the function of "field source modify", this project also obtained over 20 patents for invention.

 _20180615173105





Exhibition

122

222



Company Information

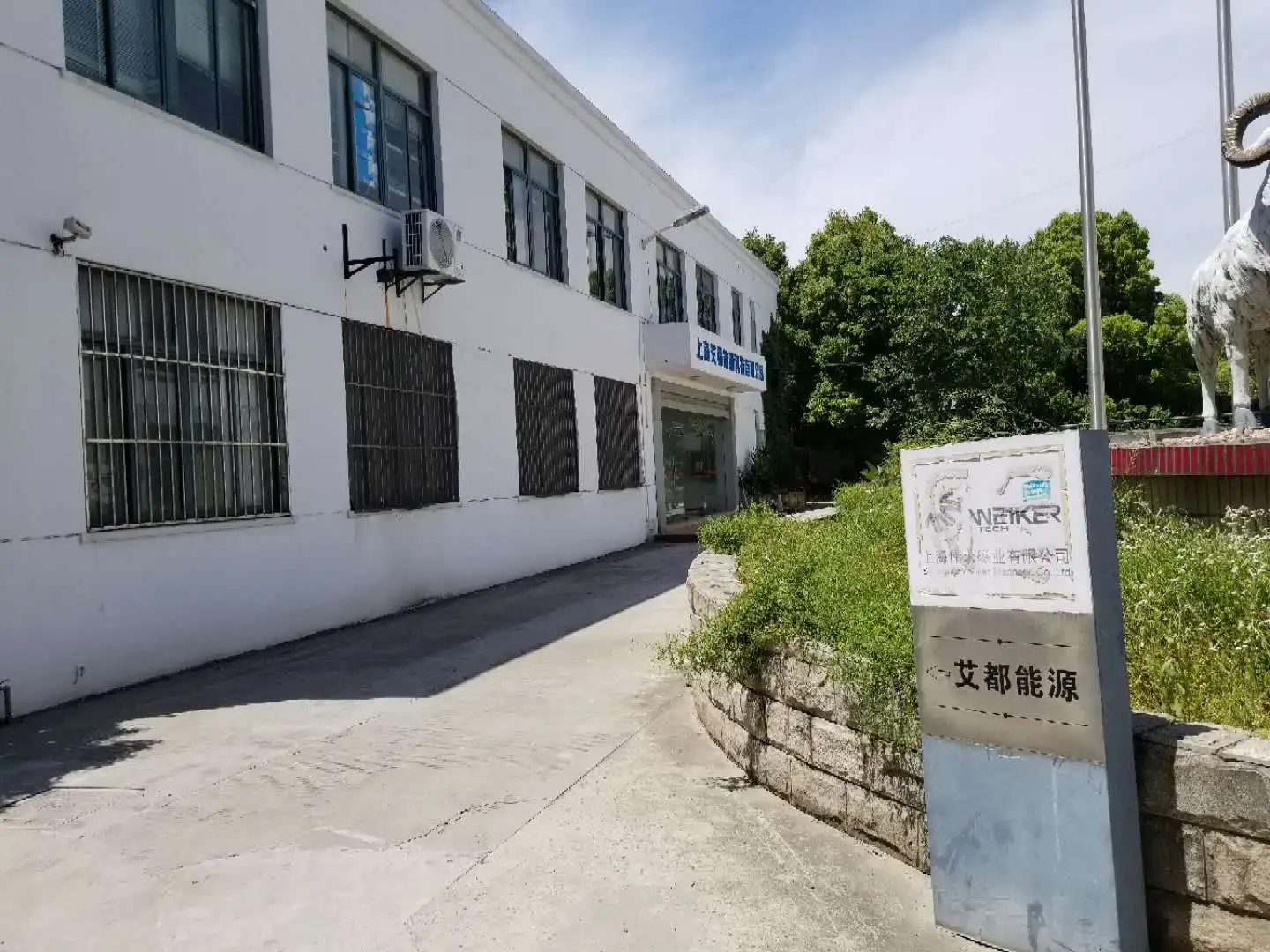

Shanghai Aidu Energy Technology Co.,Ltd. is developed from Shanghai Huanwen Science Instrument Co., Ltd. founded in the year 2001, moved to Minghan District and established in the year 2011, with the great support of Minhang government and registered capital is RMB 10,000,000, which is a high-tech limited joint venture integrate and involved the R&D, manufacring, sales and honored as "New Special Expertise" enterprise by Shanghai government. Under the leading of senior engineers of Mr. Huanwen Lu, Mr.Huiwei Zhou, Mr.Jinhong Su, Shanghai Aidu Energy Technology set up one research team nearly 30 people and gained tens of invention patents, National Technology Innovation Fund, and honor of High and New Technology Achievement Transformation Project.

20190507153133

111



Certifications

 photobank (15)



Packaging & Shipping


Item will be sent mormarly within 3-5 working days after your payment cleared, and it may delay for somecases, like weekend, local holidays or other special situation, your understanding is appreciate.

FAQ

Q:What's your delivery ports?

A: Shanghai or other main port China.



Q:QEM service?

A:Different configuration for your actual conditions.



Q:Does machines have warranty period?

A:Our machines with 2 years warranty periond for main parts ,quick parts are excluded.



Q:What's your packing?

A:Aluminum specialized box or carton.
