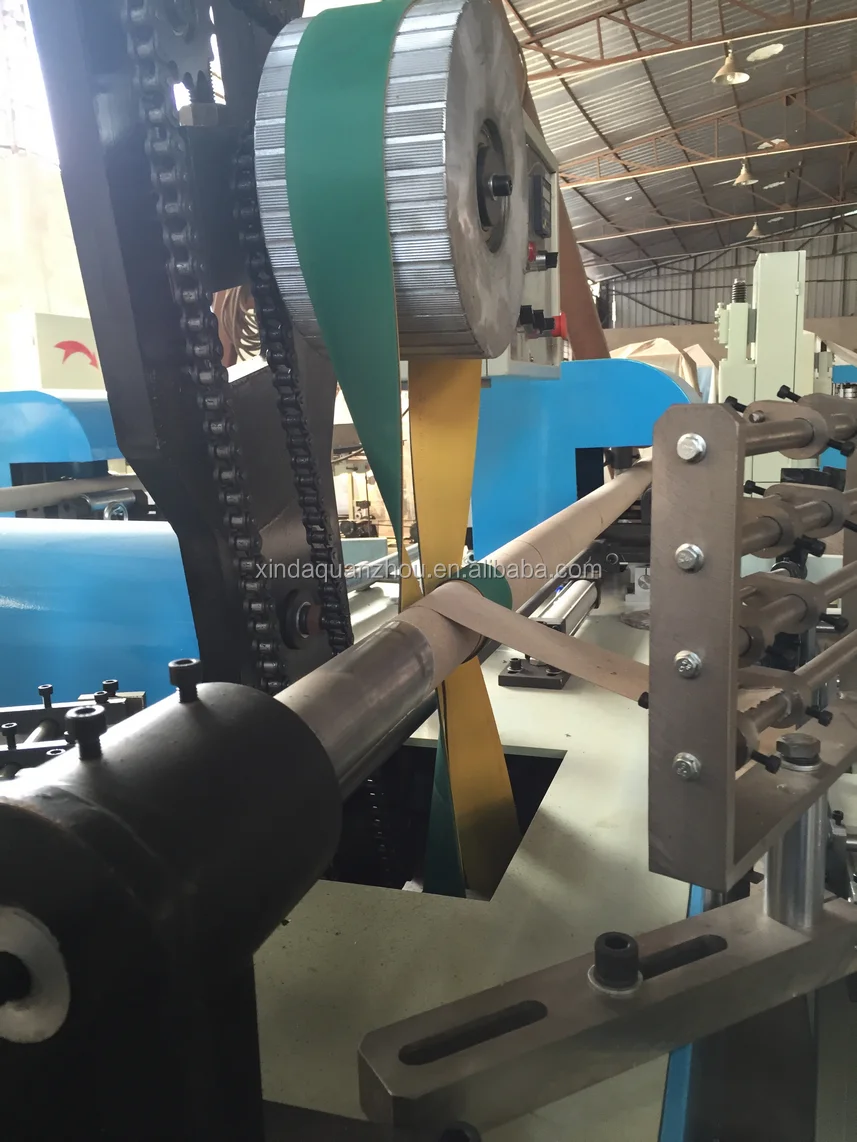

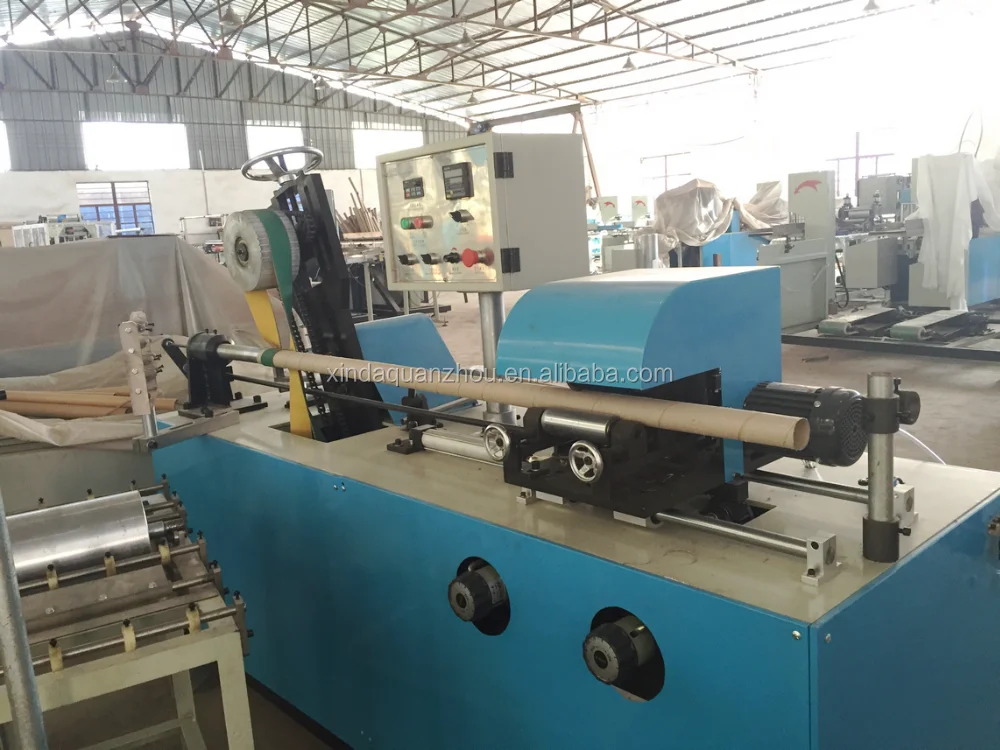

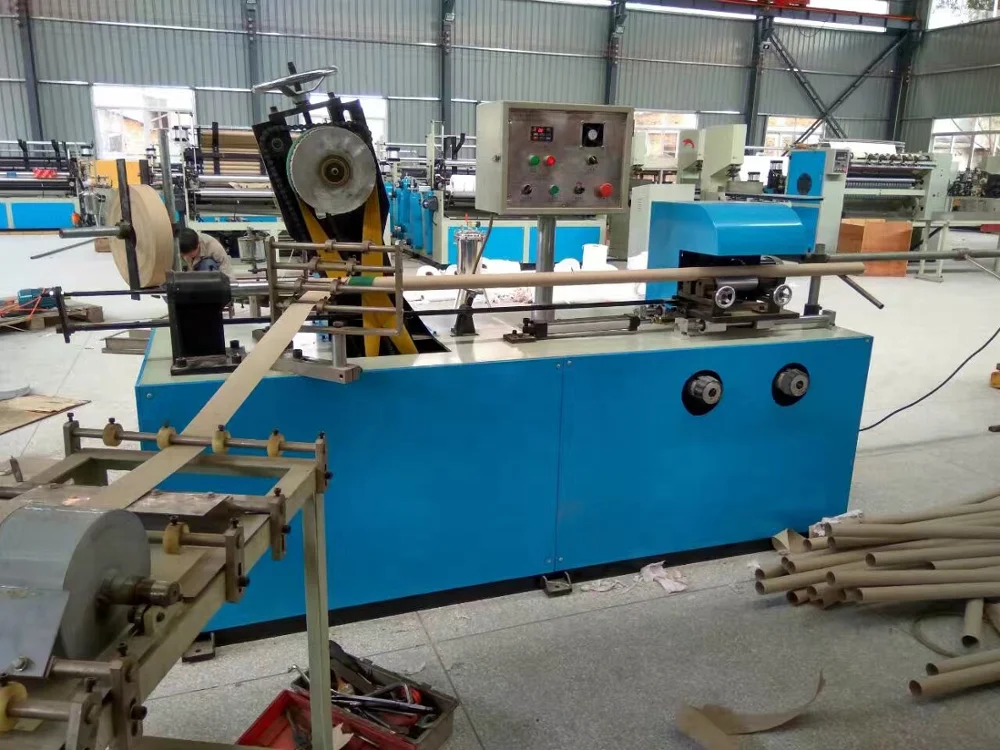

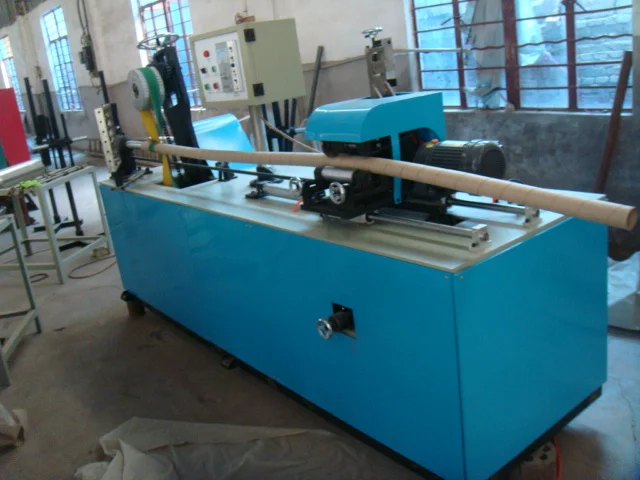

Pyrotechnic fireworks paper tube core making winding rolling machine

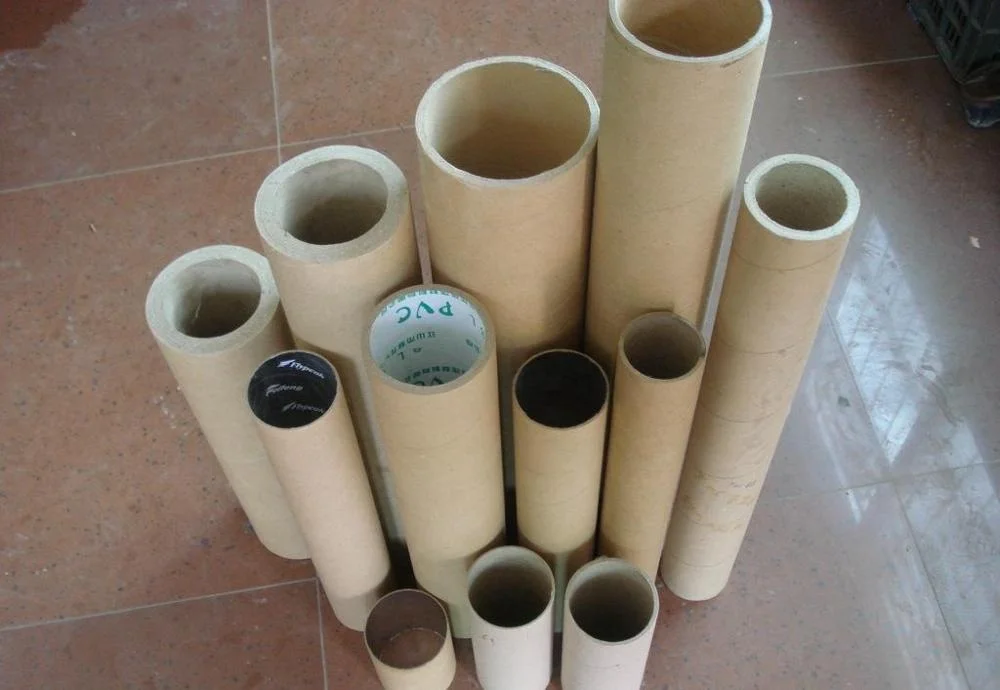

1. This machine is the equipment to produce punched and rewinding paper core, which is advanced in designing and convenience in operation.

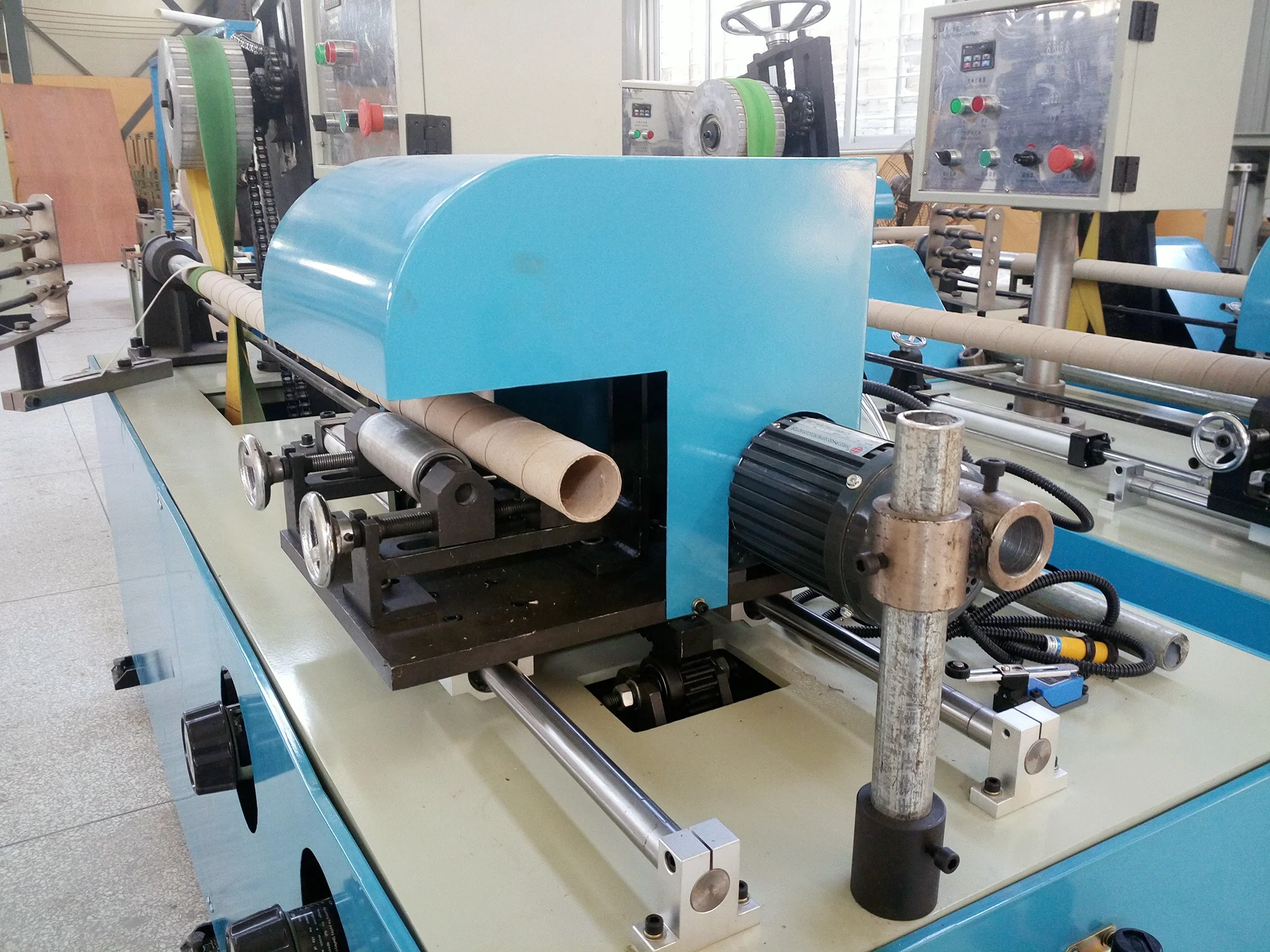

2. Cut pipe without stopping machine. The cutting surface is trim and length is uniform
3. Make other size of core (diameter and length) is very easy to change the spare parts.
4. Not hot and dry during the forming of product, the consumption of equipment is less.
5. The composed parts are of high rigidity, equipment is stable without shake when rolling core with high speed.
Technical parameter:
1. Production Speed: 10~20 m/min 2. Specification of Roll Core: core diameter: ￠40~￠55mm (2~7 layers), length 1.2~1.96 m 3. Specification of Jumbo Roll: 300~400 g/㎡ width 50~90 mm 4. Installed power: 4.5Kw (380V 50Hz) 5. Overall Size of Equipment (L×W×H m):3.0×0.8×1.6 m 6. Weight of Equipment: 1.5T *There are two kind of core bar, pointed by customers
Video Link:
https://youtu.be/fN945s8JX0g
https://youtu.be/9ZAlmYX2cvc
https://youtu.be/8q8E_508cnw

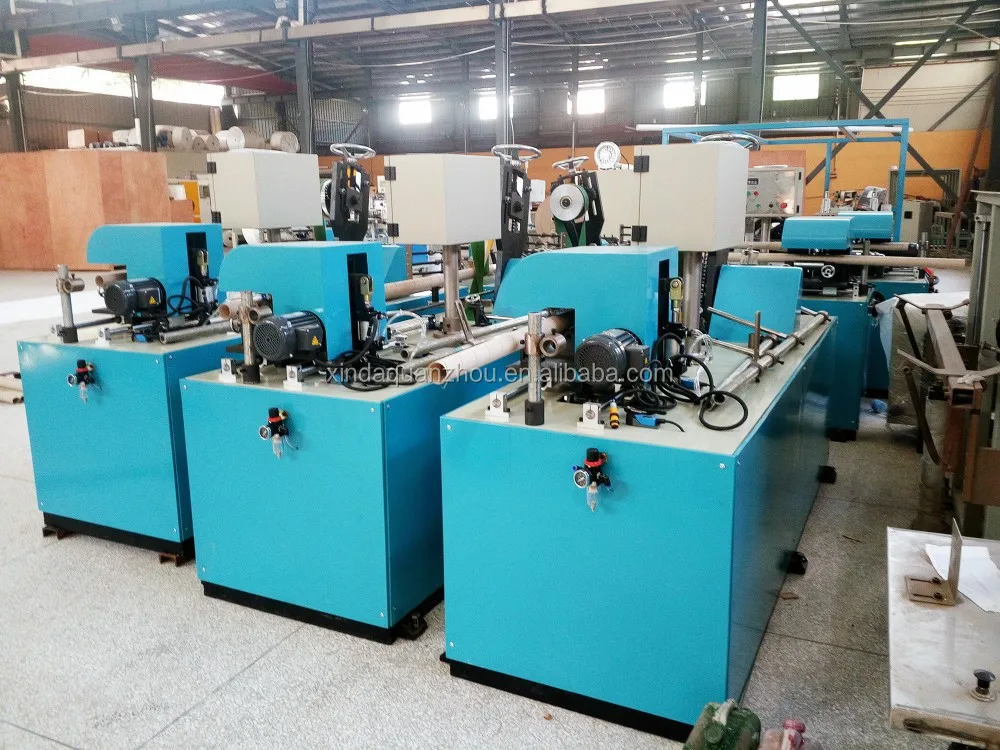

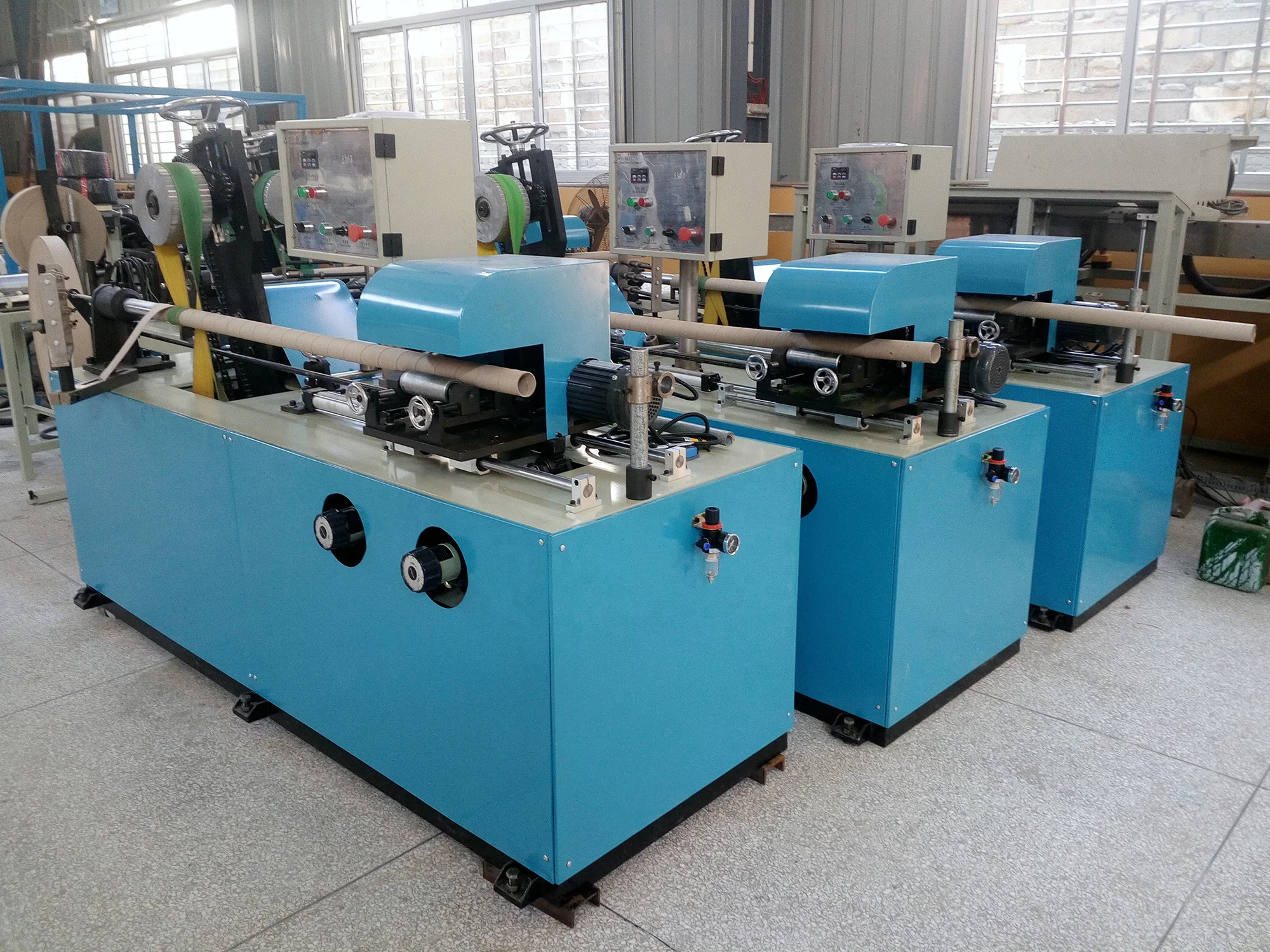

Products Show
\t\t\t\t\t\t\t\t\tHot Sale \t\t\t\t\t\t\t
Our Company
Customer Photo
Favorable Comment
Pre-Sale Services:
According to your need of actual situation and budget, our perfessional sales team will provide professional consultation and best solution with strong technical support.(such as raw paper purchasing suggestion, jumbo roll dimension needed, packing ways for transportation, suitable machine and processing craft recommendation with detailed explanation especially in embossing and lamination, etc.)
Favorable Comment
After-Sales Service:
1.We also provide the door to door abroad installation, equipment debugging, technical training service;
2.Warranty:1 year quality assurance
3.Building customer files, solving various technical problems for user;
4.Our technical team give you 100% rest assured global presence service even over the warranty period.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-90 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
