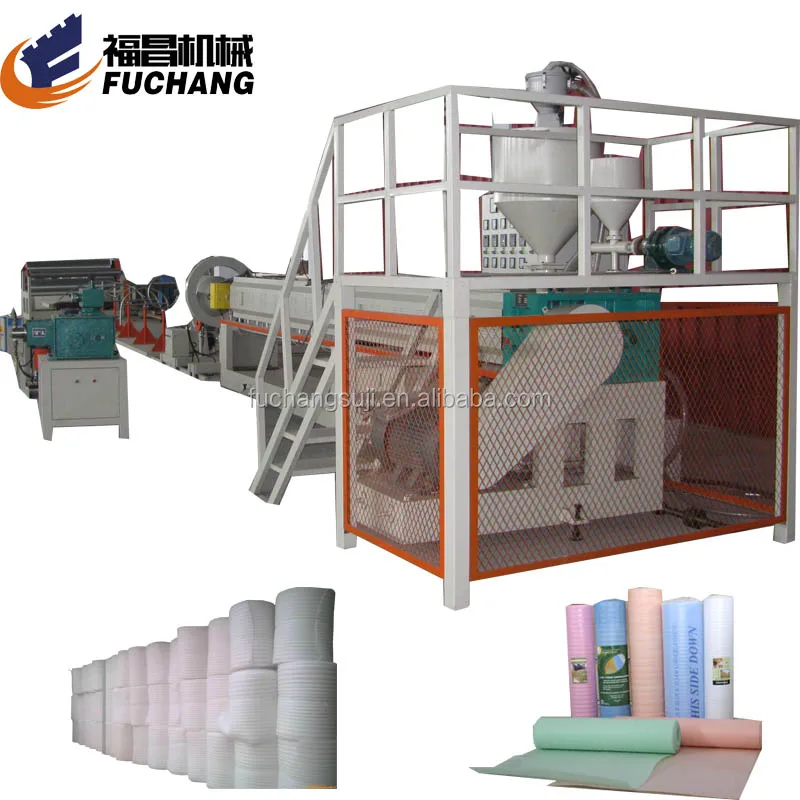

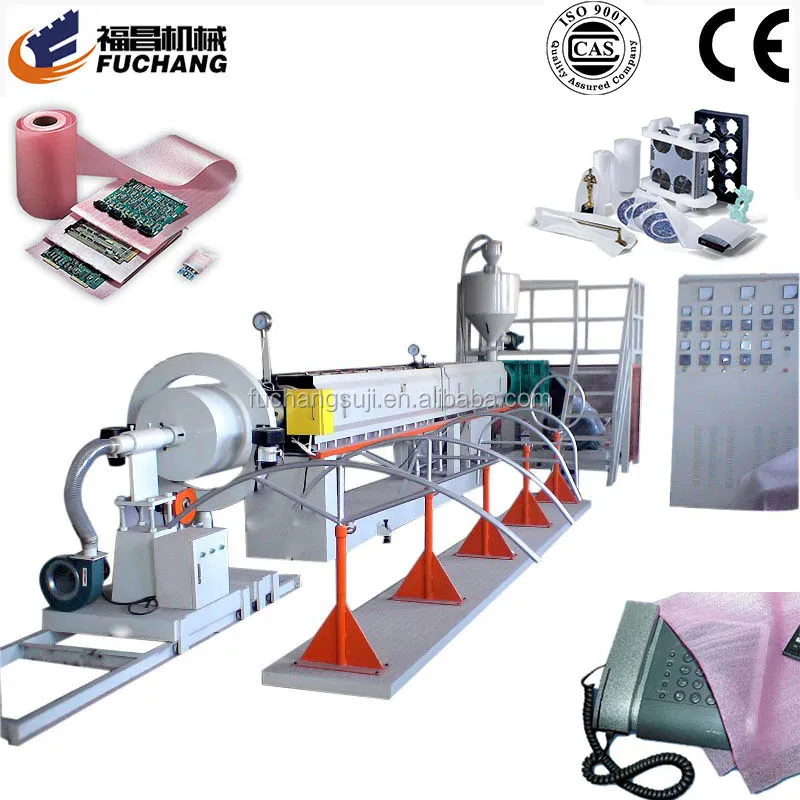

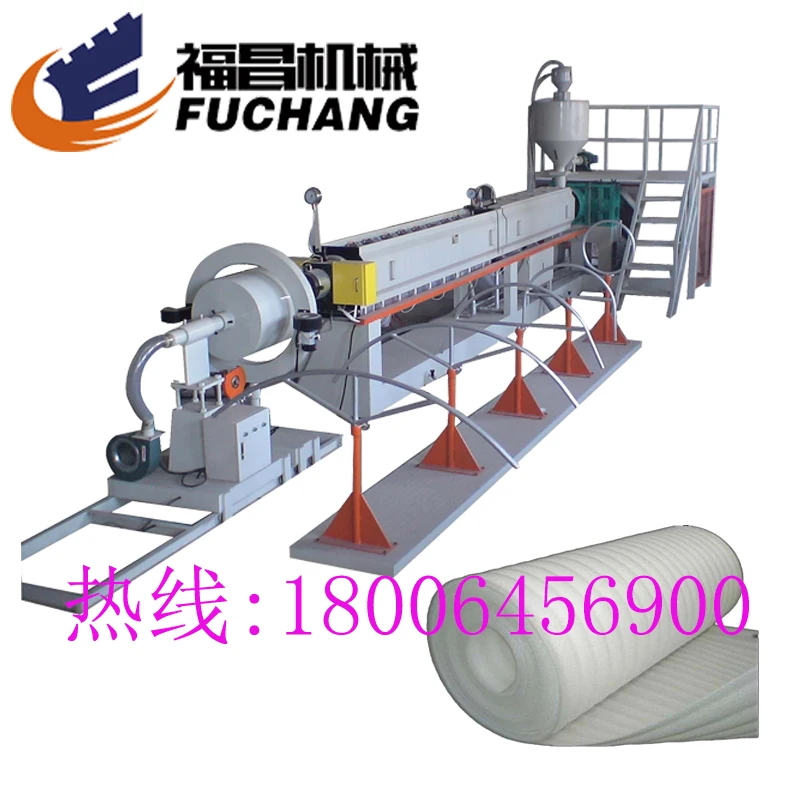

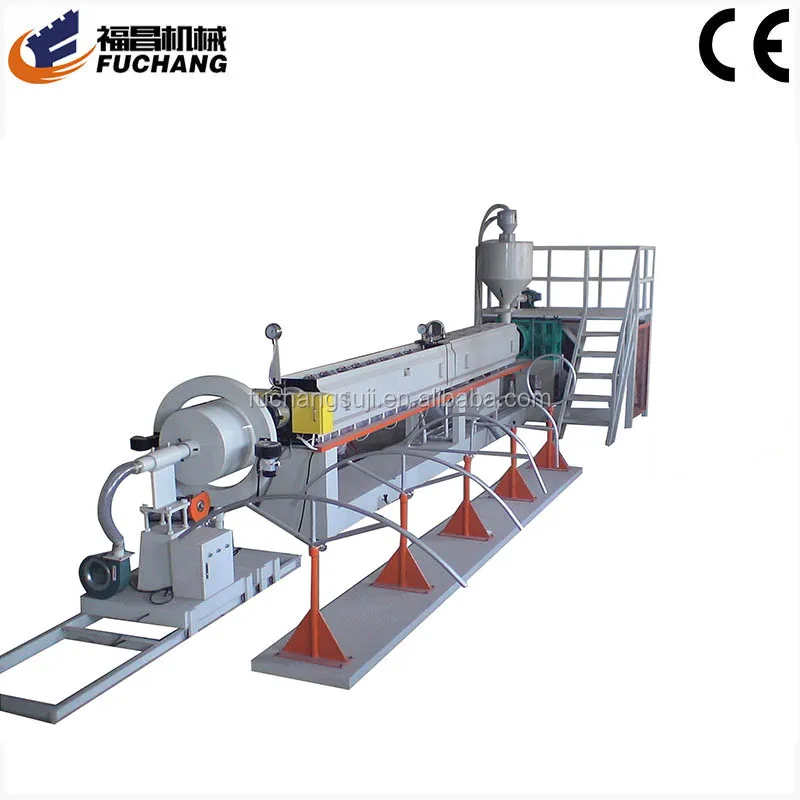

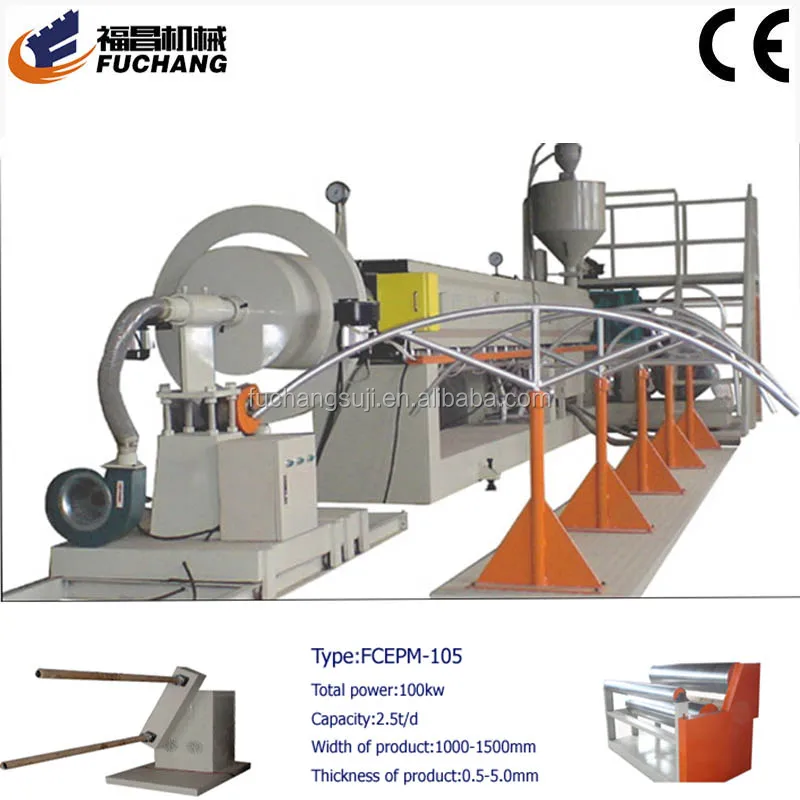

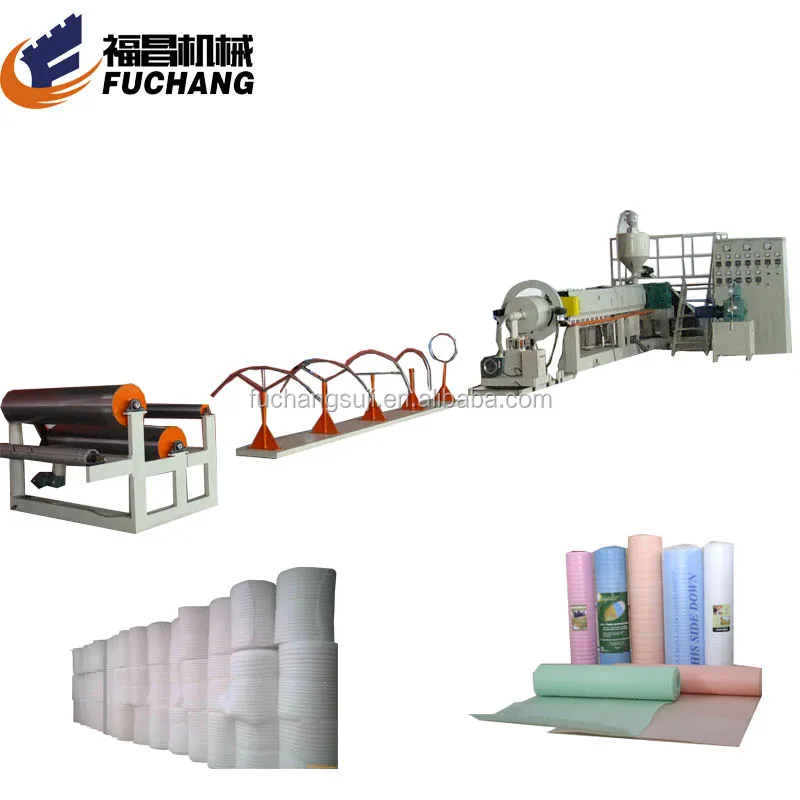

Good Quality EPE foam roll/sheet extrusion machine

Product Overview

Description

Extruder Machine to make the PE foam sheet Production Line CE Approved

EPE foam machine can make different foam sheet width and thickness according to customer requirement. Meanwhile, it can also make foam pipe, foam net, foam rod, foam profile and so on through changing mould and machine parts.

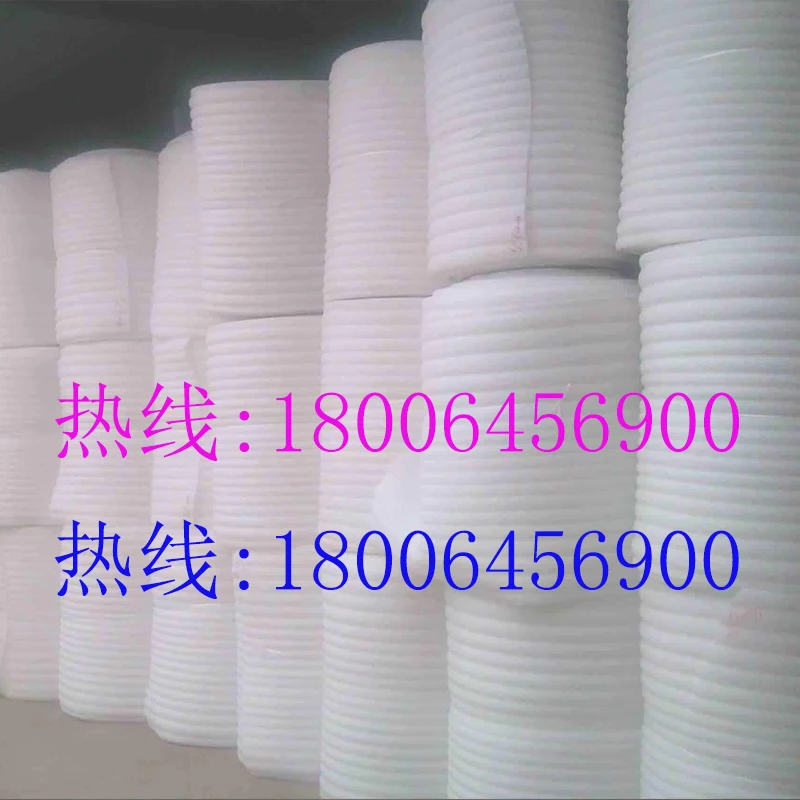

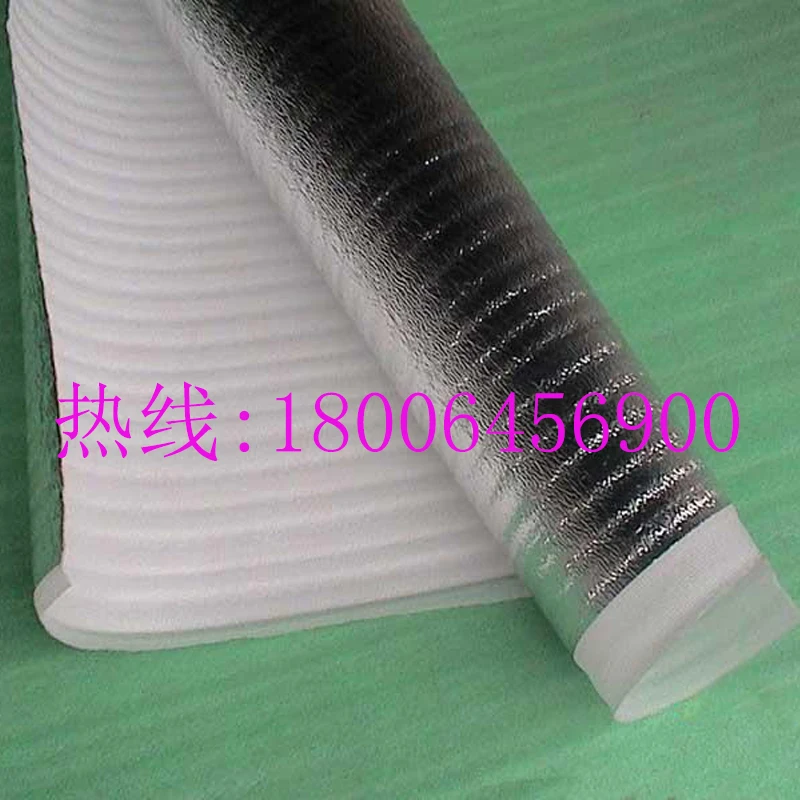

Polyethylene foam Sheet, also named as pearl cotton. It’s a kind of new –type packing material with the features of damp proof, shock proof, sound insulation, heat preservation and good plasticity. It is an ideal substitute of traditional packing materials, and widely used in the packing of fruit, instruments, bags & luggage, shoemaking,  household appliances, electronic product, hardware, furniture, fragile goods, etc. Features of this extrusion line: reliable quality, high output, low maintenance, high automation, easy handling with reasonable price.



Features:
1.Automatic feeding material, equipped with automatic alarm system when lack of raw material.
2.The cool method adopt air cooling & water cooling. The control of the temperature is steady and exact. The temperature is dropped quickly.
3. The filter changer system has two holes no stop, no cut off material. Automatic hydraulic screen changer, save time, can increase production to 10%.

4. Machine head control adopt diaphragm-type pressure gauge, guarantee the quality of sheet is steady.

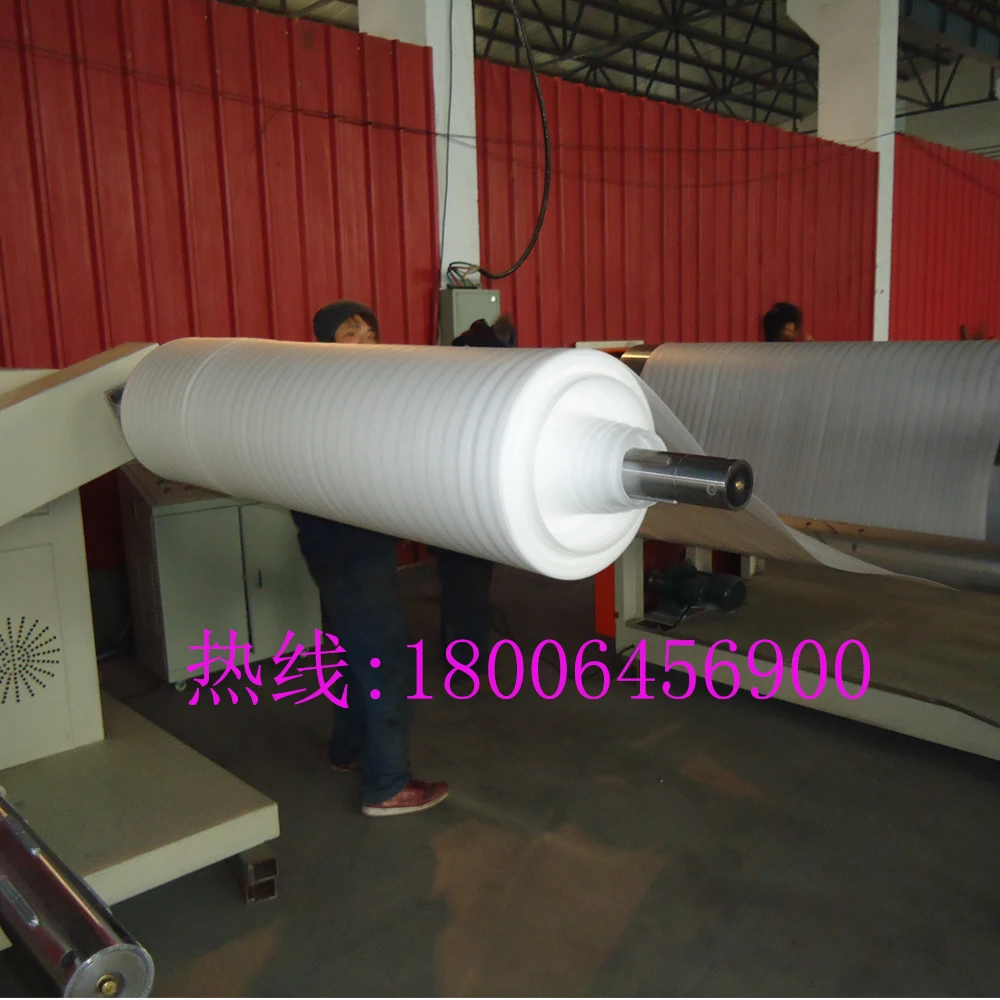

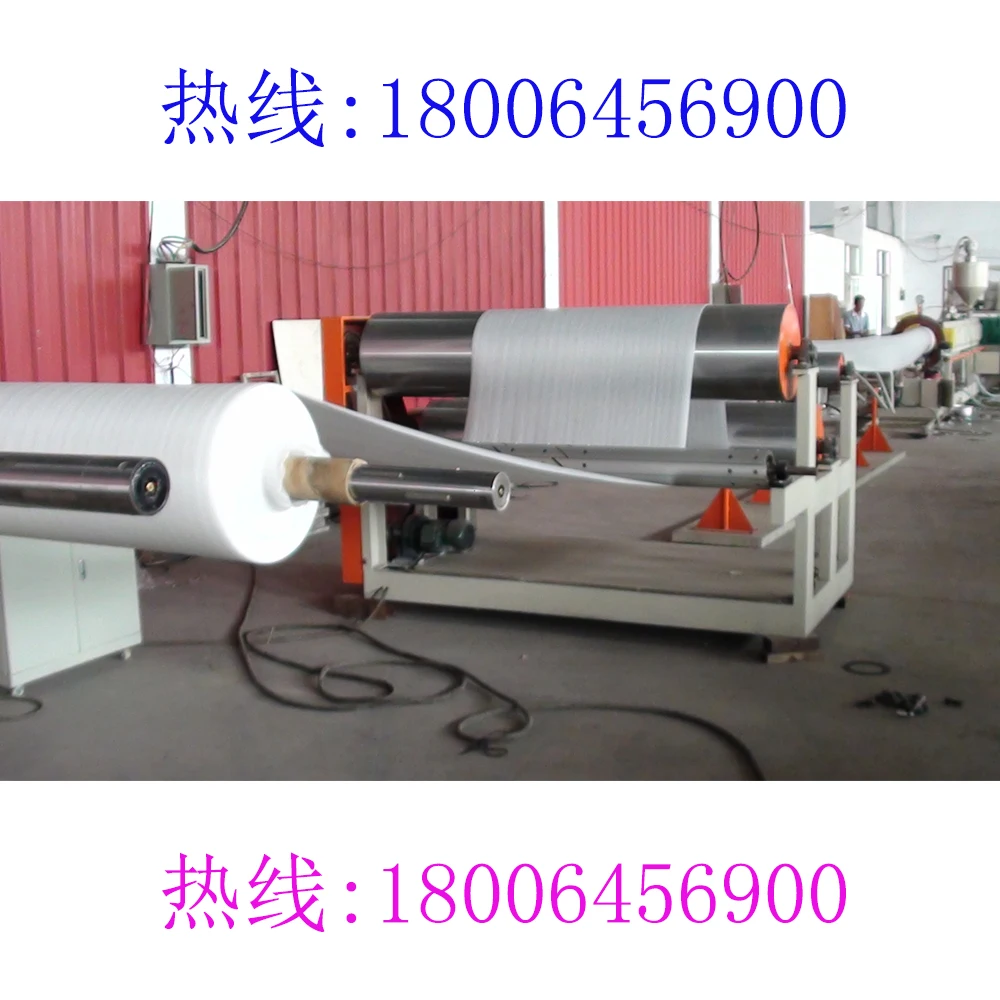

5. The winding automatic change over, the length fix long .automatic counting, the longest width of rewinding can be 2.8m
6.There is an explosion-proof electric machine beside the butane gas pump to ensure the safety.



Main Technical Parameters:

Model	Unit	FCFPM-90	FCFPM-105	FCFPM- 120	FCFPM-150	FCFPM-170
Extruder		90/55	105/55	120/55	150/55	170/55
Screw speed	r/min	5-45
Foaming Ratio		10-40
Product width	mm	800-1600	1000-2000	1000-2000	1000-2000	1000-2000
Product thickness	mm	0.5-3.0	0.5-5.0	0.8-8.0	1.0-10.0	2.0-15.0
Cooling Method		Air-cooled, water-cooled
Installed Power	kw	90	100	120	150	180
Dimension	m	20×2.3×2.2	23×2.3×2.2	25×2.3×2.2	30×2.3×2.2	32×2.3×2.2
Weight	T	6	8	12	15	17
