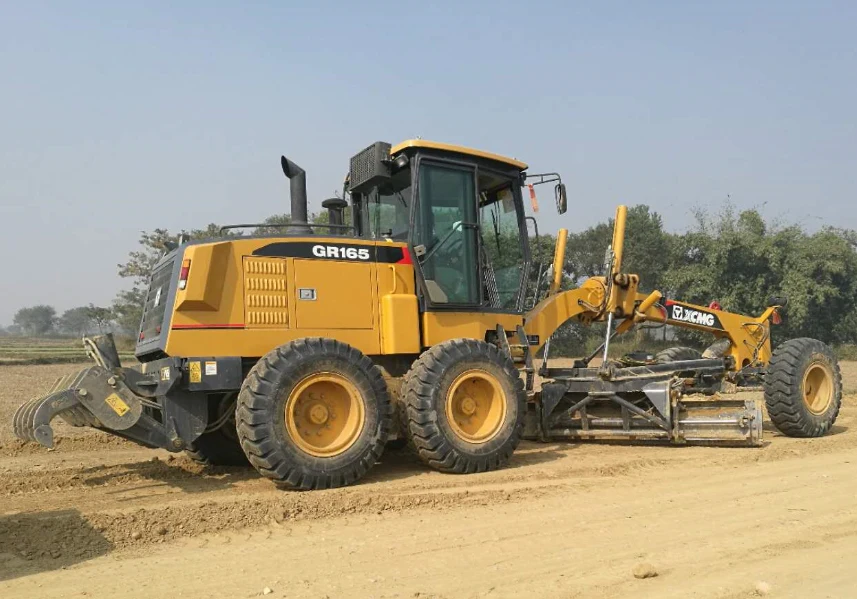

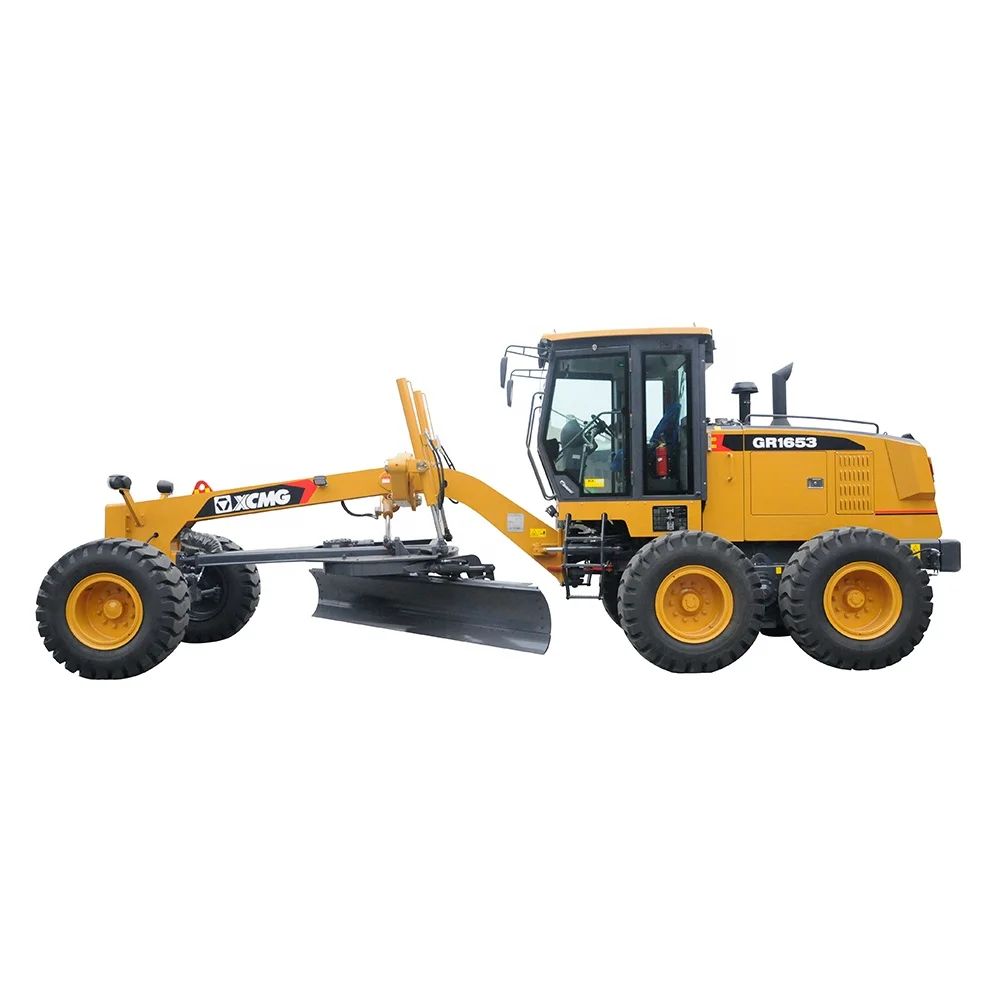

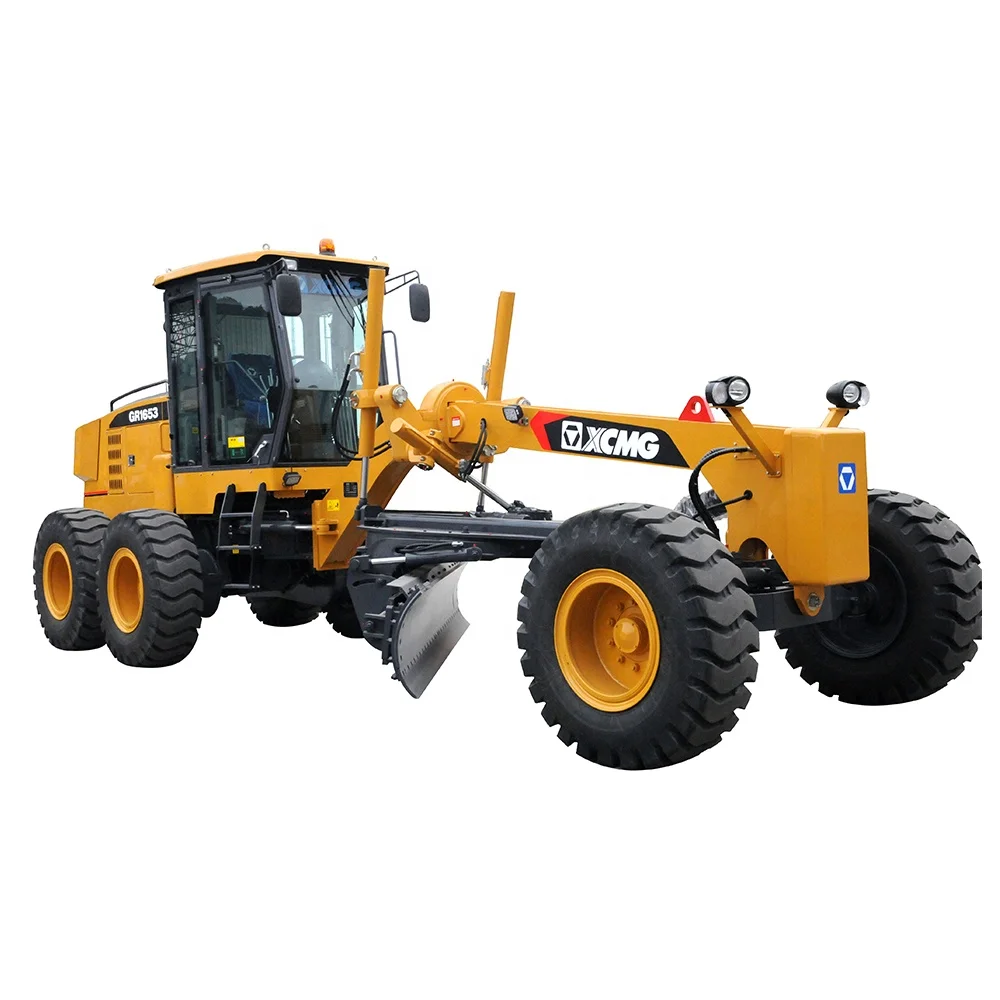

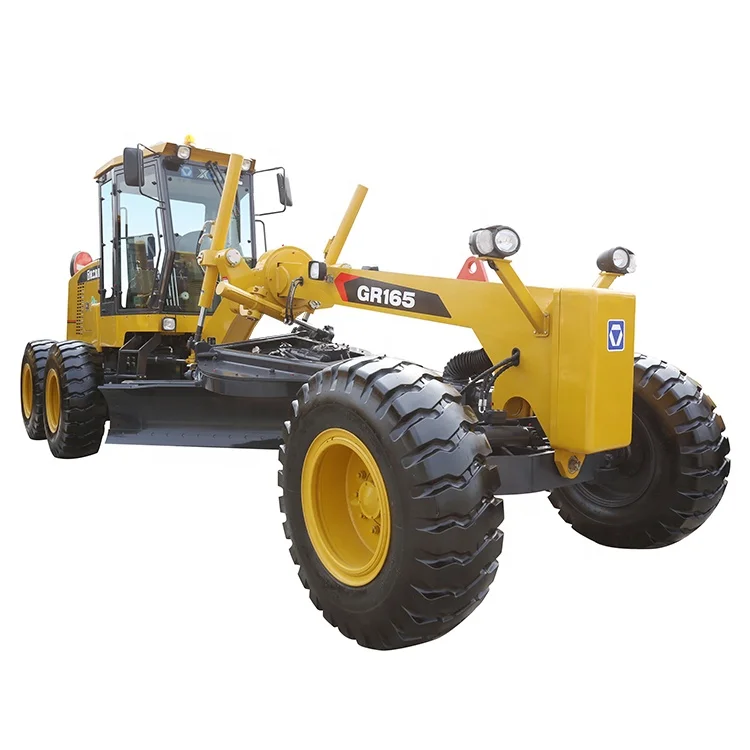

Ground Leveling Motor Grader 15 Ton Articulated Hydraulic Road Graders 165HP Engine GR165

· New appearance design.

·The articulation frame is adopted and matched with the steering of the front wheel, small turning radius and flexible maneuverability.

· Electro-hydraulic control power shift transmission, forward 6 gears, backward 3 gears.

· It adopts internationalized supporting hydraulic parts and works reliably.

• The blade action is fully hydraulically controlled.

· The rear axle is a three-section drive axle equipped with a NO-SPIN self-locking differential.

·Adjustable console, seat, joystick and instrument are arranged reasonably, easy to use and improve driving comfort.

·The cab is luxurious and beautiful, with a wide view and a good seal.

· It can be equipped with front dozer, rear ripper, front ripper, and automatic leveling device.

Main Parameters

MAIN SPECIFICATIONS OF GR165 MOTOR GRADER
Description	Unit	Parameter value
Engine model	-	6BTA5.9
Rated power/speed	kW/rpm	125/2200
Overall dimension (standard)	mm	8900x2625x3470
Total weight (standard)	kg	15000
Maximum depth of cutting	mm	500
Maximum blade position angle	°	90
Blade cutting angle	°	28-70
Circle reversing rotation	°	360
Moldboard width x height	mm	3965x610
Tire specification	-	17.5-25
Maximum lift above ground	mm	450
Tread	mm	2156
Space of front and rear axles	mm	6219
Space of middle and rear wheels	mm	1538
Traveling speed forward	km/h	5/8/11/19/23/38
Traveling speed reverse	km/h	5/11/23
Tractive force f=0.8	kN	84
Maximum gradeability	%	20
Tire inflation pressure	kPa	260
Working system pressure	MPa	16
Transmission pressure	MPa	1.3-1.8
Maximum steering angle of front wheel	°	±50
Maximum slant angle of front wheel	°	±17
Maximum oscillating angle of front axle	°	±15
Maximum oscillating angle of equilibrium box	°	15
Maximum steering angle of frame	°	±27
Minimum turning radius	m	7.3

Detailed Image

Power of Grader

Equiped with Shangchai SC8D or Cummins electronic engines generates dynamic power and large power storage of the whole machine, providing capable guarantee for whole-machine operation and making machine emission satisfy demands of diversified markets.

Transmission System

*Adopt hydraulic power - mechanical transmission.

*Hydraulic transmission - mechanical transmission.

*Hydraulic transmission - hydraulic power - mechanical transmission.

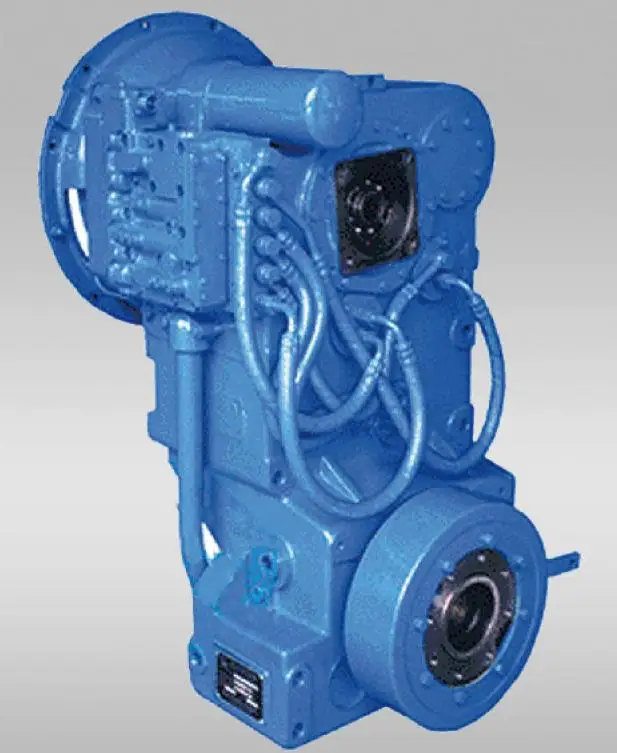

*Gearbox - The electro-hydraulic controls the power shift gearbox, with convenient operation and stable drive.

*Equiped Hangzhou advance gearbox, Liuzhou ZF gearbox DANA gearbox.

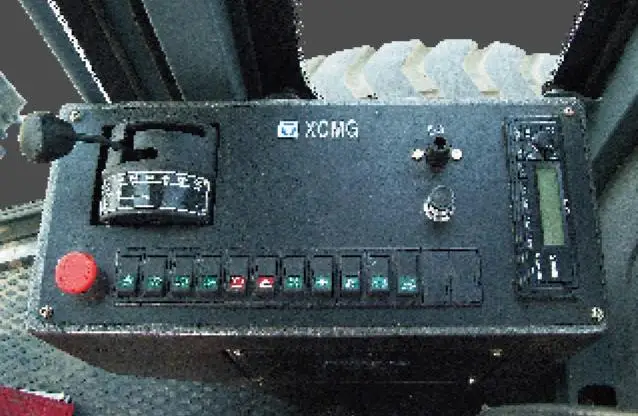

Gear Selector

Power-shift(electric hydraulic) countershaft design with six forward and three reverse gears.

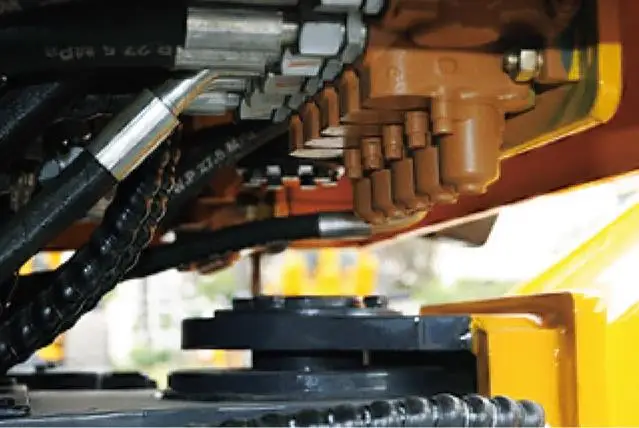

Hydraulic System

Imported key components. Such as EATON, HUSCO, HYDROCONTROL etc., stable and reliable.

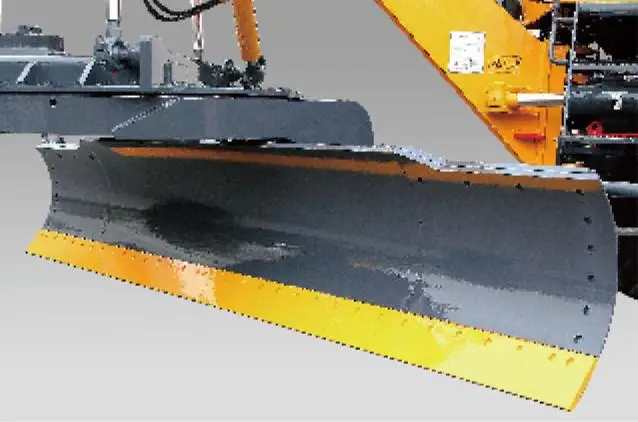

Blade

Blade-slipping uses adjustable double slip orbit mechanism.

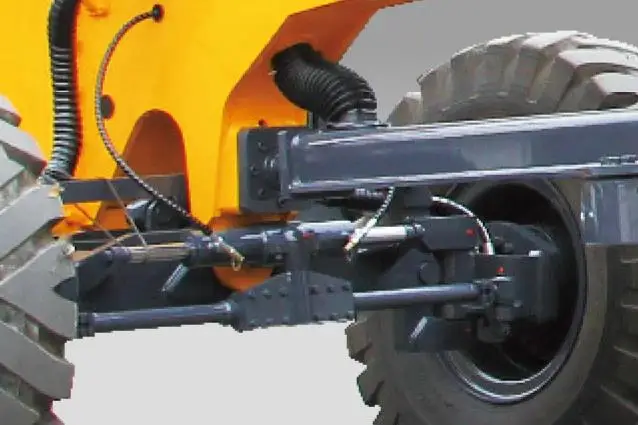

Steering System

Fully hydraulic load-sensing which is preferential and energy-saving combines with the articulated frame to make the machine maneuverable

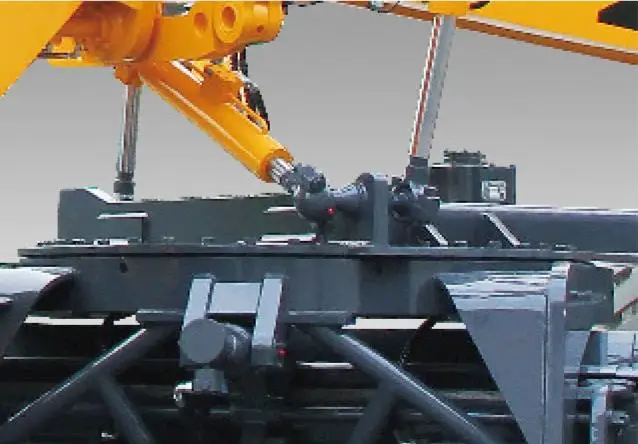

Working Equipment

Hardened circle with anti-wear lining for flexible turn of the blade, high leveling accuracy and low maintenance cost.
