IEEE802 3af standard, classification class Customerize POE Module
Product Description
You are welcome to customize the POE modules of various sizes and appearances and function. The layout is required to receive the initial research and development expenses. After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted. After the sample is qualified, batch production.
IEEE802.3af Standard
PoE IN:3757V(15.4W)
DC/OUT:12V/1A(12.95W)

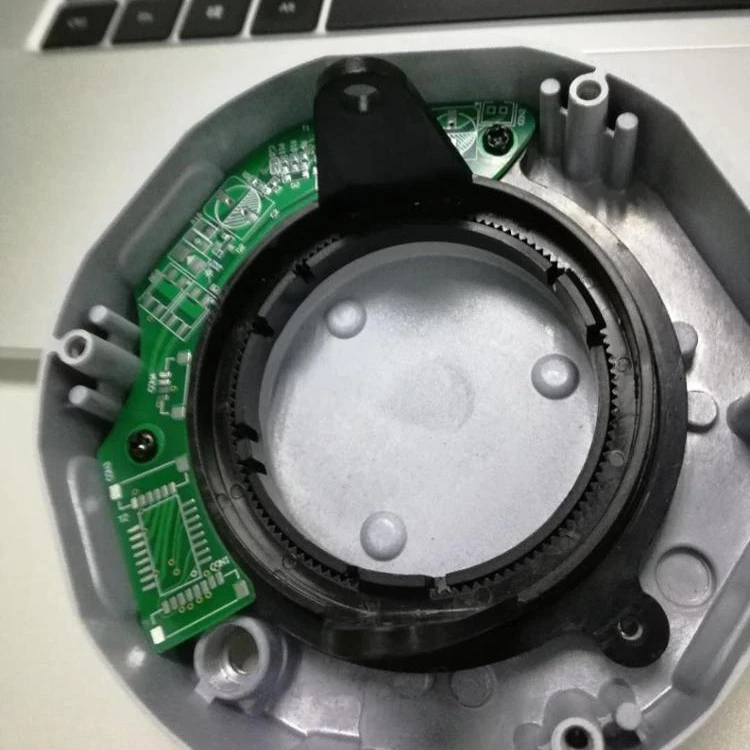

min dome camera case all can use
ModeA or ModeB
Size: suit 38mm fixed hole
total power:13W
all IPC can use .but Special attention.If this module is connected with infrared lamp and array lamp.Up to one light.Because the board is small.the shell is also small.Poor heat dissipation.The temperature is too high.It's overheated.If it's an LED light.There's no limit to the number of marbles.
POE Module
1.product features:
1.1 Specification:with IEEE802.3af standard
1.2 Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes
Features · Support international standard IEEE802.3 af(15.4W); · PD support 37V-57V voltage transmission,Automatically detects power supply from PSE power supply module · Support the isolation circuit protection,can effectively protect electrical equipment. · Support the short circuit,overvoltage protection
2. Applications:All IP Camera
3. The main parameters:
No.
Parameter
Symbol
Min
Typical values
Max
Unit
1
Input Voltage
Vin
37
48
57
V
2
output voltage
+VDC
11.8
12
12.3
V
3
output Current
PWR
1
1.08
A
4
Isolation Voltage
ISO
1.48
1.5
1.52
KV
5
Storage Temperature
Tj
-40
25
120
℃
6
Operating Temperature
Tstg
-20
25
65
℃
3.1 is typically 25 ℃, measured under the 48V power supply environment, only for reference design
3.2 Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environments
