4 seats high Quality mini golf cart

Share on (62114803945):


Price:$3,200.00 - $3,500.00

Quantity:


Product Overview

Description



Product Description

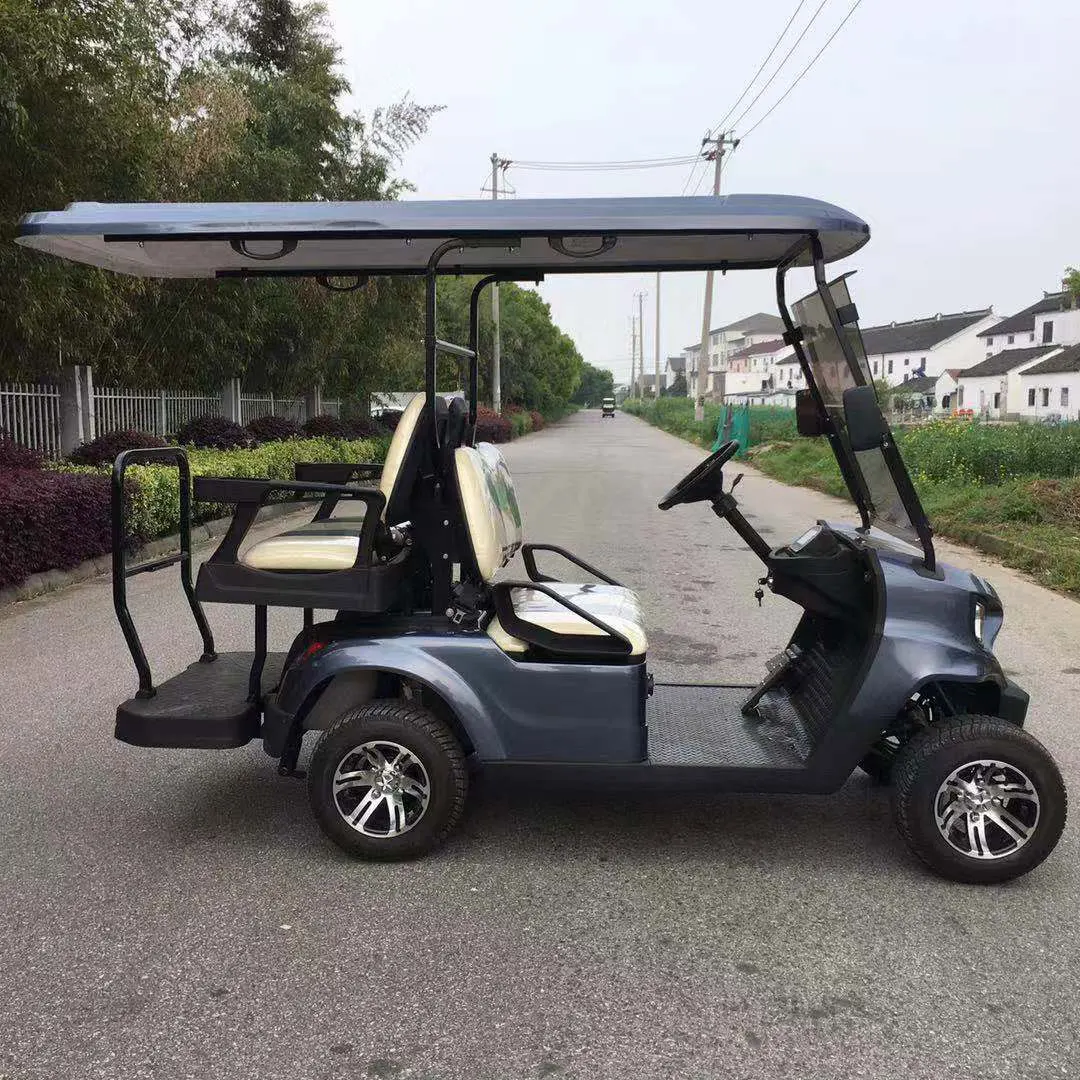

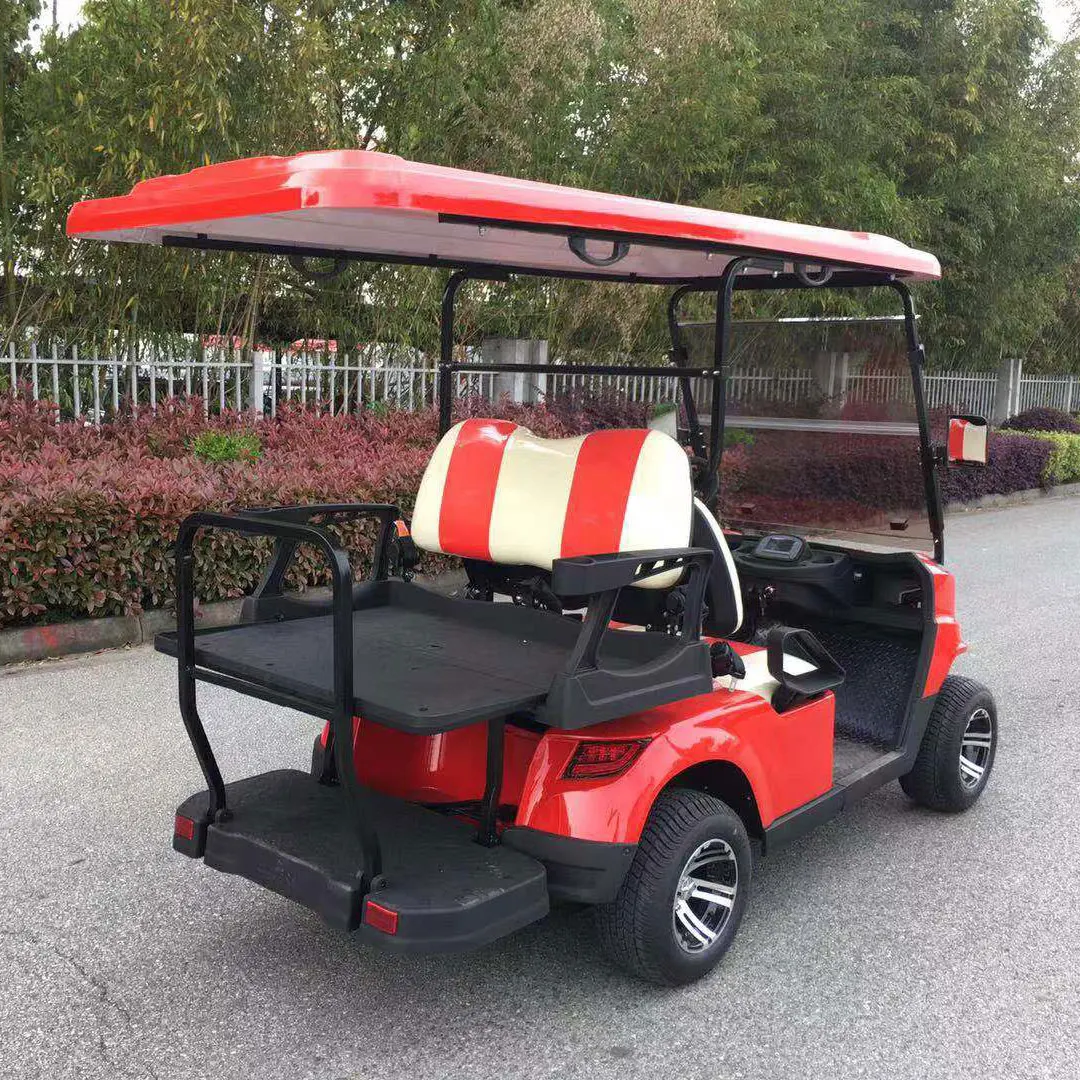

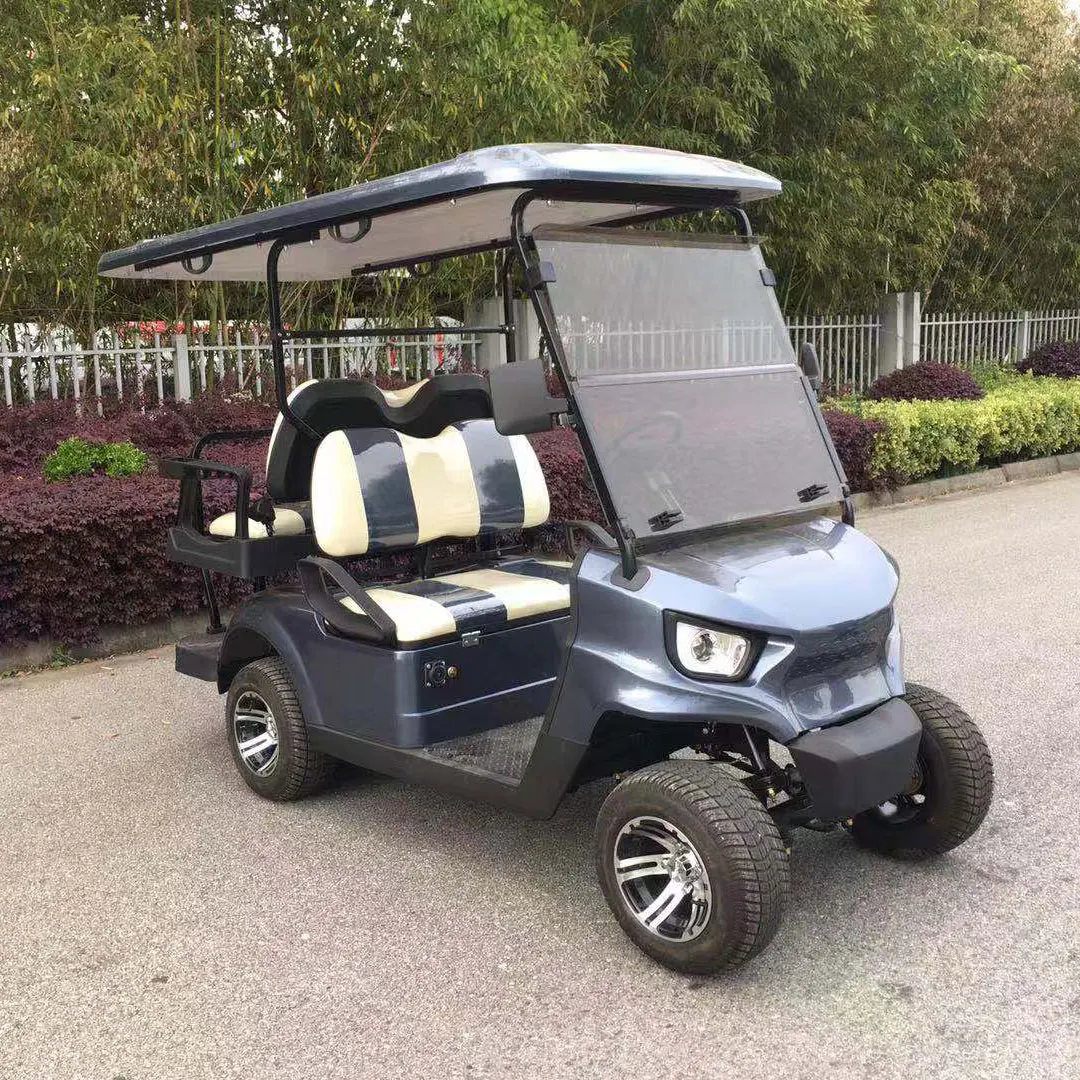

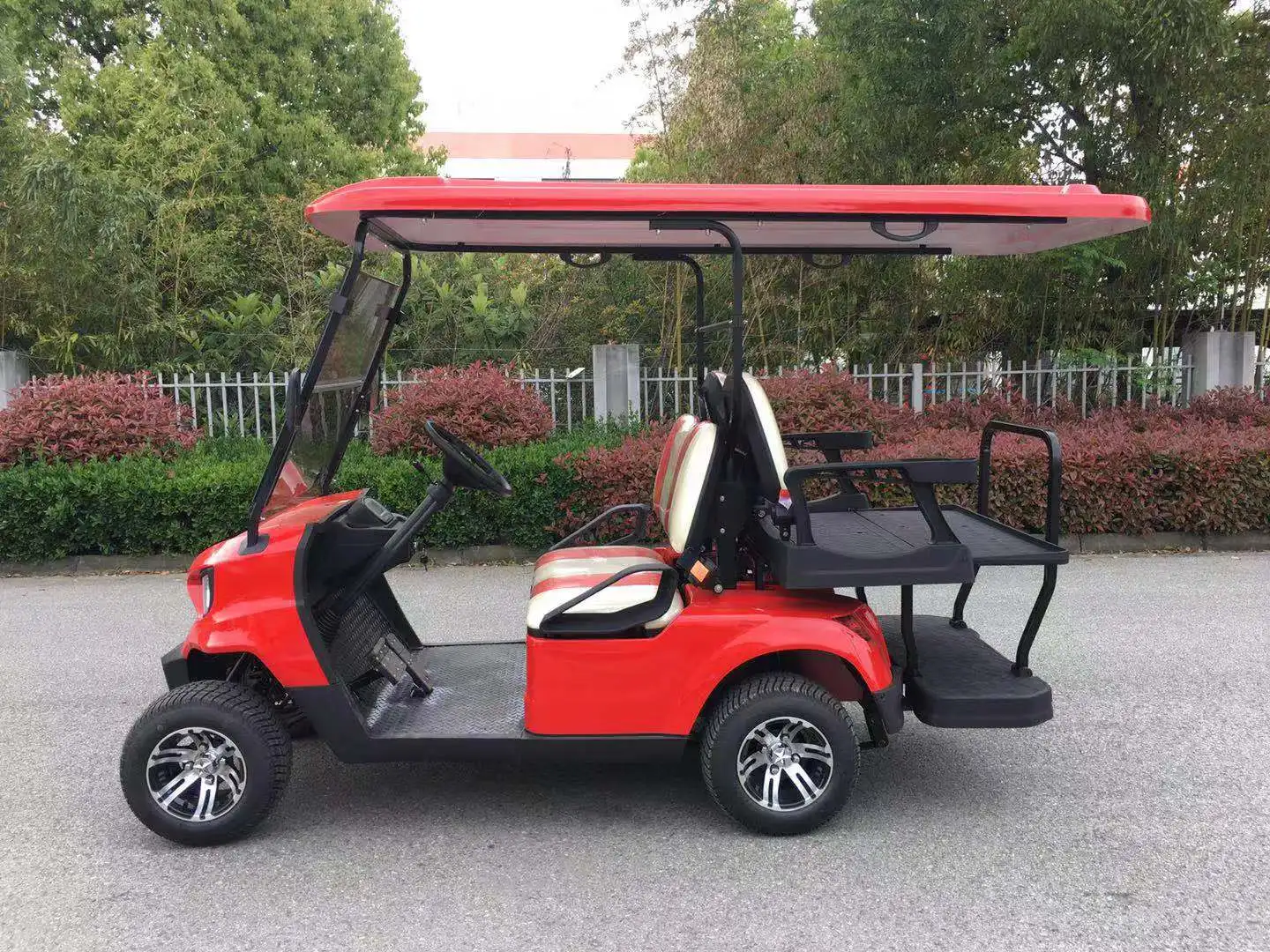

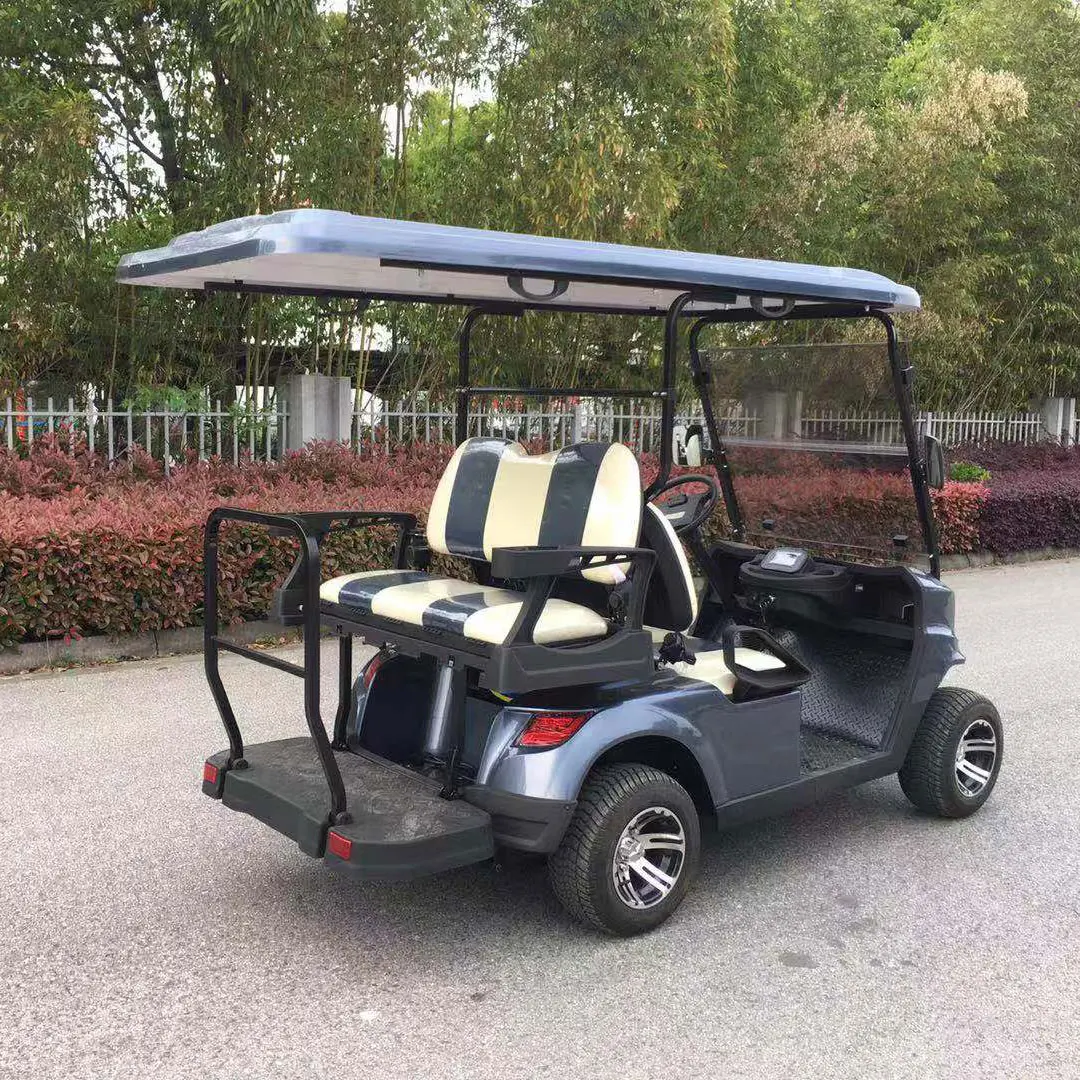

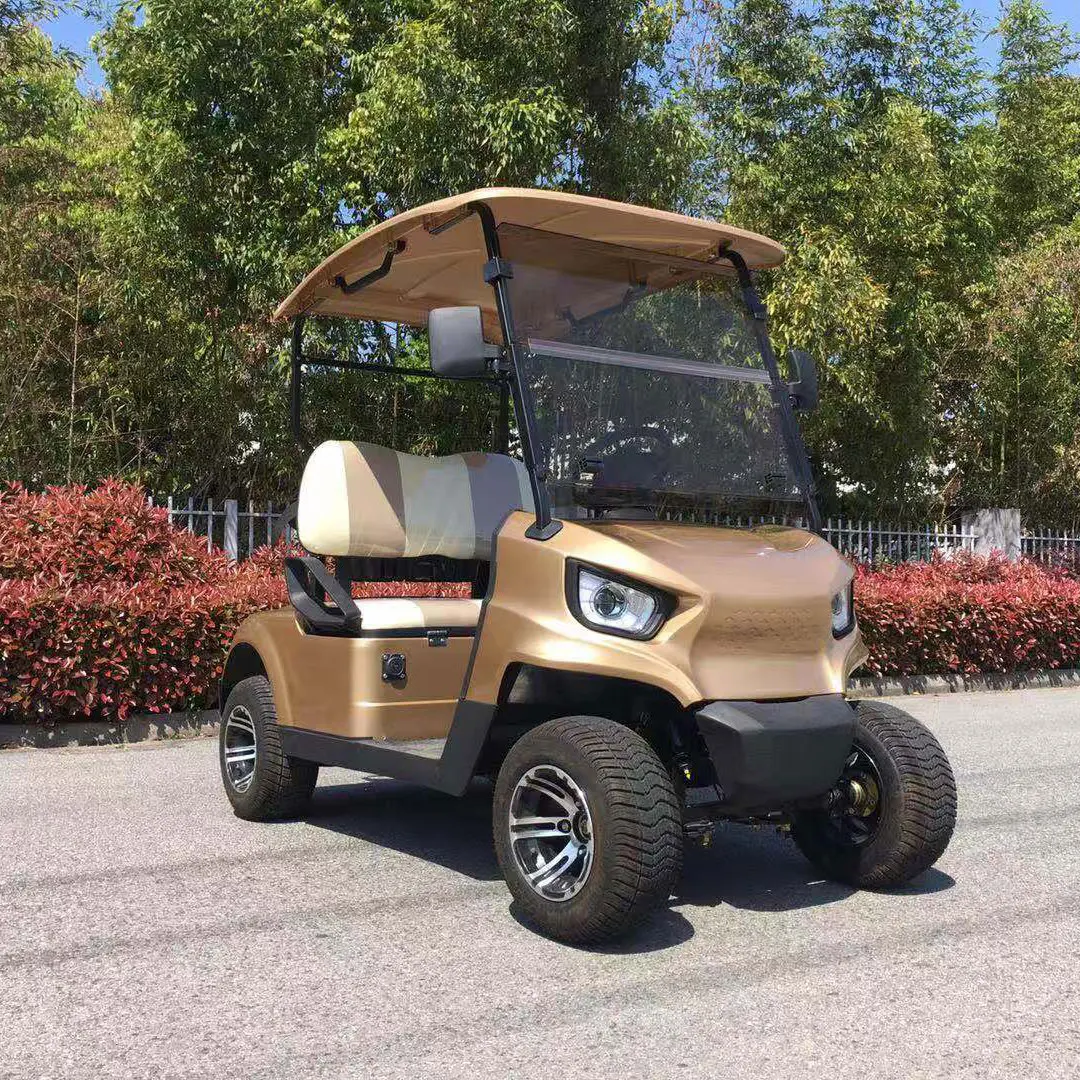

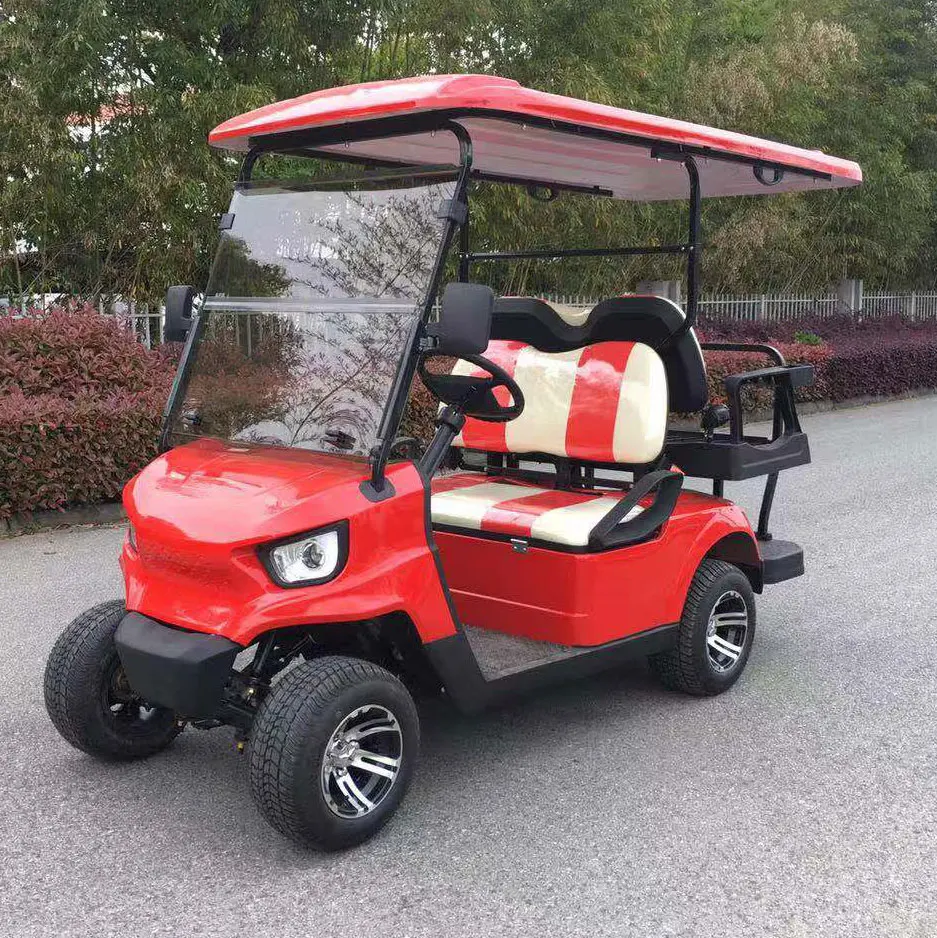

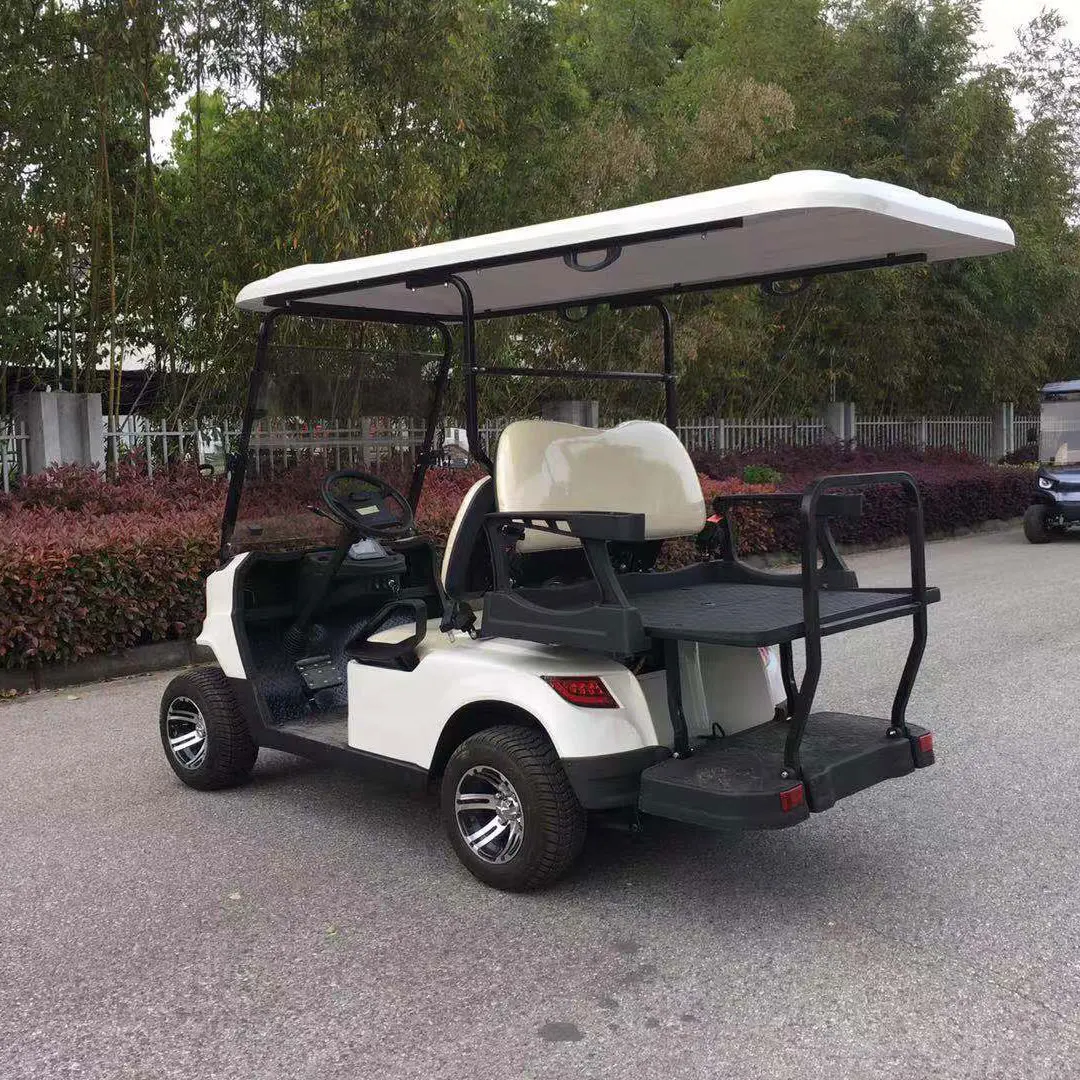

Model AW2029KSZ is 2+2-seater Electric Golf Car with Flip-flop seat (plastic), it cannot just be used in golf courses as traditional fleet golf cart, but also can be used in many other places for different applications, such as in hotel, resort, residential community, airport, port, stations, museum, theme park, factory, campus, garden and any places where need a quite and clean vehicles, for people moving, security patrol, etc.. Below are some pictures of our electric golf carts on site for some applications.






                                             SPECIFICATIONS of 2+2-seater Electric Golf Car with Flip-flop seat (plastic) AW2029KSZ
Key Components
Controller
PMSM controller

Motor
PMSM 5KW motor
Battery
Top Brand of lead acid battery
Range
50km per charge
Performance
Passenger Capacity
2+2
Max.speed
30km/h(adjustable)
Min. Turning Radius
3.5m
Max. Gradeability
20%
Max. Loading Weight
340kgs
Net Weight
520kgs
Overall Dimensions
2670X1180X1800mm
Body and Frame
Frame (Chassis)
Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating
Body and Roof
PP plastic front body and rear body; FRP or plastic roof
Windshield
Organic plastic windshield, split
Roof supports
Carbon Steel, powder coated
Backrest and Seat
Reborn Sponge, artificial leather + plastic armrest
Floor
Galvanized Steel plate and anti-slip rubber floor mat
Dashboard
Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
Side trim
Aluminum alloy
Sider mirror
2pcs, foldable standard configuration
Electric System
Lighting system and horn
2 headlights, 2 front turn signals, 2 LED taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 48V to 12V), electric horn.
Reversing alarm
12V backup buzzer
Charger
Onboard charger, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A;
Steering, Brake, Transmission and Suspension
Steering System
Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system
Rear wheel mechanical brake, foot activated parking brake
Accelerator
Stepless speed change
Driving mode
Rear axle two stage deceleration, motor direct driving
Rear axle
Integrated, Gear ratio12.49:1
Suspension system
Front and rear plate leaf spring + cylinder hydraulic shock absorber
Wheel & Tyre
10x6 Aluminum rim & 205/50-10 4PR
Body Color
Standard Body Color (customized color if available, but extra cost should be paid)
Pure White
Navy Blue
Coco Cola Red
Champagne
Metallic Green





Packing & Delivery


PACKING &LOADING INFORMATION
Container information
Assembled
Disassembled
20GP
4
8
40GP
8
16
40HQ
8
21
More information
If anybody just only 1pc sample,we will add the special package by LCL.

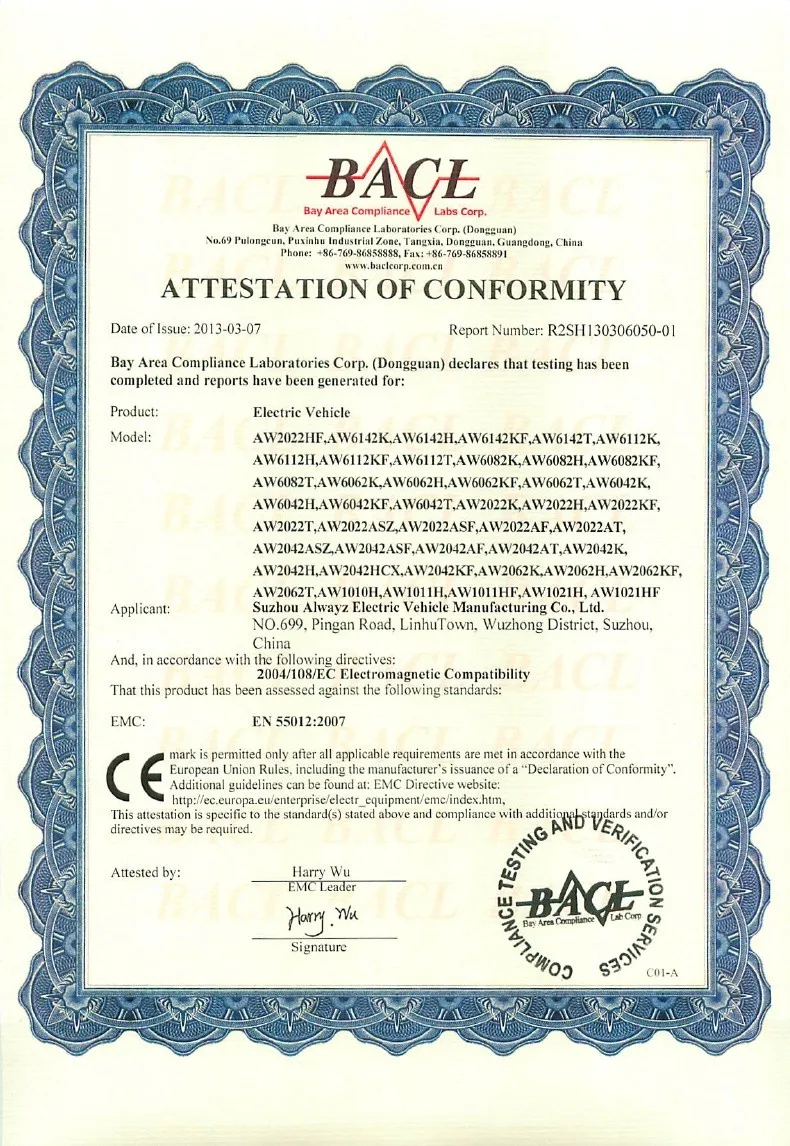

Certifications




Our Service


14+ Years EV Expertise

Our president has been in this business more than 15years experience.We had a better understanding of the market,and know how to help you expand your business well .

13 moths warranty service

We provide 13 months warranty to the electric vehicles from the shipping date. We will cover the labor cost for any warranty issue.

Life-time Spare Parts Supplies

In the life-time of the vehicles or maximum within 7 years we stop the production of any model, we still supply the spare parts for after service.

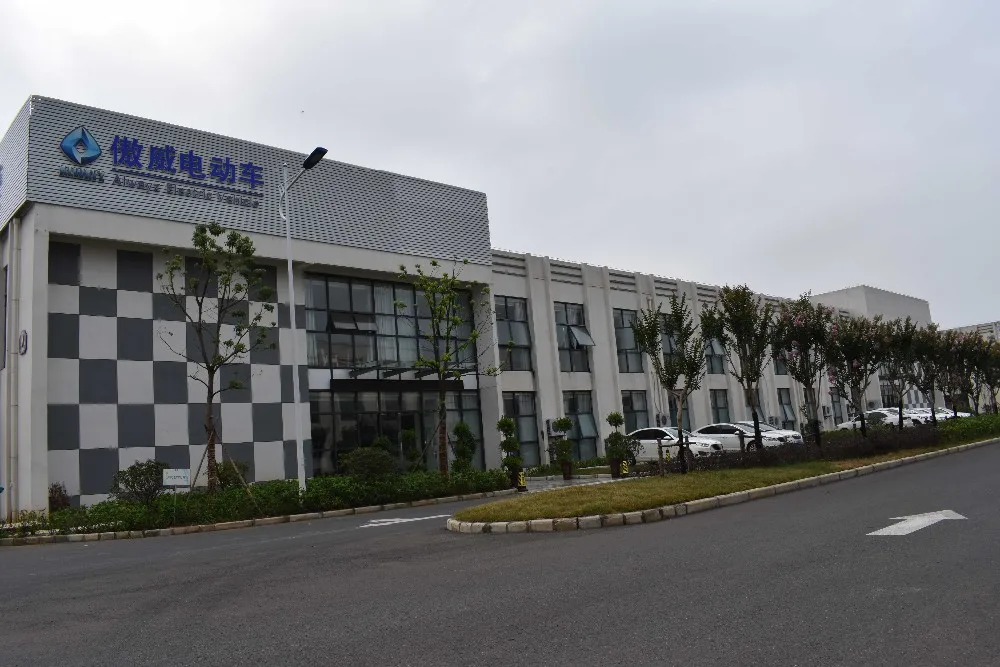

Our Company


Alwayszev is a leading company focus on R&D and Manufacturing of Low-speed electric vehicles which include Golf Car,Sightseeing Bus,Passengers Bus,Fire engine Car;Utility Car and various customized electric Vehicles,etc.

Starting Electric Vehicle busniss in 2008,we had accumulated rich experience and a strong R&D team to offer the most popular Vehicle for both domestic and international market.




FAQ


Q1. Do you accept to customize the vehicles as per our special request?

Answer: Yes, we customize vehicles as per customer's speical request with reasonable cost and lead time, as long as the customization is not related to the chassis modification.

Q2. What is your warranty term?

Answer: We provide 1 year warranty. And for any failed part under warranty, if it can be repaired at your side and the repair cost is lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.

Q3. Do you provide after service spare parts?

Answer: Yes, we provide all the spare parts to our vehicles, even 5 years after we stop the production of the vehicle. For your easier working to select the spare parts, we also supply parts manual.

Q4. Do you provide technical support?

Answer: Yes, we provide technical support by email and phone. If necessary, we can also send our engineer to your place.

Q5. Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD way?

Answer: When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can send our people to give instructions.

Q6. Do you accept OEM order?

Answer: Yes, as long as the order quantity is reasonable (yearly 300-500 units), we will accept.

Q7. What are your terms to be your agent/dealer in my country?

Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell reasonable volume of electric vehicles.

Q8: What is your payment term?

Answer: For new customers, our typical payment term is 'T/T 30% deposit against order confirmation, T/T 70% before container loading'. Irrecoverable L/C at sight is also acceptable. For old customers, our payment term can be more flexiable. Please contact us for more information.
