Product Overview

Description


Product Description



Please find our machine specification and payment term as below:



PaymentTT/LC
Delivery60-120 days




Mechanical Quality Guarantee

  1. Mechanical parts are guaranteed for 5 years or production reaches 200 million cups, electrical parts are guaranteed for 1 year.
  2. All parts on forming table are easy to access for maintenance.
  3. All parts under forming table are lubricated by oil bath. Oil should be changed every 4-6 months with specified oil.


Mechanical Character

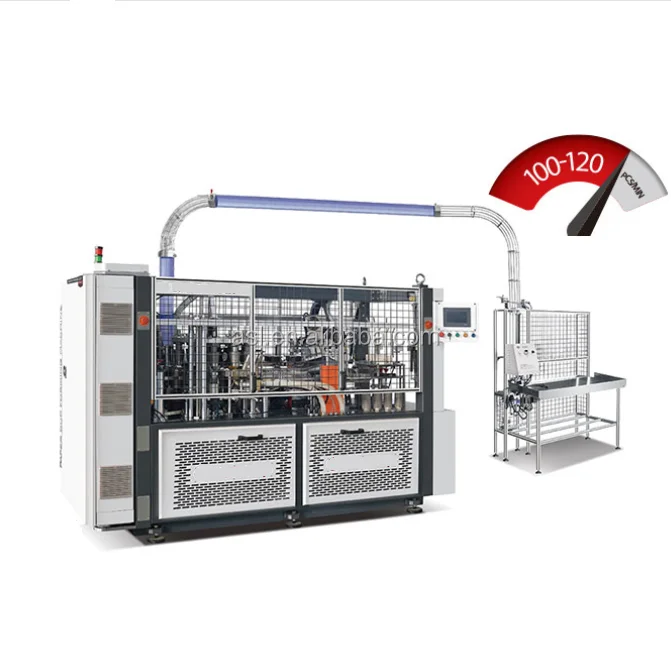

CIP-118S intelligent paper cup machine is using tabletop layout, which isolates the transmission parts and the forming molds. This layout is convenient for cleaning and for maintenance. The machine use longitudinal shaft transmission structure, barrel indexing cam and gear drive, ensuring stability and accuracy. All transmission and driving parts are running in oil bath. The production speed is up to 118/min. depends on size and material. This machine is good for producing 5-16 oz. cold/hot cups.







CIP-138S

CIP-118S+ZY

CIP-118S+SY

WeightWeightWeight
3500 kg3500 kg3000 kg
Machine encasement dimensionsMachine encasement dimensionsMachine encasement dimensions
Machine:
3100 x 1600 x 2100mm (collection table 1230 x 610 x 1900mm)
with visual system:
3100 x 1600 x 2350mm(collection table1230 x 610 x 1900mm)		Machine:
3100 x 1600 x 2100mm (collection table 1230 x 610 x 1900mm)
with visual system:
3100 x 1600 x 2350mm(collection table1230 x 610 x 1900mm)		Machine:
3100 x 1600 x 2100mm (collection table 1230 x 610 x 1900mm)
with visual system:
3100 x 1600 x 2350mm(collection table1230 x 610 x 1900mm)
Connecting powerConnecting powerConnecting power
three-phase 380V,26KWthree-phase 380V,26KWthree-phase 380V,24KW
Compressed airCompressed airCompressed air
0.6-0.8MPa,0.5m³/min0.6-0.8MPa,0.5m³/min0.6-0.8MPa,0.5m³/min
Production capacityProduction capacityProduction capacity
110-138 pcs/min100-120 pcs/min100-120 pcs/min
Paper typesPaper typesPaper types
single PE/double PE/PLAsingle PE/double PE/PLAsingle PE/double PE/PLA
Paper grammagePaper grammagePaper grammage
210-330g210-330g210-330g
Product rangeProduct rangeProduct range
(D1)φ60-95mm (H)50-135mm
(D2)φ40-75mm (h)5-12mm		(D1)φ60-95mm (H)50-135mm
(D2)φ40-75mm (h)5-12mm		(D1)φ60-95mm (H)50-135mm
(D2)φ40-75mm (h)5-12mm

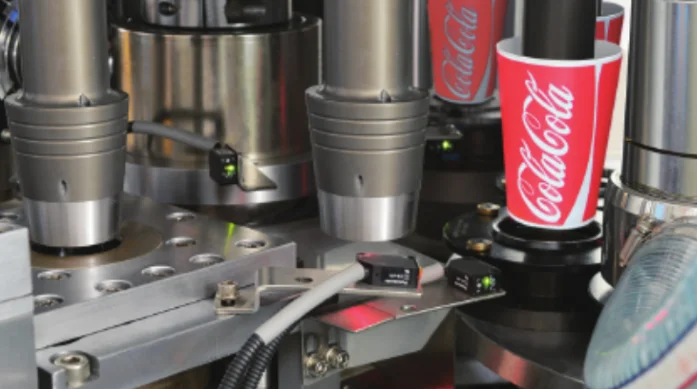

Visual inspection systemVisual inspection systemVisual inspection system

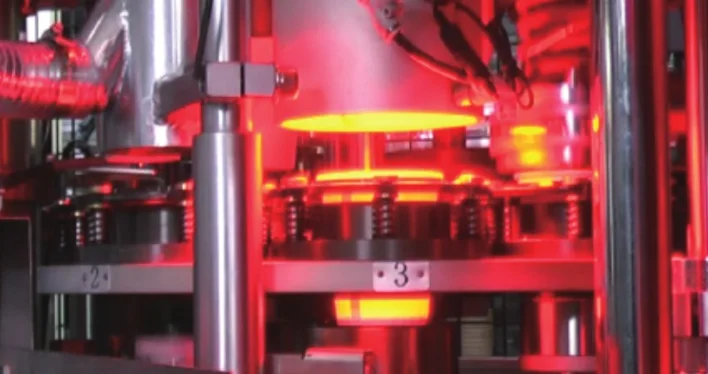

bottom heatingbottom heatingbottom heating
assemblyassemblyassembly
Long term magazineLong term magazineLong term magazine
control panelcontrol panelcontrol panel
10.2 inches
7 inches7 inches
