Product Overview
Description
AR/AF/AG/Customized RGB interface 800x480 dots 5 inch Touch display multi touchscreen TFT LCD screen modules
Product Description
The specification of 5 inch Touch display
| The detail information of 5 inch Touch display | |||

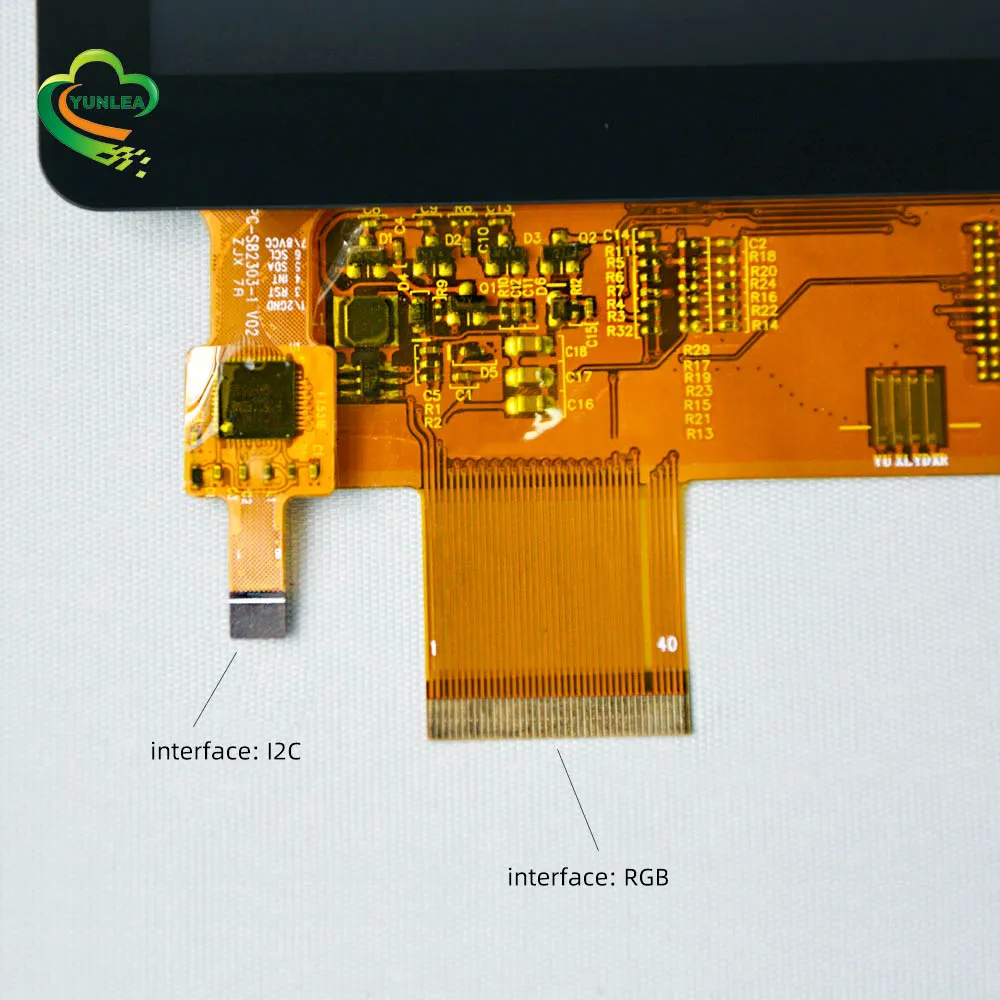

| Size | 5 inch | Interface for LCD | RGB |
| Product name | 5 inch Touch display | Touch controller | FT5446 |
| Model Number | YL050MG3240 | Interface of CTP | I2C |
| Type | CTP+LCD | Touch points | 5 |
| Structure | (Glass+Glass)+LCD | Surface hardness | 6H |
| Outline dimension | 127x85.8x4.93mm | Transparency | 86% min |
| Active area | 108x64.8mm | MOQ | 1PCS |
| Silk-printing color | Black color | Lead time | Sample in stock,2-4 weeks for mass production |
| Resolution | 800x480 dots | Trade Terms | EXW |
| Brightness | 350 available cd/m2 | Warranty | 12 months |

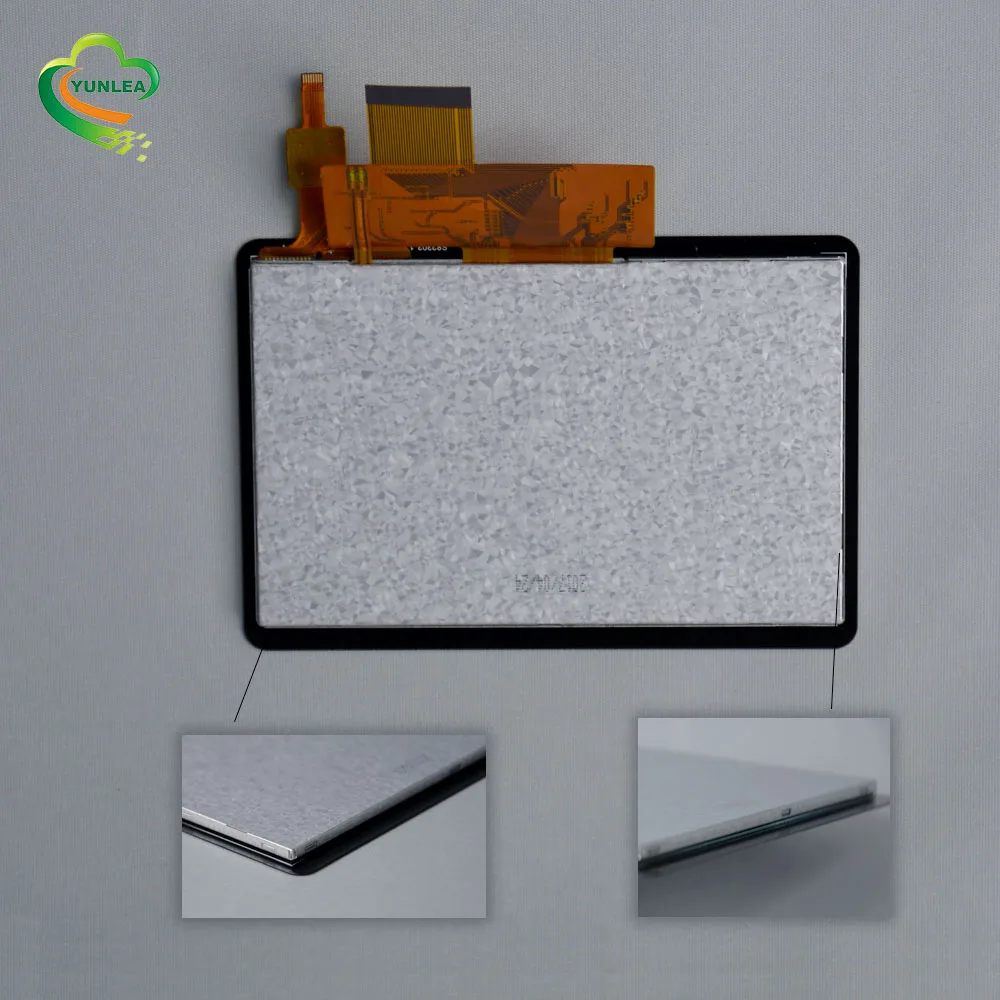

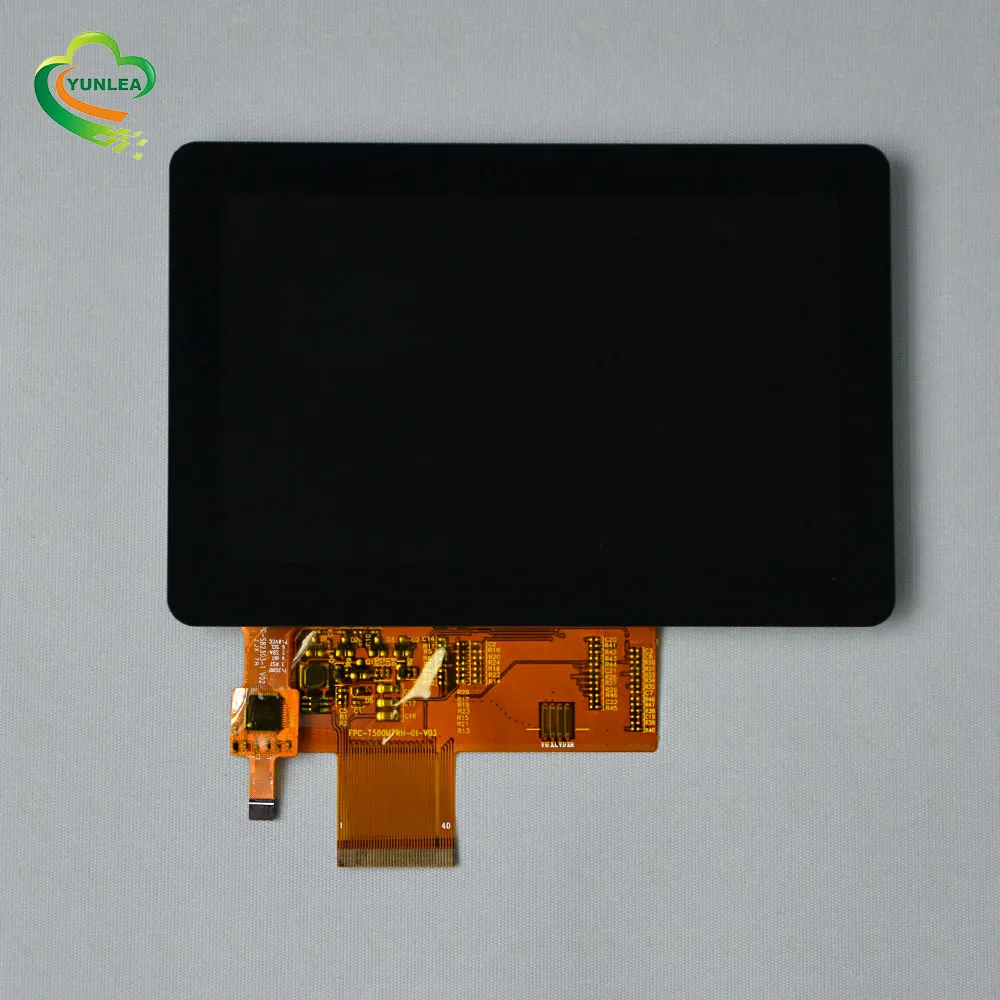

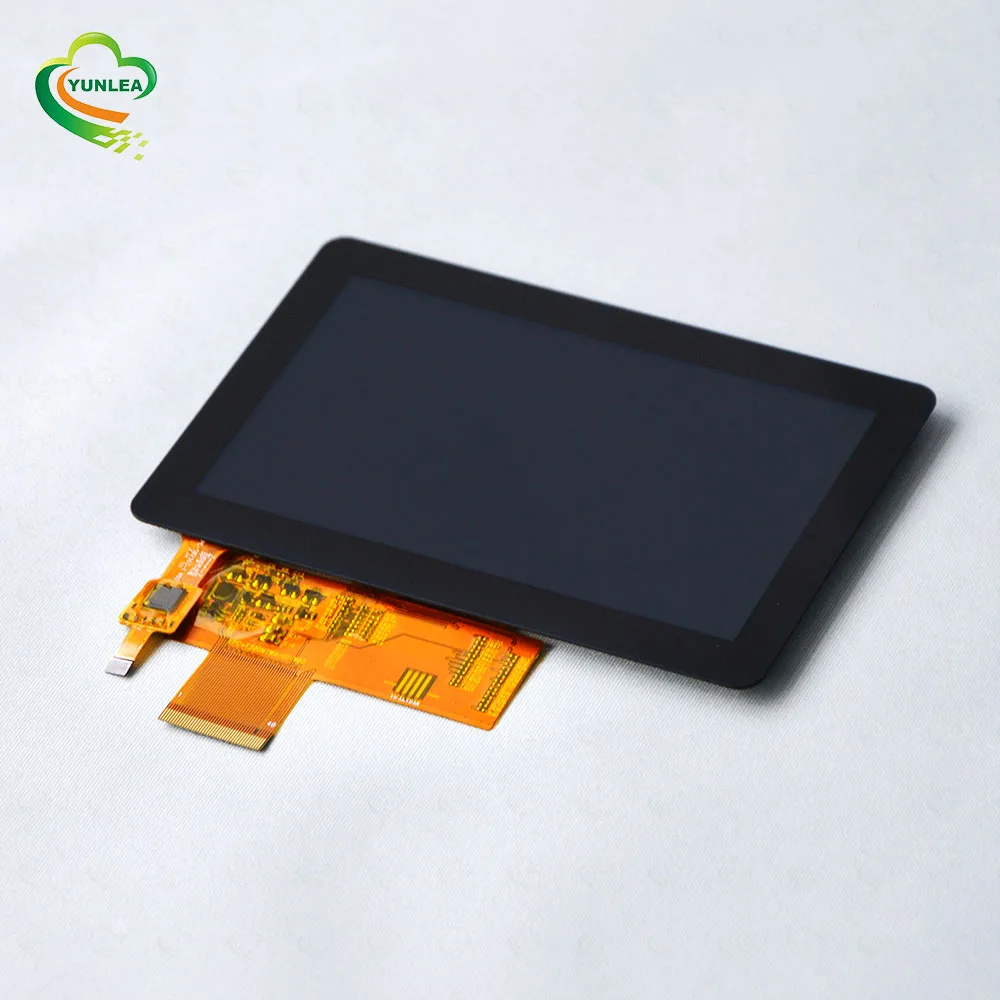

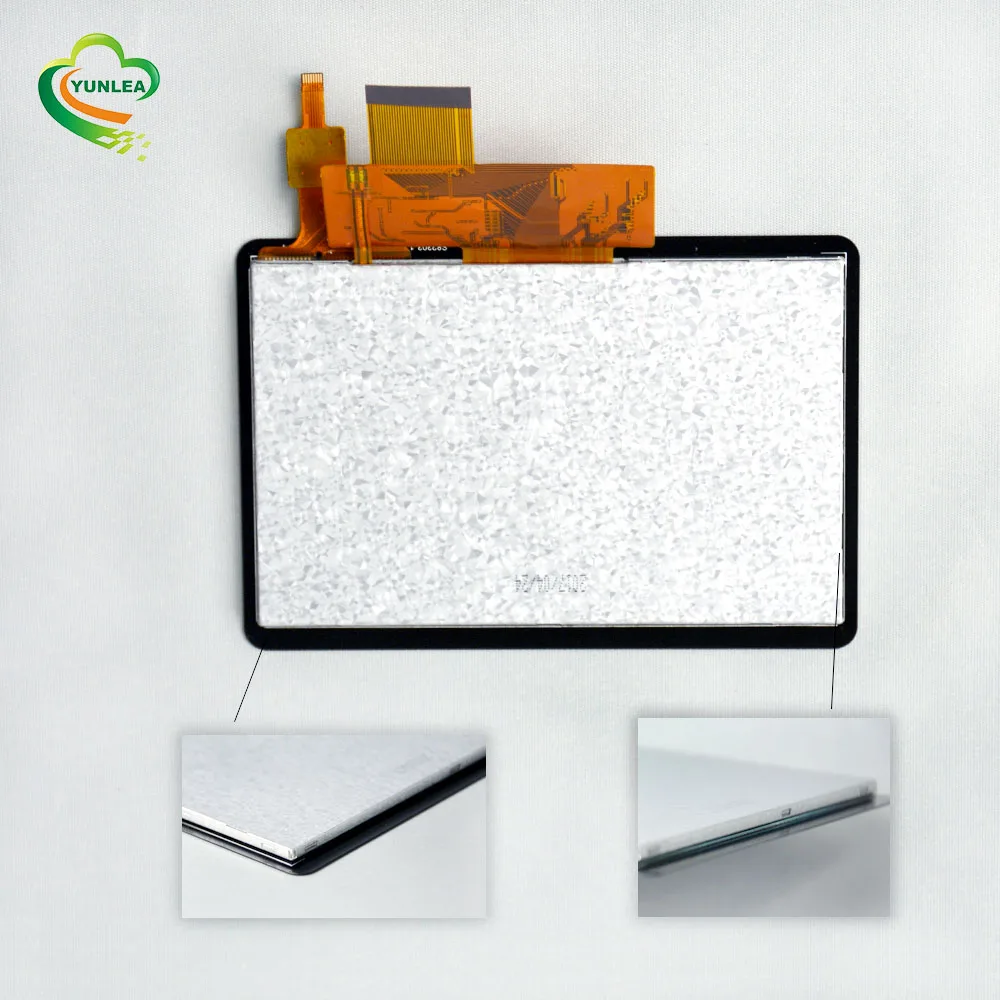

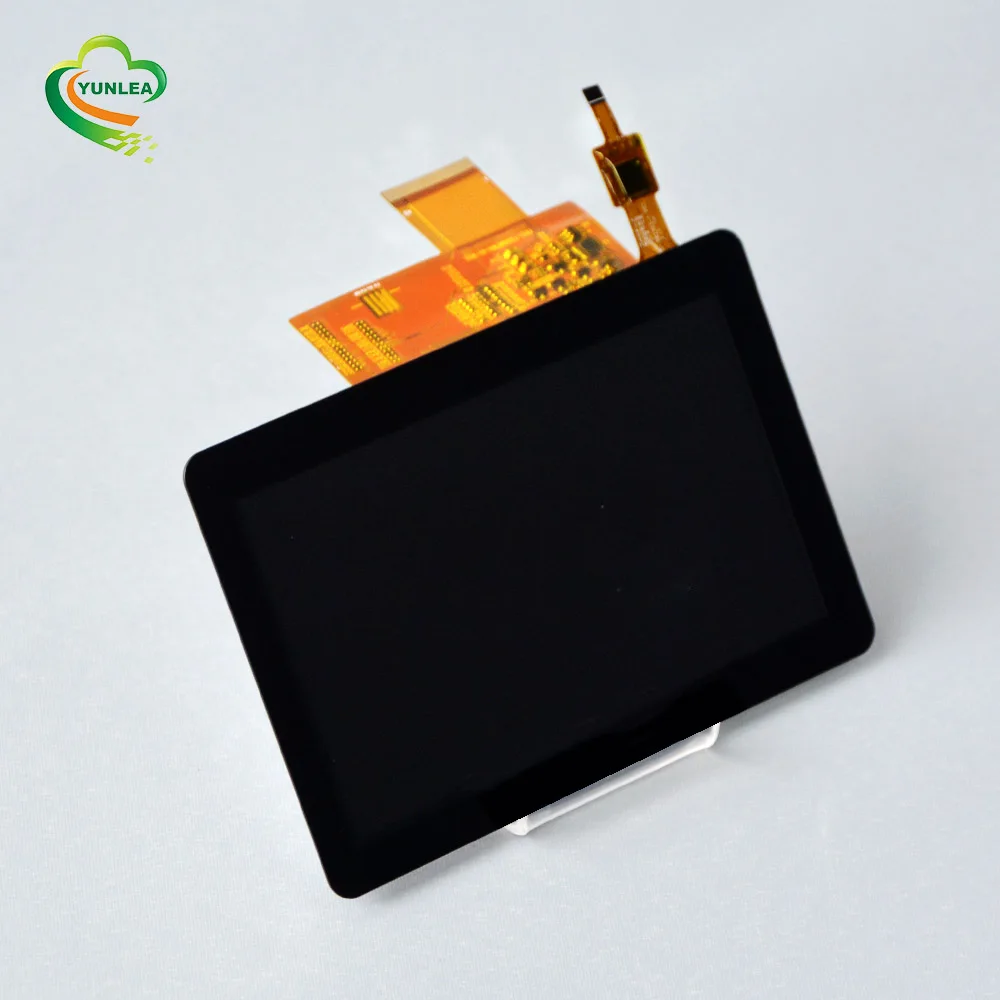

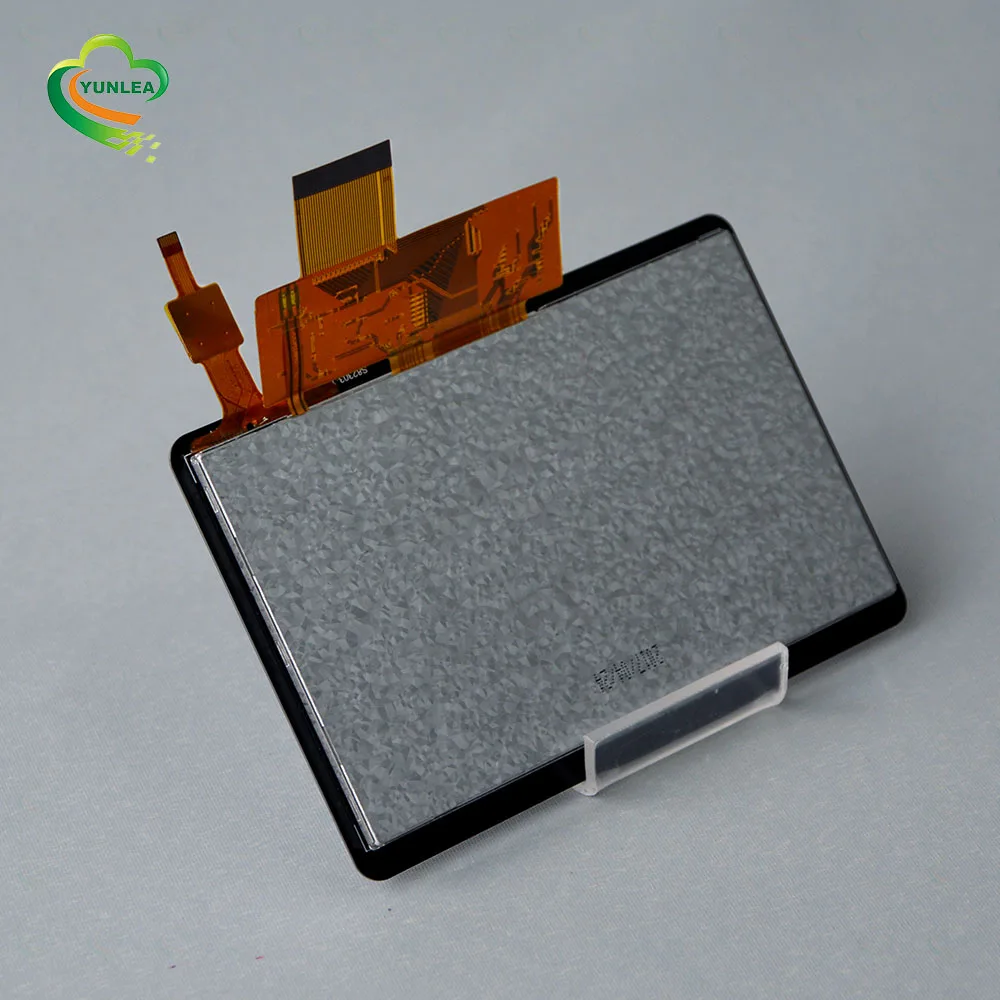

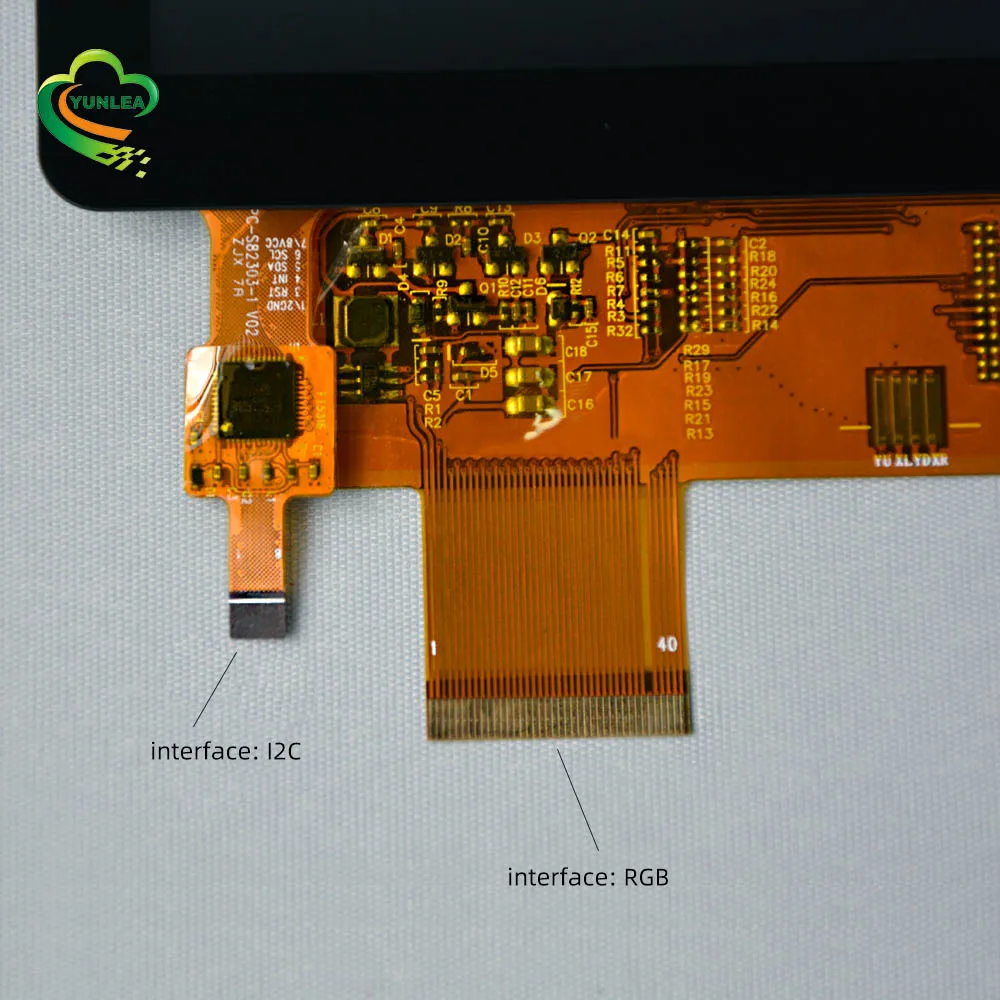

The picture of 5 inch Touch display:
Related product: (Click items you like):
 |  |
| 5 inch Touch screen | 3.5 inch Touch display |
 |  |

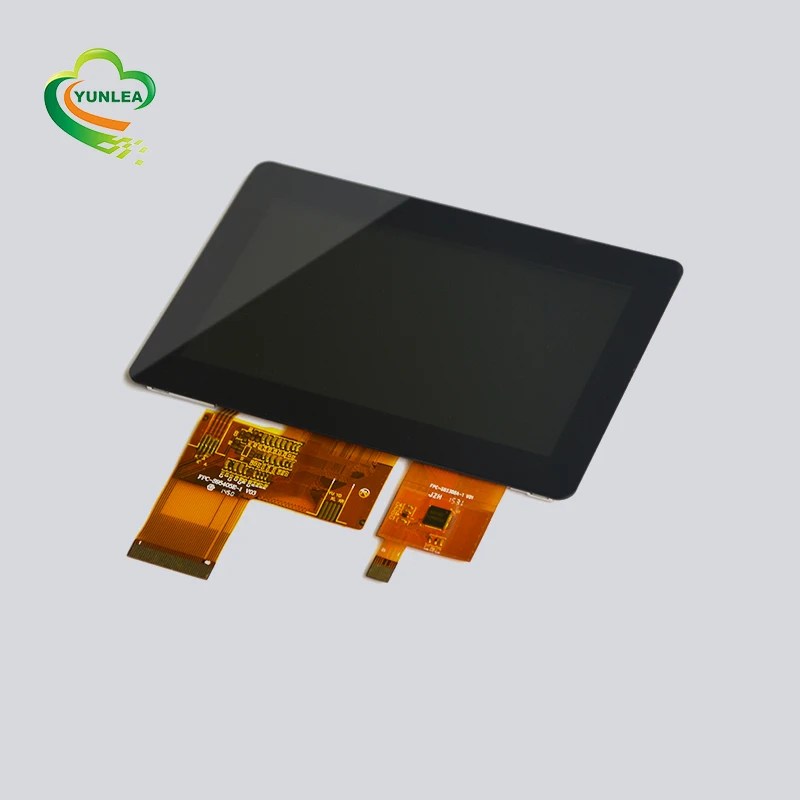

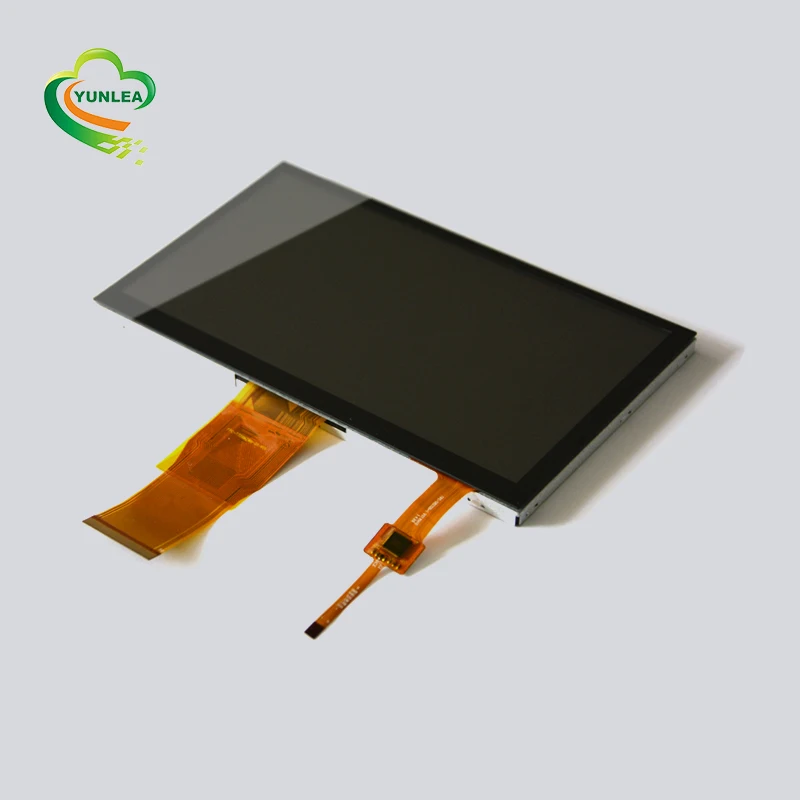

| 4.3 inch Touch display | 7 inch Touch display |
Product catalogue
| Size | Part No. | Outline dimension | Active area | Resolution | TFT interface | CTP interface | Touch controller | color | |
| 3.5 | YL035MY01 | 66.86x94.94 | 48.96x73.44 | 320x480 | RGB 18 bit+SPI-3 | I2C | Mstar 2133A | Black | click here |
| 4.3 | YL-S99816D | 114x77x4.88 | 95.04x53.86 | 480x272 | RGB | I2C | FT5346 | Black | click here |
| 5 | YL050MY01 | 127X85.8 | 108X64.8 | 800X480 | RGB | I2C | FT5436 | Black | click here |
| 7 | YL070MY01 | 164.9x100 | 154.08x86.42 | 800X480 | RGB | I2C | FT5436 | Black | click here |
| 10.1 | YL101MT02 | 235X143 | 222.72X125.28 | 1024X600 | LVDS | I2C | GT928 | Black | click here |
| 10.1 | YL101TT05 | 255X178 | 216.96X135.6 | 1280X800 | LVDS | I2C | GT927 | Black | click here |
| Size | Part No. | Sesnor OD | LENS OD | LENS T | window VA | CTP interface | Touch controller | color | |
| 3.5 | YL035CY03 | 82.34x56.86 | 94.94x66.86 | 0.7 | 74.94x50.36 | I2C | Mstar 2133A | Black | click here |
| 4.3 | S82327H | 103.10x85.40 | 114x77 | 0.7 | 96.04x53.86 | I2C | FT5346 | Black | click here |
| 5 | YL050CY01 | 120.7X75.8 | 127X85.80 | 0.7 | 109X65.8 | I2C | FT5436 FT5316 | Black | click here |
| 7 | YL070CY01 | 159.70x94.10 | 164.90x100 | 0.7 | 154.08x85.92 | I2C | FT5436 | Black | click here |
Customized solution
We have standard 3.5-55 inch Touch screen.So if our standard one can't fit with your project.We are welcome you to customized own touch screen.If you have any demand ,pls don't hesitate to contact with me.
We can according to your demand to customized your touch screen like customized cover glass's shape,silk-printing color,touch with water,touch with gloves and so on.If you are interested in,pls click it to watch the video.
Company Information
Shenzhen Yunlea Electronics Co., Ltd.
YUNLEA is is a leading designer and manufacturer of Capacitive Touch Panel, And we have rich experiences in medical & industrial & home automation& products supply.
Our strength lies in understanding the special needs of clients, to provide the most suitable products and professional technical supports.
Why choose Yunlea?
Yunlea have :
1.5000 m2 factory area
2.10 years touch screen experience
4.Stronger engineer team and 24 hours -7 days Online service
5.High quality&low price and high reliability of our touch screens and Ensure long-term supply
Yunlea can do:
1.ITO sensor glass/ ITO sensor film/ Touch screen panel/ Touch display
2.We have some standard products (3.5 inch to 55 inch PCAP )in stock and no tooling request
2. Customized available : size, FPC,logo printing, silk-printing color
3. Special Treatment :AG/AG/AF ,Water-proof,With glove touch
4. Touch controller: ilitek, EETI ,Goodix, Focaltech and so on.
3.Short lead time,15 days for customized product,2-4 weeks for mass production
Our client:
If you come to China, welcome to visit our factory.We will show you how touch screen is made.
Packaging & Shipping
Yunlea always give every client the perfect package.
Customer feedback
Yunlea sincerely provide best service and high quality.So most of them very satisfied with our product.Pls see the feedback as follow:
FAQ
1.What is your delivery method?
DHL , UPS , FEDEX ,TNT
2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
3. Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
5.What is the Product MOQ?
Different product has the different MOQ, please contact us sales for detailed information.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
