Wood Door Floor Ruopotyooil Paintingrd Wood Planer Moulder for Solid Four Side Moulder Bull Nose Planer 160 Max.planing Depth
- Category: >>>
- Supplier: Qingdao High-Class Service Import & Export Co. Ltd.
Share on (62115158765):
Product Overview
Description
Product Description
Professional Solution: four-side planing,Fit for making wood floor,wood door and hard wood line,ect.Can do deep cutting.
Several kinds of different spindle distribution,and supply optional configuration,meeting the different processing requirement.
Several kinds of different spindle distribution,and supply optional configuration,meeting the different processing requirement.

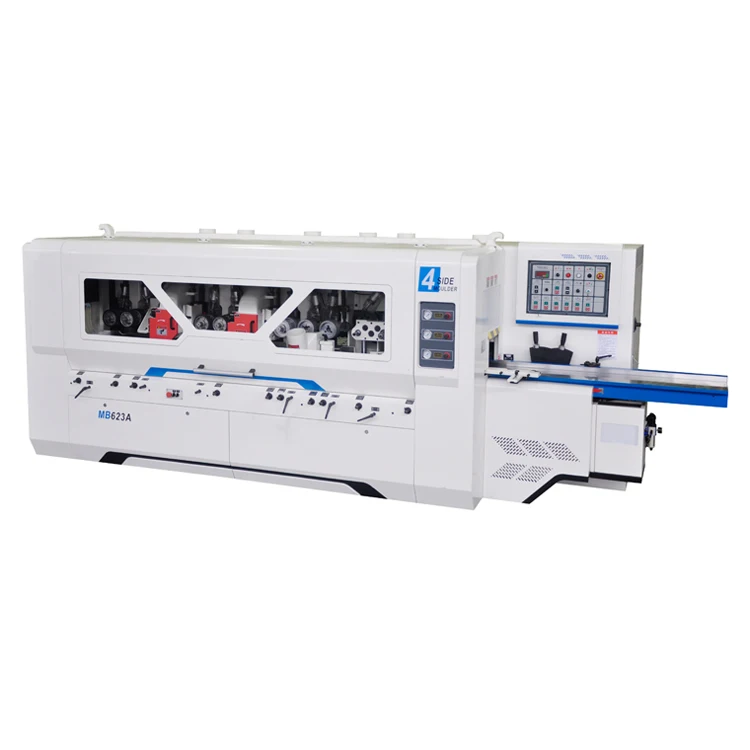

Model | MB623A |
Working Width | 20-230mm |
Working Thickness | 8-160mm |
Min. Working Length (Intermittent/Continuous) | 840/280mm |
Feeding Speed | 6-36m/min |
Spindle Diameter | 40mm |
Bottom Spindle Speed | 6800r/min |
Cutter Dia.First Bottom Cutter | 125mm |
Left/Right Vertical Cutter | 108-180mm |
The First Upper Cutter | 108-180mm |
The First Second Cutter | 108-180mm |
Back Bottom Cuter | 108-230mm |
Total Power | 47.25kw |
The First Bottom Cutter | 5.5kw |
Left Vertical Cutter | 7.5kw |
Right Vertical Cutter | 5.5kw |
The First Upper Cutter | 7.5kw |
The Second Upper Cutter | 7.5kw |
The Second Bottom Cutter | 7.5kw |
Feeding Motor | 5.5kw |
Beam Lifting Power | 0.75kw |
Air Supply Pressure | 0.6mpa |
Vacuum Port Diameter | 6*150mm |
Overall Dimensions | 4960*1900*1700mm |
Weight | 5600kg |
Main Features:

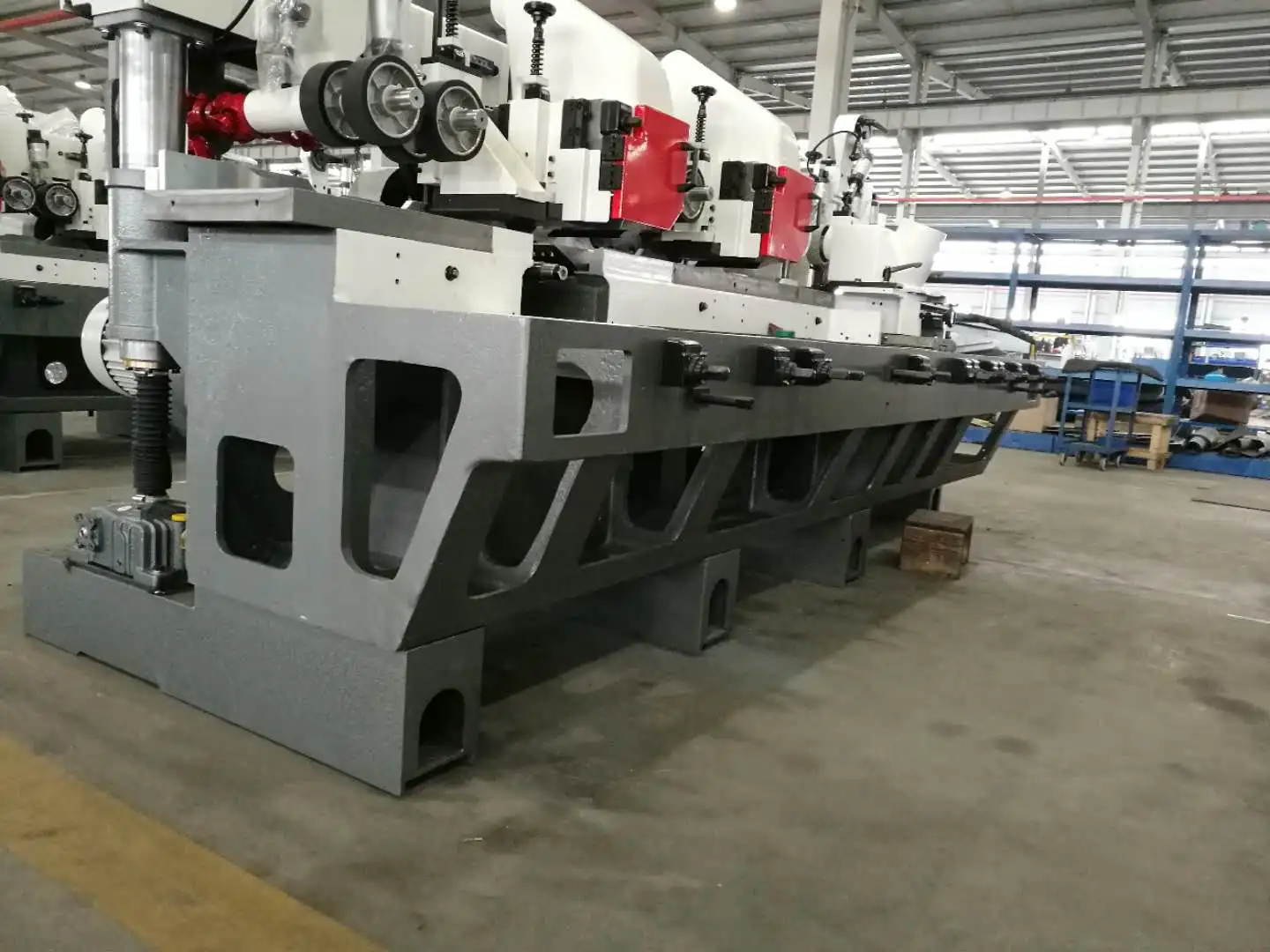

1. This machine adopts integral casting body, which has stable performance, good precision and good rigidity.
2. Fully enclosed safety shield and open door power failure protection, low noise, safe and environmentally friendly;
3. The spindle is precision machined, dynamically balanced, precision assembled, and its operation is stable and accurate.
4. The work surface is made of special materials and special heat treatment, treated with hard chrome plating, and wear resistance;
5. In the middle and the rear of the feeding system, the cylinder is pressed, the pressure is stable, and the adjustment is convenient;
6. Multiple sets of lower driving rollers are used before, during and after the workbench to ensure smooth feeding and strong force;
7. The work surface and the dovetail lubrication are controlled by manual pump, which is convenient and quick;
8. The first flat planer belt trimming sipe, and the front and rear mouth plate is fitted with a diamond plate, which is accurate and wear-resistant;
9. The first lower knife has a flat planing function, and the first and second feeding wheels can be lifted up for manual feeding and planing;
10. The second lower knife has a multi-saw function, which can perform multiple sawing operations;
11. All electrical components and transmission parts are imported with international brands, and the performance is stable;
12. The feeding adopts frequency conversion speed regulation, and the feeding speed reaches 8-36m/min;
1. This machine adopts integral casting body, which has stable performance, good precision and good rigidity.
2. Fully enclosed safety shield and open door power failure protection, low noise, safe and environmentally friendly;
3. The spindle is precision machined, dynamically balanced, precision assembled, and its operation is stable and accurate.
4. The work surface is made of special materials and special heat treatment, treated with hard chrome plating, and wear resistance;
5. In the middle and the rear of the feeding system, the cylinder is pressed, the pressure is stable, and the adjustment is convenient;
6. Multiple sets of lower driving rollers are used before, during and after the workbench to ensure smooth feeding and strong force;
7. The work surface and the dovetail lubrication are controlled by manual pump, which is convenient and quick;
8. The first flat planer belt trimming sipe, and the front and rear mouth plate is fitted with a diamond plate, which is accurate and wear-resistant;
9. The first lower knife has a flat planing function, and the first and second feeding wheels can be lifted up for manual feeding and planing;
10. The second lower knife has a multi-saw function, which can perform multiple sawing operations;
11. All electrical components and transmission parts are imported with international brands, and the performance is stable;
12. The feeding adopts frequency conversion speed regulation, and the feeding speed reaches 8-36m/min;

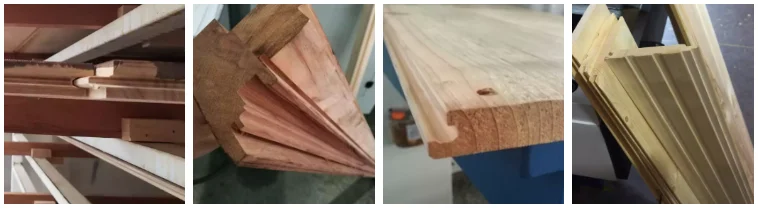

Final Product
Related Products
Packing&Shipping
Company Introduction
1.15 years woodworking machinery experience
2. 8 years exportation experience
3. Engineer team with +20 years experience
4. We joined Alibaba Trade Assurance to make sure the buyer’s benefit.
5.Guarantee and After-sale service:
a. 12 months warranty for the whole machine
b. Technical support by phone, email or WhatsApp/Skype around the clock.
c. Friendly English version manual and operation video CD disk
d. Engineer available to service machinery overseas.
2. 8 years exportation experience
3. Engineer team with +20 years experience
4. We joined Alibaba Trade Assurance to make sure the buyer’s benefit.
5.Guarantee and After-sale service:
a. 12 months warranty for the whole machine
b. Technical support by phone, email or WhatsApp/Skype around the clock.
c. Friendly English version manual and operation video CD disk
d. Engineer available to service machinery overseas.
6. Customer Feedback
7. Our company and products have been verified onsite by SGS Group
