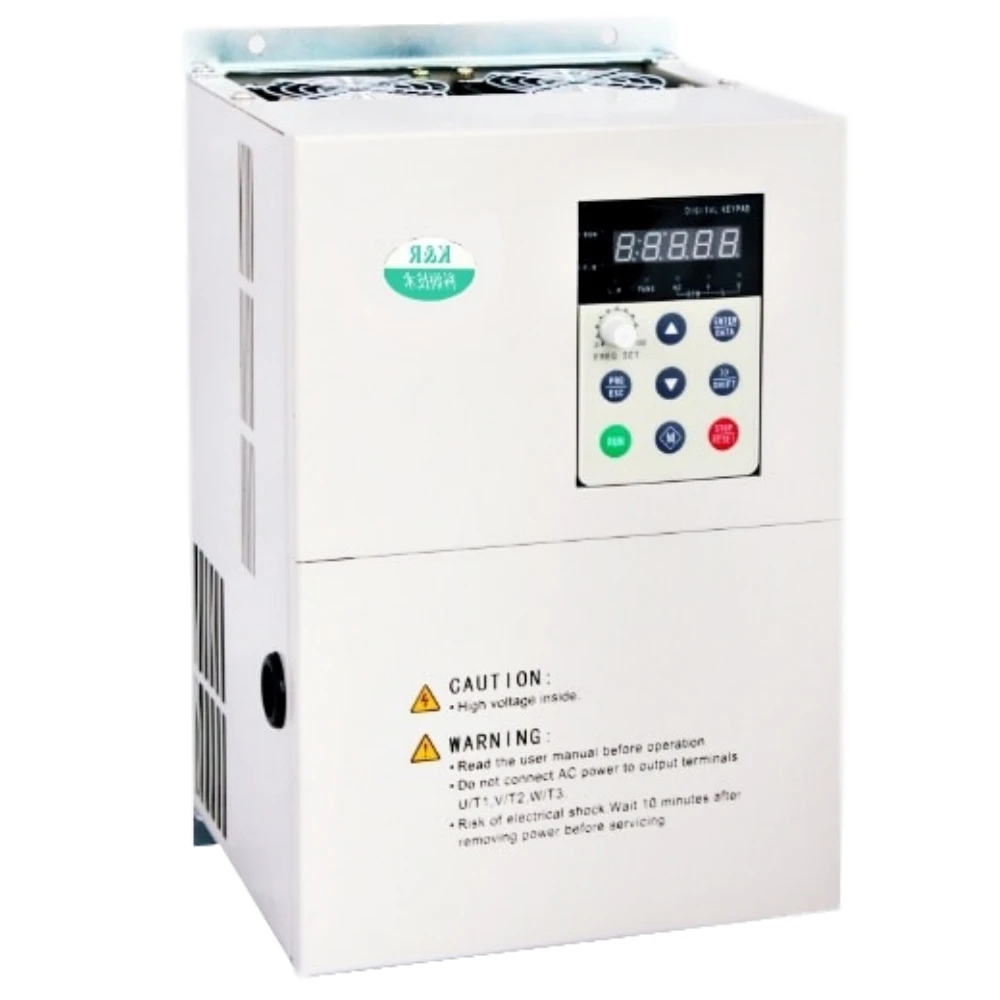

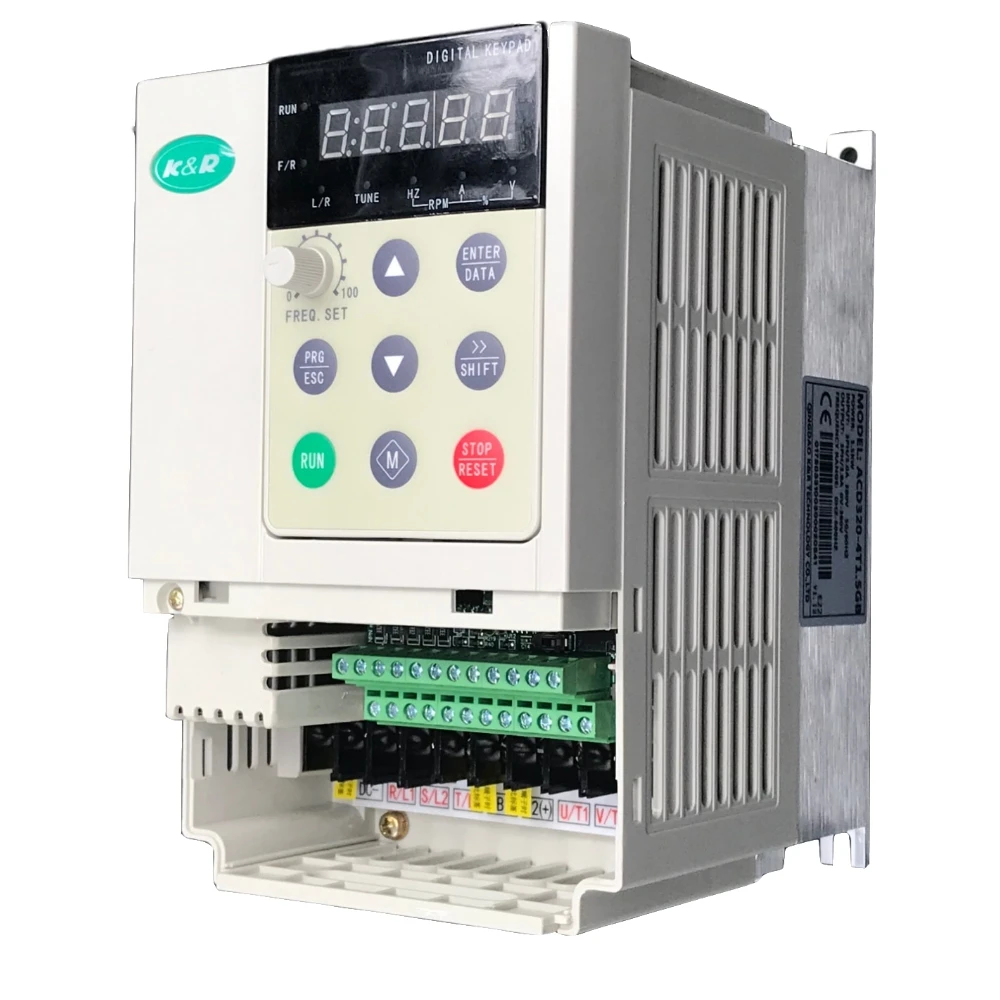

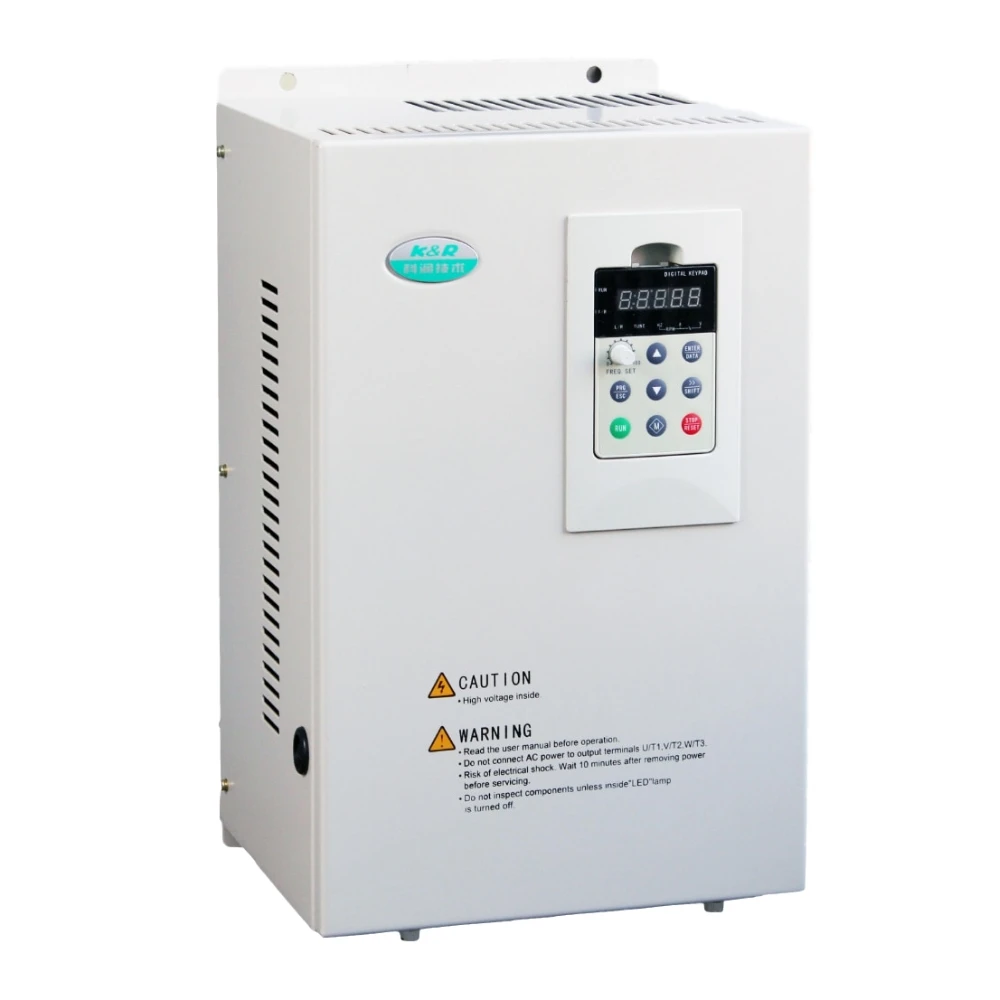

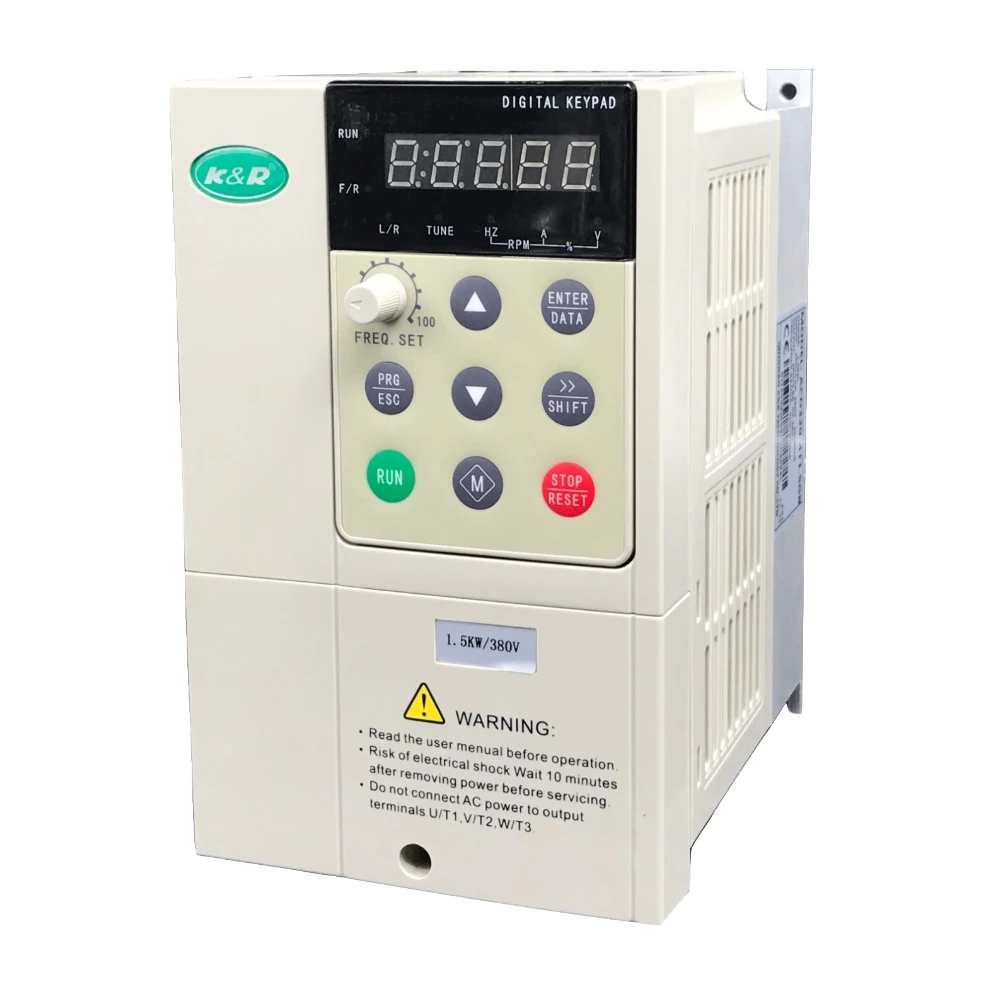

3HP/2.2KW 220V Single phase input variable frequency inverter for ac motor speed control
- Category: >>>
- Supplier: Qingdao Speedo Industry & Commerce Co. Ltd.
Share on (62115223847):
Product Overview
Description
Product Description

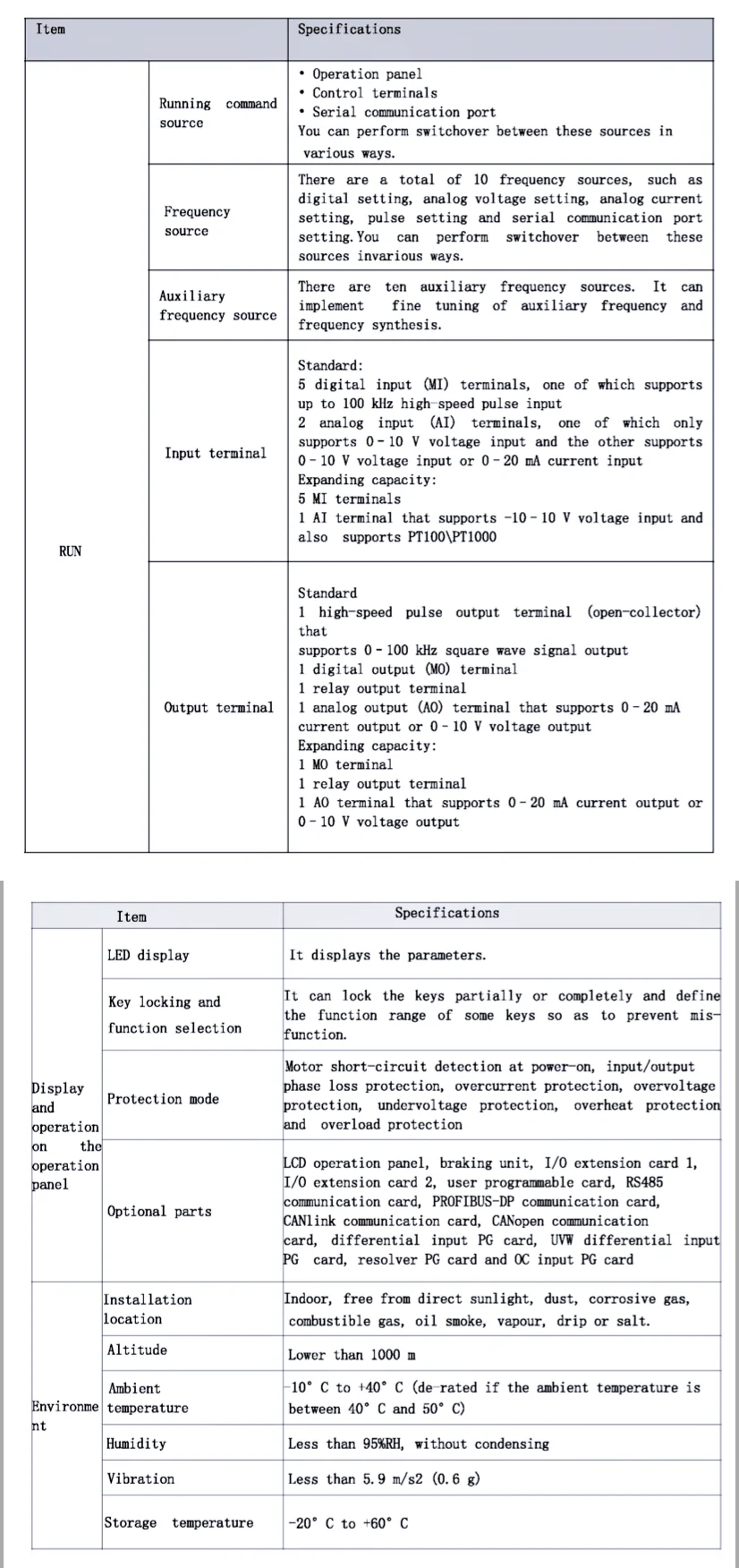

Specifications:
Model:ACD600-2S2.2GB
Power: 3HP/2.2kw
Input Voltage:AC 220V 1 phase,Input Current: 27A
Model:ACD600-2S2.2GB
Power: 3HP/2.2kw
Input Voltage:AC 220V 1 phase,Input Current: 27A
Output Voltage:0~220V 3 phase,Output Current: 9.6A
Inverter Capacity:3.8KVA
Temperature:-10℃~40℃
Cooling method: air-cooled, with fan control
Color: Gray-white
Weight:3KG
Humidity:0~95% Relative humidity(without dew)
Package Include:
1 Variable frequency drive
1 English Manual
Inverter Capacity:3.8KVA
Temperature:-10℃~40℃
Cooling method: air-cooled, with fan control
Color: Gray-white
Weight:3KG
Humidity:0~95% Relative humidity(without dew)
Package Include:
1 Variable frequency drive
1 English Manual
3HP/2.2KW 220V Single phase input variable frequency inverter for ac motor speed control
1hp/0.75KW 220V Single phase input variable frequency drive inverter

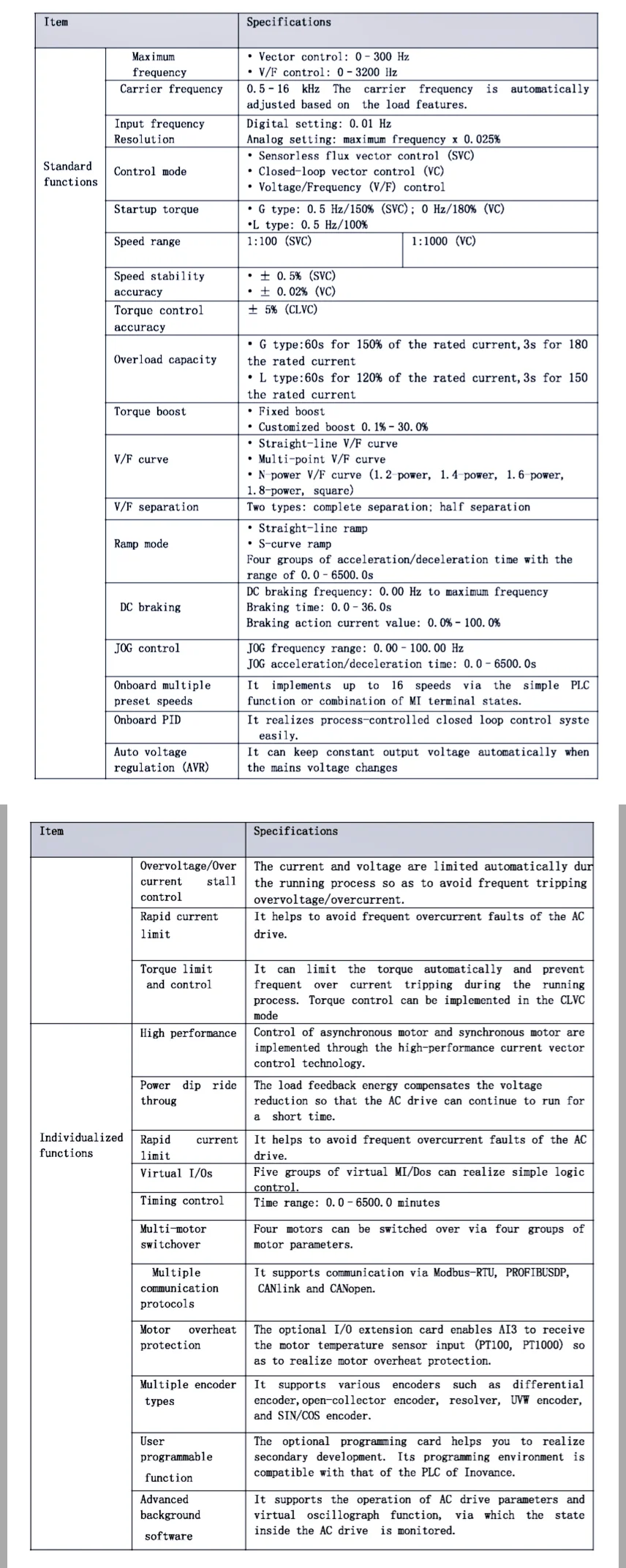

Technical Features
1. Powerful current vector control performance.
2. Rich expansion card selection.Powerful enough to support a variety of field bus.
3. Vector controlling of three-phase AC asynchronous motor and three-phase AC motor at the same time.
4. Supporting user programmable control card (PLC card) and programming method is fully compatible with H1 (J series PLC).
5. Rich control modes including there are no speed sensor vector controlling, speed sensor vector controlling, V/F control, and WF separation supporting control.
6. Rich field bus supports Modbus-RTU and can open these two kinds of the bus.
7. Rich types of encoders supporting differential encoder, open circuit collector encoder, rotary encoder, and UVW encoder.
8. The new SVC (speed sensor-less vector control) algorithm, which brings better low-speed stability and stronger low-frequency load carrying capacity, can support SVC's torque control.
9. Powerful background software can realize the function of the frequency converter parameters, such as uploading, downloading, real-time oscilloscope and so on.
2. Rich expansion card selection.Powerful enough to support a variety of field bus.
3. Vector controlling of three-phase AC asynchronous motor and three-phase AC motor at the same time.
4. Supporting user programmable control card (PLC card) and programming method is fully compatible with H1 (J series PLC).
5. Rich control modes including there are no speed sensor vector controlling, speed sensor vector controlling, V/F control, and WF separation supporting control.
6. Rich field bus supports Modbus-RTU and can open these two kinds of the bus.
7. Rich types of encoders supporting differential encoder, open circuit collector encoder, rotary encoder, and UVW encoder.
8. The new SVC (speed sensor-less vector control) algorithm, which brings better low-speed stability and stronger low-frequency load carrying capacity, can support SVC's torque control.
9. Powerful background software can realize the function of the frequency converter parameters, such as uploading, downloading, real-time oscilloscope and so on.

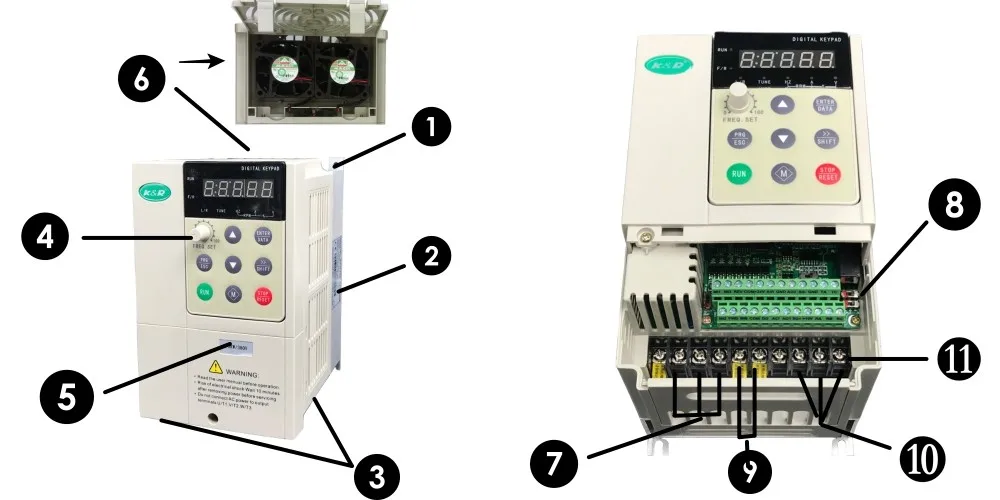

Explanation
Packing & Delivery
Certifications
Company Profile
Qingdao K&R Technology Co., Ltd. is a professional converter manufacturer with research and development, production, sales and service as a whole. The company started in 2010 and located in the High-tech Industrial Development Zone of Qingdao. With convenient transportation, good human environment, and strong scientific research atmosphere, which creates a positive team and a brilliant national "converter" brand.
The goal of our company is to become the most outstanding converter manufacturer, producing high quality and technology product. By reliable product standards, competitive prices and efficient service, we are looking forward to forming a long-term business relationship with you. With all our staff standing by to provide the service you deserve, we expect to cooperate with your company soon.
Advantage of Us
As a manufacturer, we mainly produce Variable Frequency Drive, Soft Starter, Pump System.
\tOur manufacture started in 2009, we have 10 years experiences in sell, technology service and, sales service. As the second tier of variable frequency drive company in China, we produce high technology and quality products.
The advantages of us \t1. Provide direct factory price
\t2. Close to port, convenient and fast delivery
\t3. Compare with other domestic manufacturers, we have a high cost-effective
\t4. Offer sales service and technical support timely
5. Provide a variety of payment
Exhibition
FAQ
Q 1: Are you a trading company or manufacturer?
A: We are a manufacturer.
Q 2: How long is your delivery time?
A: Generally it spends 4-8 days if the goods are in the stock. Or it takes 10-20 days if the goods are not in the stock, it is depending on quantity.
Q 3: Do you provide samples? Is it free or extra?
A: Yes, we could provide the sample, but it charges the sample fee and the cost of freight.
Q 4: What are your terms of payment?
A: We accept T/T, L/C, Paypal, and cash.
Q 5: What is the standard of package?
A. Export standard package or special package according to customer requirement.
Q 6. Is there any discount?
A. The discount will depend on the quantity that you purchase.
Q 7. What is your supply capacity?
A. The month output of the factory exceeds 1500 PCS.
Q 8. Do you provide warranty for the goods?
A. Yes, we provide 18 months of warranty.
Q 9. Do you provide technical support?
A. Yes, feel free to contact us if you have a technical problem.
