1.The specifications for all the install screw and self- locking is M16(DIN931.Q8.8)
2.The specifications for grommet is M1730MM.
3.The biggest gap between support and cylinder is
2mm.
4.Make sure the hydraulic cylinder vertically ,up
and down two parallel shafts when installed.
5.The installation should be greater than the center
distance between the closed hydraulic cylinder
center distance 20mm-30mm.
Six advantages for hydraulic
More secure
Faster unloding speed.
The lifting frequency higher
A stronger ability to adapt to the environment
Lighter
Lift more
Application:

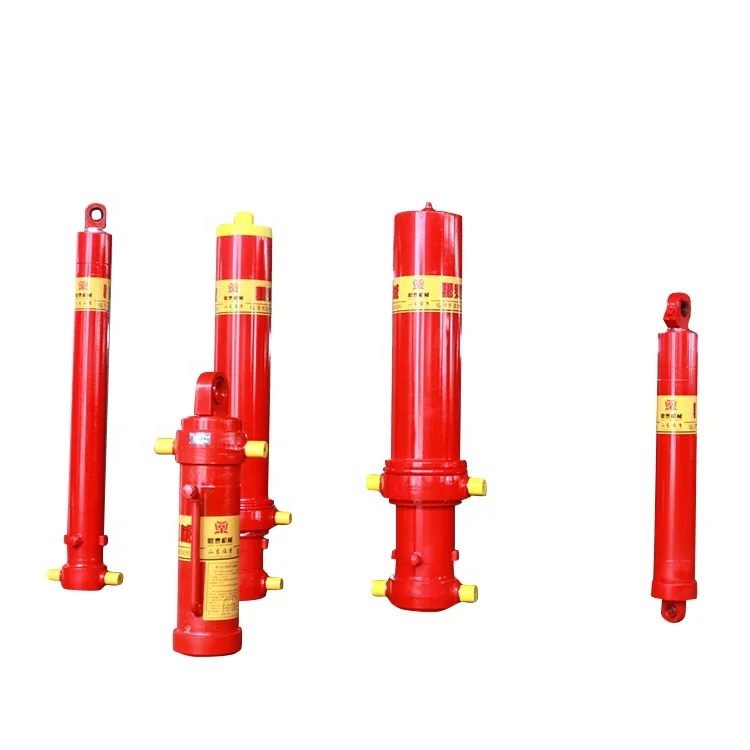

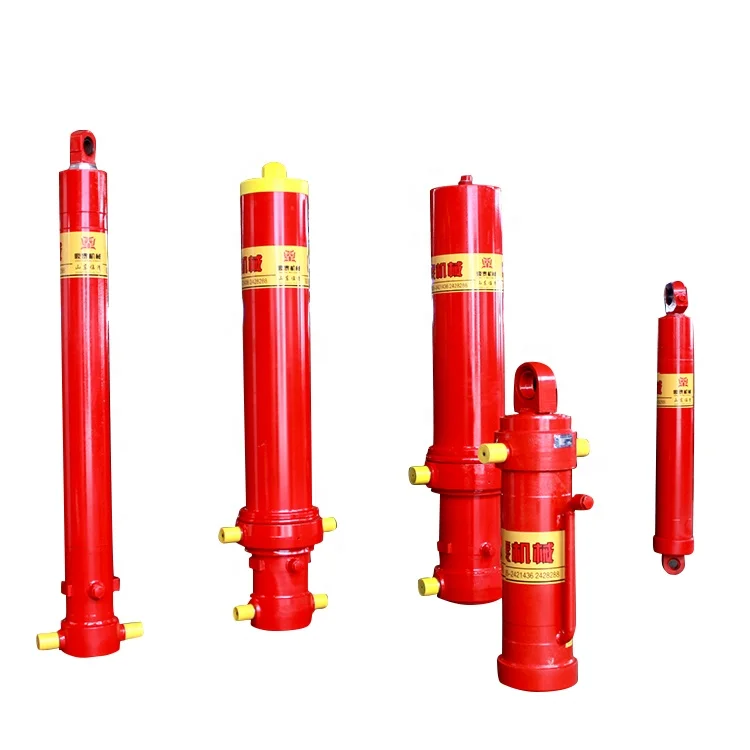

Other products show:
Stroke(mm)
100~20000
Bore(mm)
30~2000
Rod diametre(mm)
25~2000
Working pressure(Mpa)
5~160
load capacity(ton)
5~110
Weight(kg)
20~1000
Materials
stainless steel
Mounting style
Flange type or double earring type or shaft pin or as other require
Wall thickless
depend on the bore
Temperature
-30~70
pre-sample time
4~5 days after received the depoist
Company Information
Our Services
We have more than one decade experience in supplying custom hydraulic cylinders with provided drawings or samples, or if you could provide following specification:
• diameter of bore & rod
• stroke • mounting style • mounting distance • working pressure • ports • seals • special modifications
Packaging & Shipping
FAQ
1.Are you a trading company or manufacture?
-Manufacture of 14 years experience,welcome to our factory to see our product.
2.What's the best delivery time?
-Usually 20 days.(We have many part in stock and expediting service is available.)
3.Is your price the lowest?
-No.We offer top quality and services at reasonable price.
4.Why will buy from you?
-Never tires never gains.We provide not only competitive products of high quality.
5.How about your after sales service?
-If have any problem,you can contact us and we will leading you to slove any questions.
