Geosynthic production line,Geosynthic equipment

Product Overview

Description

 Geosynthic production line,Geosynthic equipment:geocell production line

     Our company manufacturing production line equipment Geocell is determined by more than one combination of ultrasonic plastic welding machine adopts imported PLC control has the following advanced features:

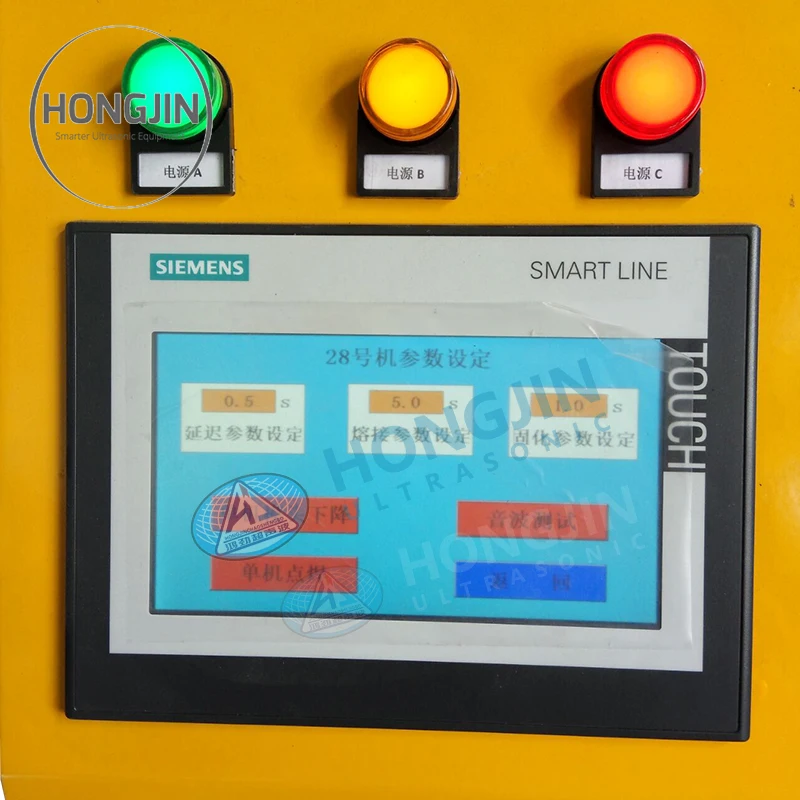

    1, touch-screen display and parameter setting, imported piezoelectric ceramic transducer, the output strength and stability.

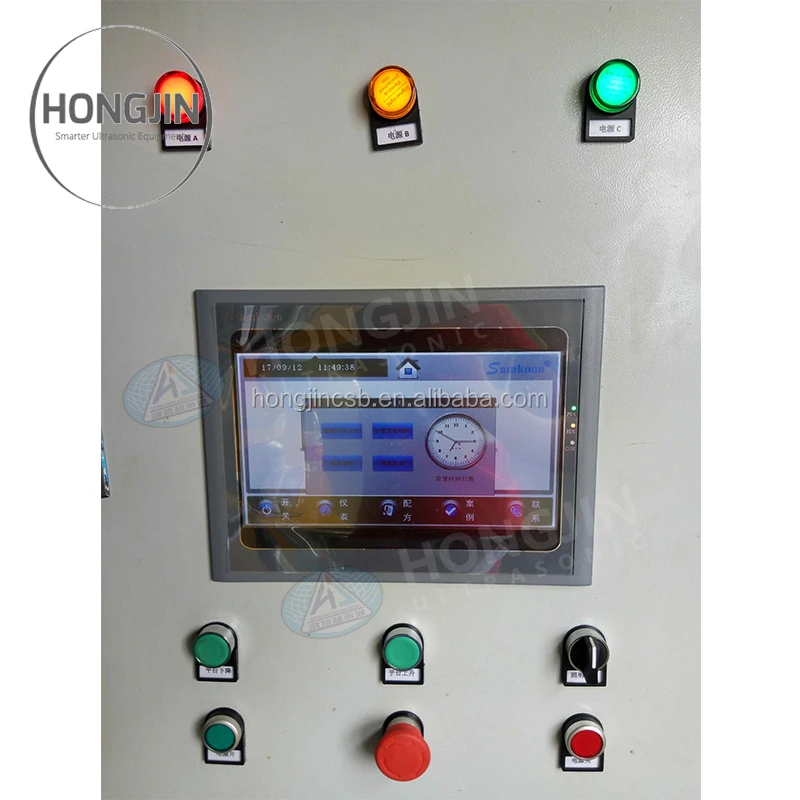

    2, color display touch-screen control panel.
    3, all-Chinese menu, with multi-language you set, easy to use.

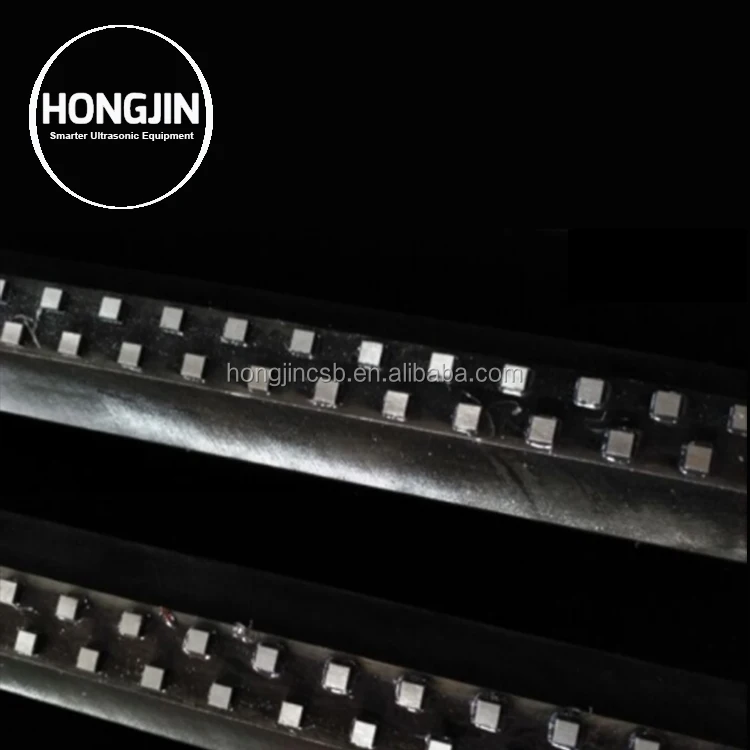

    4 levels of adjustable mold design, mold fast and easy adjustment.

    5, the new power amplifier circuit, power is more robust, more durable transducers,
    6, frequency automatic tracking, a variety of parameter settings. High degree of automation in the domestic production of similar products in the leading position.

 Geocell equipment specifications sheet

Geocell welding mold-digit	HJM-11	HJM-14	HJM-18	HJM-22
No.of welding heads	11 unit	14 unit	18 unit	22 unit
Max. Power	28.6KW	36.4KW	46.8KW	57.2KW
Ultrasonic Vibrating Power	16.5KW	21KW	27KW	33KW
SIZE OF THE EQUIPMENT  (L*W*H)(M	6.5*1.89*2.26	7*1.89*2.26	8*1.89*2.26	9*1.89*2.26
WEIGHTNESS	5TONS	5.5TONGS	6TONS	6.5TONS
POWER	AC380V N 50-60HZ
AIR PRESS	0.6~0.9MPa
AIR COMPESSOR DISPLACEMENT	≥2.5~3.0/min
VOLOUM OF AIR COMPRESSOR AIR STORAGE	1.5~2.0M3	2.5~3.0M3
WELDING DISTANCE SCOPE	220-1000mm
GEOCELL STRIP WIDTH	220MM MAX (ADJUSTABLE ACCORDING TO THE SIZE OF WELDING HEAD)
DAILY OUTPUT (REF)	1500SQM	1800SQM	2200SQM	3000SQM

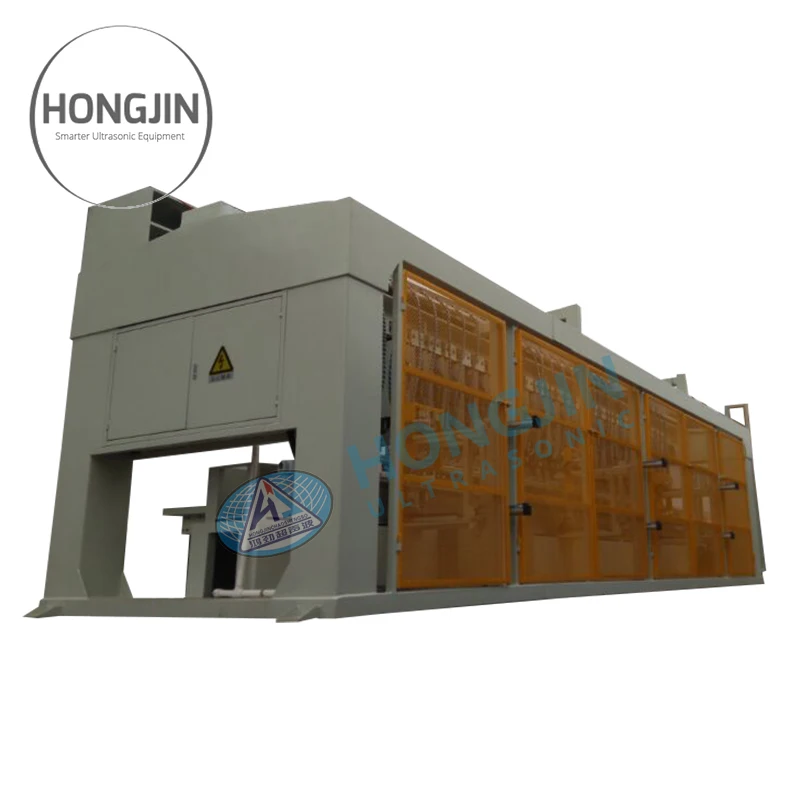

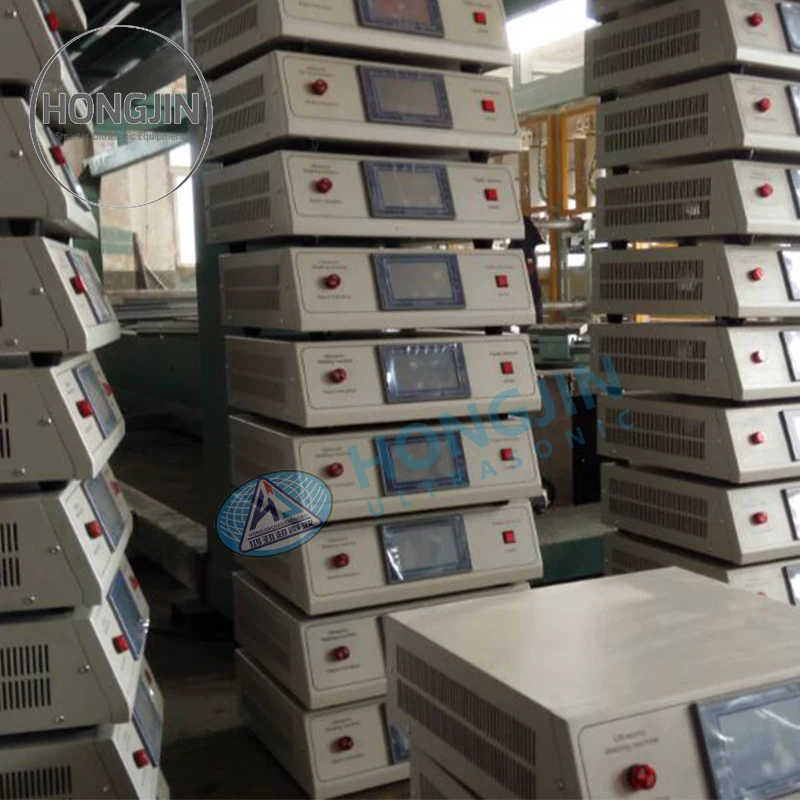

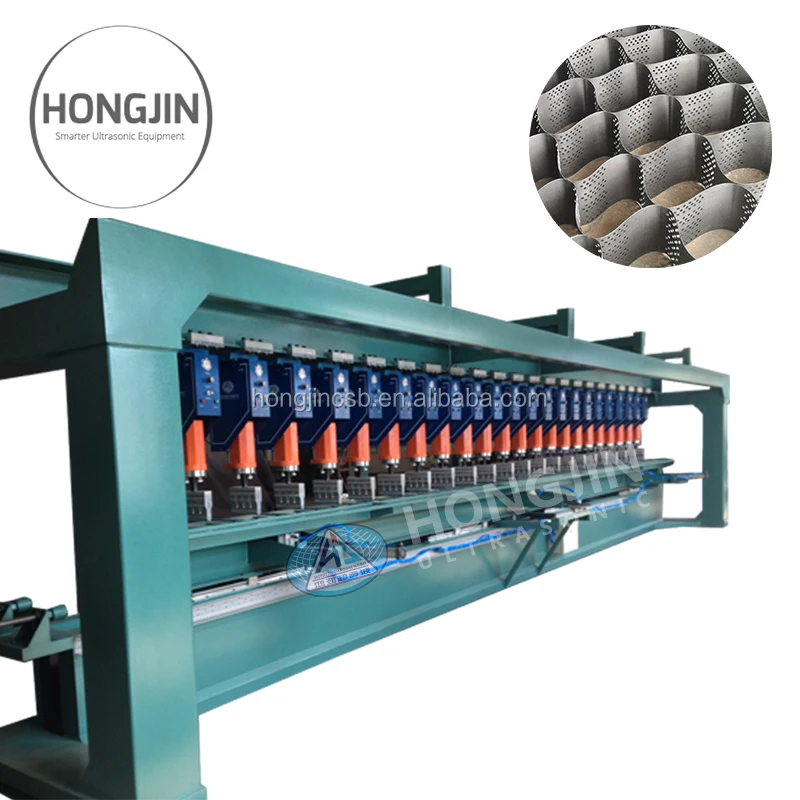

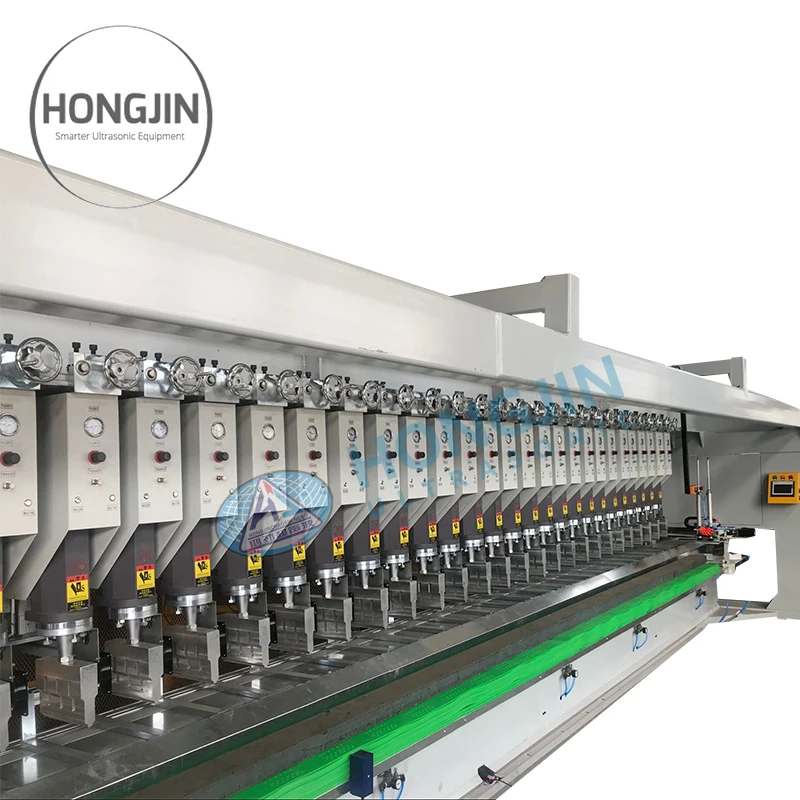

Geocell equipment picture:



Contact Imformation
Contact Person	Diana zhang
Phone Number	86+18017923790
E-mail Adress	shanghai at hongjincsb.com
Website	www.shanghaihongjin.com
ADD:	175#Lihong Road jiading Industrial District,Shanghai China.

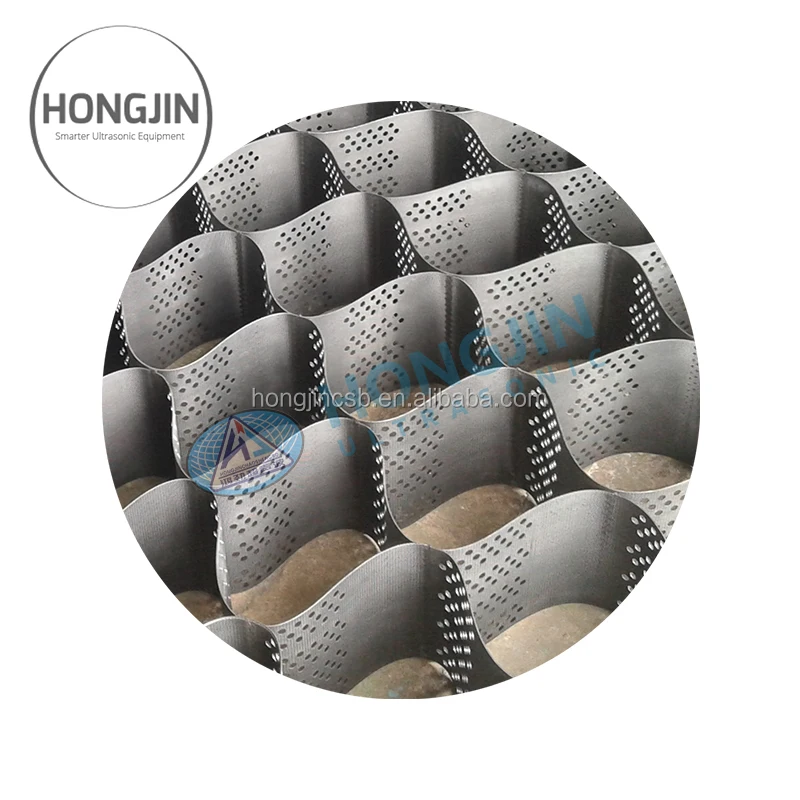

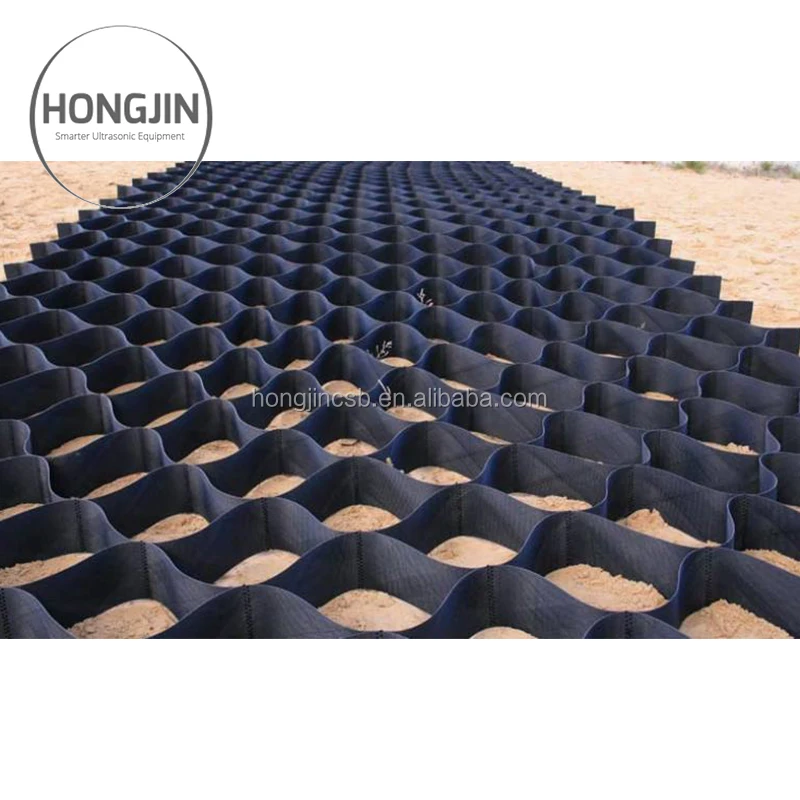

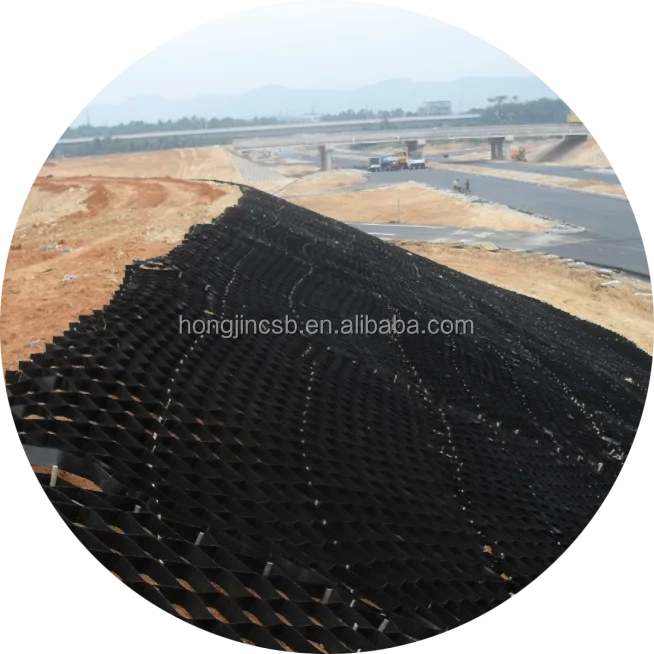

Geocell use for :

1 stabling the roadbed of railway.

2 geocells provent detritus and gradation moving in landscape orientation,firm the whole roadbed,stop collapse occurring,increase road using time obviously in area where traffic is heavy.

3 outspreaded geocells produces high elastic force,reduve more then 50% foundation thickness liken to traditional stone founfation and detract gravity and  press in landscape orientation.

4 Bearing loading press in  dykes and walls.

5 Geocells form a cetain construction to prevent press in landscape orientation,can be projected staged.

6 Administering shallow water river way

7 Be paved in riverside slopes in outspreading form ,geocells slow up water walloping ,stable riversieds bed and support procreation to grow.
