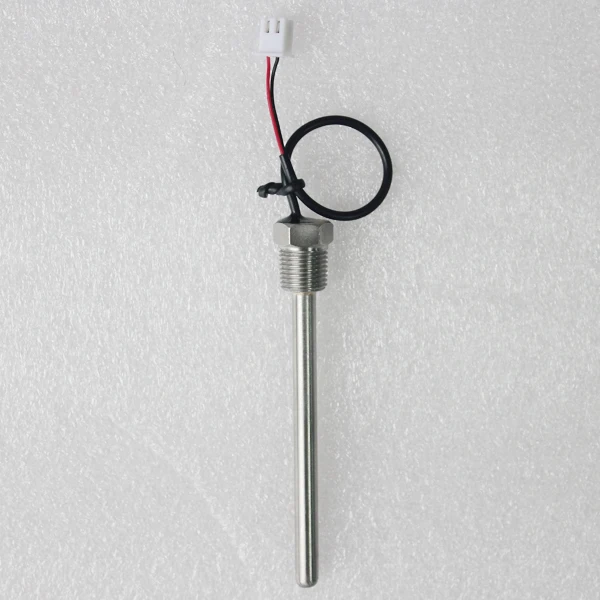

Good Precision NTC 50k Sensor Thread Probe

Product Overview

Description

Most Popular NTC 50k Sensor :



Features:

• 1. Wide operating temperature range, good stability and reliability.


• 2. Easy to installation and manipulation as the sealing can be done according to environment and conditions there it is applied by customer.


• 3. Accurate testing can reflect temperature change precisely.


• 4. Insulating resistance(MΩ): over 100MΩ at DC500 V


• 5. Working temperature range(°C): -50 to +150


• 6. Dissipation factor(mw/°C): 1-2 (in still air)


• 7. Thermal time constant(s): within 10-25 sec (in air)

   Parameters:

• R@25°c : 1k-100kΩ.


• R@25°c precision value: ±1%, ±2%, ±3%, ±5%, ±10%.

B@25°c/50°c: 3270, 3380, 3470, 3550, 3700, 3950,3977, 3990, 4100,4200K etc





*Can be produced with different size&material probes as follow for reference:

probe material:copper,stainless steel,epoxy,PVC,ABS,TPE..

probe size: 4*20mm,4*50mm,5*25mm,6*25mm,6*30mm,6*50mm,6*100mm,7*25mm,7*38mm,8*25mm,8*30mm...

*Can be produced with different size&material cables as follow for reference:

cable material:PVC,TPE,Silicon,PTFE

cable size:22AWG,24AWG,26AWG,28AWG...

*Can be produced with different connectors as follow for reference:

2Pin-XH/YH/EH/SH/PH/VH,2Pin-2510....



Application:

• Wide variety of applications.Household appliances such as refrigerator, frozen cabinet, air conditioner


• PVC leads are applied to a precision,high-reliability NTC thermistor


• Insulation with heat conductive water resistant materials and potted into any of a wide variety of probe bodies.

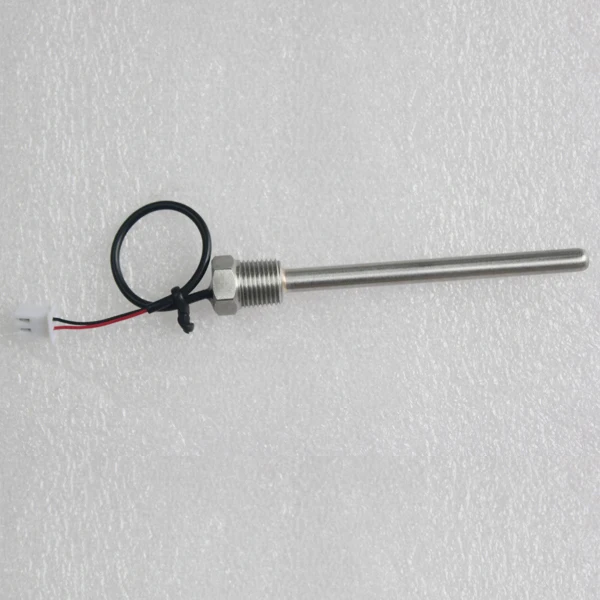

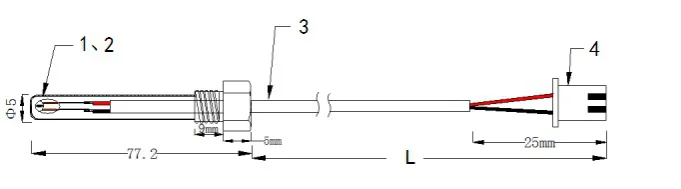

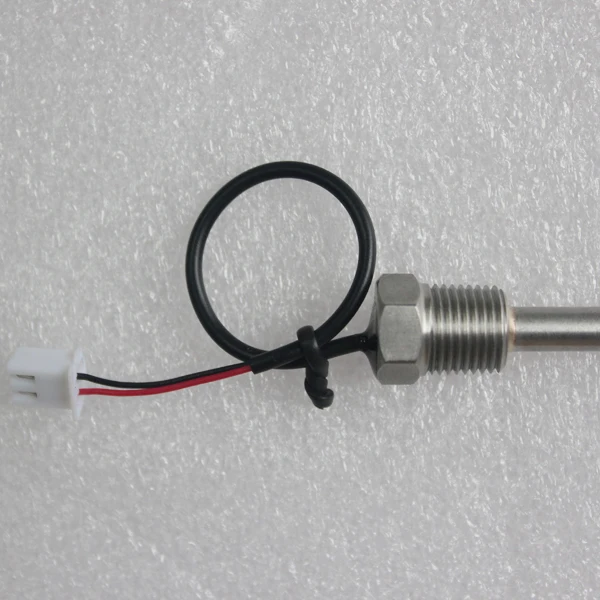

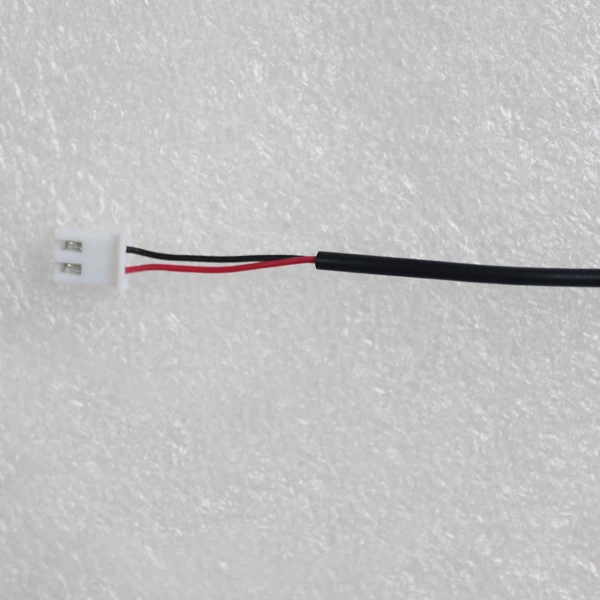

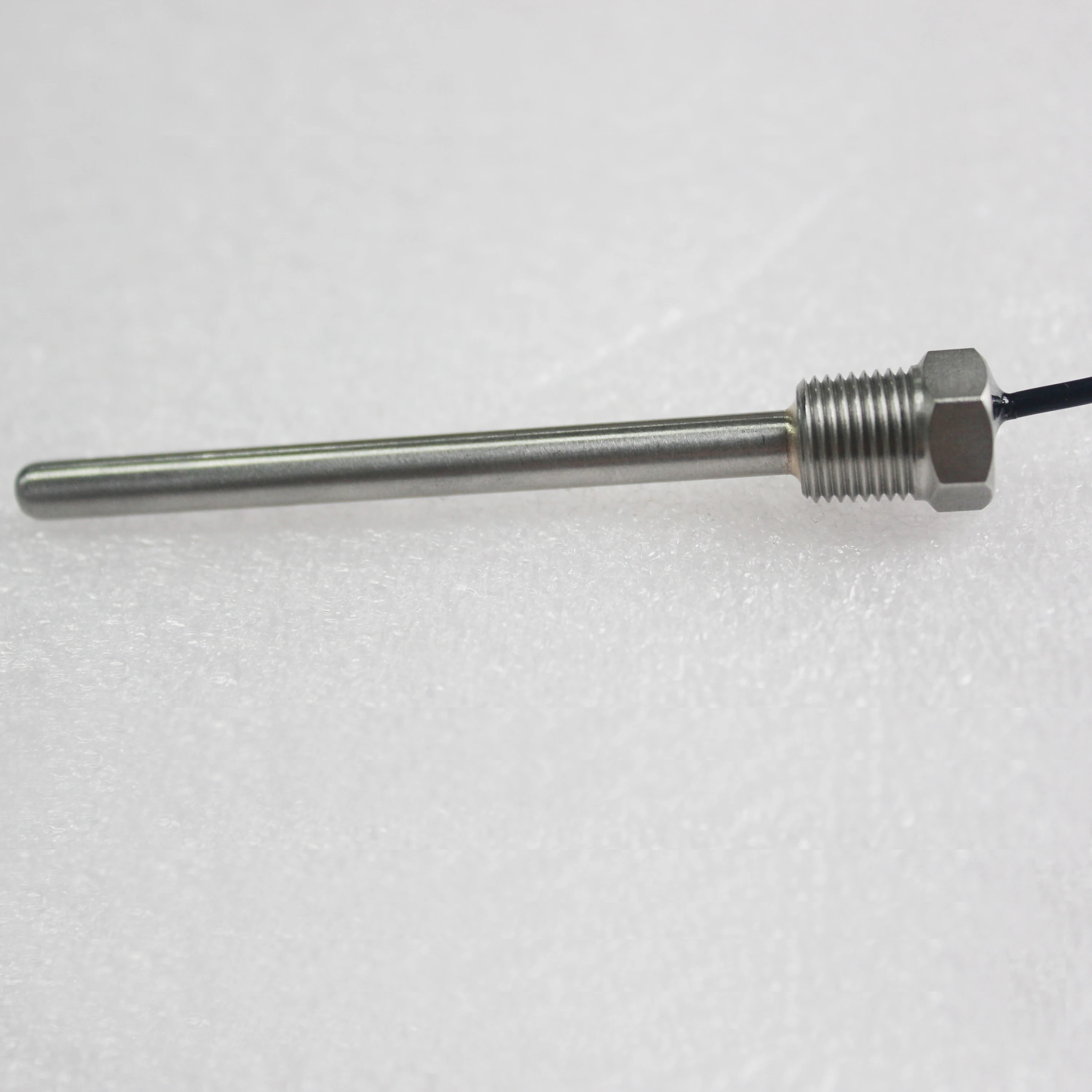

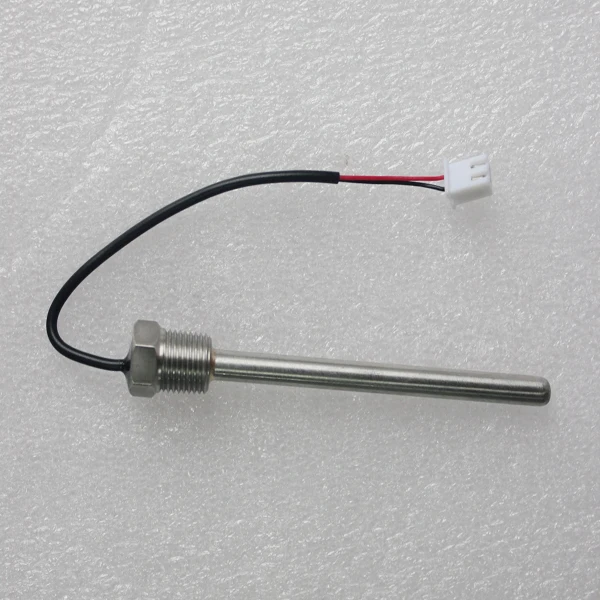

Detail Picture:

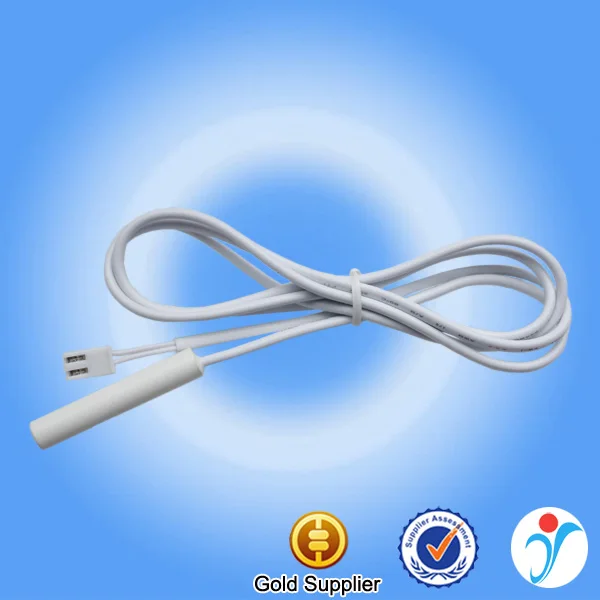

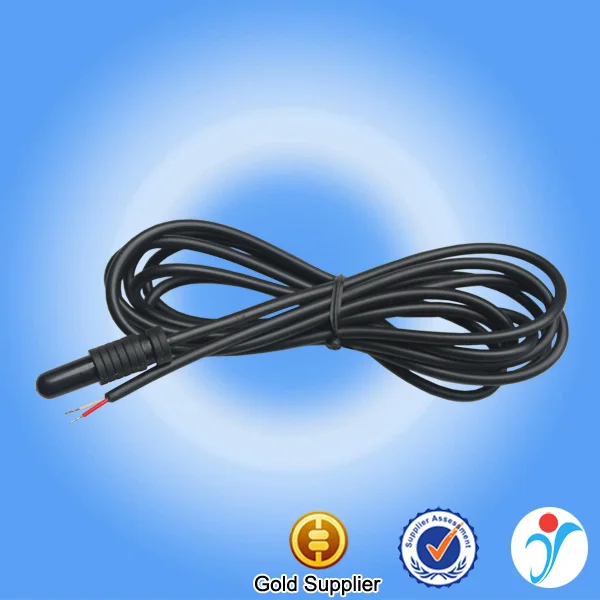

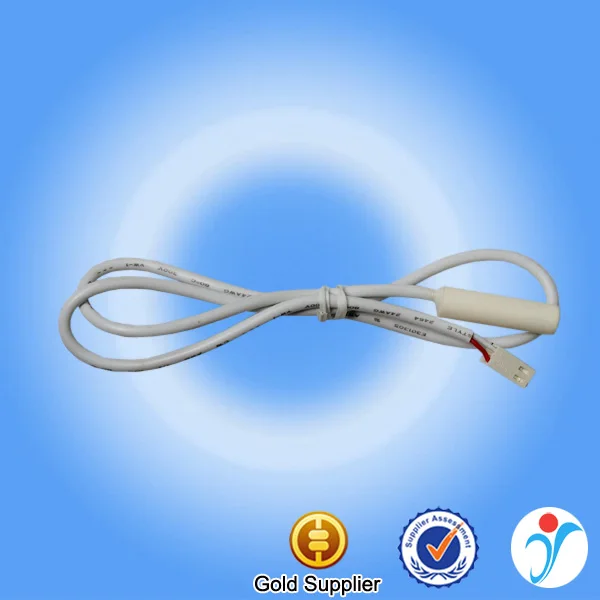

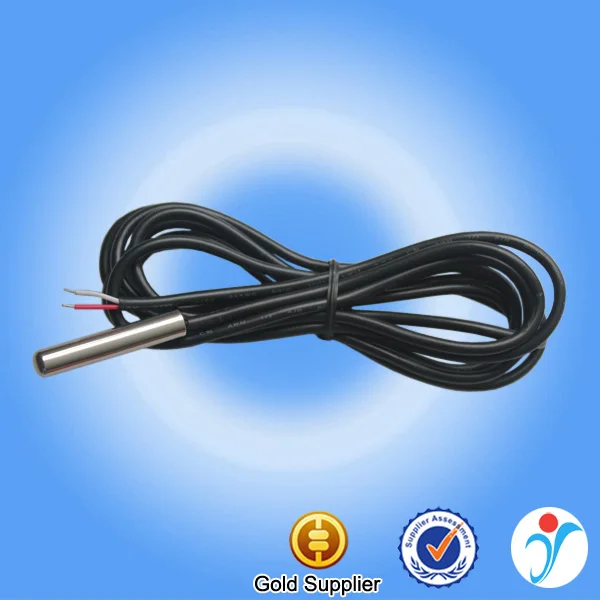

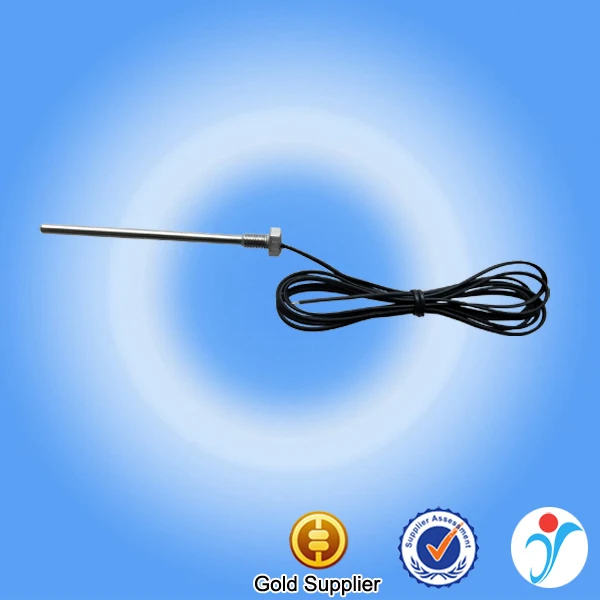

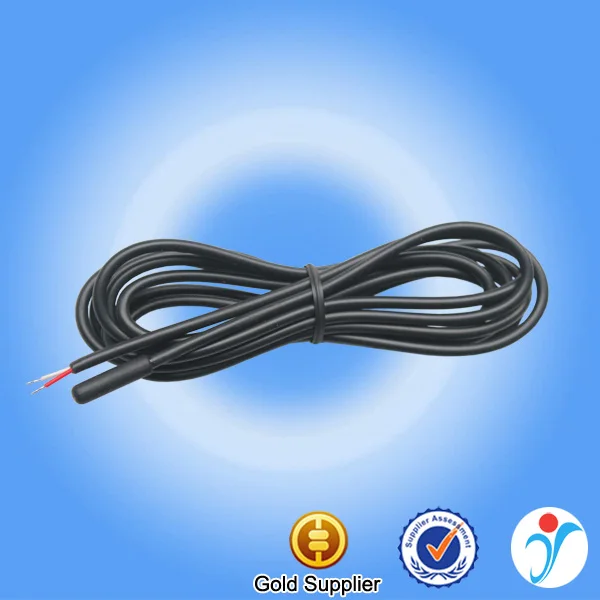

Similar Product:

























Packaging Details:







Packed in Strong Poly bags, Several bags packed in Standard high press-resistance carton. Due to the small size of the NTC thermistor, we normally use international Express: DHL, TNT, UPS, FEDEX, EMS etc.



Logistic suggestion







** 1-50KG,by courier



** 50-100KG,by air



** Above 100KG,by sea







How to Order :



In order to help you get the exact model, please offer the following necessary info.:







1, The application of the NTC thermistor:__________



2, Working environment of NTC thermistor:________



3, The range of operation temperature:___°c to ___°c



4, The dimension and the drawing of the Thermistor



*5, The R value:_____K ohm ±________% at _____°c,



*6, The B value: (_____°c/____°c) = ______K ± _____%



7, The thermal time Value:____s --_________s, _______.



* is requisite



Shipment and Payment:

Certificate:



Please contact us for more information
