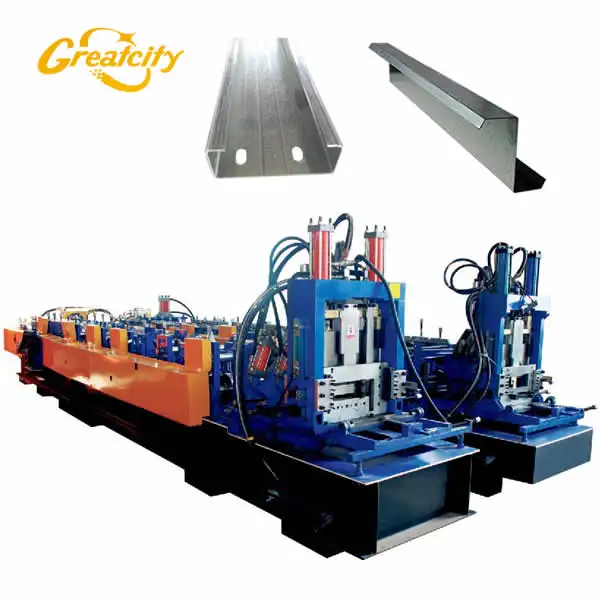

Cost price assured quality fully automatic interchangleable c z purlin roll forming machine
- Category: >>>
- Supplier: Xingtai Judu Technology Co. Ltd.
Share on (62115379227):
Product Overview
Description

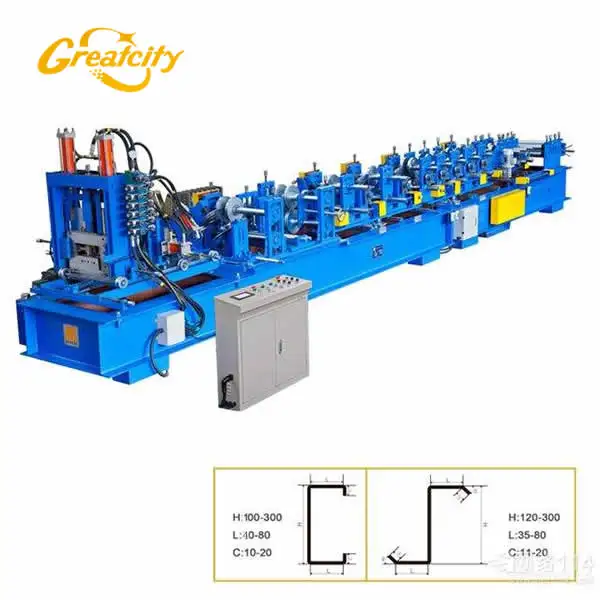

Cost price assured quality fully automatic interchangleable c z purlin roll forming machine
Product Description

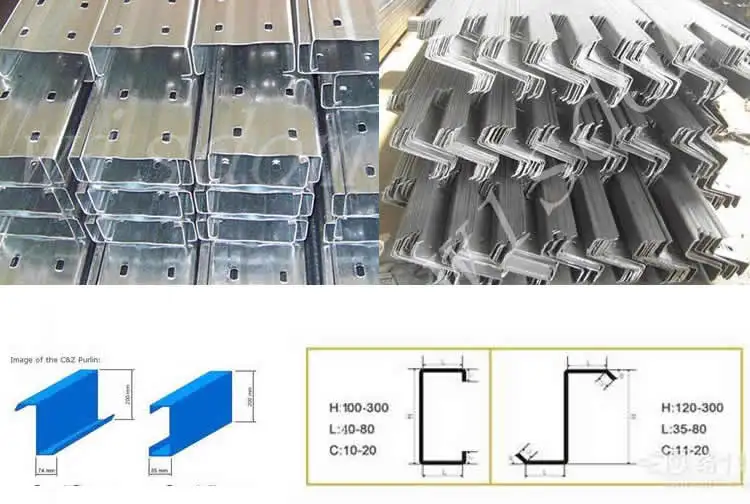

Specification of c z purlin roll forming machine( All the technical parameters are also made as per the cutomers' requirements)

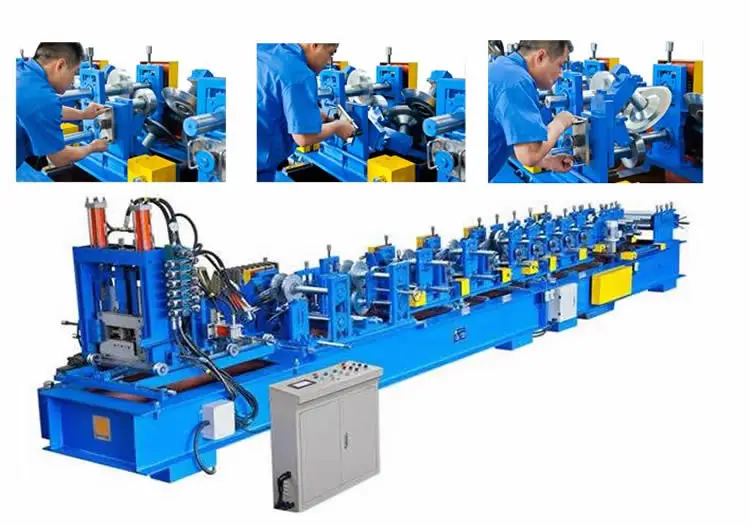

One minute quick adjustment
First, the error range:
Small side E: 725mmn; 3mm
Waist height H: 30/80mm; 3mm
Bottom width W: 80/300 mm; 3mm
Length: L± 5mm
Second, raw material requirements:
1. Material: Q195/Q235 hot rolled strip (black belt), hot rolled strip,S355 grade steel strip
2. Width: 145/492 ; 3mm
3. Thickness: 1.52.5mm
Third, the molding host quality requirements:
1. Dimensions: length 12M* width 1.1M height 1.4M
2. Host weight: 8.5T
3. Molding pass: 16 channels (5 rows of leveling)

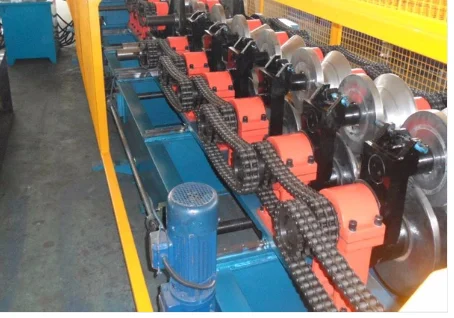

4. Forming roller: GCr15 (bearing steel) finishing and heat treatment galvanized chrome after brushing and polishing
5. Forming roller shaft: 45# steel (¢90mm/¢75mm)
6. Side wall panels: A3 board, 25mm thick
7. Frame Specifications: H500
Fourth, the transmission / shear / control cabinet quality requirements for c z purlin roll forming machine:
1. Transmission mode: motor drive, gear sprocket drive 15kw, 380V/50Hz/3PH
2. Molding speed: 018m/min without punching, shearing

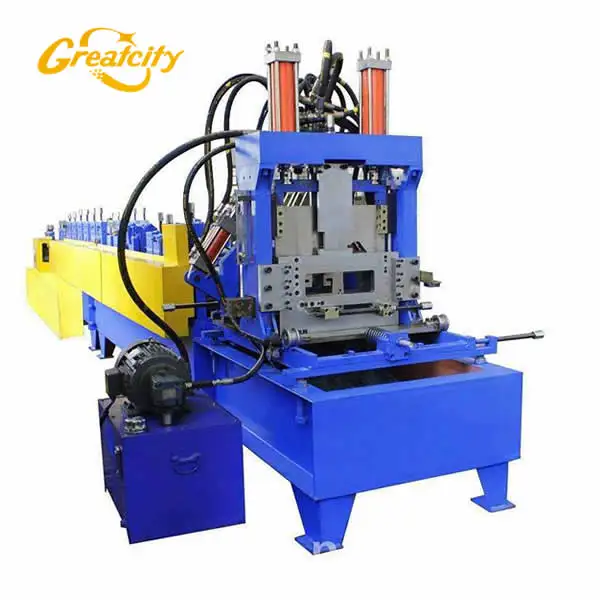

3. Punching method: forming after punching and shearing (hydraulic), single hole + double hole 14*225.5kw, 380V/50Hz/3PH
4. Cutter. Material: cr12, heat treatment
5. Computer control cabinet: including PLC, inverter, 7-inch full color touch screen, encoder
Fifth, the degree of automation:
The feed port, the molding part, and the ribs simultaneously realize rapid change of the computer.
First, the error range:
Small side E: 725mmn; 3mm
Waist height H: 30/80mm; 3mm
Bottom width W: 80/300 mm; 3mm
Length: L± 5mm
Second, raw material requirements:
1. Material: Q195/Q235 hot rolled strip (black belt), hot rolled strip,S355 grade steel strip
2. Width: 145/492 ; 3mm
3. Thickness: 1.52.5mm
Third, the molding host quality requirements:
1. Dimensions: length 12M* width 1.1M height 1.4M
2. Host weight: 8.5T
3. Molding pass: 16 channels (5 rows of leveling)
4. Forming roller: GCr15 (bearing steel) finishing and heat treatment galvanized chrome after brushing and polishing
5. Forming roller shaft: 45# steel (¢90mm/¢75mm)
6. Side wall panels: A3 board, 25mm thick
7. Frame Specifications: H500
Fourth, the transmission / shear / control cabinet quality requirements for c z purlin roll forming machine:
1. Transmission mode: motor drive, gear sprocket drive 15kw, 380V/50Hz/3PH
2. Molding speed: 018m/min without punching, shearing
3. Punching method: forming after punching and shearing (hydraulic), single hole + double hole 14*225.5kw, 380V/50Hz/3PH
4. Cutter. Material: cr12, heat treatment
5. Computer control cabinet: including PLC, inverter, 7-inch full color touch screen, encoder
Fifth, the degree of automation:
The feed port, the molding part, and the ribs simultaneously realize rapid change of the computer.

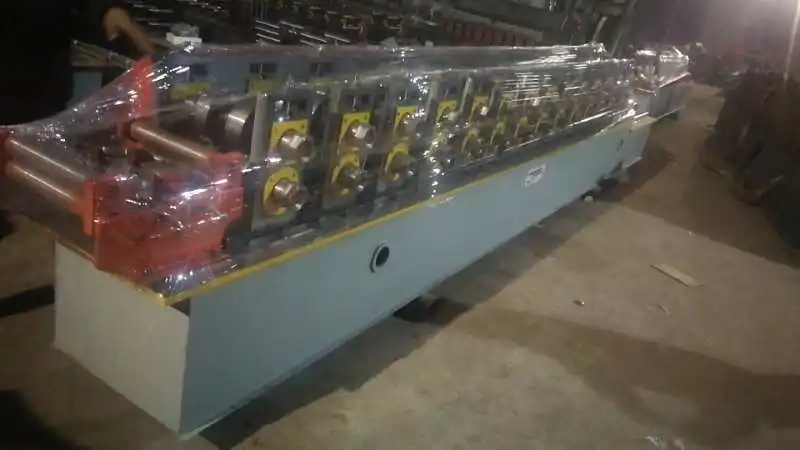

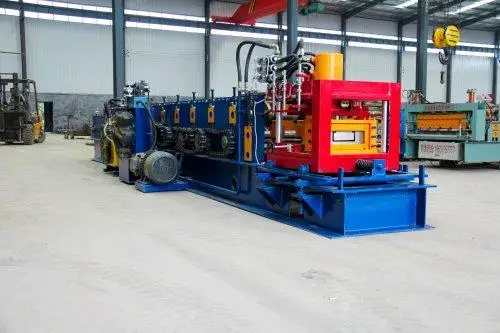

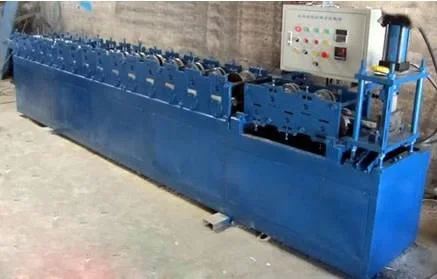

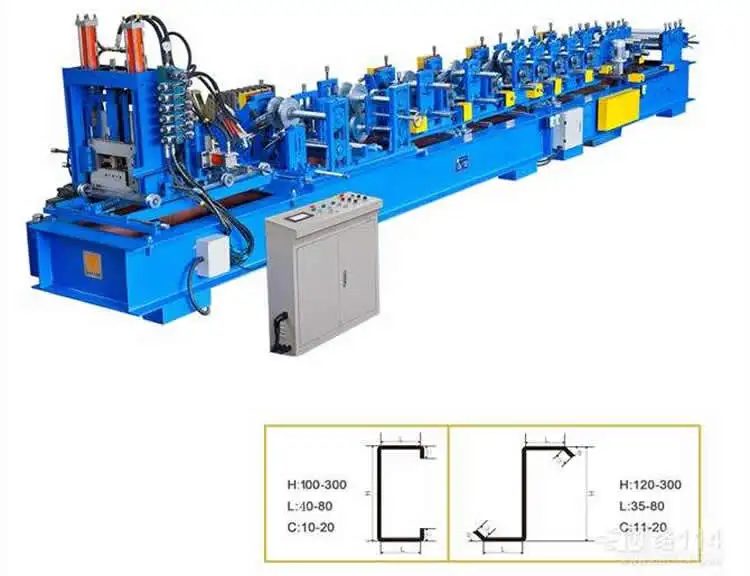

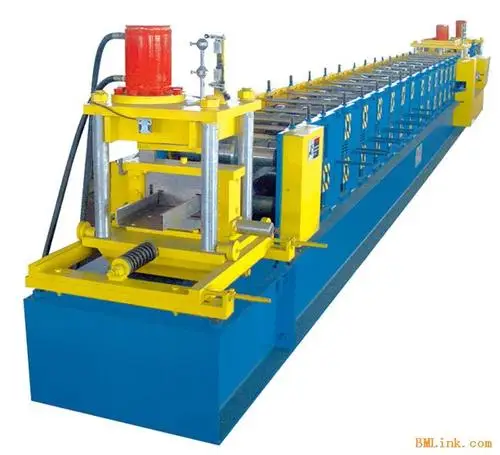

c z purlin roll forming machine more detailed show :
c z purlin roll forming machine workflow:
Decoiler→Flating→Feeding & punching→Forming→Cut to length→Collection(finish goods)

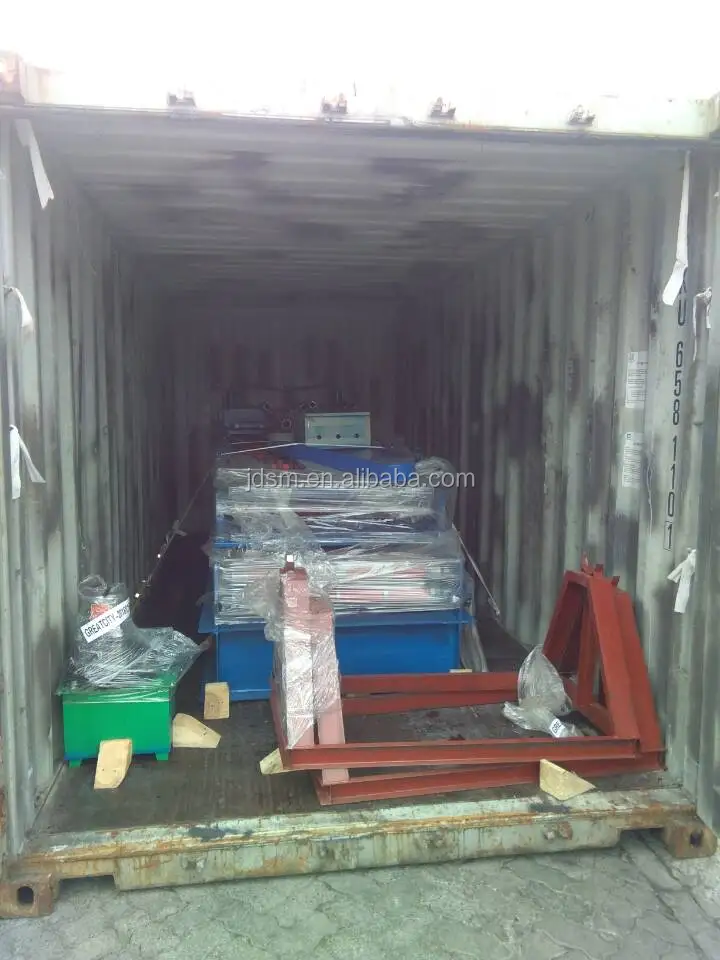

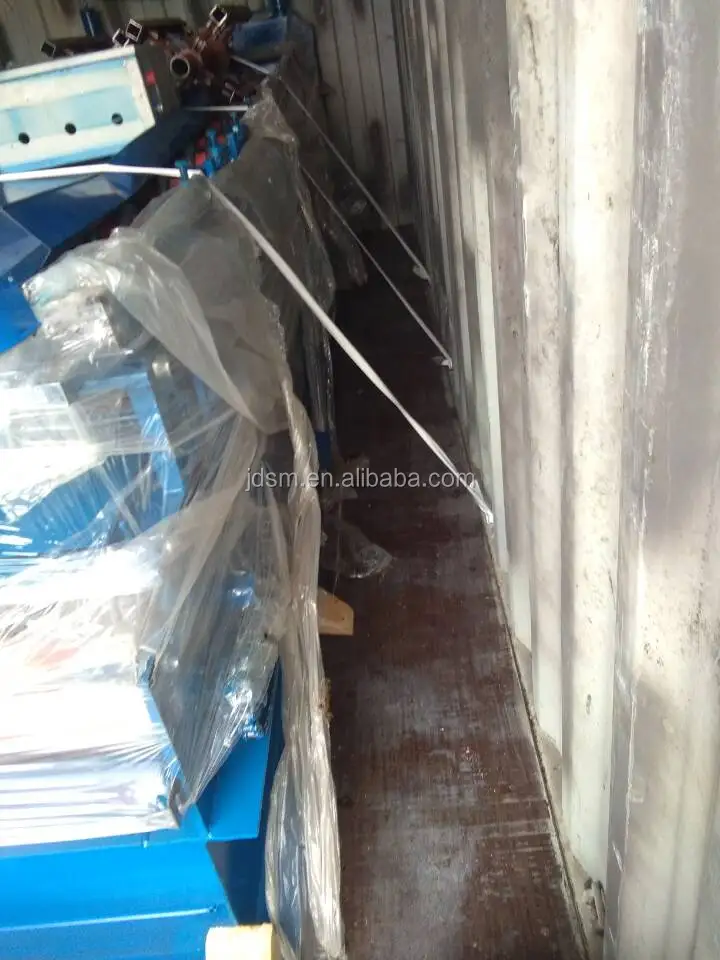

Packaging & Shipping
Delivery time: about 10-15 days after receipt of deposit.by sea.

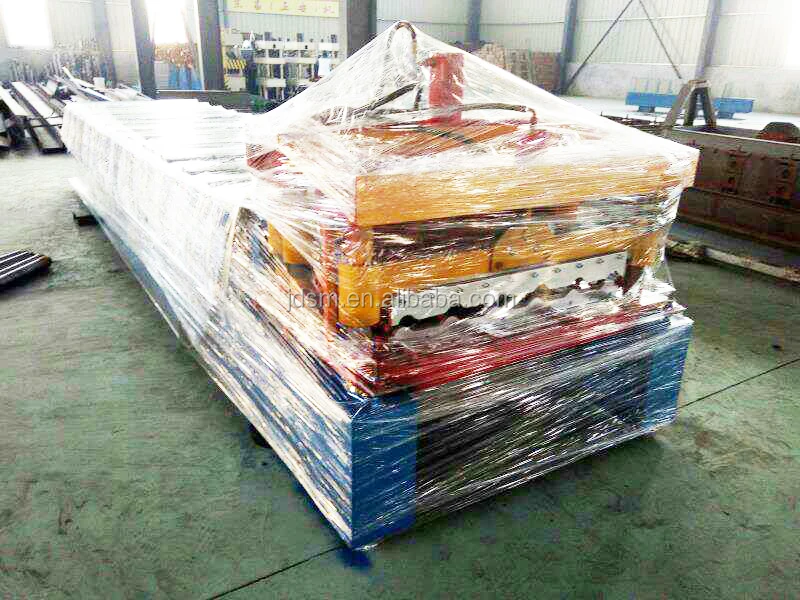

Packing : standard export seaworthy packing with strong waterproof protect film and stow wood for Interchangeable c z purlin roll forming machine
Company Information
Xingtai Judu Technology Co., Ltd has built over 20 years,it is located in north of China,near from Tianjin port and Shiijiazhuang airport,we have good workers,strong selling team and exquisite technology for c z purlin roll forming machine ,welcome to our factory for happy and mutual-benefit business cooperation .
contact information
If Any questions or other requirements for cz roll forming machine,please free to contact me at any time with below:
Mr.Jack/Sales Manager
Tel: +86-319-5236836
Whatsapp: +86-15130126765
Email: jack(@)greatcitygroup.com
Trademanager: cn1511995589
Company name: Xingtai Judu Technology Co., Ltd
Our Services
1. Please advise you to choose the most suitable machine base on your requirements
2. Making the machine according to your request.
3. Give you machine’s details for help you use the machine more better.
4. One year warranty
5. Free repair whole using life without extra charge.
FAQ
1. What is the voltage/phase for this interchangeable c z purlin roll forming machine?
220V 50Hz/three phase ,380V 50Hz/three phase , also can made as the clients’ need
2. Can you make the logo or company name on the products or package?
Sure. customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
3. Do you have the products in stock?
Yes , We have some model products can supply to you.
4. Can we use English or other languages on the display screen?
Yes, can. The system can achieve many languages, such as English, French, Russian, Spanish, and other languages
5. How to choose a model?
First you could check with parameters list, or advise the requirement directly, then we would help you to choose a model accordingly.
6. How about After-sales service?
We freely send technicians to your country and 24 hours on-line service
