Auto Petrol Gasoline Fuel Injector Cleaning Machine Cleaner Injector Tester

Product Overview

Description

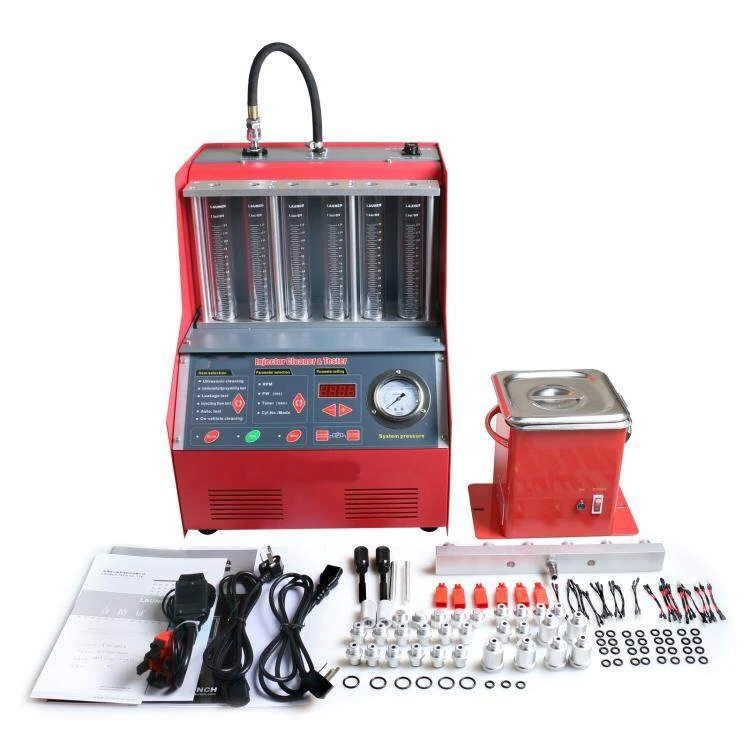

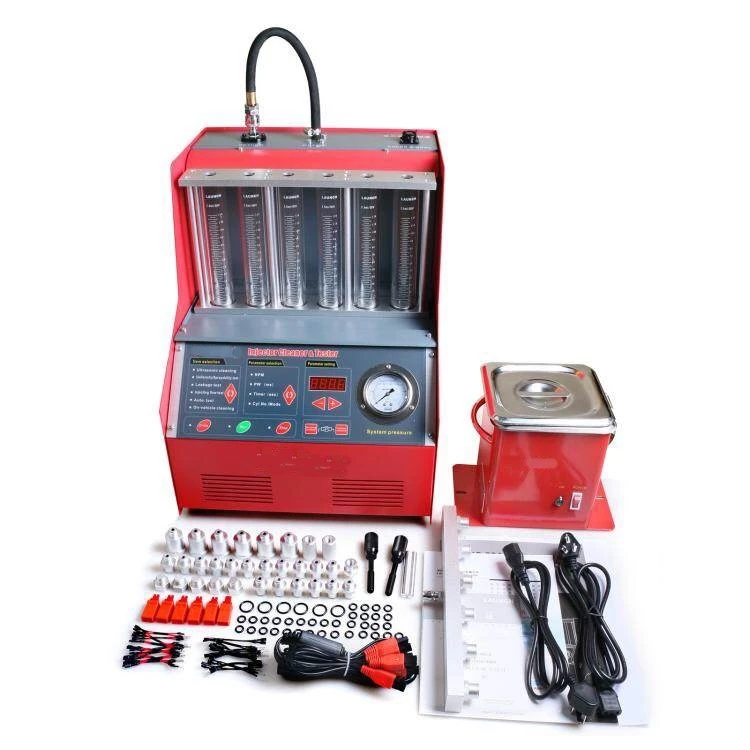

CNC-602A car injector cleaning machine detector
Ultrasonic injector cleaning tool

Ultrasonic cleaning / uniformity / atomization detection / sealing test / injection quantity detection / automatic cleaning detection / free cleaning

Characteristics
Ultra-strong ultrasonic cleaning technology, strong cleaning ability;
It adopts microcomputer voltage regulation control technology, stable oil pressure and wide adjustable range. It can adapt to vehicles equipped with various gasoline injection systems and can realize the automation of injector cleaning detection process.
Using microcomputer automatic control and digital display technology, it can automatically control the cleaning and detection process, and monitor the main status parameters in real time;
The oil drain automatic control technology is adopted, and the oil can be automatically drained by the program during some test items. After the test is finished, the oil can be drained through the buttons of the control panel.

Features
Ultrasonic cleaning: ultrasonic cleaning of multiple injectors at the same time can completely remove the carbon deposits on the injectors;
Detection function: Detecting the uniformity of the fuel injection amount of each injector, and at the same time, the background lamp can be used to observe the spray atomization of the injector thoroughly and carefully, and the injector can be backwashed;
Sealing test function: It can detect the sealing and dripping of the injector under system pressure;
Fuel injection detection function: It can detect the fuel injection amount of the injector under the condition of 15 seconds of normal spray;
Automatic cleaning detection function: Under the specific working condition parameters, the real simulation injector is tested under various working conditions;
Disassembly-free cleaning function: With a variety of non-removable cleaning joints, it can be used for cleaning and maintenance of various models.

parameter
Power supply: AC22v±10% 50Hz/60Hz AC110V±10% 50Hz/60Hz
Input power: 230w
Ultrasonic cleaning power: 100w
Analog detection speed range: 10~9990rpm Step 10rpm
Timing range: 1~9999 seconds
Pulse width range: 0.5~25ms Step 0.1ms
Fuel tank volume: 4700ml
CNC-602A Dimensions: 385mm*410mm*500mm
Machine weight: 35kg
