JoinWit Optical Fiber Welding Machine JW4108 Optical Fiber Fusion Splicer Welding Machine
- Category: >>>
- Supplier: Shenzhen Hualink Technology Co. Ltd.
Share on (62115497055):
Product Overview
Description
Product Description
Main Features:

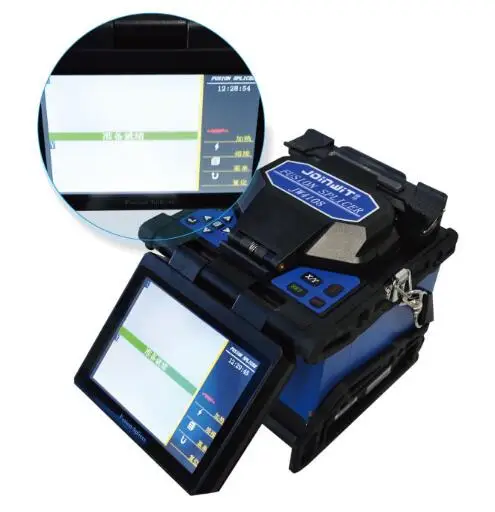

l 5 inches high Resolution colorful LCD display
l Average splice time: 10 second
l Average tube-heat time: 30 second
l Lithium battery: up to 180 times of continuous splice and heat
l Simultaneous X and Y views with 180 times magnification
l New developed technology providing wind and dust resistance
l Splicing mode:Auto & Manual & Full-Automation
l USB Port
l Storing 6,000 groups of splice results.

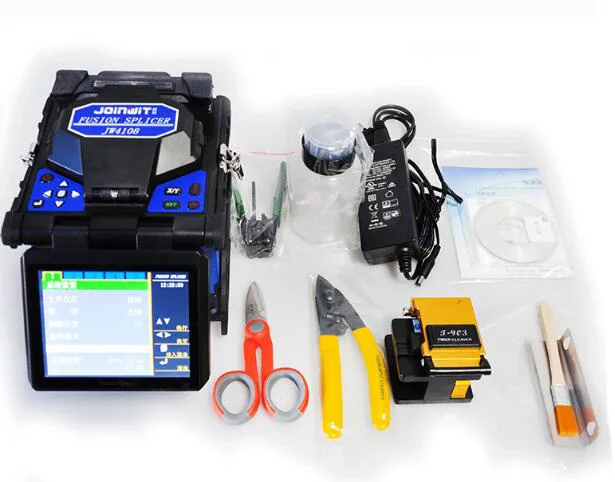

Multipurpose optical fiber fixture (Such as: Rubber-insulated wire, fiber optic patch cord, bare fiber)
Specifications:
Applicable Fibers | SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series |
Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
Return Loss | ≥60dB |
Tension Test | 2.0N(200gf)(Standard) |
Splicing Program | 50 groups |
Protection Sleeve Length | 20mm, 40mm, 60mm |
Language | Chinese, English |
Environmental Conditions | -10~+50℃(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
Power Supply | AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) DC adaptor: 12V voltage 8AH |
Dimensions | 155(W)*165(D)*150(H) |
Weight | 2.5kg |
Packaging & Shipping
1.If the goods are damaged in transit, Buyers Can return it in 14 Days, We will Replace it with New item after we receive the damaged item. Please Contact us Before you sent the item back
2.All Mobile Phones Comes with Basic 1 Year Sellers Warranty, if item defective in 1 Year and need to replace the Hardware, We will offer replacement withour extra Charger(including shipping fee) after we Receive the Defective item.
3.If item Defective after 1 Year, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need pay the Shipping fee For resend the replaced item.
We maintain high standards of excellence and strive for 100% customer satisfaction! Positive Feedback is very important to us, but if you don't want to leave a Positive Feedback. We hope that you can contact us immediately before you give us a neutral or negative feedback, so that we can satisfactorily address your concerns. Thank you very much! ;)
1. We depend on our customer satisfaction to succeed. Therefore, your feedback is extremely important to us.
2. If you are satisfied with our items, please leave a positive feedback to us. We will leave a positive feedback to you later.
3. Contact us before leaving any negative or neutral feedback. We will deal with you to solve any problems as soon as possible.
For more questions, please contact below:
Mobile & whatsapp: 0086 18318052632
