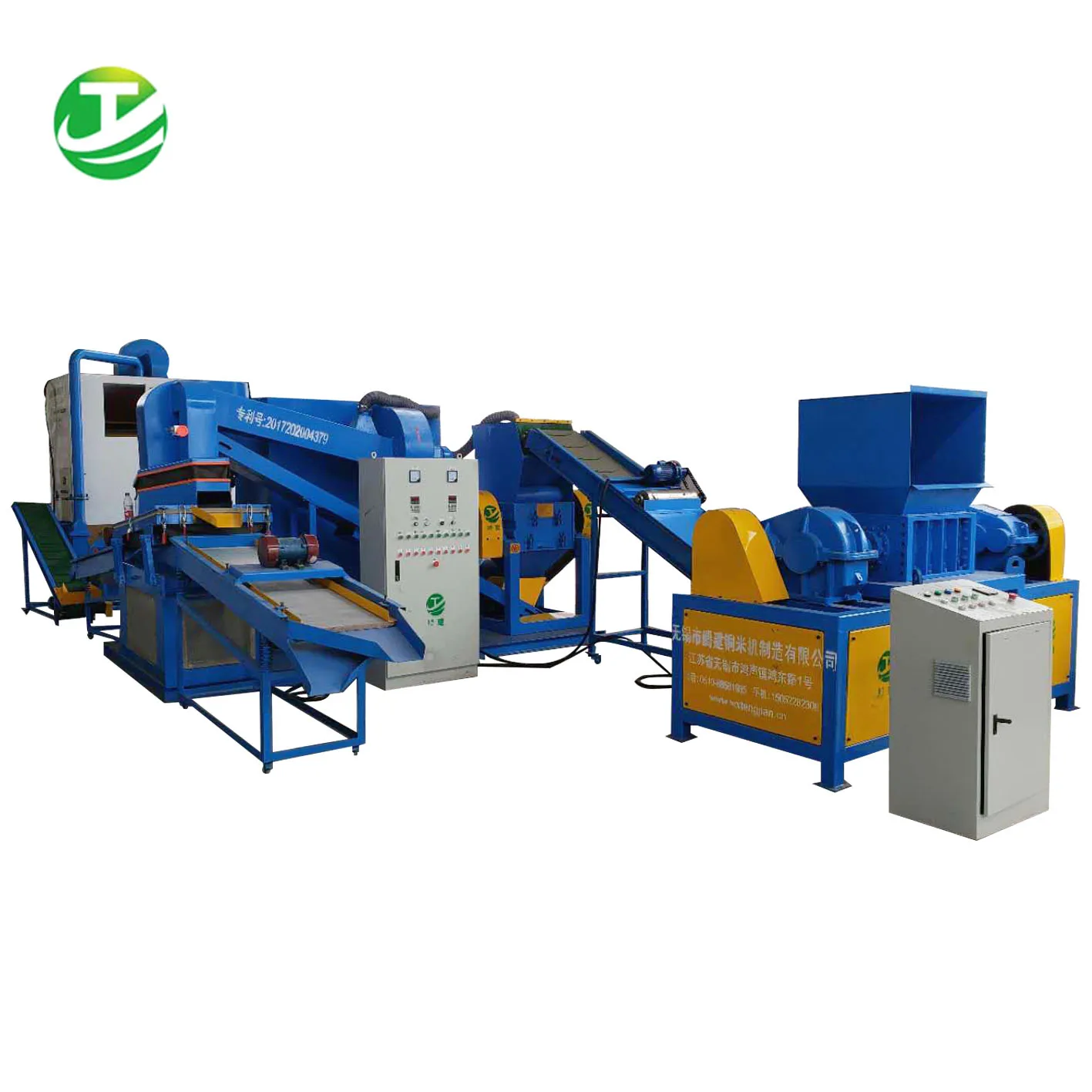

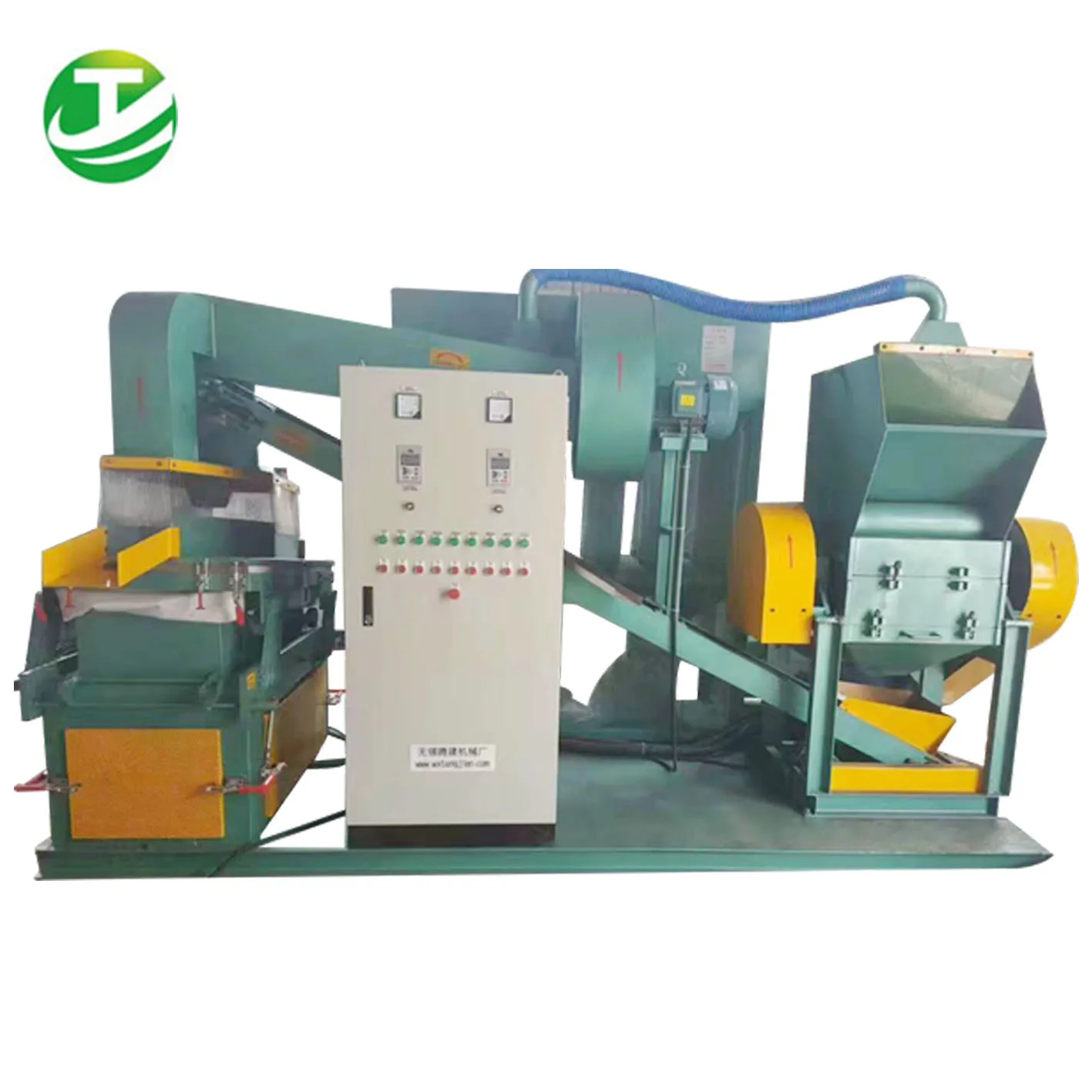

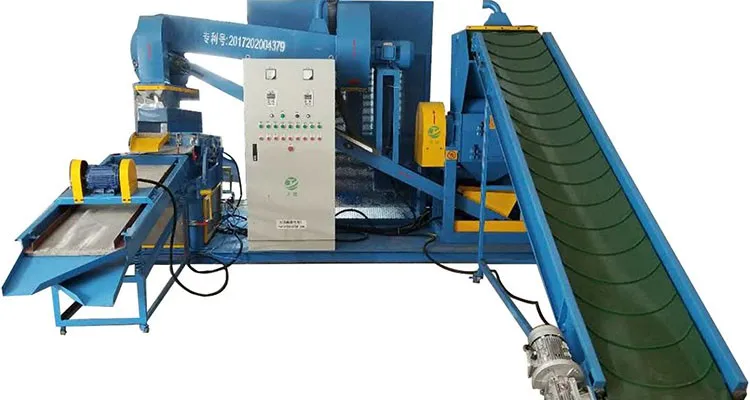

Automatic used copper cable granulator

It is capable of processing various kinds of waste wires, such as automobile circuits, motorcycle circuits, electric scooters, as well as the wires of TV sets, washing machines, refrigerators, air conditioners, communication facilities, and computers, which are not suitable for processing in other wire stripping machines.

After crushing, the sheath and core can be separated and gathered at different areas of the screen mesh surface. With airflow function and screen box straight shock excitation, the sheath and core will be separated, and get copper particles and plastic. The dust is collected by suction.

Model	TJ-D800	TJ-C800	TJ-B800	TJ-A800
Processing diameter	0.2-20mm	0.2-20mm	0.2-40mm	0.2-40mm
Size(LxWxH)	5m*2.2m*2.4m	7m*5m*2.4m	5m*7m*2.4m	11m*7m*2.4m
Machine weight	4t	5t	6t	7.5t
Total Motor Power	76.73kw	89.48kw	98.73kw	111.48kw
Production/h	600-800kg/h	600-800kg/h	600-900kg/h	600-900kg/h

Main Types:

1. Basic machine

2. Basic machine + shredder

3. Basic machine + electrostatic separation machine

4. Basic machine + shredder + electrostatic separation machine

Certifications

Detailed Images

Machine Parts

Name: Conveyor belt

Brand: TENGJIAN

Original: China

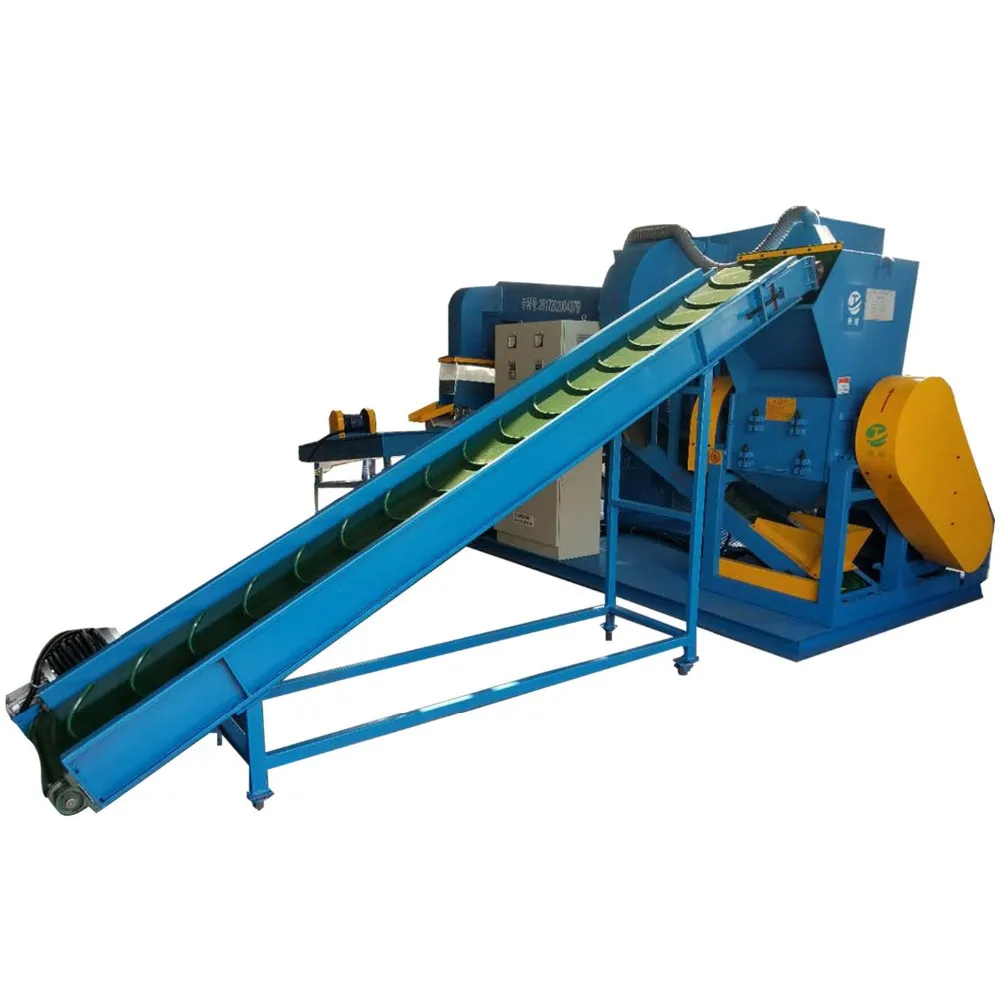

The conveyor belt is used for feeding.

Main Features

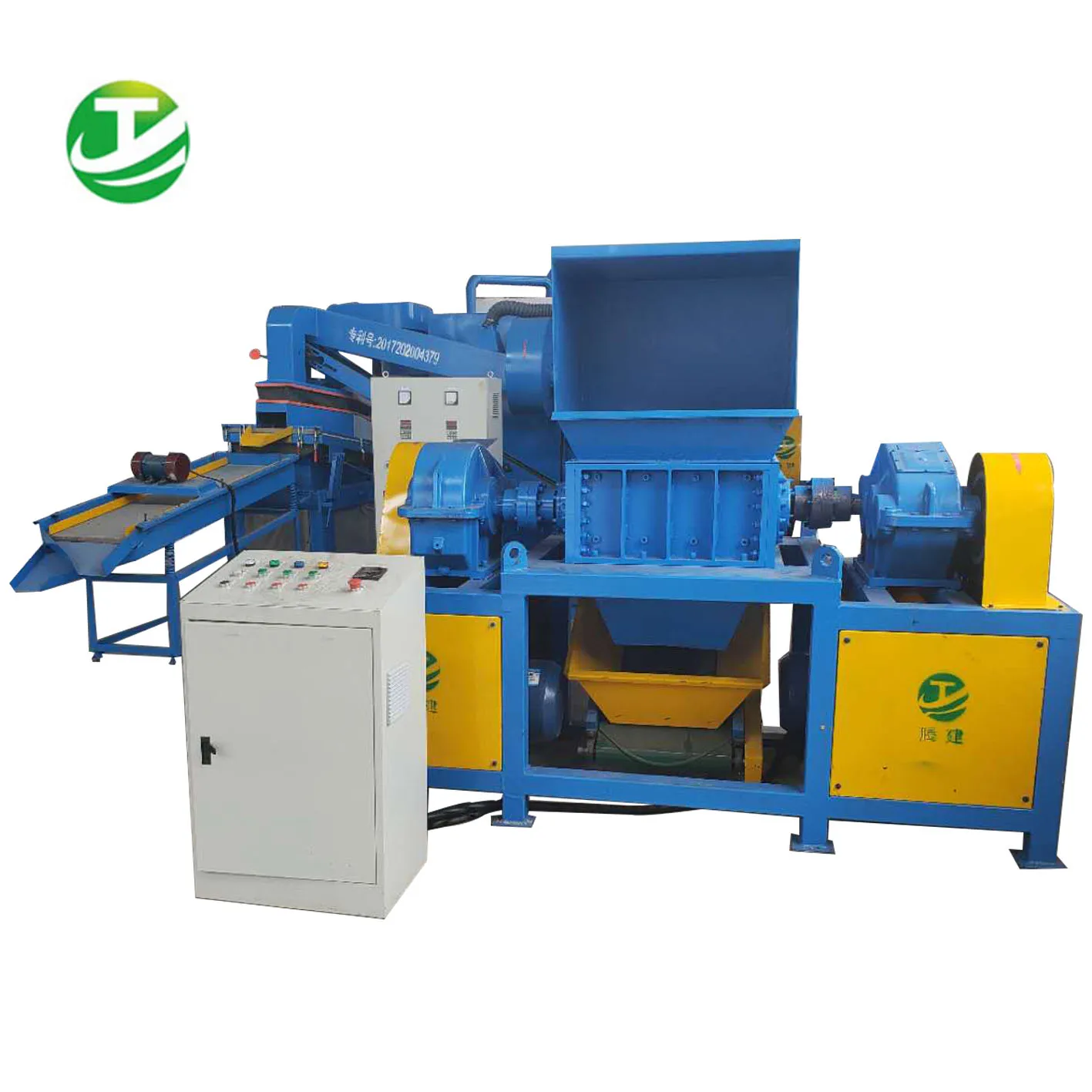

Name: Shredder machine
Brand: TENGJIAN
Original: China
It could destroy the scrap cables into small pieces 5-10cm.

Machine Parts

Name: Crusher machine
Brand: TENGJIAN
Original: China
It could destroy the cable pieces into more small pieces of any sizes appointed, 2-4mm.

Main Features

Name: Electrostatic separator
Brand: TENGJIAN
Original: China
It could separate plastic and all metals, including copper, iron, aluminum, etc.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

The normal packaging is bare.

If export to distant foreign countries, we will use pe film for packing or pack it according to customers special request.
