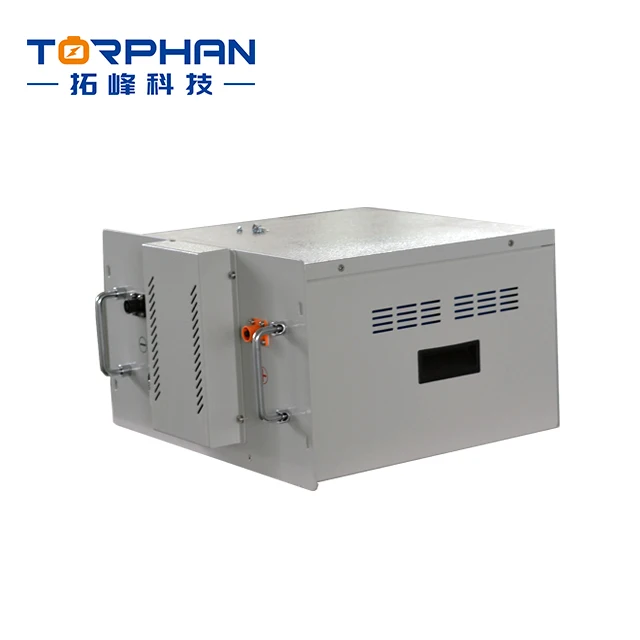

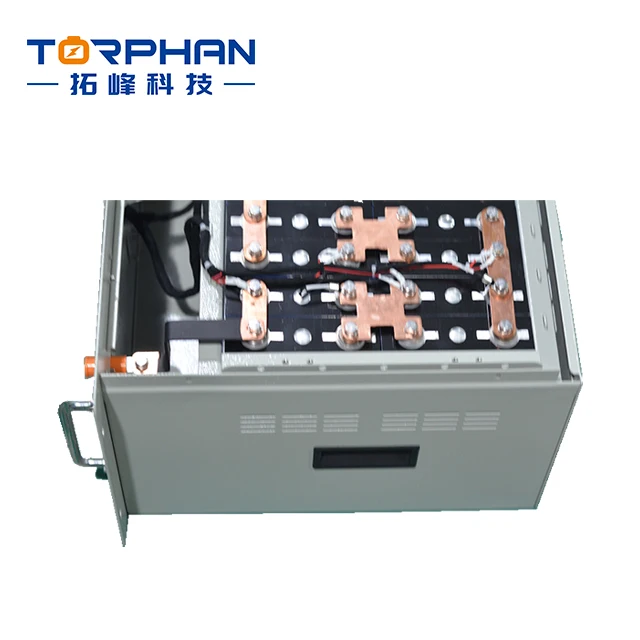

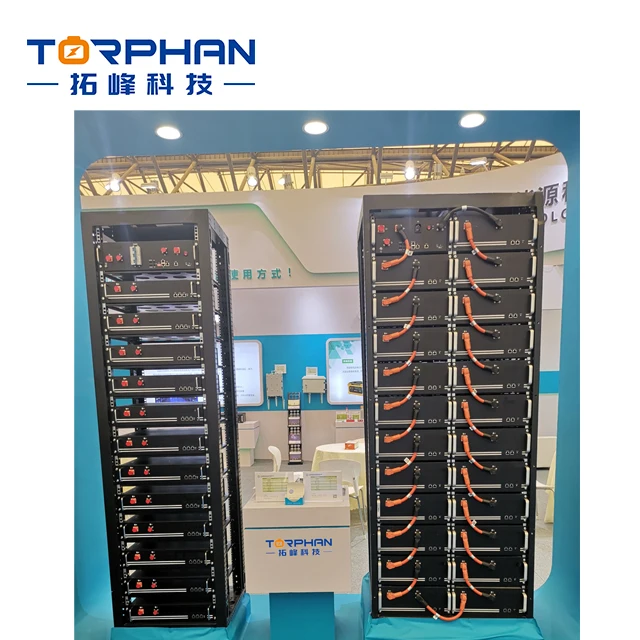

48V 200AH 500AH 1000Ah Smart Lithium ion battery pack liFePO4
- Category: >>>
- Supplier: Nanjing Torphan Tech Co. Ltd.
Share on (62115811330):
Product Overview
Description
Products Description
Model | Tor-48v200Ah | Tor48V 400Ah | Tor-48V600Ah | Tor-48V 800Ah | Tor-48V 1000Ah | ||||
Part Number | 1548200x | 1548400x | 1548600x | 1548800x | 15481000 | ||||
Rated voltage | 51.2Vdc | 51.2Vdc | 51.2Vdc | 51.2Vdc | 51.2Vdc | ||||
Rated Capacity | 200Ah | 400Ah | 600Ah | 800Ah | 1000Ah | ||||
Rated Charge voltage | 55.2Vdc | 55.2Vdc | 55.2Vdc | 55.2Vdc | 55.2Vdc | ||||
Rated Charge current | 60A | 120A | 180A | 240A | 300A | ||||
Max Charging current | 100A | 200A | 300A | 400A | 500A | ||||
Rated Discharge current | 60A | 120A | 180A | 240A | 300A | ||||
Max Discharge current | 100A | 200A | 300A | 400A | 500A | ||||
Battery Chemistry | Lithium Iron Phosphate (liFePO4) | ||||||||
Battery Type | Deep-cycle Rechargeable, Sealed, Maintenance-Free | ||||||||
Safety Feature | Fully integrated battery management system (BMS), Automatic DC disconnect, settable triggered relays, inline fuse | ||||||||
enclosure | Indoor-rated steel box | ||||||||
efficiency | 95% | ||||||||
Cycle life | >5000@70%DOD | ||||||||
State of Charge Usage Window | 20%~95% | ||||||||
Self Discharge Current | <3% | ||||||||
Operating Temperature | 0 degrees C to 45 degrees C ( 32 deg.F to 113 deg.F) | ||||||||
Warranty | 10 years, full replacement for first 24 moths, pro-rated for months 25-120 | ||||||||
Technical Support | Unlimited for life of battery | ||||||||
Products Detalis
Smart Lithium ion battery
Smart Lithium ion battery will use lower self discharge and deviation cell and built in BMS to monitor each cells' voltage ,
current and temperature. User could set parameter throw display, such as overcharge&over discharge voltage, overcharge&over discharge current, high&low protection temperature, in order to meet various working condition requirement.

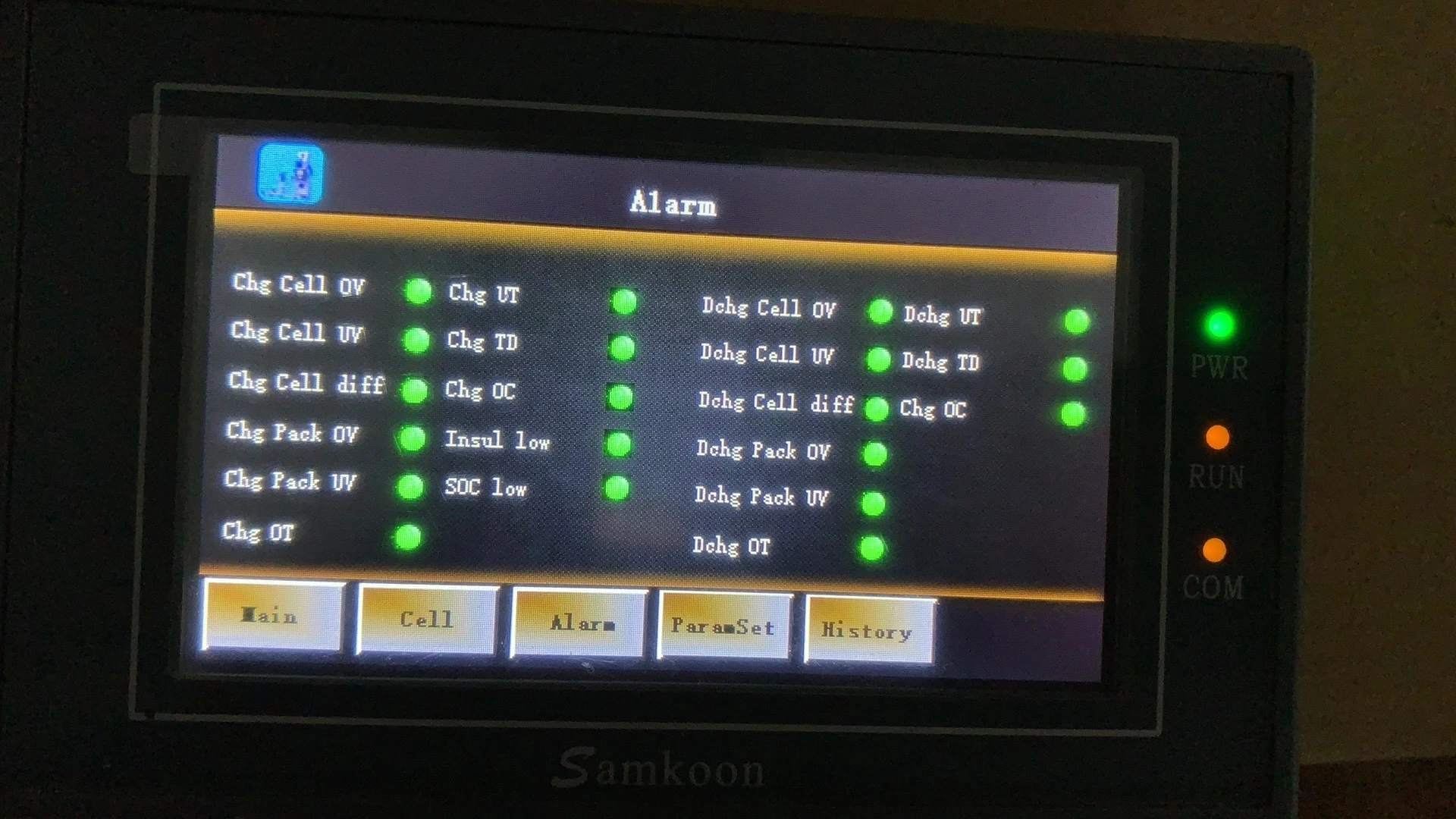

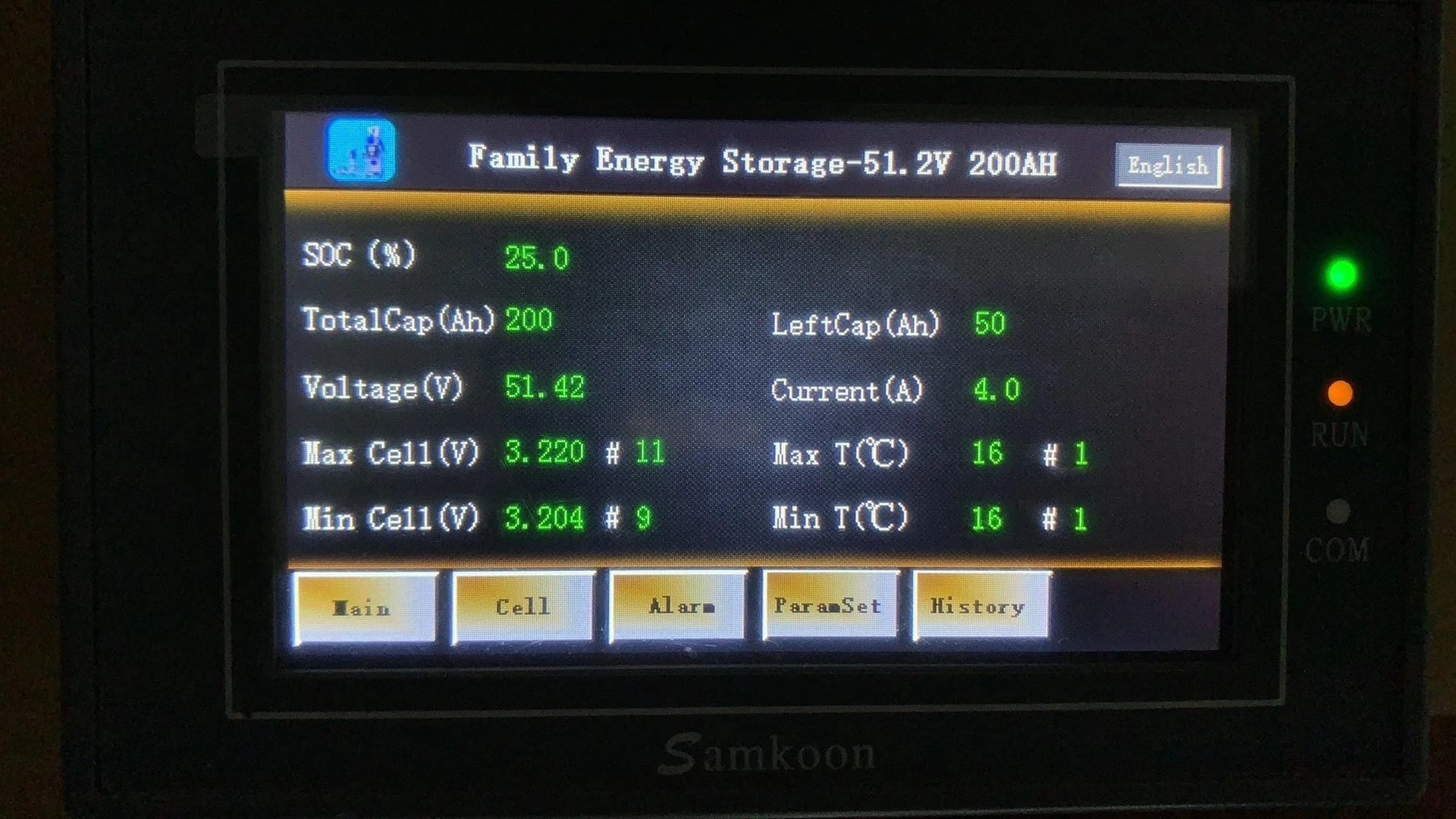

The built in Display could show each cell's voltage, total voltage, charge and discharge current, temperature ,SOC and the battery real time working condition. The user also could read the history record, such as number of over charge and discharge voltage,number of over charge and discharge current, cycles, Min cell voltage and Max cell voltage Exc.
Deep cycle llifepo4 battery pack lipo 24v 200ah lithium ion battery for Solar wind energy storage system, UPS, RV standby power supply, RV,motor home,etc.

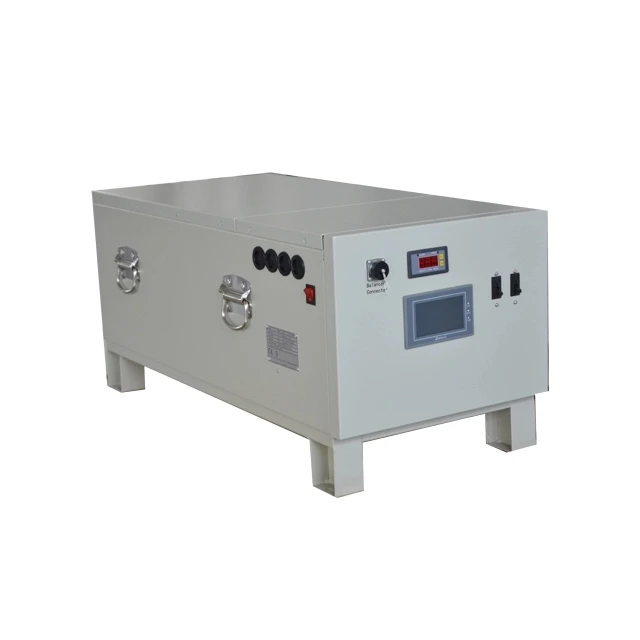

48V High power LiFePO4 Battery Module with built-in BMS and LED indicator as a key-turn and plug-and-play battery solution todirect drop in Replacement on typical lead-acid(AGM/GEL) battery applications.Providing twice the run-time at approximately half the weight of a comparatively sized lead-acid battery, excellent float and cycle life over 5000times results in low operating costs with high investment returns for end user applications.
Smart Lithium ion battery will use lower self discharge and deviation cell and built in BMS to monitor each cells' voltage ,
current and temperature. User could set parameter throw display, such as overcharge&over discharge voltage, overcharge&over discharge current, high&low protection temperature, in order to meet various working condition requirement.

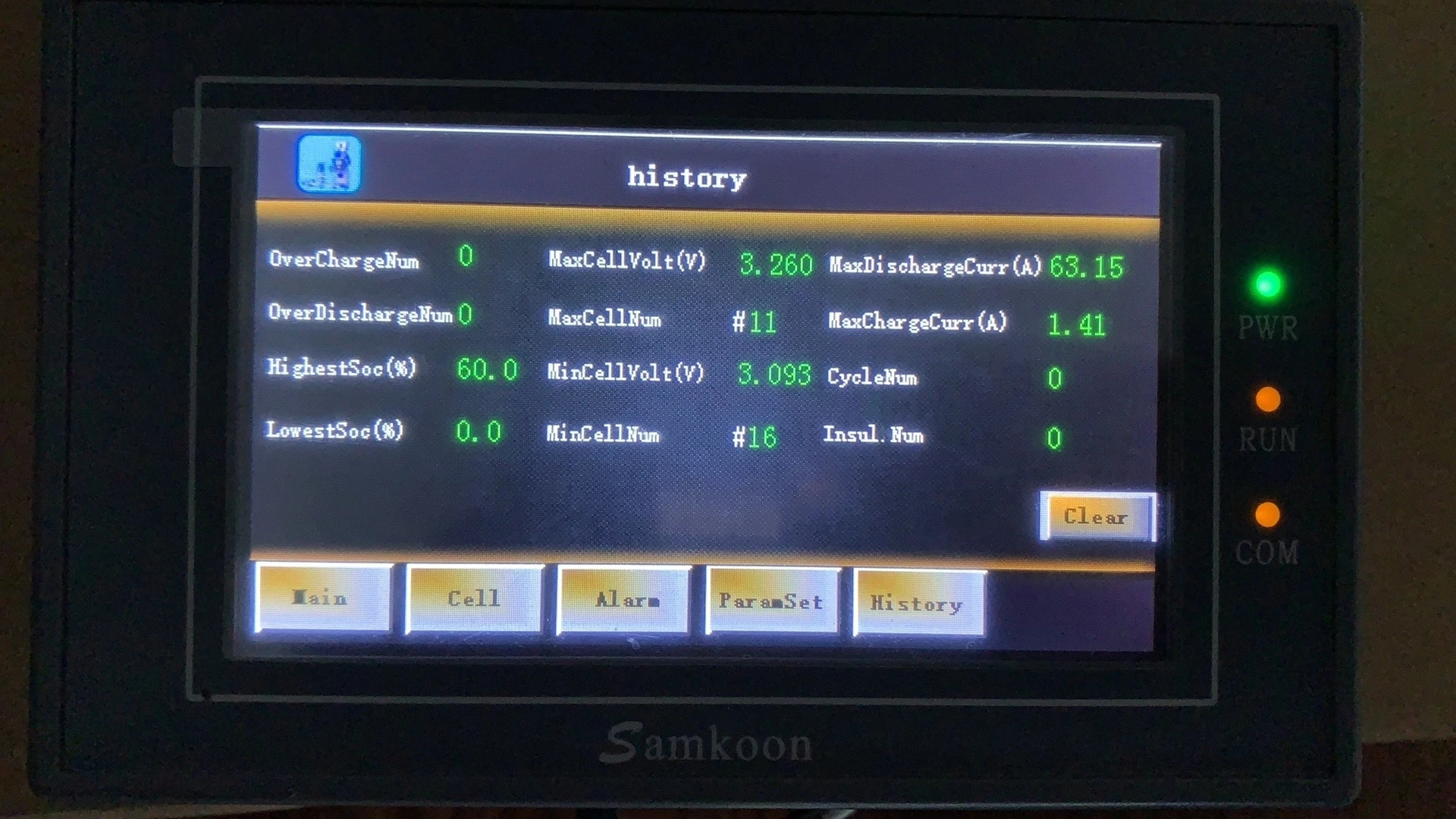

The built in Display could show each cell's voltage, total voltage, charge and discharge current, temperature ,SOC and the battery real time working condition. The user also could read the history record, such as number of over charge and discharge voltage,number of over charge and discharge current, cycles, Min cell voltage and Max cell voltage Exc.
Deep cycle llifepo4 battery pack lipo 24v 200ah lithium ion battery for Solar wind energy storage system, UPS, RV standby power supply, RV,motor home,etc.
48V High power LiFePO4 Battery Module with built-in BMS and LED indicator as a key-turn and plug-and-play battery solution todirect drop in Replacement on typical lead-acid(AGM/GEL) battery applications.Providing twice the run-time at approximately half the weight of a comparatively sized lead-acid battery, excellent float and cycle life over 5000times results in low operating costs with high investment returns for end user applications.

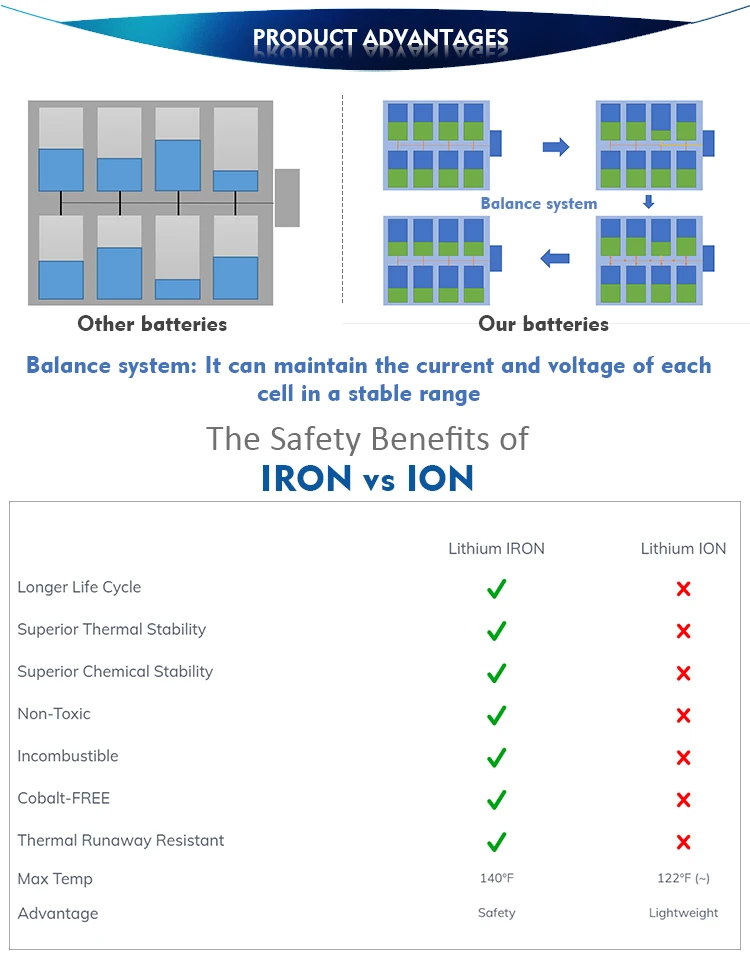

Our Advantages
Application
Related products

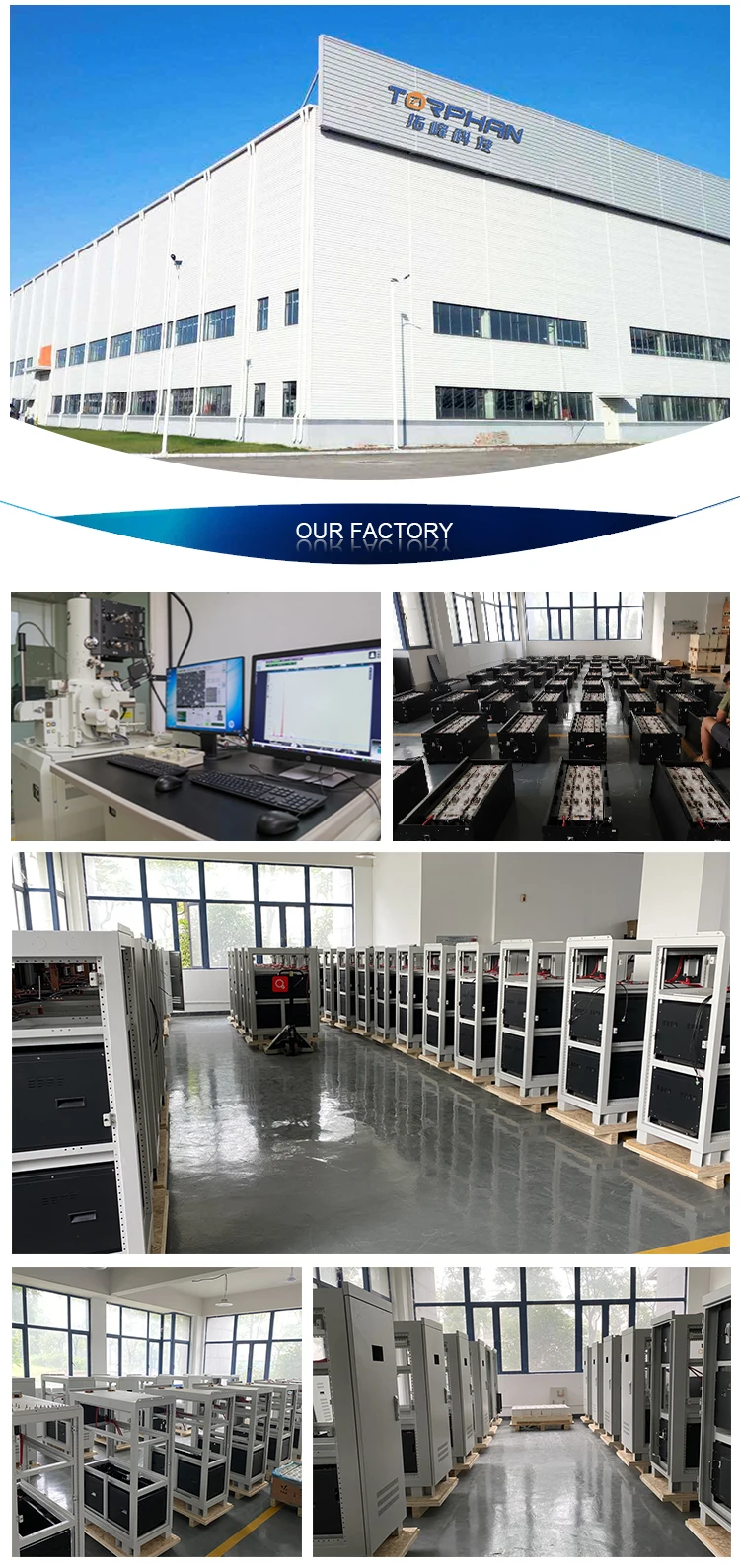

Company Profile
Nanjing Torphan Tech Co.,ltd is a high tech Company, specializing In Lithium Iron Energy storage system and power system, such as,UPS, Communication Base Station Energy storage system, Solar& wind energy storage system and Electric forklift power battery . Torphan aims to develop advanced and smart renewable energy and provide professional power solution to customers.
Torphan products have been commissioned in 30 countries and cooperated with thousand of distributors and contractors .Torphan is proudly contributing our strength in changing the way people generating and transferring and using the electricity
Torphan products have been commissioned in 30 countries and cooperated with thousand of distributors and contractors .Torphan is proudly contributing our strength in changing the way people generating and transferring and using the electricity

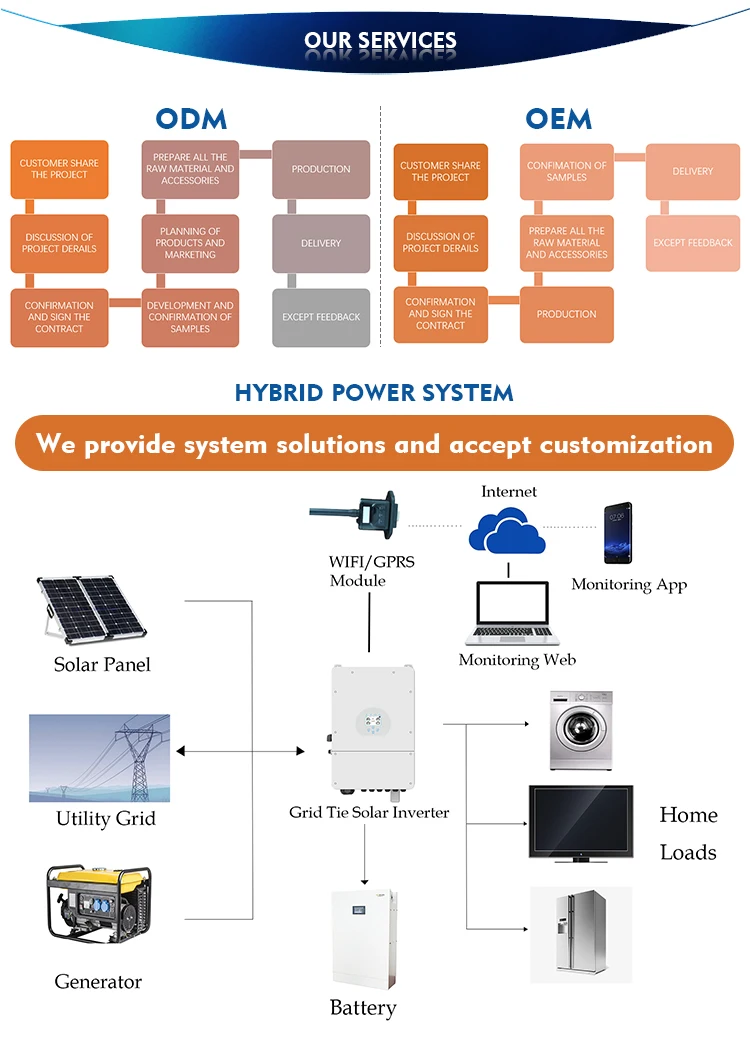

Our Service
