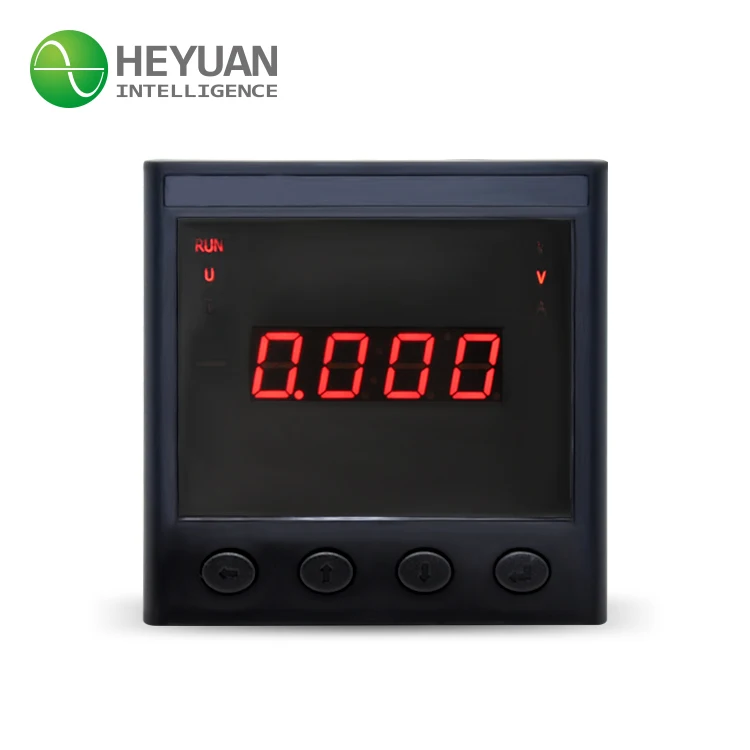

Digital AC Voltmeter and Ammeter LED Display Panel Power Meter

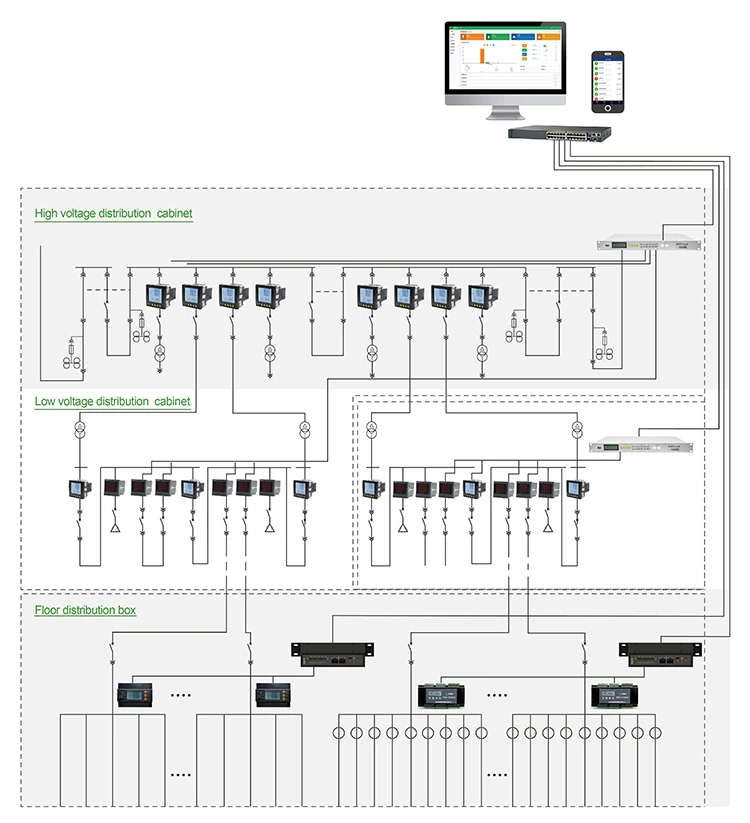

Series of DZ81-MS Single-phase Power Meters are used for measuring and monitoring the power distribution system. This series combines the measurement, the analysis and the operation together. People can check the figure of current or voltage by using the keys on the meter, which makes the information become clearer, and the operation become easier.

Functions

• Measuring single phase voltage,current,frequency,active power, reactive power,apparent power,power factor,active energy, reactive energy, active power, reactive power

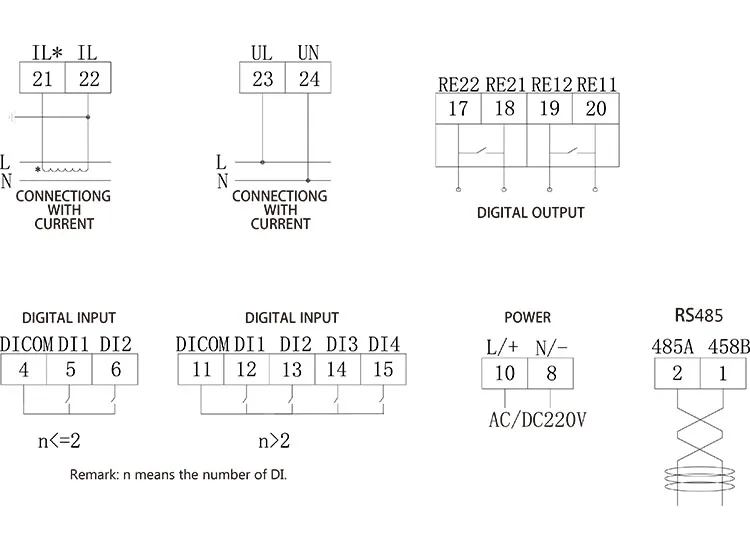

• Standard CT, PT or voltage direct connected, suitable for various wiring modes under high or low pressure environment
• 1 interface* RS485/Lora (optional)

• Modbus RTU communication protocol, DL/T645 (optional)
• 4 DI
• 2 DO (optional)

• 1* programmable energy pulse output
• LED display

Product Parameters

Accuracy Class		Voltage: 0.2; Current: 0.2; Frequency: 0.05 Hz; Power Factor: 0.5
		Active Power: 0.5; Reactive Power: 0.5; Apparent Power: 0.5
		Active Energy: 0.5S/1; Reactive Energy: 2
Input	Rated Value	Voltage: 100V/400V; Current: 1A/5A
	Overload	Voltage: Sustained Overload: 1.2 times of the rated value Momentary Overload: 2 times of the rated value Current: Sustained Overload: 1.2 times of the rated value Momentary Overload: 10 times of the rated value
	Frequency	45-60HZ
Functional Module	Interface	1 RS485; Modbus RTU Integration; Baud Rate: 1200-19200bps
Power Supply	Working Range	AC: 85-265V; DC: 85-300V
Power Supply	Consumption	< 3W
Working Condition	Temperature	Operating: -20℃ ~+70℃, Storage: -40℃ ~+80℃
	Humidity	Relative Humidity: <93% Place Without Corrosive Gas
	Altitude	<4000m

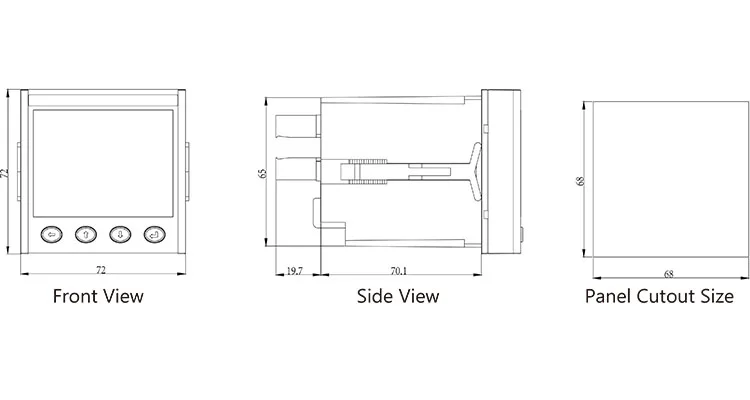

Installation		Panel installation, Cut-Out Size: 68×68(mm)

Product Details Show

Пользовательский логотип, тусклый лак, объем ресниц, тонкий Изогнутый пинцет, аппликатор для наращивания ресниц, пинцет для объема, частная этикетка

2,25-3 $

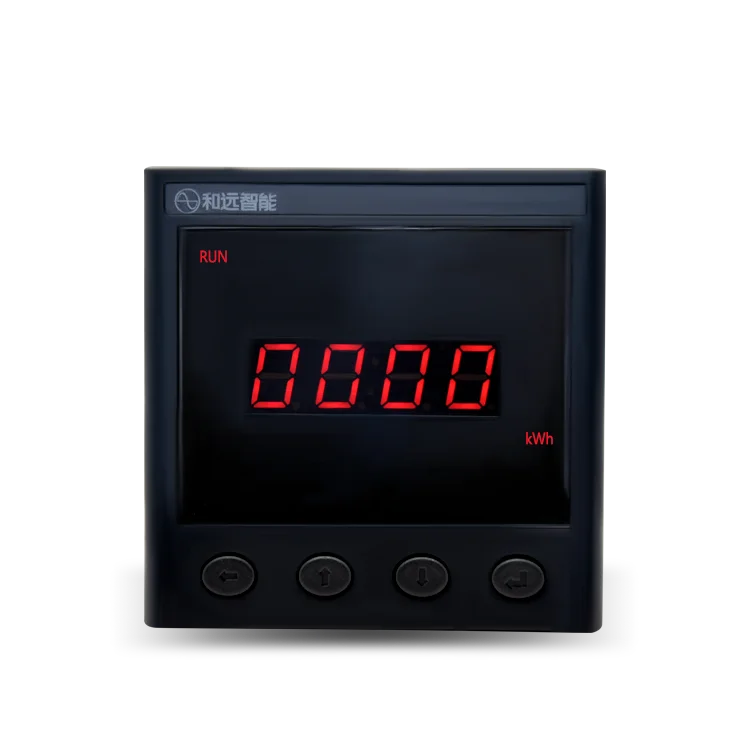

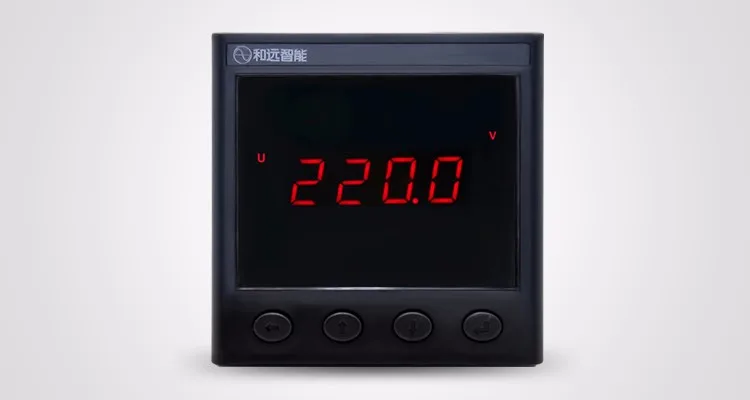

Digital AC Voltmeter and Ammeter LED Display Panel Power Meter
