2200W mobility scooter,mini golf cart
US $4650-$5650

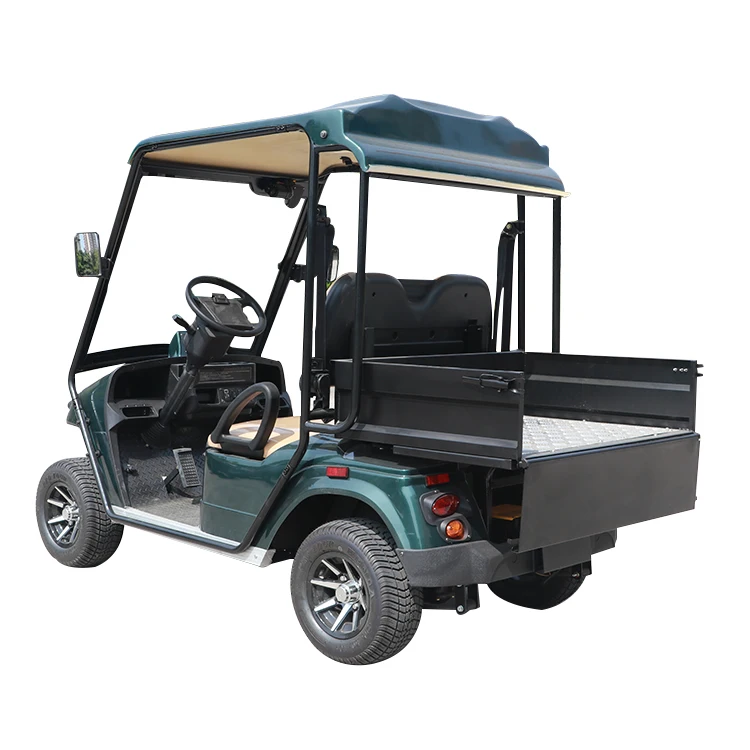

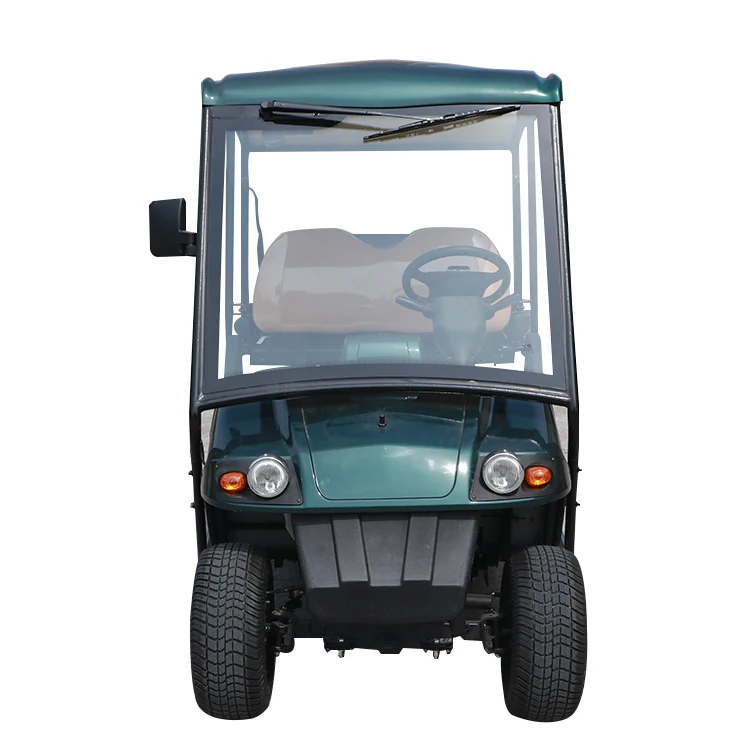

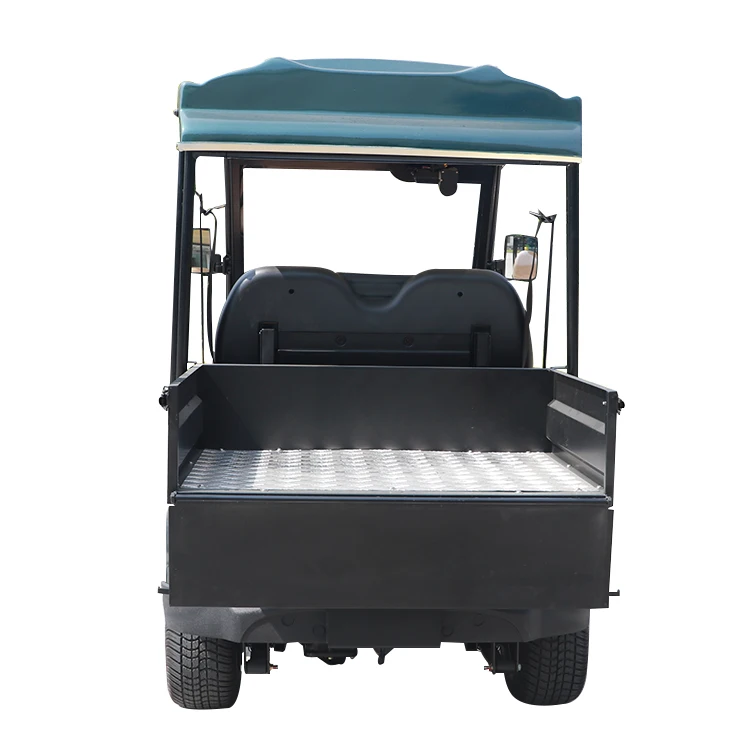

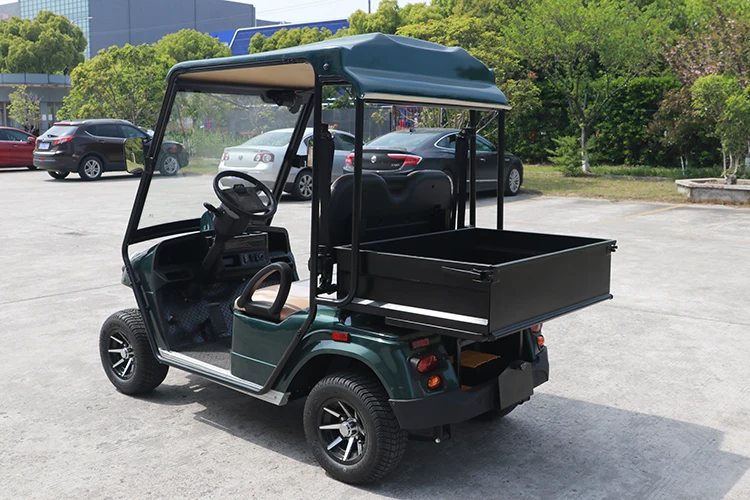

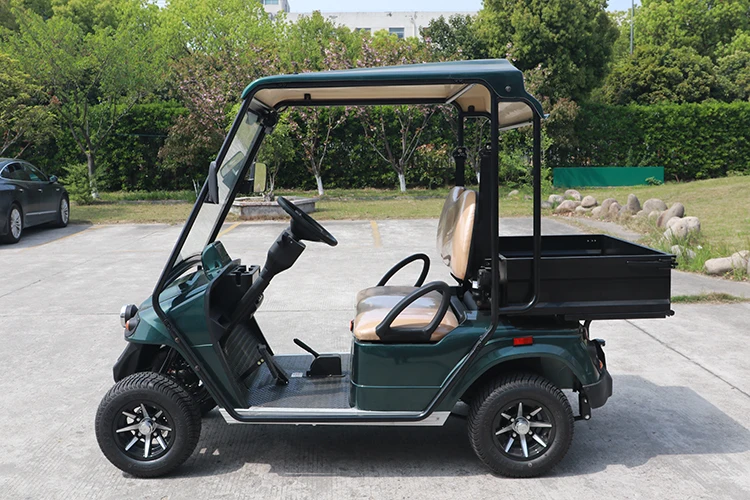

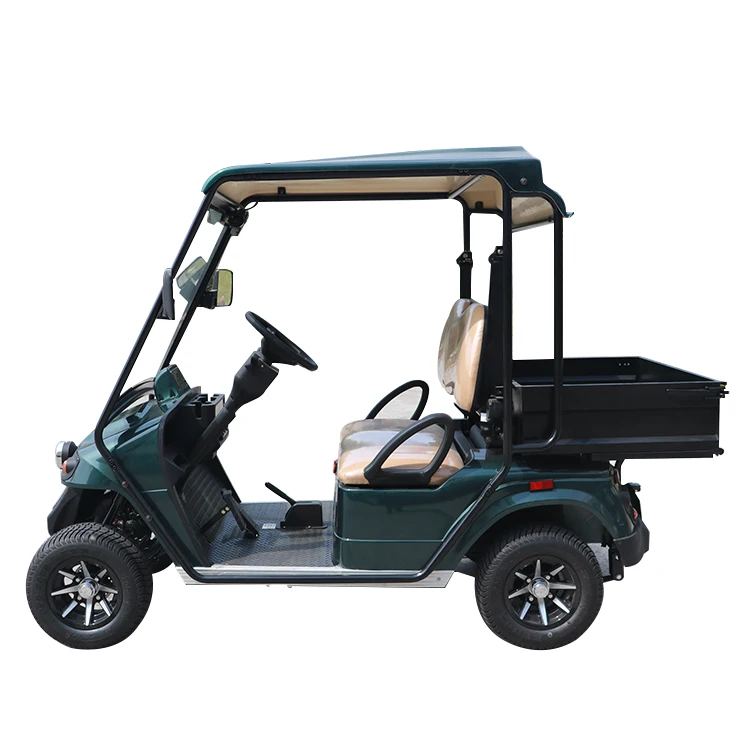

Suzhou EAGLE Competitive Price 2 Seats Electric Golf Car
- Category: >>>
- Supplier: Suzhou Eagle Electric Vehicle Manufacturing Co. Ltd.
Share on (62115871469):
Product Overview
Description
Product Description
| Model | EG2028HR | ||
| System | 48V/4KW Sepex | 48V/5KW AC System | 48V/4KW AC system |
| Key Components | |||
| Battery | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) |
| Motor | 3.8KW Chinese motor | 5KW Chinese Motor | 3.8KW AC motor |
| Controller | Curtis 1268 (400A@2minutes) | Zapi ACE2(400A@2minutes) | Zapi ACE0(280A@2minutes) |
| Performance | |||
| Passenger capacity | 2 | 2 | 2 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >80 | >100 | >100 |
| Max. speed @12.76:1 gear ratio | 30 | 32 | 32 |
| Max. speed @10.26:1 gear ratio | 40 | -- | -- |
| Minimum turning radius (m) | 3.5 | 3.5 | 3.5 |
| Max. climbing ability (loaded) @ 12.76:1 gear ratio | 20% | 20% | 20% |
| Max. climbing ability (loaded) @ 10.26:1 gear ratio | 15% | 15% | 15% |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m | ≤4m |
| Max. loading weight | 370kgs | 370kgs | 370kgs |
| Net weight | 530kgs | 540kgs | 581kgs |
| Dimensions | |||
| Overall dimensions (mm) | 2670X1180X1890 | ||
| Carbon steel+aluminium bottom | 770X1100X250(mm) | ||

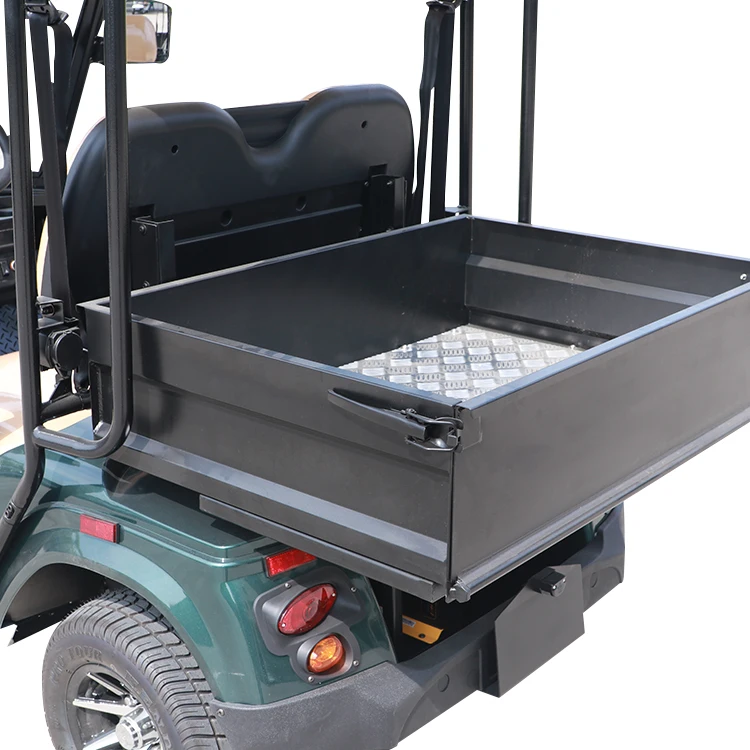

| Aluminum cargo box with Stainless Steel frame | 770X1100X250(mm) | ||
| Min. ground clearance (mm) | 120 | ||
| Wheelbase (mm) | 1700 | ||
| Front wheel tread (mm) | 855 | ||
| Rear wheel tread (mm) | 975 | ||
